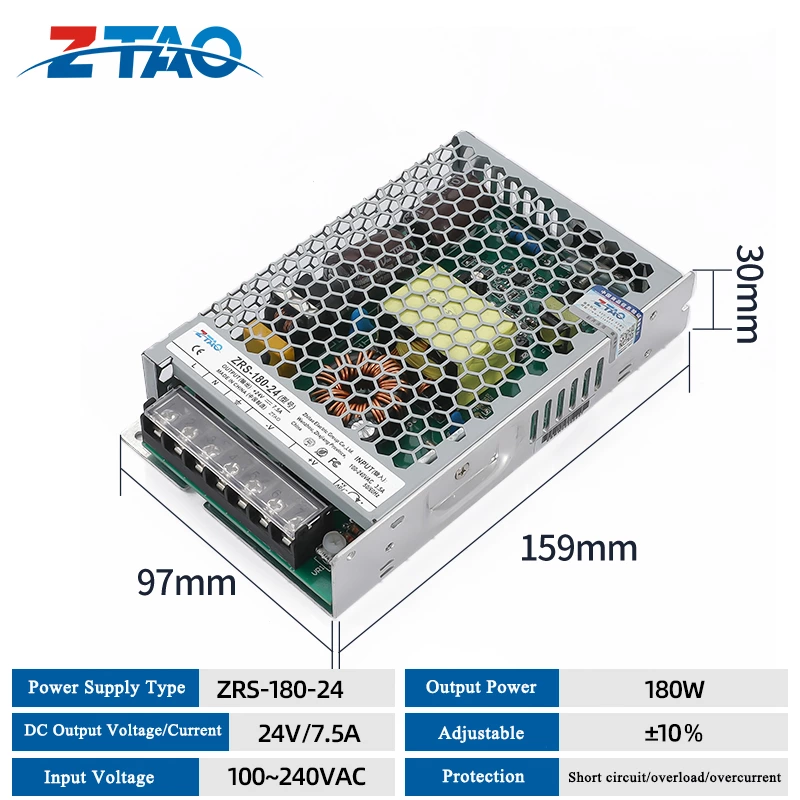

ZRS-180-12 220v Ac to 12v 24v 180W Dc Switching Power Supply smps 12v power adapters for 12v led drivers

12V 24V

ZRS-180-12 Ultrathin

Switching Power Supply

Features
1.High Efficiency and Factory Price

2.100% full load burn-in test

3.Low output ripple and noise

4.Direct Manufacturer

5.THREE YEARS WARRANTY!

6.Protection: Over load/Over voltage/Short circuit/Over Temperature

ZRS-180-12 220v Ac to 12v 24v 180W Dc Switching Power Supply smps 12v power adapters for 12v led drivers

Model	ZRS-180-12	ZRS-180-24
DC Voltage	12V	24V
Rated Current	15A	7.5A
Current range	0~15A	0~7.5A
Rated power	180W	180W
Ripple&noise	120mVp-P	120mVp-p
Voltage ADJ.	10.4~14.6V	21.6~26.4V
Efficiency	85%	88%
Over load	110%~140% in rated output power
	Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over voltage	13~18	29~34V
	Protection mode, tum off output voltage, restart to recover
