Ultra-thin power supply 24v 12V 400W ZRS-400-24 220v Ac Dc Power Supply smps power inverters for cctv led drivers

12V 24V

ZRS-400-24 Ultrathin

Switching Power Supply

Features
1.High Efficiency and Factory Price

2.100% full load burn-in test

3.Low output ripple and noise

4.Direct Manufacturer 5.THREE YEARS WARRANTY!

6.Protection: Over load/Over voltage/Short circuit/Over Temperature

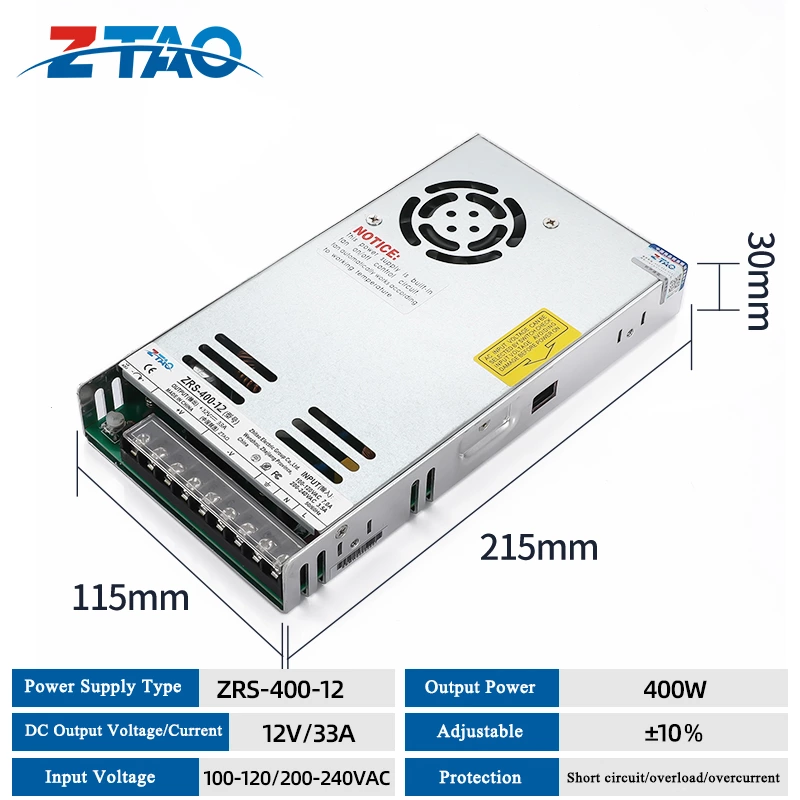

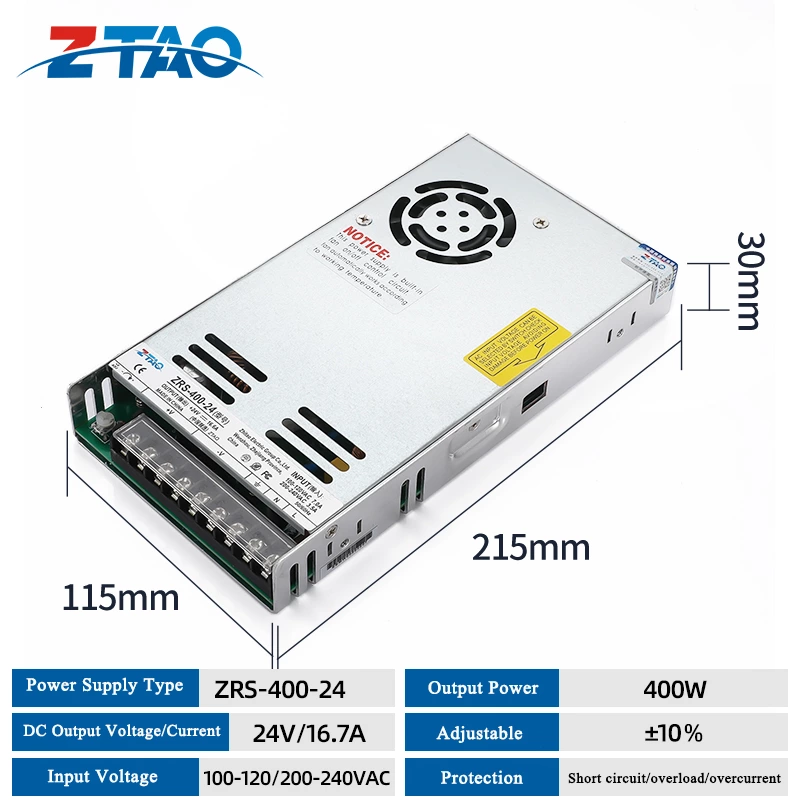

Model	ZRS-400-12	ZRS-400-24
DC Voltage	12V	24V
Rated Current	33A	16.7A
Current range	0~33A	0~16.7A
Rated power	400W	400W
Ripple&noise	150mVp-P	150mVp-p
Voltage ADJ.	10.4~14.6V	21.6~26.4V
Efficiency	85%	89%
Over load	110%~140% in rated output power
	Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over voltage	13~18V	29~34V
	Protection mode, tum off output voltage, restart to recover
