MODEL
|
|
ZER-480-24
|
ZER-480-48
|
|
|
OUTPUT
|
DC Voltage
|
24V
|
48V
|
|
|
Rated Current
|
20A
|
10A
|
||
|
Current range
|
0~20A
|
0~10A
|
||
|
Rated power
|
480W
|
480W
|
||
|
Ripple&noise
|
80mVp-p
|
120mVp-p
|
||
|
Voltage ADJ.
|
24~28V
|
48~53V
|
||
|
Voltage tolerance
|
±1.0%
|
±1.0%
|
||
|
Line regulation
|
±0.5%
|
±0.5%
|
||
|
Load regulation
|
±1.0%
|
±1.0%
|
||
|
Setup,Rise,Time
|
500ms, 70ms/230VAC 500ms，70ms/115VAC(full load)
|
|||
|
Hold up time
|
36ms/230VAC 32ms/115VAC(full load)
|
|||
|
INPUT
|
Voltage range
|
100～264VAC 140～370VDC
|
||
|
Frequency range
|
50~60Hz
|
|||
|
Efficiency
|
86%
|
87%
|
||
|
AC current
|
2.25A/115VAC 1.3A/230VAC
|
|||
|
Inrush current
|
Cold start: 20A/115VAC 35A/230VAC
|
|||
|
Leakage current
|
<3.5mA/240VAC
|
|||
|
PROTECTION
|
Over load
|
105%~150% rated output power
|
||
|
Protection type : Hiccup mode,recovers automatically after fault condition is removed
|
||||
|
Over voltage
|
29~33V
|
56~65V
|
||
|
Protected mode: turn off the output and restore the normal output after the power is restarted
|
||||
|
href="#/javascript:;" Excess temperature
|
Protection mode: turn off the output voltage, it can be automatically restored when the temperature returns to normal
|
|||
|
Environment
|
Working TEMP
|
-10℃~+60℃
|
||
|
Working humidity
|
20%~90% RH non-condensing
|
|||
|
Storage TEMP humidity
|
-20℃~+75℃. 10~95% RH
|
|||
|
TEMP.coefficient
|
±0.03%℃(0~50℃)
|
|||
|
Vibration
|
10~500Hz，2G 10min./1cycle，60min each along X,Y,Z axes Install conform to IEC60068-2-6
|
|||
|
SAFETY
|
Safety regulations
|
CE FCC ROHS Certified UL508, UL60950-1,TUV EN60950-1 EAC TPTC 004 In line with the certification
|
||
|
Withstand voltage
|
I/P-O/P:1.2KVAC I/P-FG:1.2KVA O/P-FG:0.5KVAC
|
|||
|
Insolation resistance
|
l/P-O/P I/P-FG, 0/P-FG: 100M Ohms/500VDC/25℃/70% RH
|
|||
|
Electromagnetic compatible emission
|
Compliance to EN55032(CISPR32)CLASS B, EN61000-3-2,-3,EAC TP TC 020
|
|||
|
href="#/javascript:;" EMC immunity requirements
|
Compliance to EN61000-4-2,3.4.5.6.8,11. EN55024,EN1000-6-2(EN50082-2),
Class A heavy industry standard EAC TP TC 020 |
|||
|
OTHERS
|
MTBF
|
≥456.3K hrs.MIL-HDBK-217F(25℃)
|
||
|

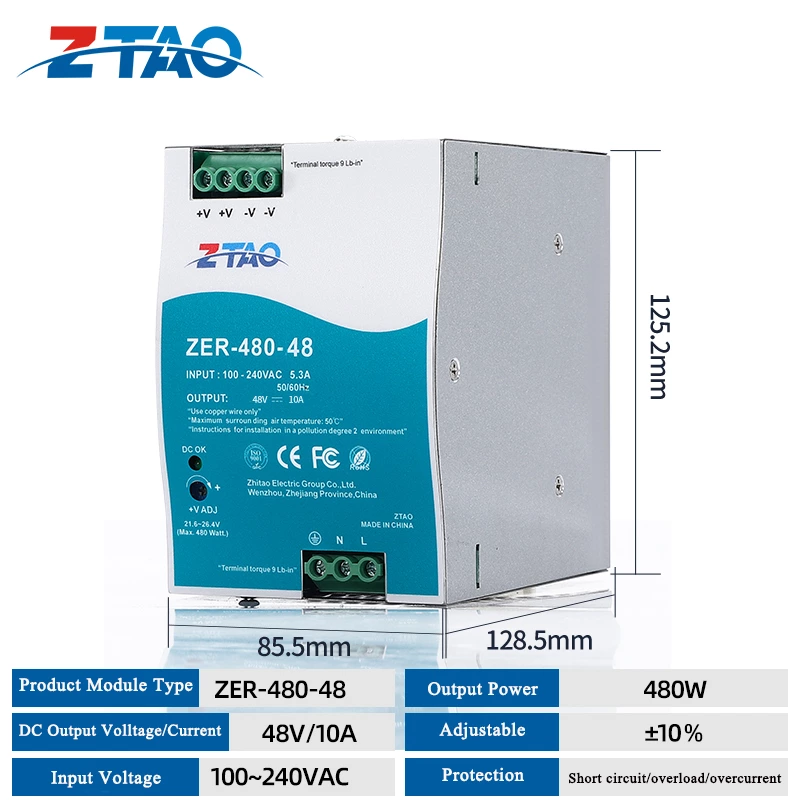

Dimension
|
85.5*128.5*125.2mm(*W*H*D)
|
|||
|
Packing
|
1.2Kg:36PCS/18Kg
|
|||
