ZER DinRail Switch Power Supply

ZER-240-24 Din rail power supply 240W 24v 10 48V 5A CCTV Power Supplies

ZER-240-24 240W 24v 10 48V 5A CCTV Power Supplies
Place of Origin;
Yueqing,Wenzhou city, Zhejiang province ,China
Brand Name:
ZTAO
Model Number:
ZER-240-24
Output Type:
Single
Input Voltage:
100~240VAC
Output Voltage:
12v/36V24V/48V can be choose
Output Frequency:
50~60Hz
Output Current:
10A/5A
Output Power
240W
Efficiency:
86%
Workig Temperature:
-10℃~+60℃
Certification:
CE FCC ROHS ISO9001
Test:
100% full load burn-in test
Protection:
Short circuit Overtemperature Overload Overvoltage
Warranty
3 year
Size
63*113.5*125.2mm

ZER-240-24 Din rail power supply 240W 24v 10 48V 5A CCTV Power Supplies

  • AC to DC 24V 10A 240w switching power supply



Features
1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
6.THREE YEARS WARRANTY!
7.Direct Manufacturer
ZER-240-24 Din rail power supply 240W 24v 10 48V 5A CCTV Power Supplies

Model

ZER-240-24

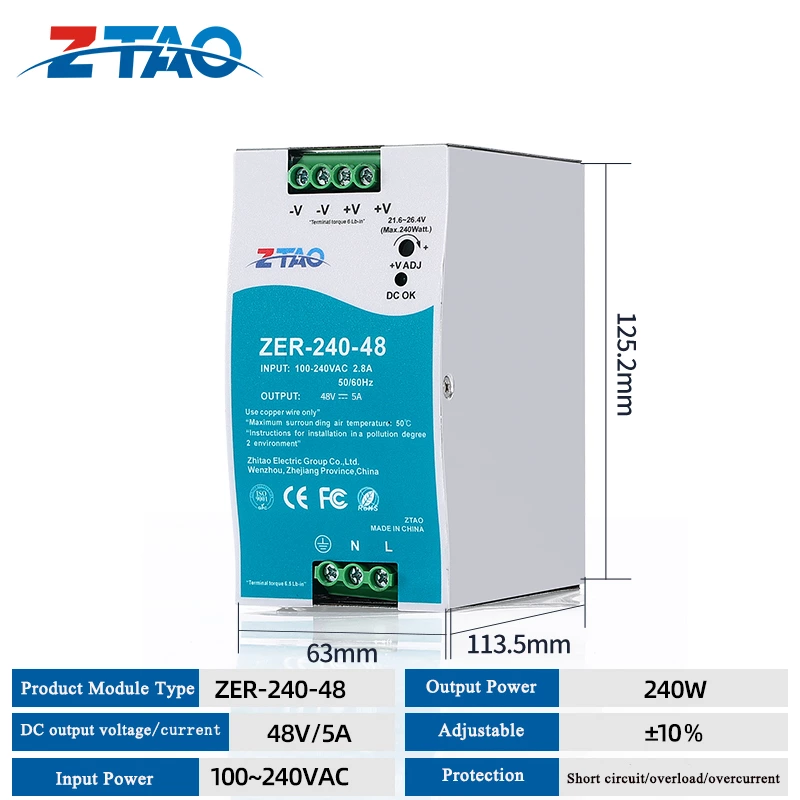

ZER-240-48

DC Voltage

24V

48V

Rated Current

10A

5A

Current range

0~10A

0~5A

Rated power

240W

240W

Ripple&noise

80mVp-p

120mVp-p

Voltage ADJ.

24~28V

48~53V

Efficiency

86%

87%



Over load

105%~150% in rated output power



Protected mode: constant current mode, can be automatically restored after the load abnormal condition is removed



Over voltage

15~17V

29~33V

Protected mode: turn off the output and restore the normal output after the power is restarted

Excess temperature

Protection mode: turn off the output voltage, it can be automatically restored when the temperature returns to normal
