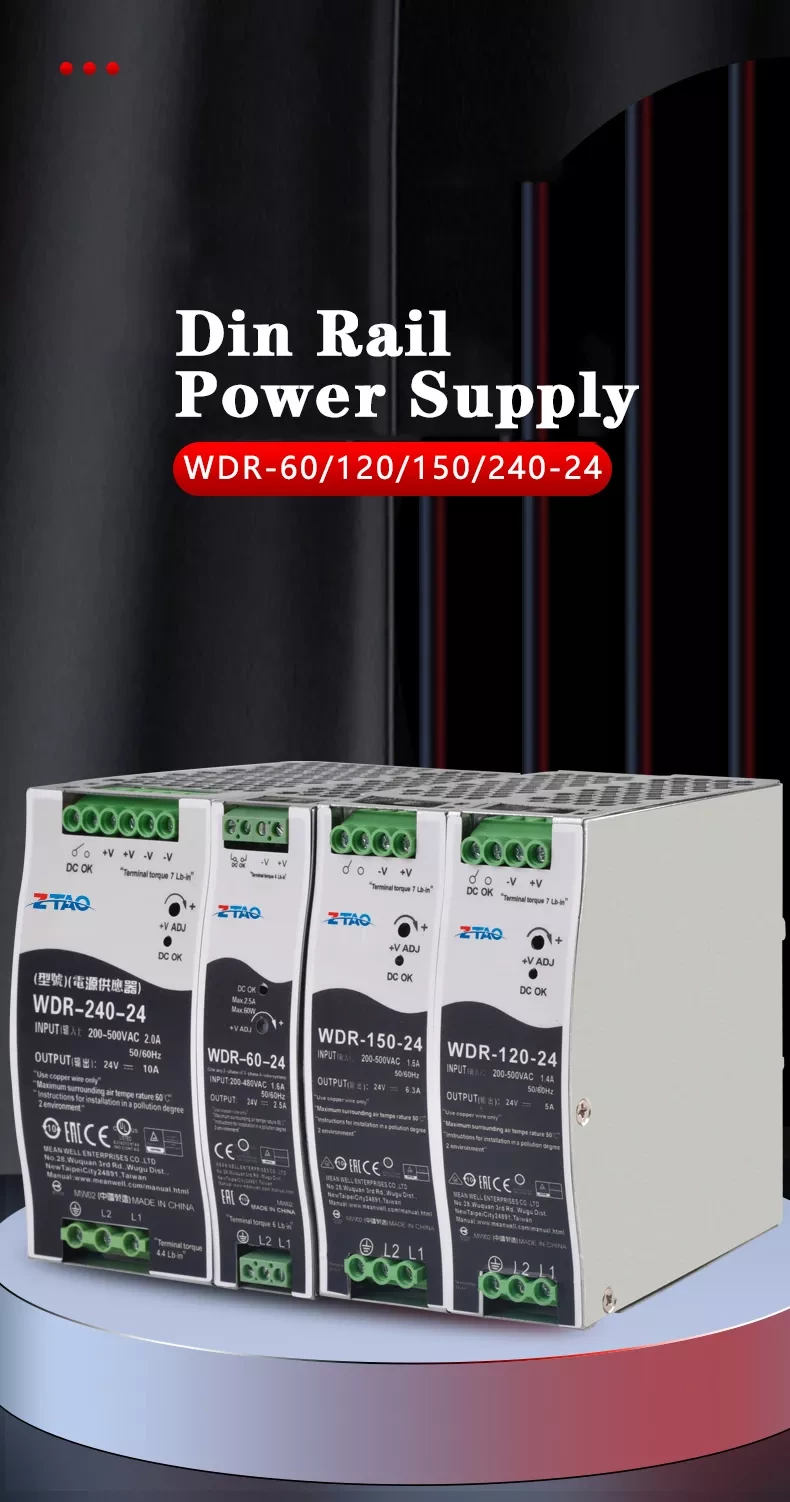

WDR Din Rail Switch Power Supply

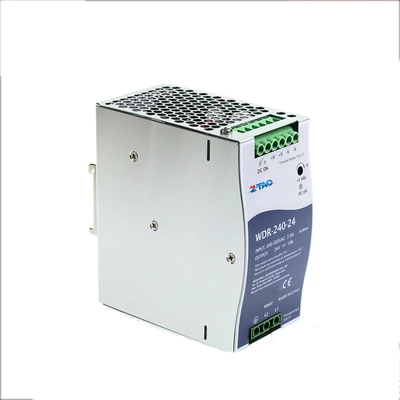

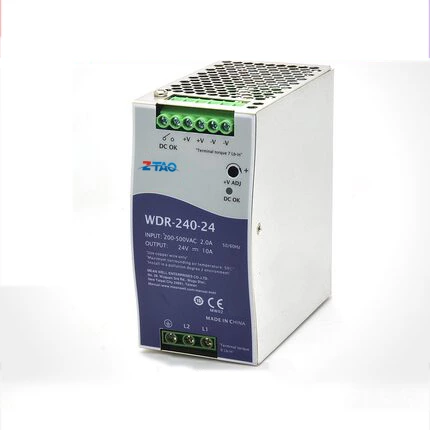

Ztao 240W WDR-240-24 24V 10A 380V to 24V 48V Regulated Power Supply

Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
WDR-240-24
Output Type:
Single
Input Voltage:
180~550VAC or 254~780VDC
Output Voltage:
24V
Output Frequency:
47~63Hz
Output Current:
47~63Hz
Output Power
47~63Hz
Efficiency:
91%
Workig Temperature:
-30~+70℃
Certification:
CE FCC ROHS
Test:
100%Full Load Burn-in Test

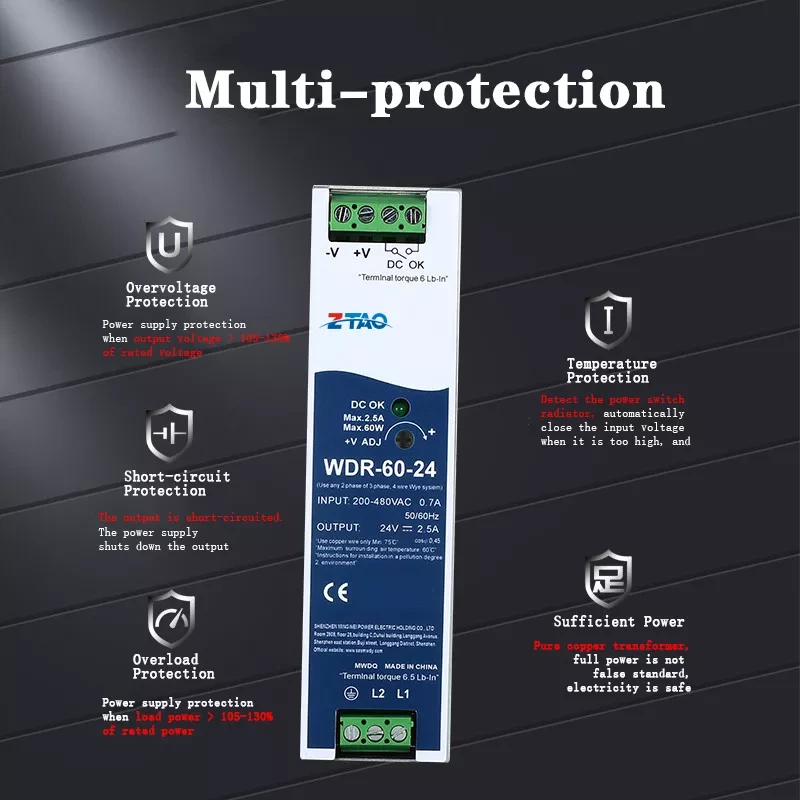

Protection:
OCP OVP SCP OPP
Warranty
3 Years

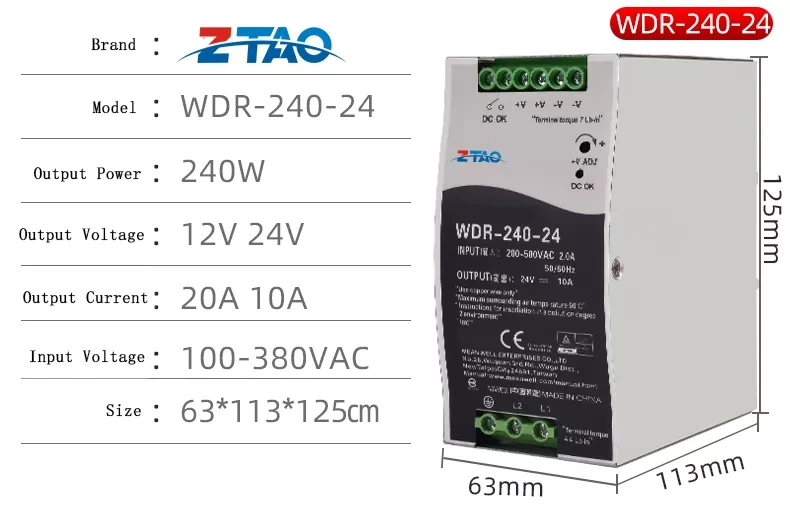

Size
63*125.2*113.5mm(W*H*D)

Ztao 240W WDR-240-24 24V 10A 380V to 24V 48V Regulated Power Supply

Model WDR-240-24 WDR-240-48
DC Voltage 24v 48V
Rated Current 10A 5A
Current range 0~10A 0~5A
Rated power 240W 240W
Ripple&noise 150mVp-p 150mVp-p
Voltage ADJ 24~28V 48~55V
Efficiency 91% 91%

Over load
105% to 135% rated output power
Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed
Conslant current limiting within 50% ~100% rated output voltaqe, recovers automatically after fault condition is removed

Over voltage
29~33V 56~65V
Protective mode; Close the output and restart to restore
