UPS Charging Power

Sc-35-12 35w Uninterrupted Power Supply Overload/short Circuit Protection Ups Power Supply

Model SC-35-24 SC-60-24 SC-120-24 SC-180-24 Direct Voltage CH1:27.6V CH1:26.5V CH1:27.6V CH1:26.5V CH1:27.6V CH1:26.5V CH1:27.6V CH1:26.5V Rated Current 1.0A 0.3A 2.0
Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
SC-35-12
Output Type:
Single
Input Voltage:
100~120/200~260VAC(Switch)or 255~365VDC
Output Voltage:
12V
Output Frequency:
50-60HZ
Output Current:
2.0A 0.4A
Output Power
35W
Efficiency:
81%
Workig Temperature:
-10℃~+60℃
Certification:
CE FCC ROHS
Test:
100%Full Load Burn-in Test
Protection:
Short Circuit Overload
Warranty
3 Years

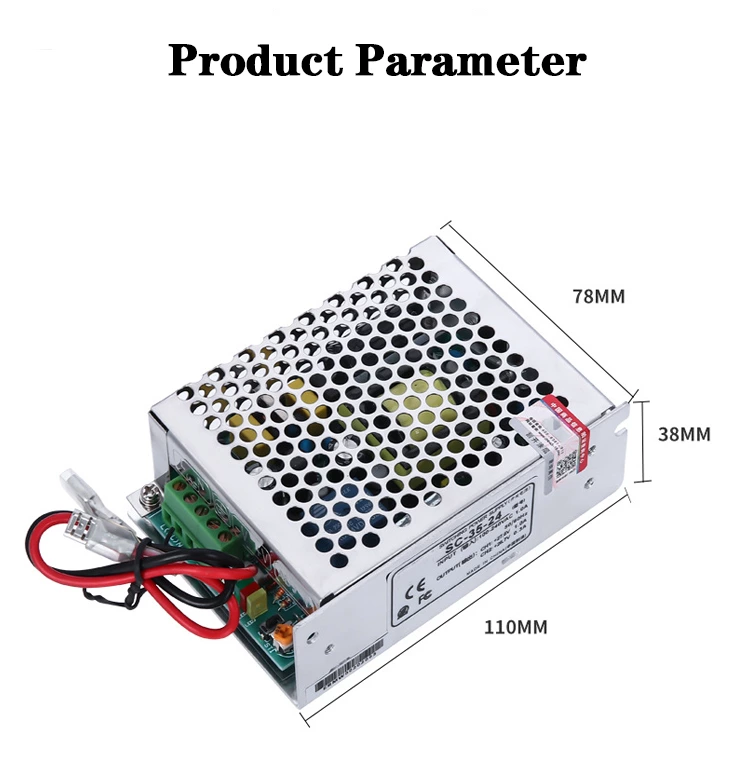

Size
110*78*38mm



Model

SC-35-24

SC-60-24

SC-120-24

SC-180-24

Direct Voltage

CH1:27.6V

CH1:26.5V

CH1:27.6V

CH1:26.5V

CH1:27.6V

CH1:26.5V

CH1:27.6V

CH1:26.5V

Rated Current

1.0A

0.3A

2.0A

0.25A

4.0A

0.5A

6.5A

1.0A

Output Current Range

0-1.0A

---

0-2.0A

---

0-4.0A

---

0-7.6A

---

Rated Power

35.6W

61.8W

118.4W

183.6W
398.4W

Ripple and noise

120mVP-p

---

100mVP-p

---

180mVP-p

---

180mVP-p

---

Voltage Adjustable Range

CH1:21.3~29.8V

CH1:21.3~29.8V

CH1:21.3~29.8V

CH1:21.3~29.8V

Input Voltage

100~260VAC or 140~365VDC

100~120/200~260VAC(Switch)or 255~365VDC

Efficiency

83%

83%

85%

85%

UPS Function Introduction

Long-term online floating charge of the battery, high charging efficiency,
battery fullness can be as high as 90% or more

The battery will stop automatically when it is full to prevent the battery
from being overcharged and effectively extend the battery life

Automatic switching of mains/battery, no switching time, no need for people to watch directly

Cold start function, when there is no mains power, the battery can be used to
start ups directly to meet the emergency needs of users
