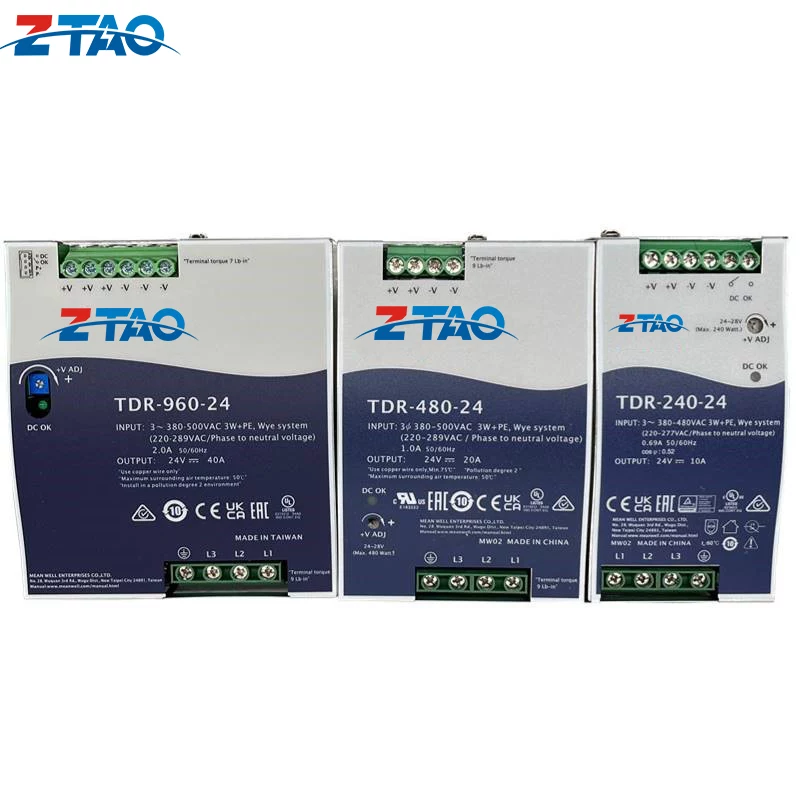

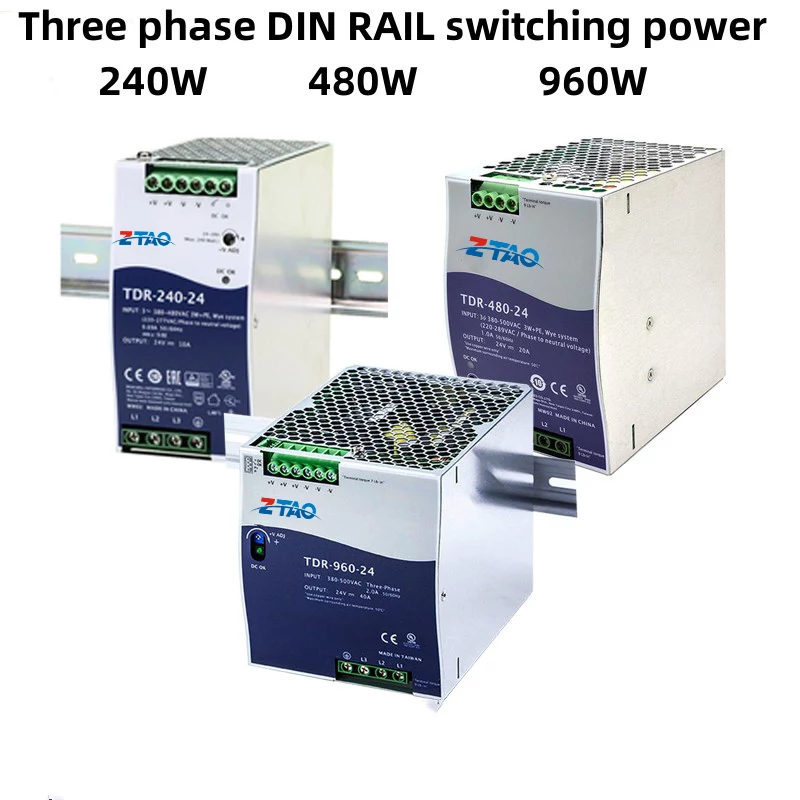

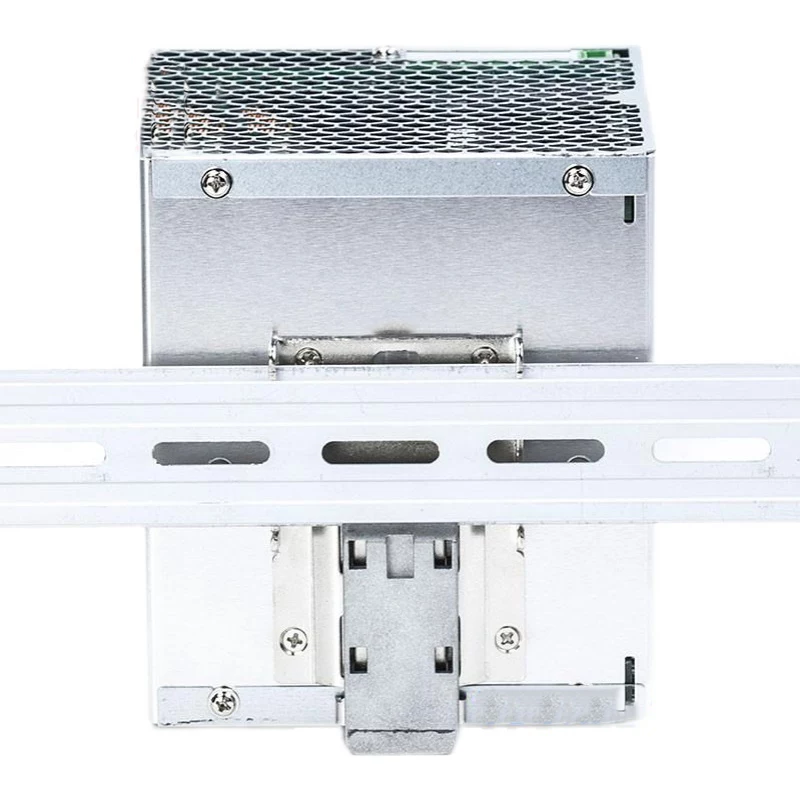

TDR Din Rail Switch Power Supply

Tdr Switching Power Supply 240W 480W 960W 24V 40A Pfc DIN Rail Three-Phase Rail Power LED Driver

Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
TDR
Input Voltage:

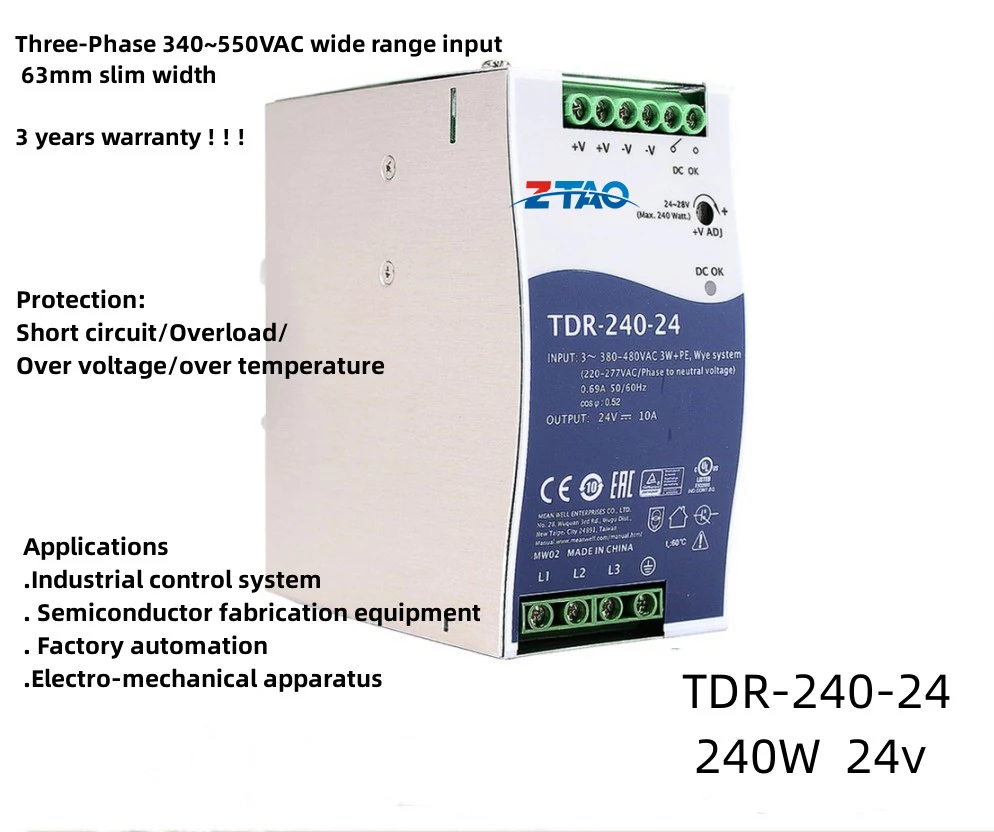

Three-Phase 340~550VAC Wide Range Input(Dual Phase
Output Voltage:
12V / 24V
Output Frequency:
47~63Hz
Output Current:
20A
Output Power
240W 480W 960W can be choose
Efficiency:
92%
Workig Temperature:
-30~+70℃
Certification:
CE FCC ROHS
Test:
100%Full Load Burn-in Test
Protection:
OCP OVP SCP OPP
Warranty
3 Years
Size

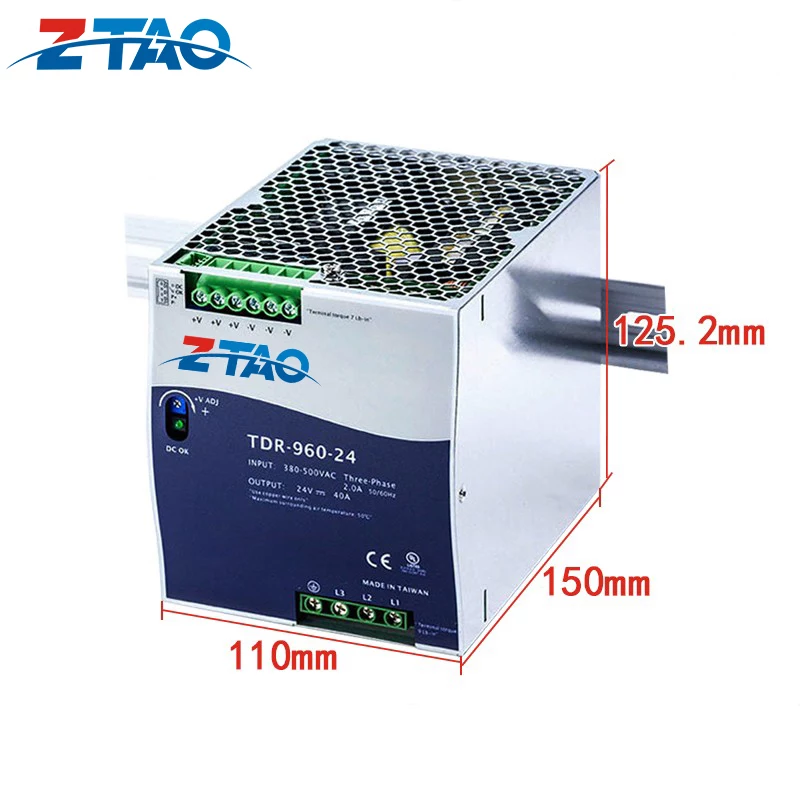

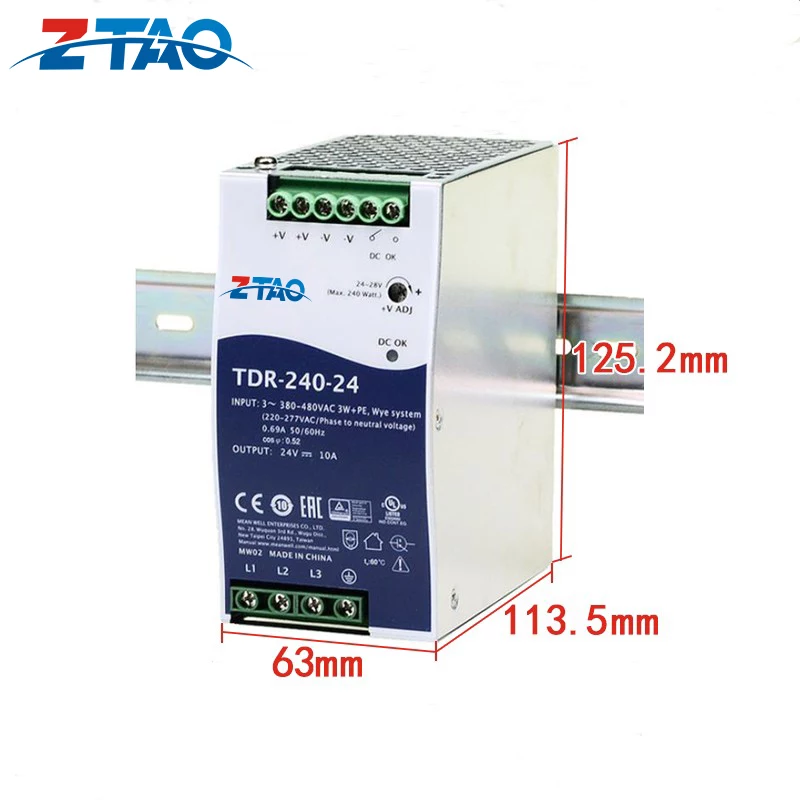

63*113.5*125.2mm / 85.5*128.5*125.2mm / 110*150*125.2mm



Tdr Switching Power Supply 240W 480W 960W 24V 40A Pfc DIN Rail Three-Phase Rail Power LED Driver

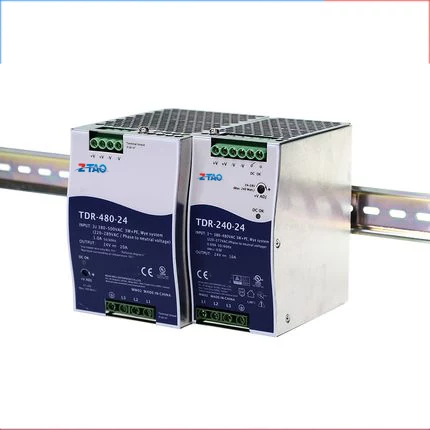

Model TDR-480-24 TDR-480-48
DC Voltage 24v 48V
Rated Current 20A 10A
Current range 0~20A 0~10A
Rated power 480w 480w
Ripple&noise 150mVp-p 150mVp-p
Voltage ADJ 24~28V 48~55V
Efficiency 92.5% 93%

Over load
When the rated output power is 110% to 150%, turn off the output voltage after working for more than 3 seconds and restart the
device
150%~170% rated output power, constant current limit and automatic recovery within 3 seconds, 3 seconds after the output voltage
off, restart recovery

Over voltage
29~33V 58~65V
Protective mode; Close the output and restart to restore
