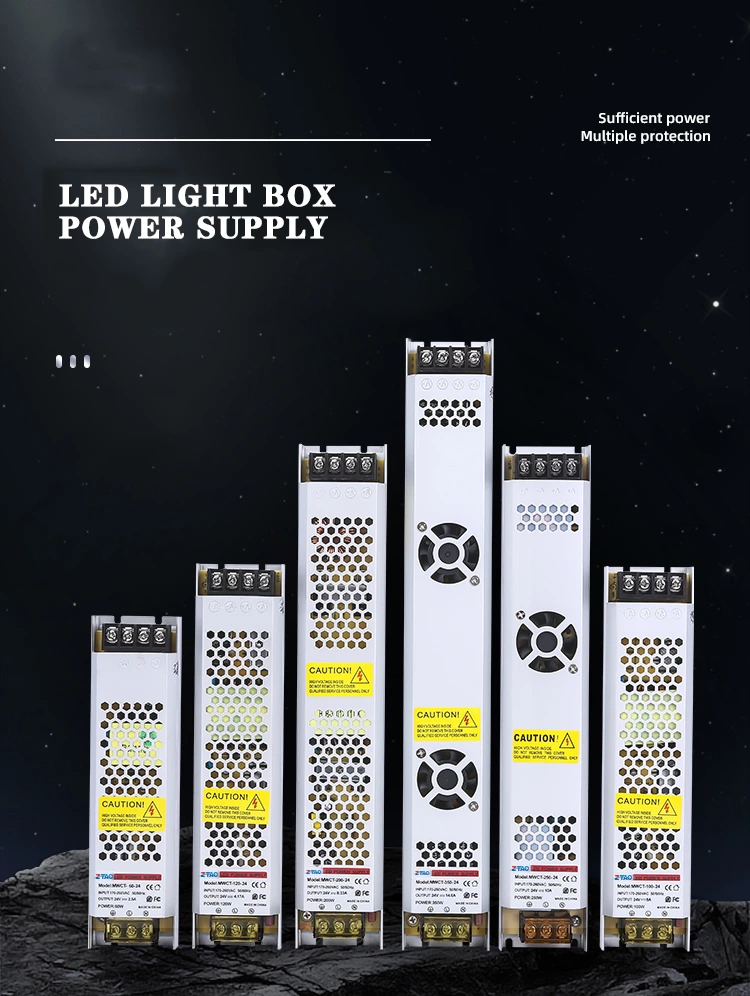

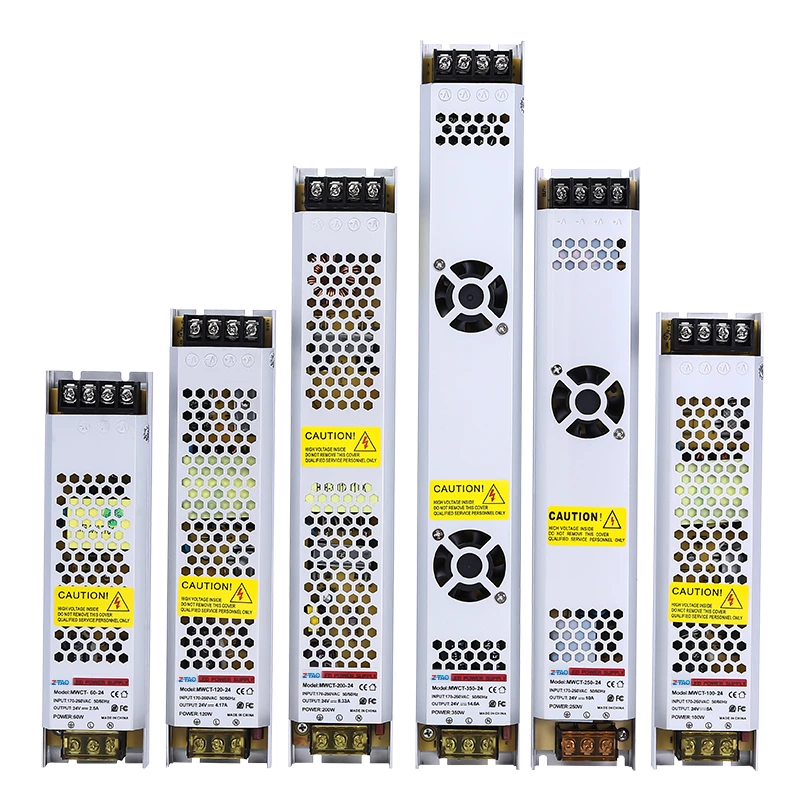

Strip Light Box Power Supply

LED Driver LED Strip Module 24V Switch Power Supply CCTV Camera 24VDC Transformer Light Box Power Source

Model CT-60-24 CT-100-24 CT-120-24 CT-150-24 CT-200-24 Direct Voltage 24V 24V 24V 24V 24V Rated Current 2.5A 4.17 5A 6.25A 8.33A Rated Power 60W 108.08W 120W
Place of Origin;
Zhejiang, China
Brand Name:
ZTAOJT
Model Number:

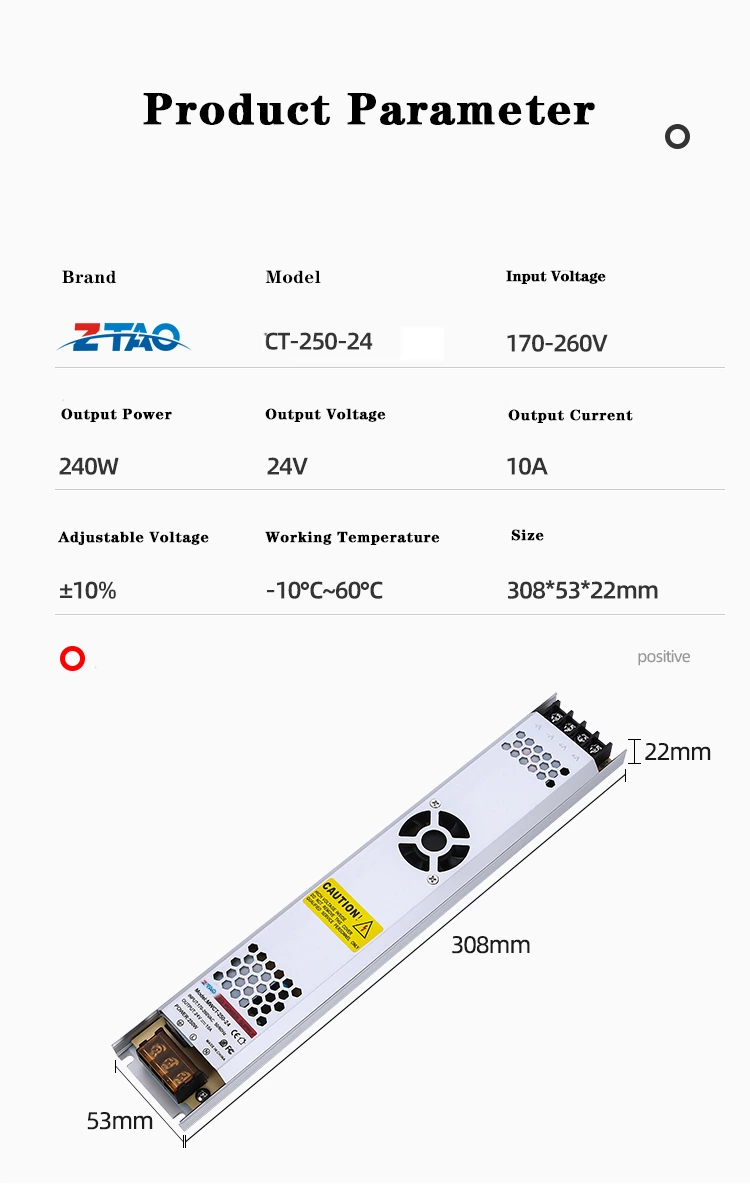

CT-250-24
Output Type:
Single
Input Voltage:
175-240VAC 245-340VDC
Output Voltage:
24V
Output Frequency:
50-60HZ
Output Current:
8.3A
Output Power
240W
Efficiency:
85%
Workig Temperature:
-10℃-+60℃
Certification:
CE FCC ROHS ISO9001
Test:
100%Full Load Burn-in Test
Protection:
Short Circuit Overtemp Overload Overvolt
Warranty
3 Years

Model

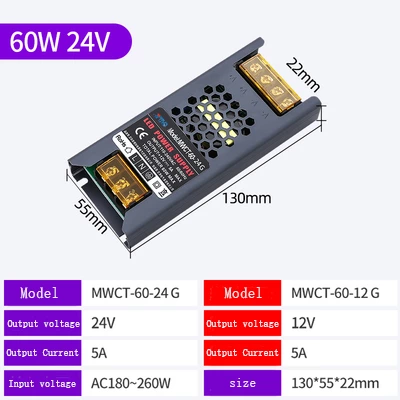

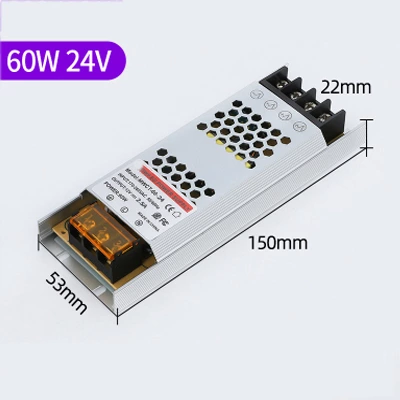

CT-60-24

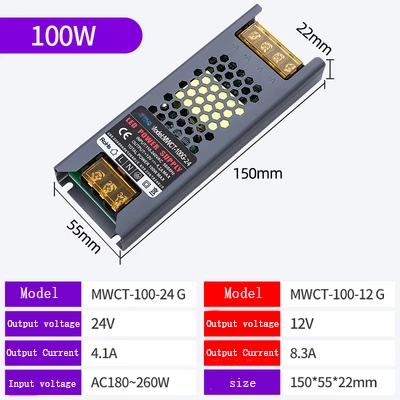

CT-100-24

CT-120-24

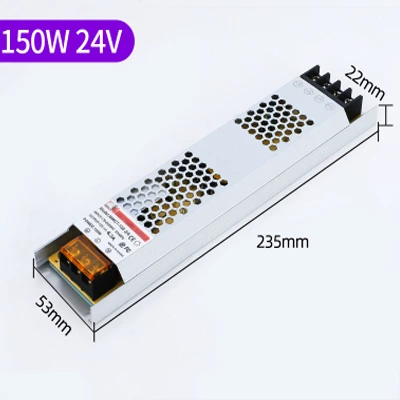

CT-150-24

CT-200-24

Direct Voltage

24V

24V

24V

24V

24V

Rated Current

2.5A

4.17

5A

6.25A

8.33A

Rated Power

60W

108.08W

120W

150W

199.92W

Ripple and noise

150mVP-p

150mVP-p

100mVP-p

150mVP-p

150mVP-p

Voltage range

23-26V

23-26V

23-26V

23-26V

23-26V

Input Voltage

170-260VAC

Efficiency

85%

85%

85%

86%

86%

Model

CT-250-24

CT-300-24

CT-350-24

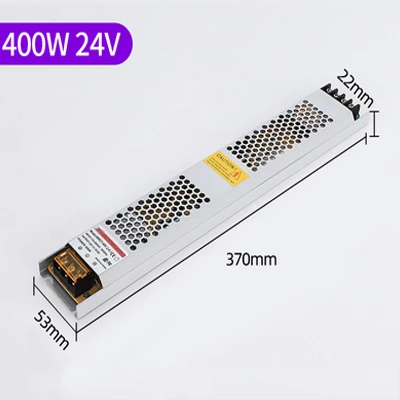

CT-400-24

Direct Voltage

24V

24V

24V

24V

Rated Current

10A

12.5A

14.6A

16.6A

Rated Power

240W

300W

350.4W

398.4W

Ripple and noise

180mVP-p

180mVP-p

180mVP-p

180mVP-p

Voltage range

23-26V

23-26V

23-26V

23-26V

Input Voltage

170-260VAC

Efficiency

85%

84%

85%

83%
