Model |
SDR-480-24 |
SDR-480-48 |
|
DC Voltage |
24v |
48V |
|
Rated Current |
20A |
10A |
|
Current range |
0~20A |
0~10A |
|
Rated power |
480w |
480w |
|
Ripple&noise |
100mVp-p |
120mVp-p |
|
Voltage ADJ |
24~28V |
48~55V |
|
Efficiency |
94% |
94% |
|
|

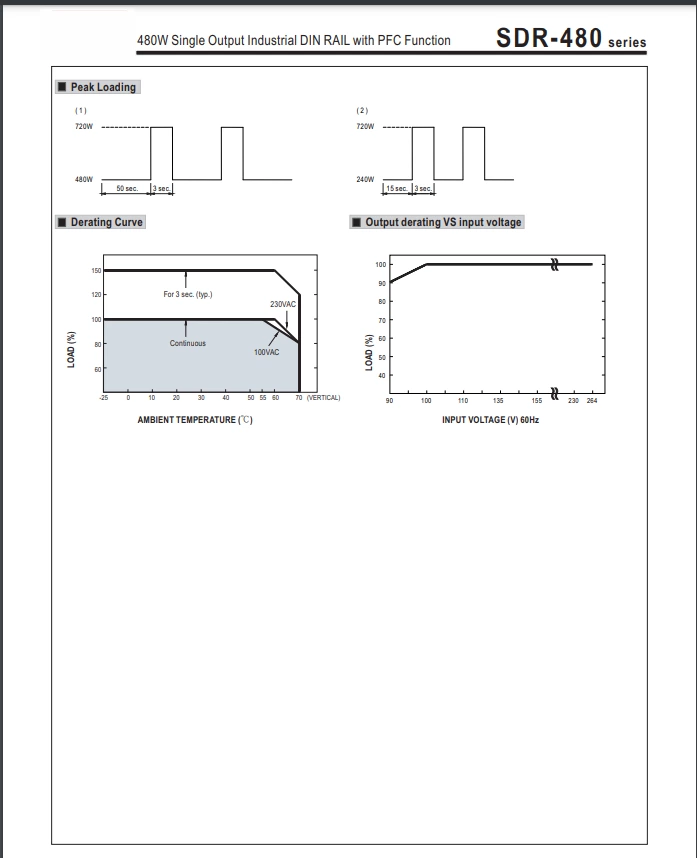

When the rated output power is 110% to 150%, turn off the output voltage after working for more than 3 seconds and restart the |
|
|
150%~170% rated output power, constant current limit and automatic recovery within 3 seconds, 3 seconds after the output voltage |
||
|
|
29~33V |
58~65V |
|
Protective mode; Close the output and restart to restore |
||
