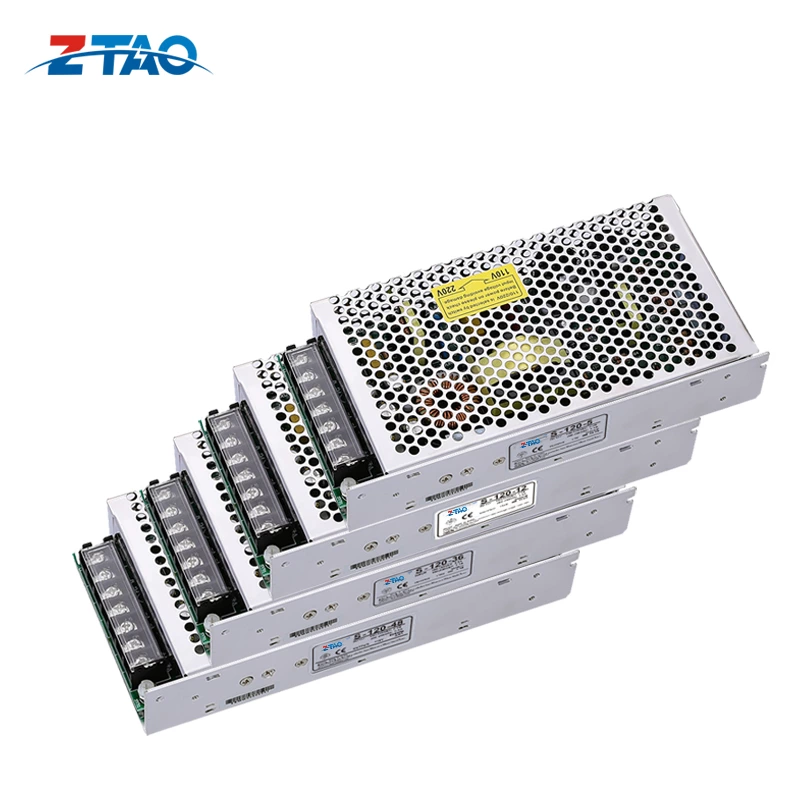

| MODEL | S-120-5 | S-120-12 | S-120-24 | S-120-36 | S-120-48 | ||
| OUTPUT | DC Voltage | 5V | 12V | 24V | 36V | 48V | |
| Rated Current | 24A | 10A | 5A | 3.3A | 2.5A | ||
| Current range | 0~24A | 0~10A | 0~5A | 0~3.3A | 0~2.5A | ||
| Rated power | 120W | 120W | 120W | 118.8W | 120W | ||
| Ripple&noise(max.) | 76mVp-p | 120mVp-p | 120mVp-p | 240mVp-p | 240mVp-p | ||
| Voltage ADJ. range | 5~7V | 12~14V | 24~28V | 36~38V | 48V~53V | ||
| Voltage tolerance | ±2.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ||
| Line regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||
| Load regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||
| Setup,Rise,Time | 500ms, 70ms/230VAC 500ms，70ms/115VAC(full load) | ||||||
| Hold up time(typ) | 36ms/230VAC 32ms/115VAC(full load) | ||||||
| INPUT | Voltage range | 100～132VAC/185～264VAC 260～370VDC（switch on220VAC） | |||||
| Frequency range | 50~60Hz | ||||||
| Efficiency (Typ) | 80% | 80% | 84% | 84% | 85% | ||
| AC current (Typ) | 2.6A/115VAC 1.6A/230VAC | ||||||
| Inrush current (Typ) | Cold start:20A/115VAC 40A/230VAC | ||||||
| Leakage current | <2.5mA/240VAC | ||||||
| PROTECTION | Over load | 105%~150% in rated output power | |||||
| Protection type: Hiccup mode,recovers automatically after fault condition is removed | |||||||
| Over voltage | 8~10V | 15~16.5V | 29~33V | 40~45V | 58~65V | ||
| Protection mode,tum off output voltage, restart to recover | |||||||
| Environment | Working TEMP | -10℃~+60℃ | |||||
| Working humidity | 20~90% RH non-condensing | ||||||
| Storage TEMP humidity | -10℃~+65℃. 10~95% RH | ||||||
| TEMP.coefficient | ±0.03%℃(0~50℃) | ||||||
| Vibration | 10~500Hz，2G 10min./1cycle，60min each along X,Y,Z axes Install in accordance with IEC60068-2-6 | ||||||
| SAFETY | Safety regulations | UL60950-1,TUV EN60950-1，GB4939.1 In line with the certification | |||||
| Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.4KVAC | ||||||
| Insolation resistance | l/P-O/P I/P-FG, 0/P-FG: 100M Ohms/500VDC | ||||||
| Electromagnetic compatible emission | Compliance to EN55011 ,EN55032(CISPR32)CLASS B,EN61000-3-2,3,EAC TP TC 020 | ||||||
| EMC immunity requirements | Compliance to EN61000-4-2,3.4.5.6.8,11. EN55024,EN1000-6-2(EN50082-2), Class A heavy industry standard | ||||||
| OTHERS | MTBF | ≥432.1K hrs.MIL-HDBK-217F(25℃) | |||||

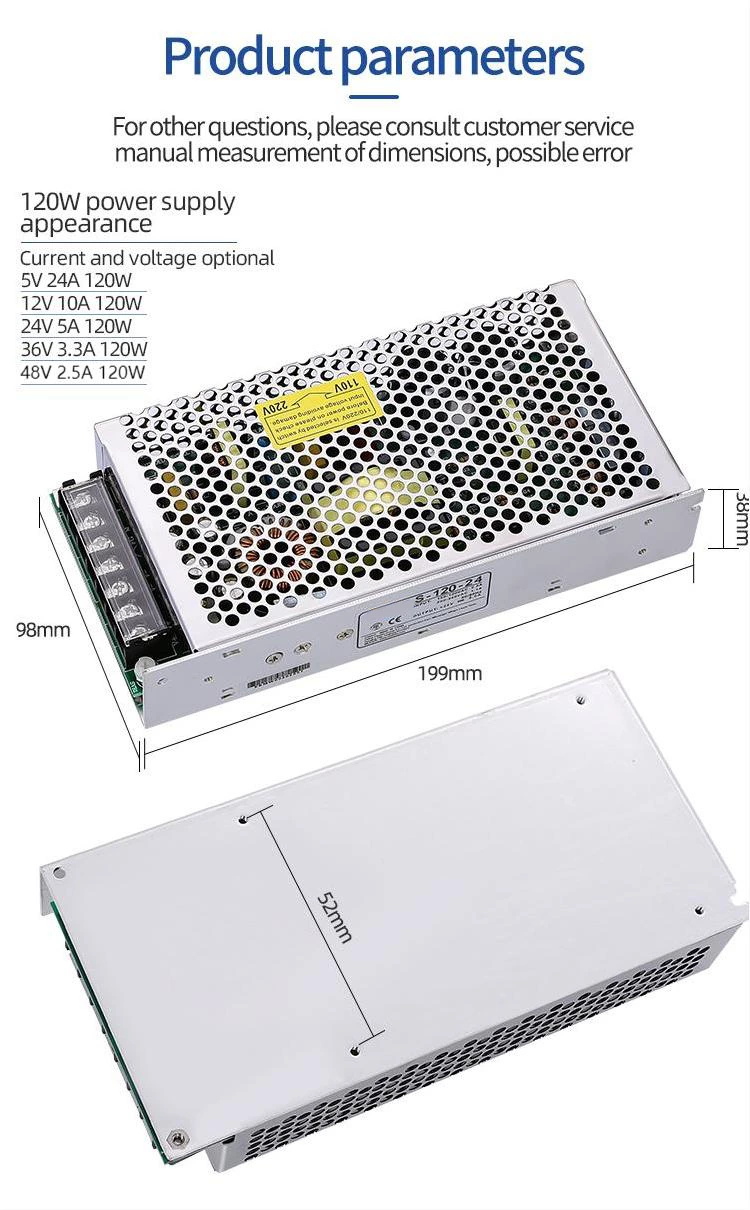

| Dimension | 199*98*38mm(L*W"H) | ||||||
| Packing | 0.7Kg:20PCS/15Kg/0.72CUFT | ||||||
