S Single Switch Power Supply

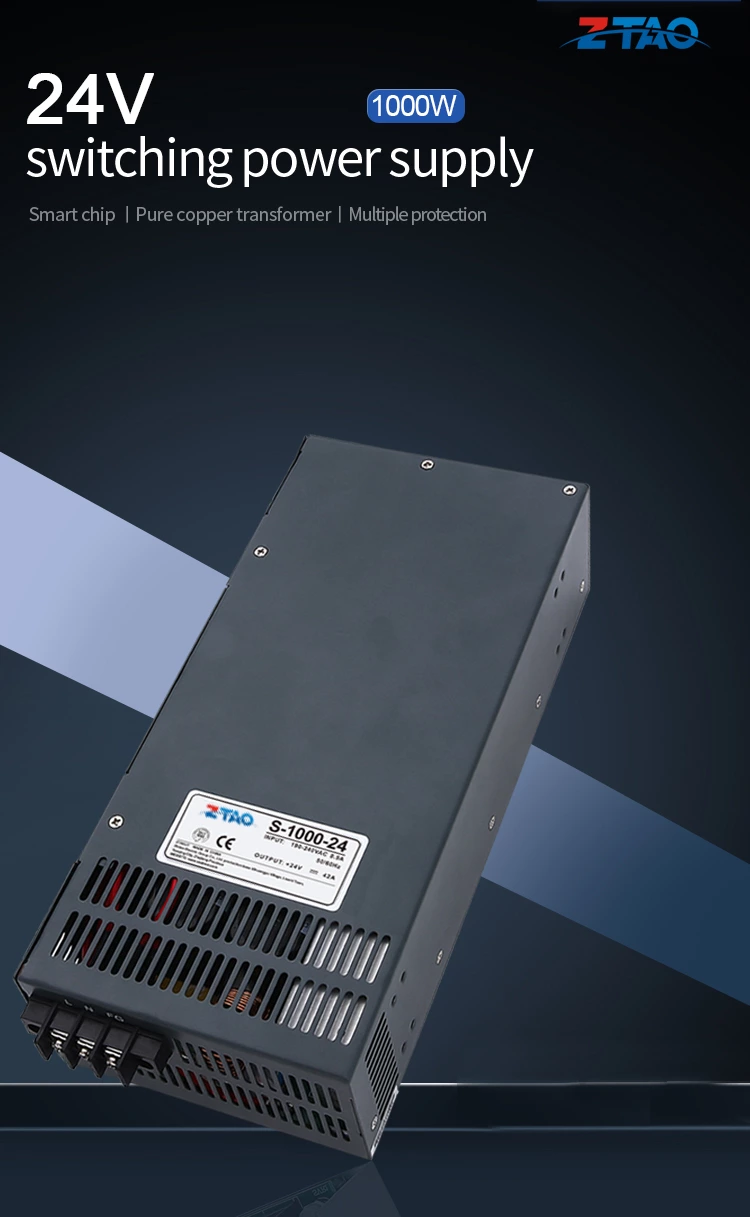

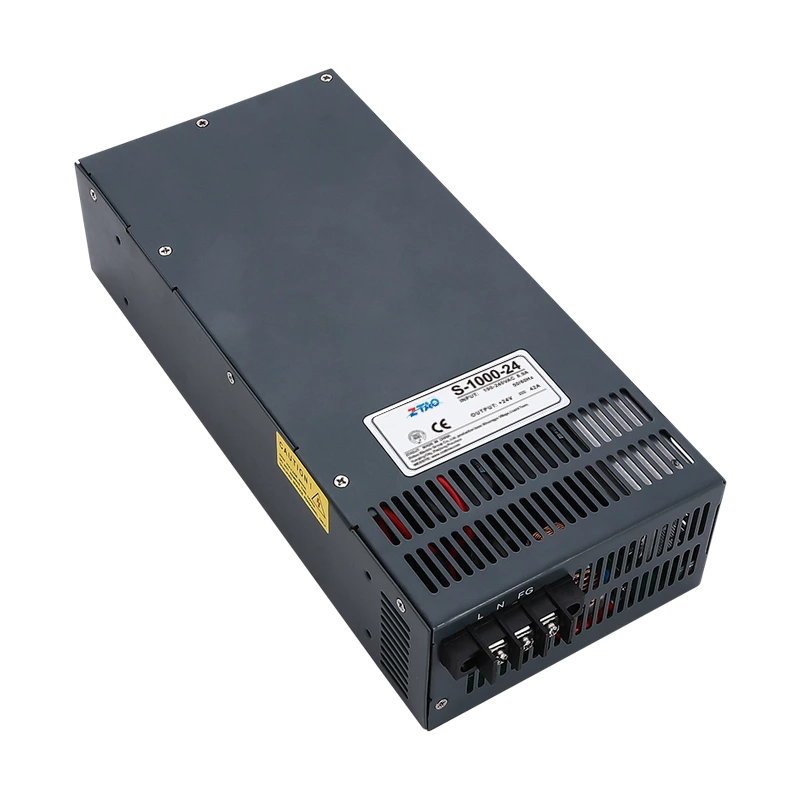

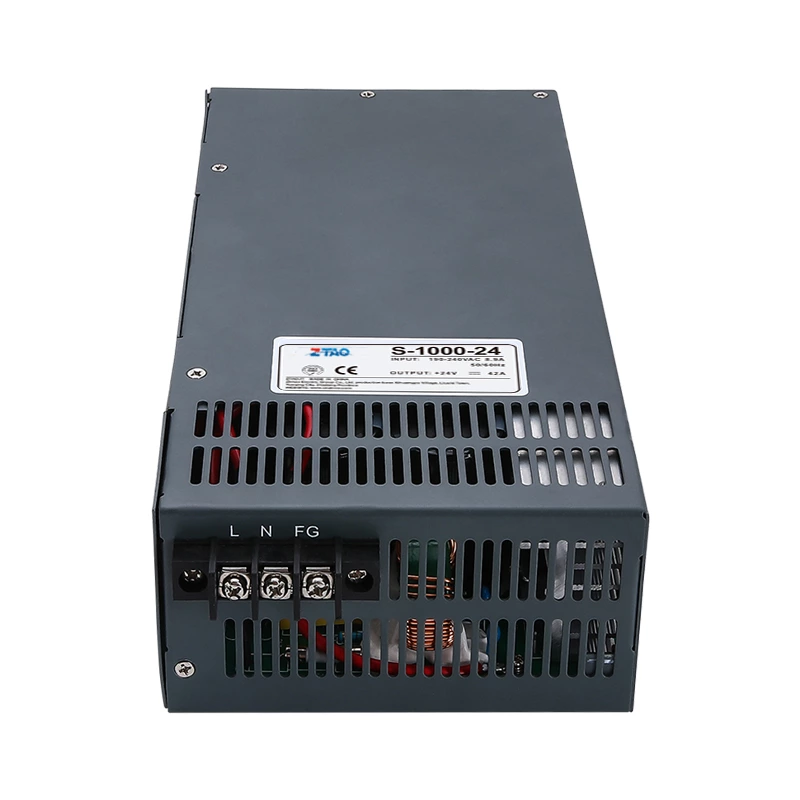

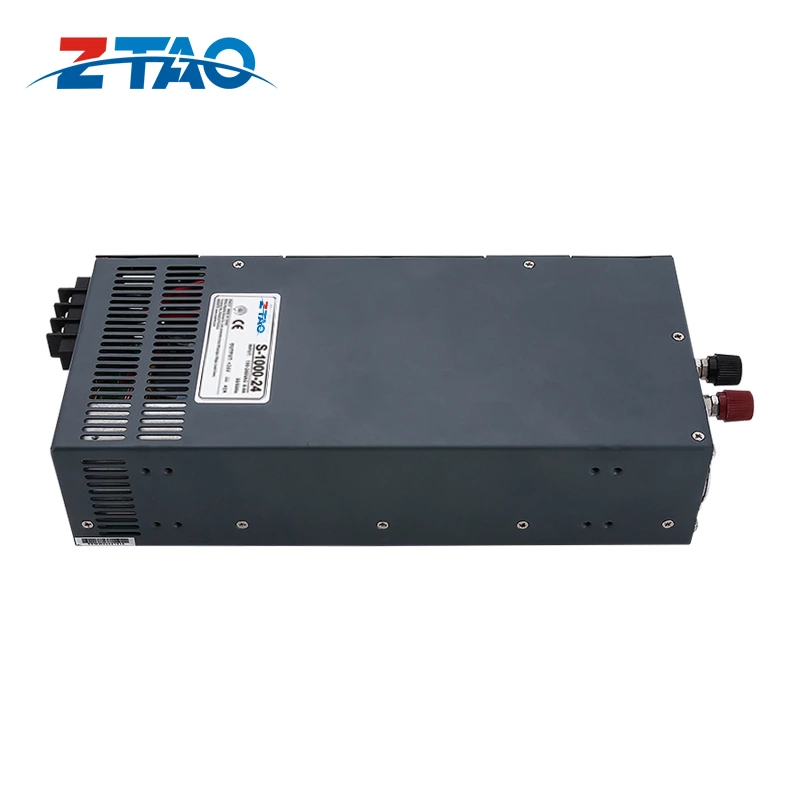

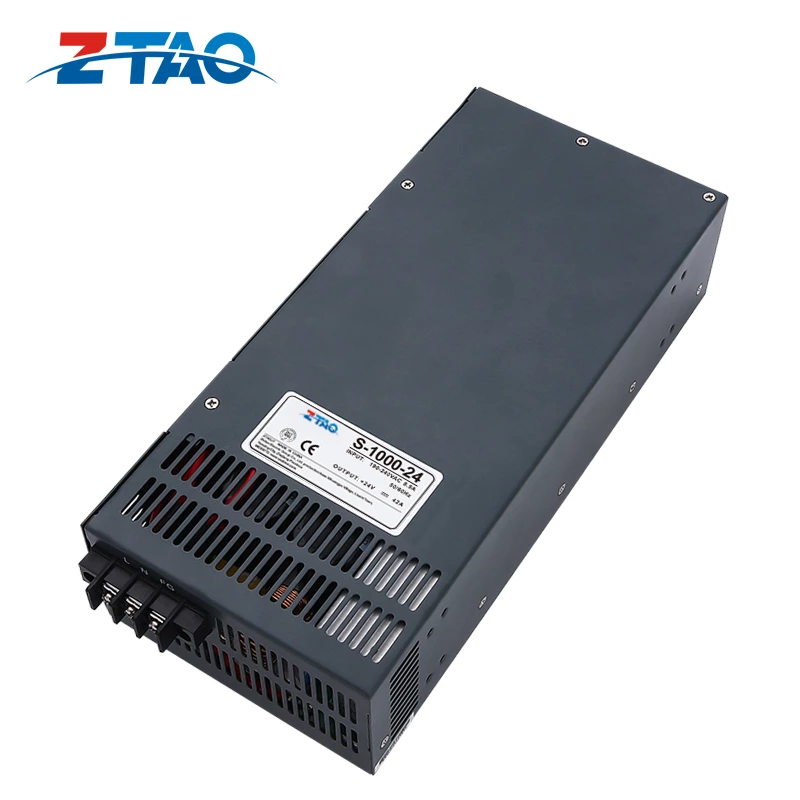

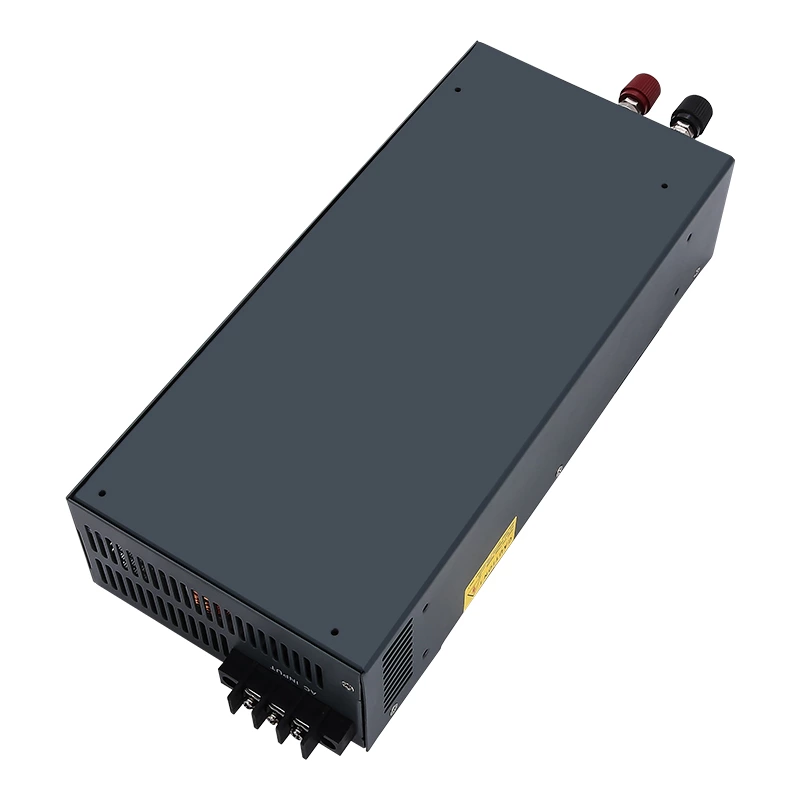

Smps 1000W 41.6A S-1000-24 Constant Voltage 24V Ac to Dc Cctv Switching Power Supply

MODEL S-1000-12 S-1000-24 S-1000-36 S-1000-48 OUTPUT DC Voltage 12V 24V 36V 48V Rated Current 84A 42A 28A 21A Current range 0~84A 0~42A 0~28A 0~21A Rated powe
Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
S-1000-36
Output Type:
Single
Input Voltage:
185~264VAC 260~373VDC
Output Voltage:
12v/24/36v/48v can be choose or customzied
Output Frequency:
50~60Hz
Output Current:
28A
Output Power
1000W
Efficiency:
83%
Workig Temperature:
-10℃~+60℃
Certification:
CE FCC ROHS ISO9001
Test:
100%Full Load Burn-in Test
Protection:
Shortcuit Overtemp Overload overvoltage
Warranty
3 Years
Size
291*132.68mm(L*W*H)

MODEL



S-1000-12

S-1000-24

S-1000-36

S-1000-48

OUTPUT

DC Voltage

12V

24V

36V

48V

Rated Current

83A

42A

27.7A

21A

Current range

0~83A

0~42A

0~27.7A

0~21A

Rated power

1008W

1008W

1008W

1008W

Ripple&noise

200mVp-p

240mVp-p

240mVp-p

240mVp-p

Voltage ADJ. range

12~14V

24~28V

36~38V

48~53V

Voltage tolerance

±2.0%

±1.0%

±1.0%

±1.0%

Line regulation

±0.5%

±0.5%

±0.5%

±0.5%

Load regulation

±1.0%

±1.0%

±1.0%

±1.0%

Setup,Rise,Time

200ms, 50ms/230VAC (full load)

Hold up time(typ)

20ms/230VAC   (full load)

INPUT

Voltage range

185~264VAC  260~373VDC

Frequency range

50~60Hz

Efficiency (Typ)

82%

83%

83%

83%

AC current (Typ)

7.5A 190~230VAC

Inrush current (Typ)

Cold start:   50A/230VAC

Leakage current

<6mA/240VAC

PROTECTION

Over load

105%~150% in rated output power

Protection type: Hiccup mode,recovers automatically after fault condition is removed

Over voltage

15~16.5V

29~33V

40~45V

58~65V

Protection mode,tum off output voltage, restart to recover

FUNCTION

Fan switch control

The fan turn straight

over-temperature protection

≥90℃Close the output

Environment

Working TEMP

-10℃~+60℃

Working humidity

20%~65% RH non-condensing

Storage TEMP humidity

-10℃~+65℃.  10%~95% RH

TEMP.coefficient

±0.03%℃(0~50℃)

Vibration

10~500Hz,2G 10min./1cycle,60min each along X,Y,Z axes Install in accordance with IEC60068-2-6

SAFETY

Safety regulations

Ul60950-1,CB(IEC60950-1) are certified

Withstand voltage

I/P-O/P:1.5KVAC  I/P-FG:1.5KVA  O/P-FG:0.4KVAC

OTHERS

MRBF

≥245K hrs.MIL-HDBK-210F(25℃)

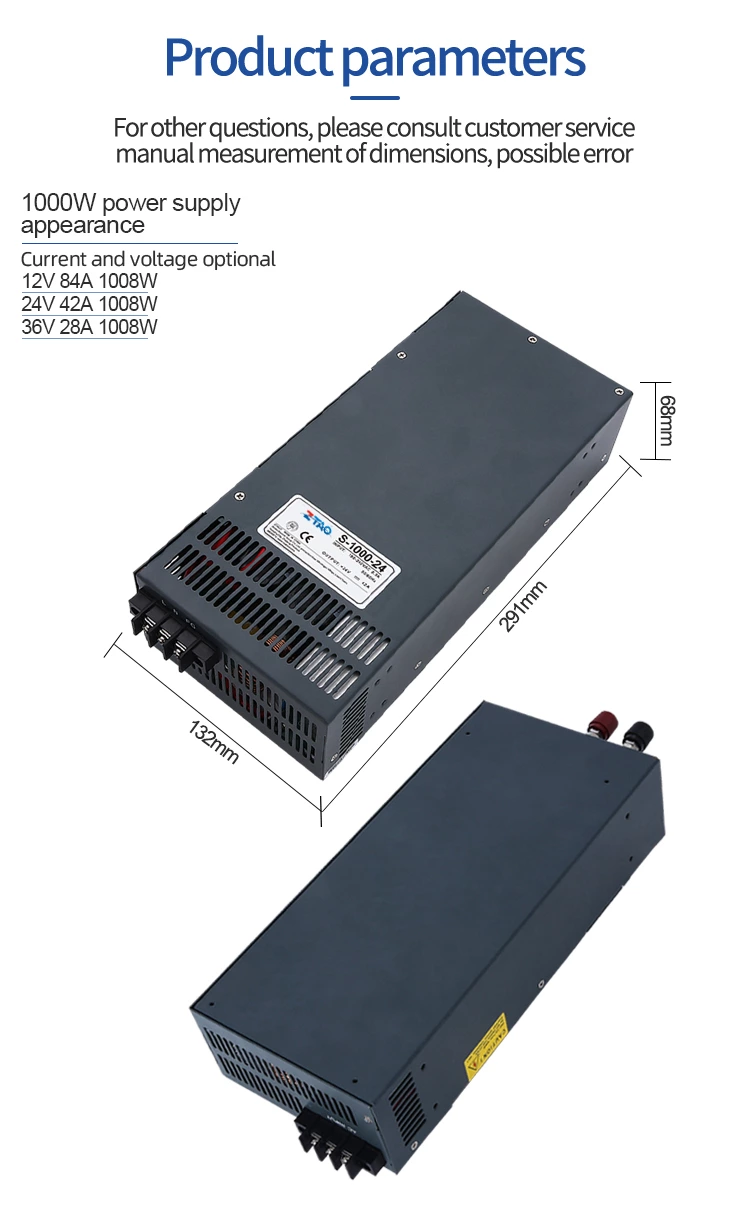

Dimension

291*132*68mm(L*W"H)

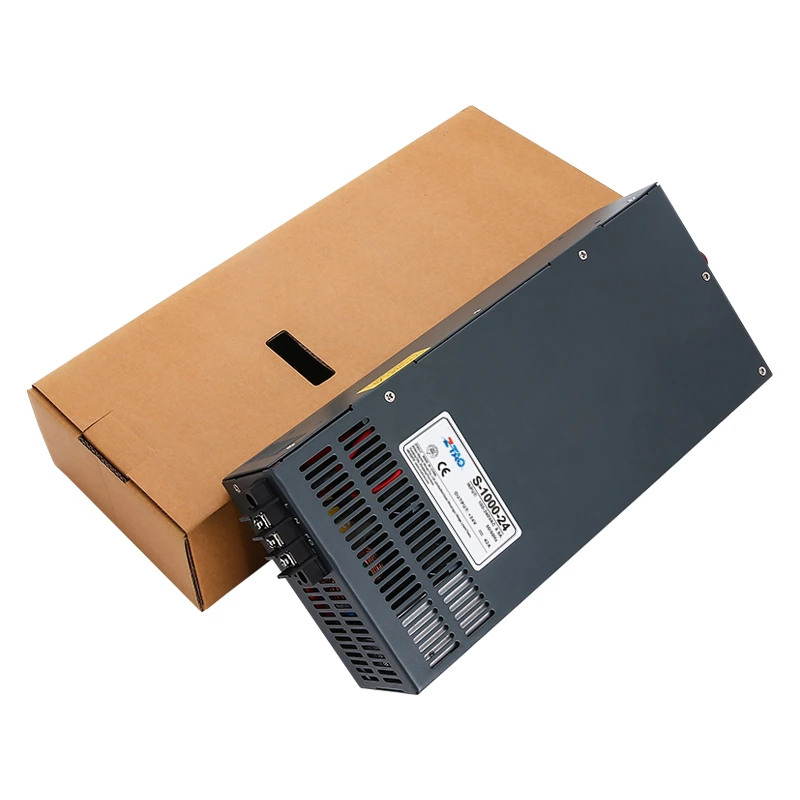

Packing

2.1Kg:6PCS/13Kg/0.9CUFT
