S Single Switch Power Supply

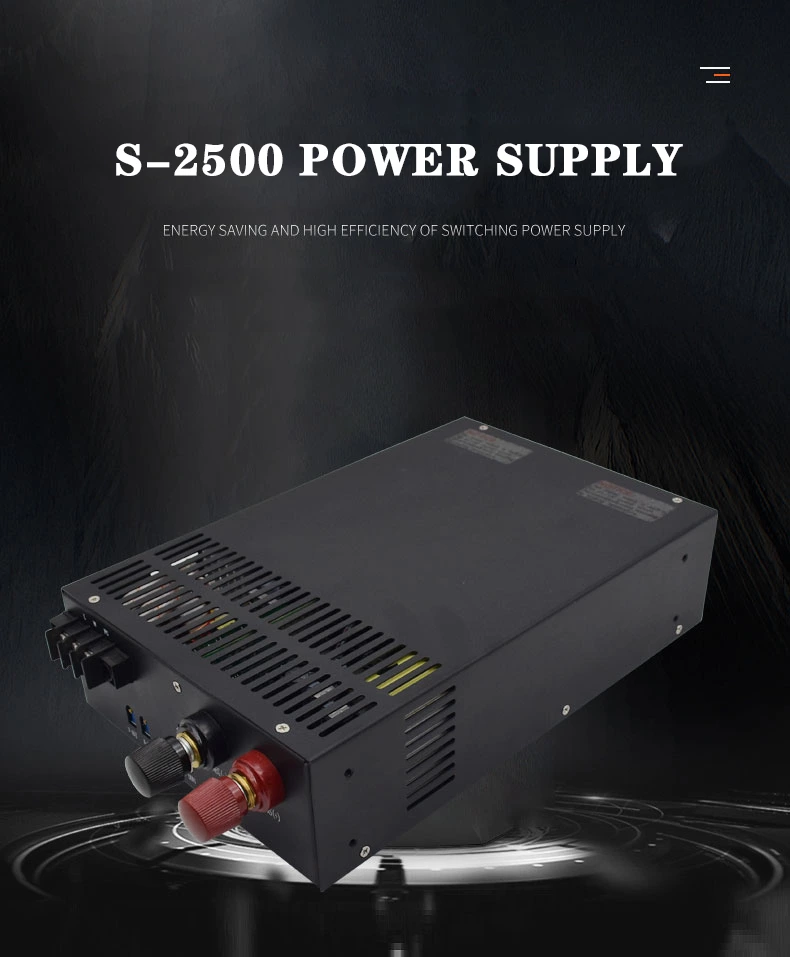

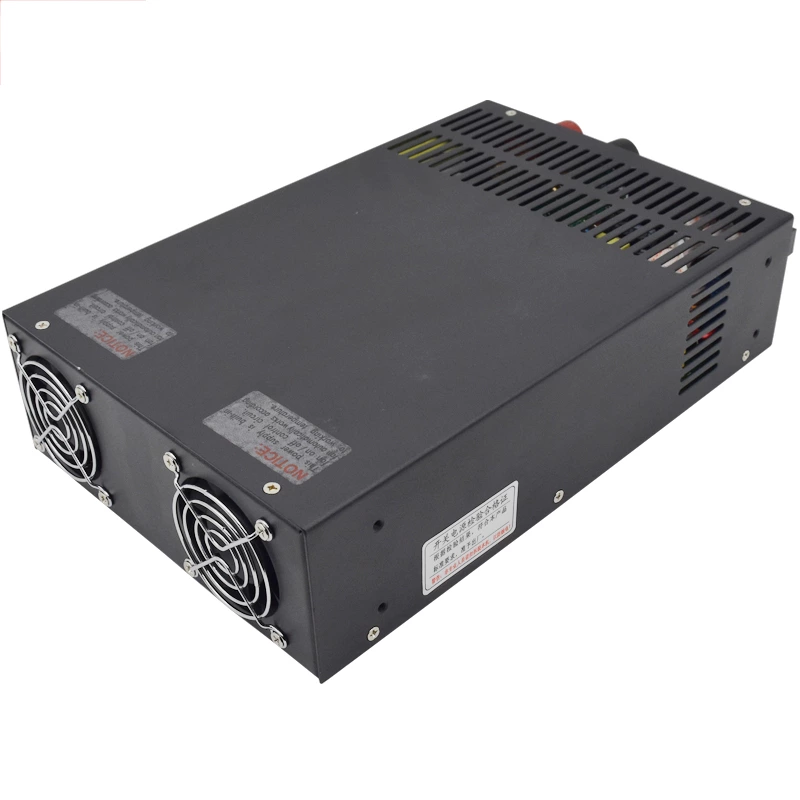

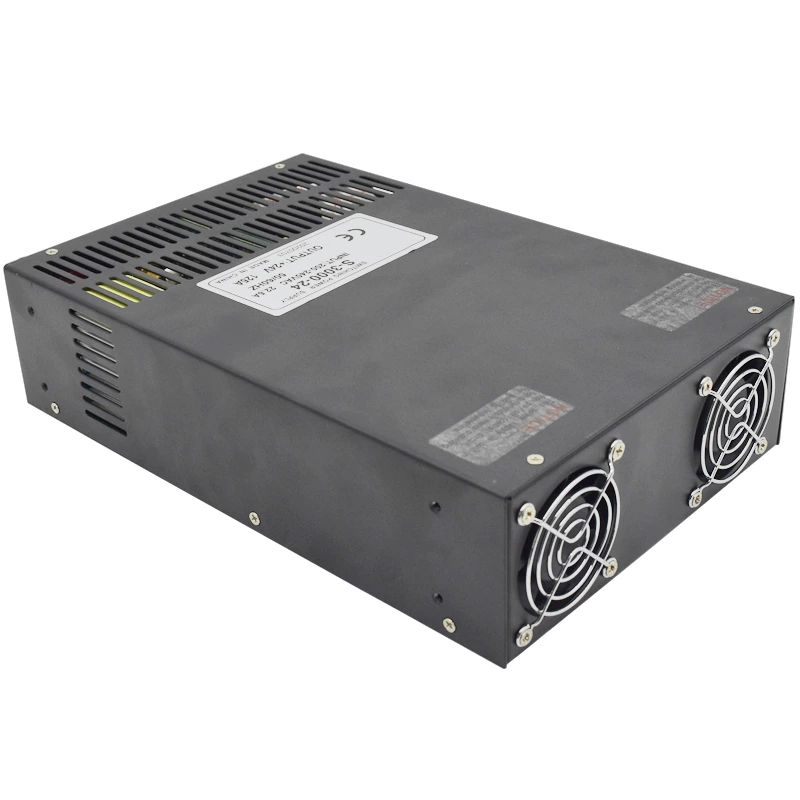

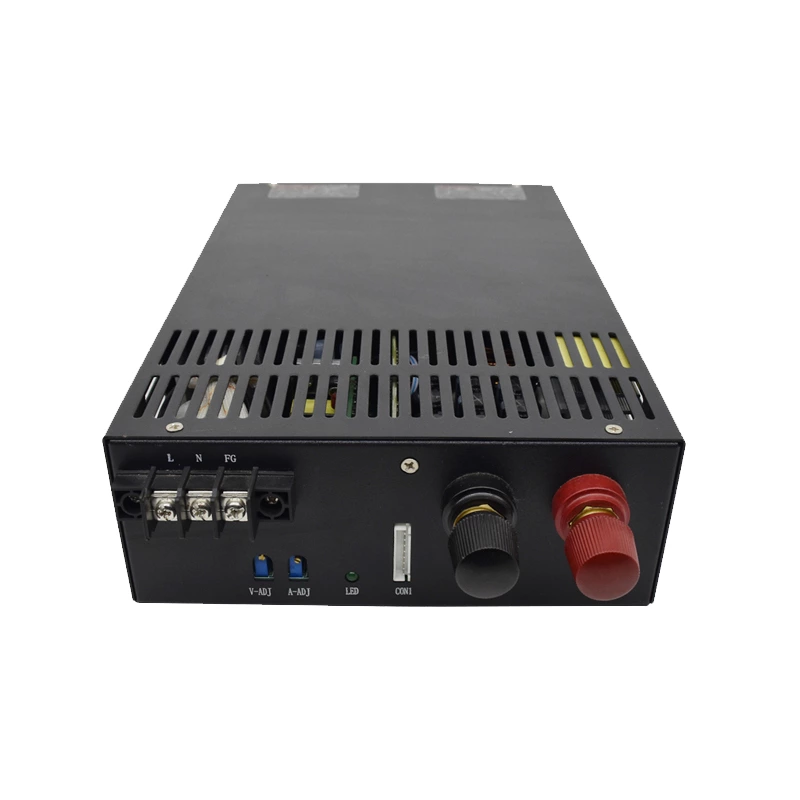

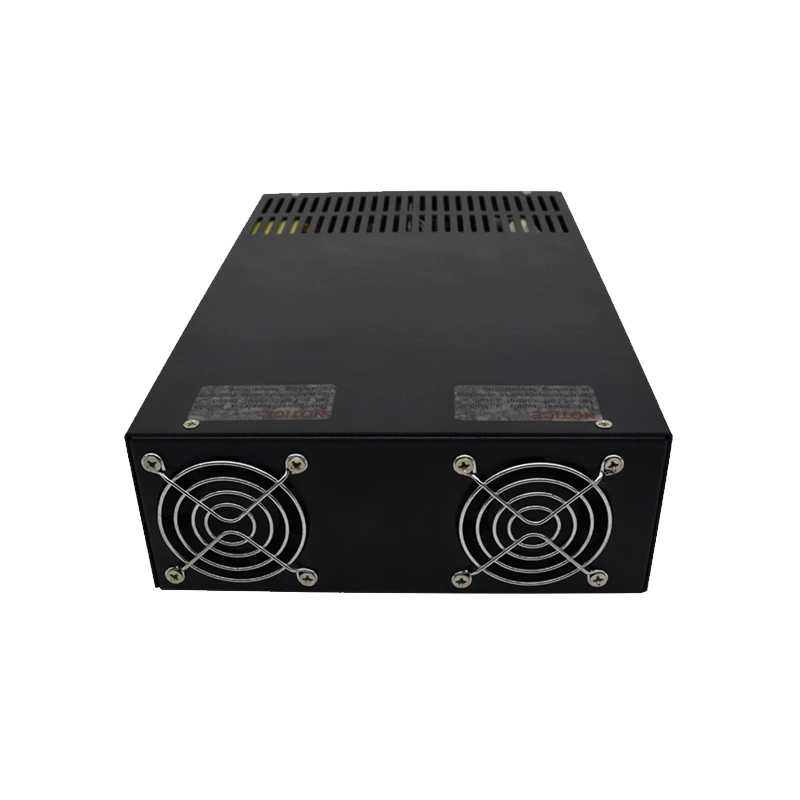

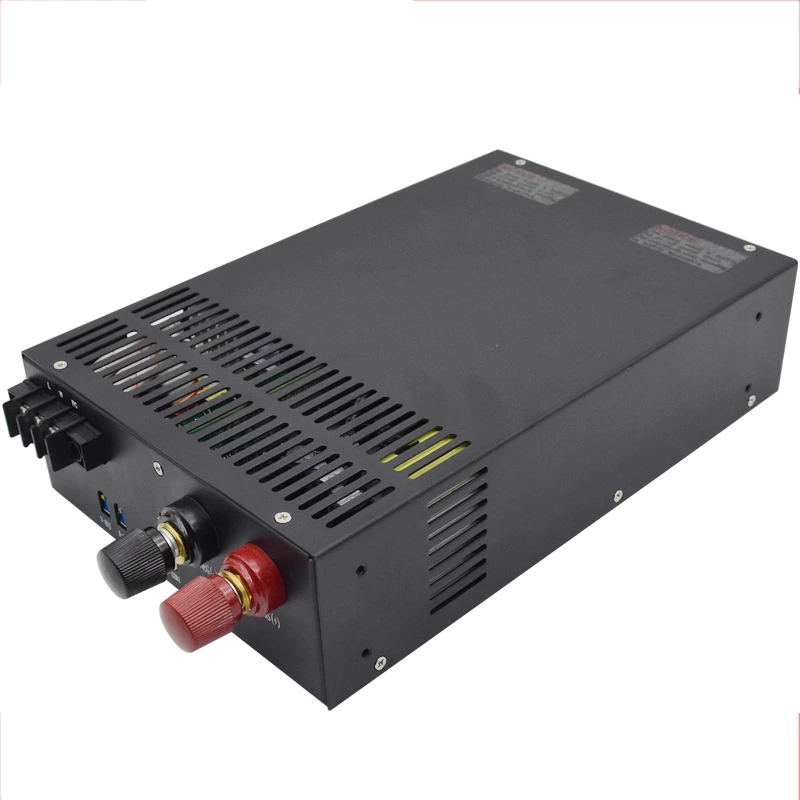

Smps 2500w 24V 104A Dc High Power S-2500-24 Variable Switching Power Supply

S-2500-12 S-2500-24 S-2500-36 S-2500-48 Input Voltage 175-260V AC Output Voltage 12V 24V 36V 48V Output Power 2500W Rated Current 200A 104A 70A 52A Operating Temper
Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
S-2500-24
Output Type:
Single
Input Voltage:
195~240VAC,273~340VDC
Output Voltage:
12V/24V/36V/48V can be choose or customized
Output Frequency:
50~60Hz
Output Current:
104A
Output Power
2500w
Efficiency:
>85%
Workig Temperature:
-10℃-60℃
Materail:
Aluminum
Certification:
CE FCC ROHS
Test:
100%Full Load Burn-in Test
Protection:
Short Circuit Overtemp Overload Overvolt
Warranty
3 Years
Size
430*225*168mm



S-2500-12 S-2500-24 S-2500-36 S-2500-48

Input Voltage

175-260V AC

Output Voltage

12V

24V

36V

48V

Output Power

2500W

Rated Current

200A

104A

70A

52A

Operating Temperature

-10-60℃

Adjustable Range

0-12V

0-24V

0-36V

0-48V

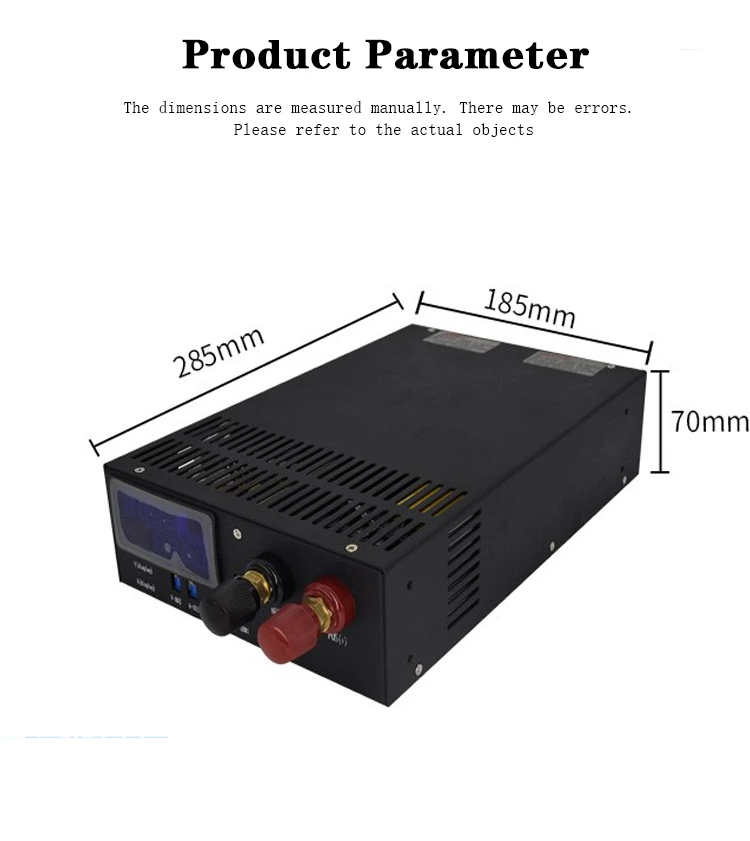

Product Size

285*185*70mm

Ripples and Noise

<150mV

<150mV

<240mV

<240mV

Efficiency

>85%

Over load

105%~135% in rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed
