S Single Switch Power Supply

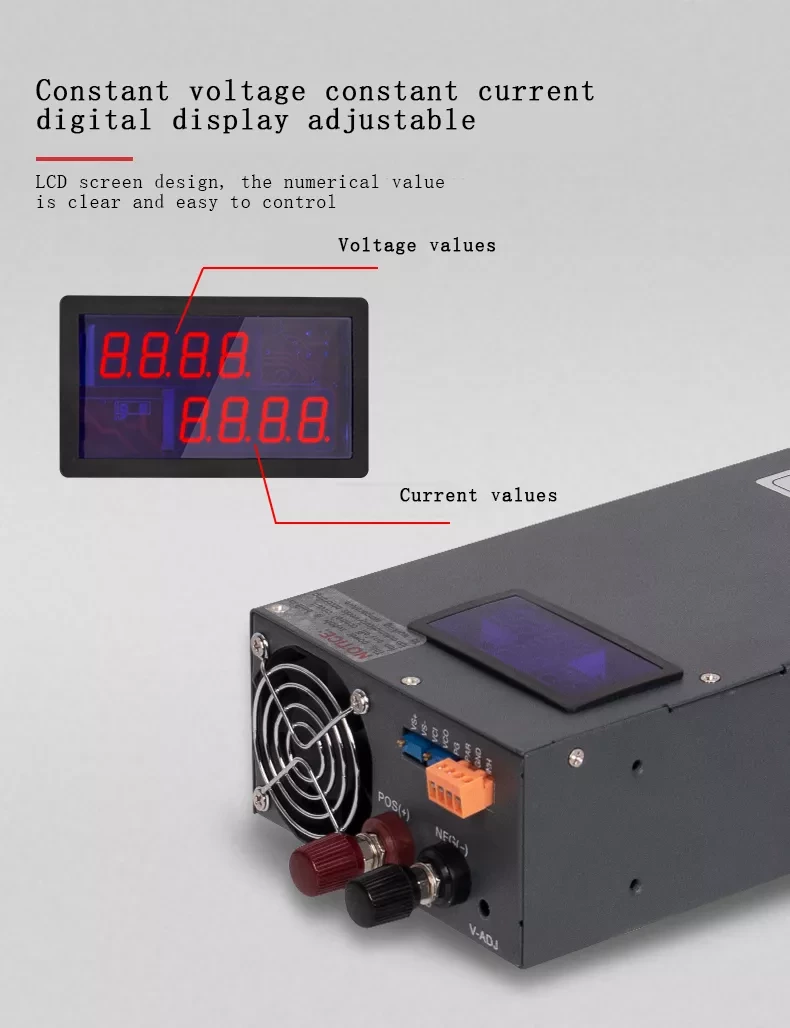

Single Output S-2500-24 24v 2500w 104a High Power Variable 2500w Dc Regulated Digital Display Power Supply

Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
S-2500-24
Output Type:
Single
Input Voltage:
195~240VAC,273~340VDC
Output Voltage:
12V/24V/36V/48V Can be choose and customized
Output Frequency:
50~60Hz
Output Current:
104A
Output Power
2500w
Efficiency:
85%
Workig Temperature:
-10℃~+60℃
Certification:
CE FCC ROHS
Test:
100%Full Load Burn-in Test

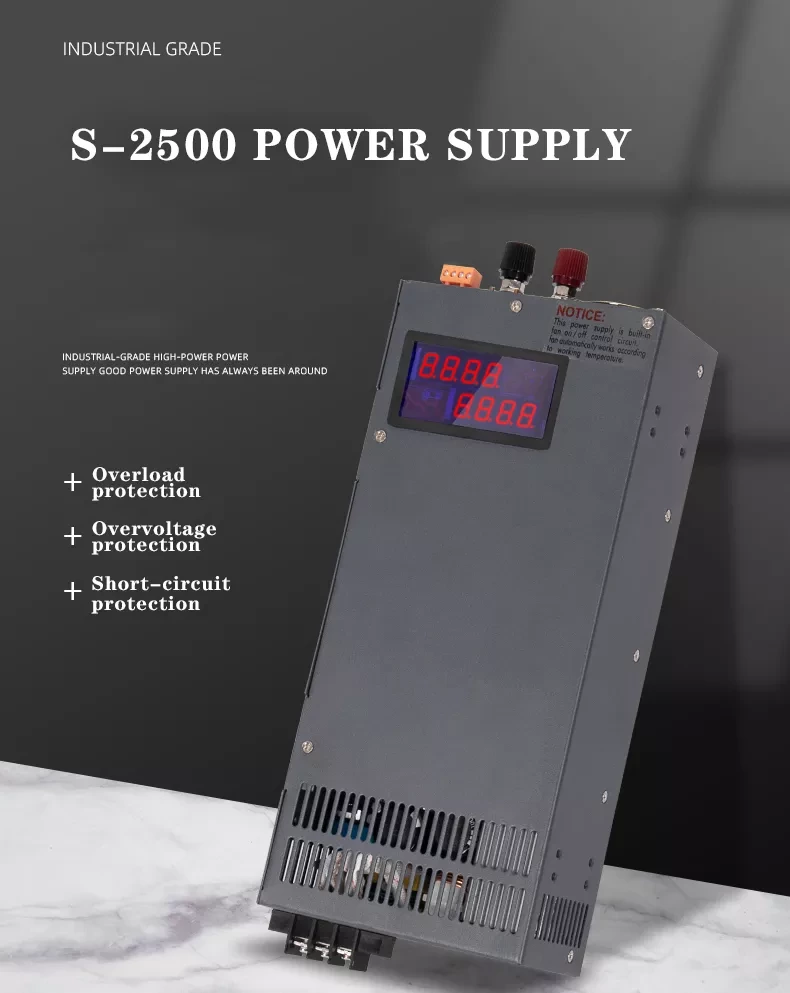

Protection:
Short Circuit Overtemp Overload Overvolt

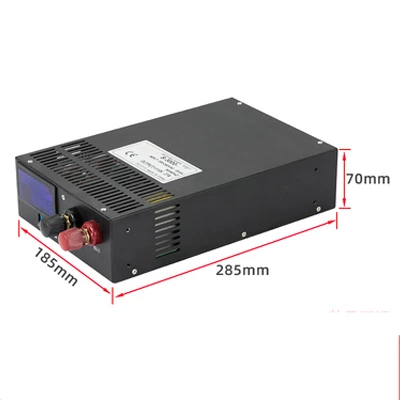

Size
285*185*70mm
S-2500-12 S-2500-24 S-2500-36 S-2500-48
Input Voltage 175-260V AC
Output Voltage 12V 24V 36V 48V
Output Power 2500W
Rated Current 200A 104A 70A 52A
Operating Temperature -10-60℃
Adjustable Range 0-12V 0-24V 0-36V 0-48V

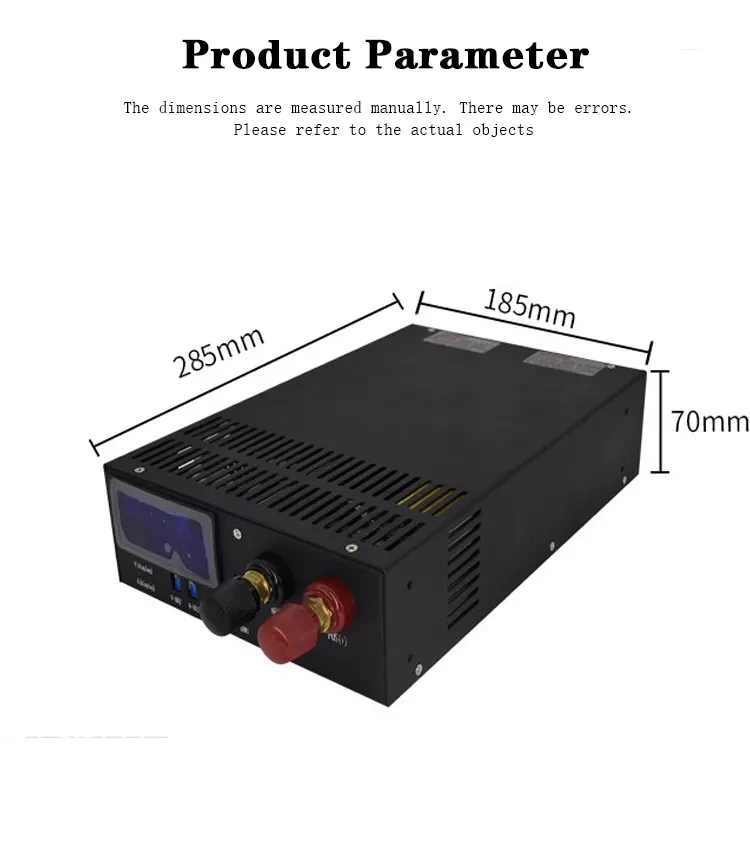

Product Size 285*185*70mm
Ripples and Noise <150mV <150mV <240mV <240mV
Efficiency >85%
Over load 105%~135% in rated output power Protection type: Hiccup mode, recovers automatically after fault condition is removed
