S Single Switch Power Supply

S-1200-12 Single Output 12V 100A 1200w AC to DC Switching Power Supply

MODEL S-1200-12 S-1200-24 S-1200-36 S-1200-48 OUTPUT DC Voltage 12V 24V 36V 48V Rated Current 100A 50A 33.4A 25A Current range 0~100A 0~50A 0~33.4A 25A Rated

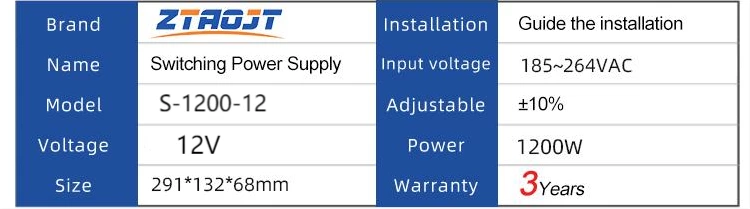

Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
S-1200-12
Output Type:
Single
Input Voltage:
185~264VAC 260~373VDC
Output Voltage:
12V/24V/36V/48V can be choose or customized
Output Frequency:
50~60Hz
Output Current:
100A
Output Power
1200W
Efficiency:
82%
Workig Temperature:
-10℃~+60℃
Certification:
CE FCC ROHS ISO9001
Test:
100%Full Load Burn-in Test
Protection:
Shortcuit Overtemp Overload overvoltage
Warranty
3 Years
Size
291*132*68mm(L*W*H)

MODEL



S-1200-12

S-1200-24

S-1200-36

S-1200-48

OUTPUT

DC Voltage

12V

24V

36V

48V

Rated Current

100A

50A

33.4A

25A

Current range

0~100A

0~50A

0~33.4A

25A

Rated power

1200W

1200W

1202.4W

1200W

Ripple&noise

200mVp-p

240mVp-p

240mVp-p

240mVp-p

Voltage ADJ. range

12~14V

24~28V

36~38V

48~53V

Voltage tolerance

±2.0%

±1.0%

±1.0%

±1.0%

Line regulation

±0.5%

±0.5%

±0.5%

±0.5%

Load regulation

±1.0%

±1.0%

±1.0%

±1.0%

Setup,Rise,Time

200ms, 50ms/230VAC   230ms 50/115VAC(full load)

Hold up time

20ms/230VAC  20ms/115VAC (full load)

INPUT

Voltage range

100~120VAC  200~260VAC  (switch replacement)

Frequency range

50~60Hz

Efficiency

82%

83%

83%

83%

AC current

8.5A 190~230VAC

Inrush current

Cold start:   50A/230VAC

Leakage current

<6mA/240VAC

PROTECTION

Over load

105%~150% rated output power

Protection type: Hiccup mode,recovers automatically after fault condition is removed

Over voltage

15~16.5V

29~33V

40~45V

58~65V

Protection mode,tum off output voltage, restart to recover

FUNCTION

Fan switch control

Fan temperature control

over-temperature protection

RTH3:≥60℃ Fan turn fast  ≥85℃Close the output (18V~48V)

Environment

Working TEMP

-10℃~+60℃

Working humidity

20%~65% RH non-condensing

Storage TEMP humidity

-10℃~+65℃.  10%~95% RH

TEMP.coefficient

±0.03%℃(0-50℃)

Vibration

10~500Hz,2G 10min./1cycle,60min.each along X,Y,Z axes Installation in accordance with IEC60068-2-6

SAFETY

Safety regulations

Ul60950-1,CB(IEC60950-1) In line with the certification

Withstand voltage

I/P-O/P:1.5KVAC  I/P-FG:1.5KVA  O/P-FG:0.4KVAC

OTHERS

MRBF

≥245K hrs.MIL-HDBK-210F(25℃)

Dimension

291*132*68mm

Packing

2.1Kg:6PCS/13Kg  0.9CUFT
