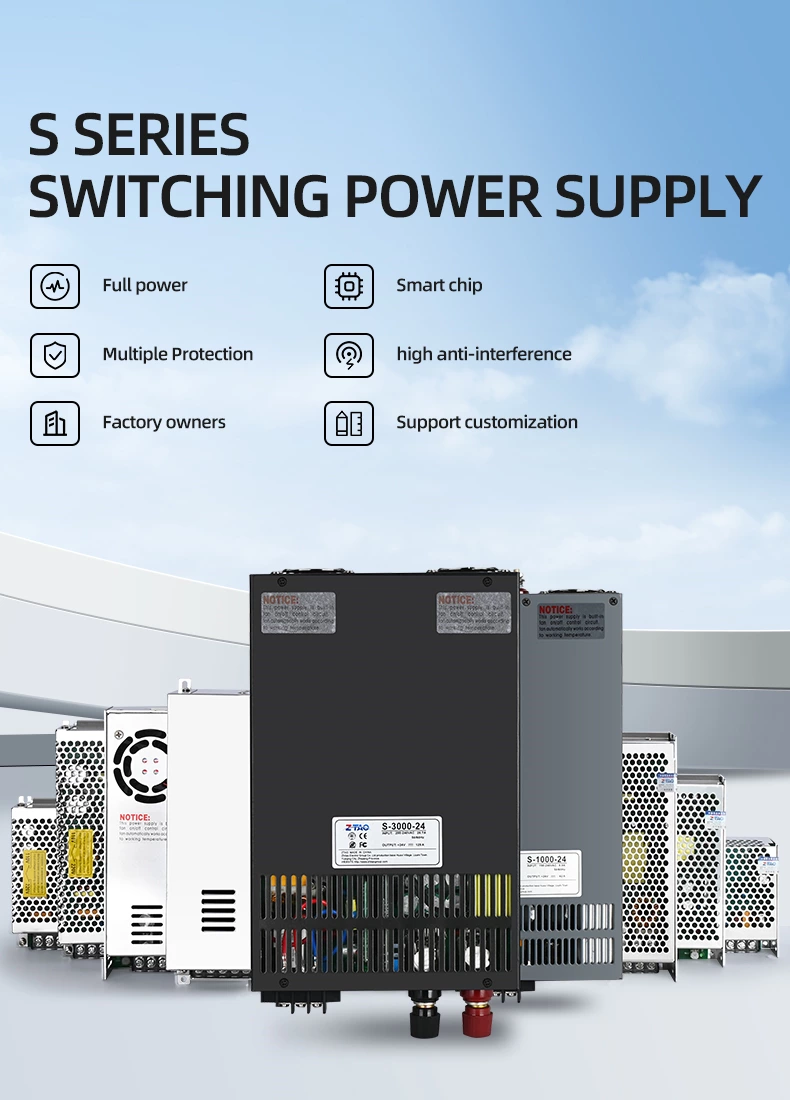

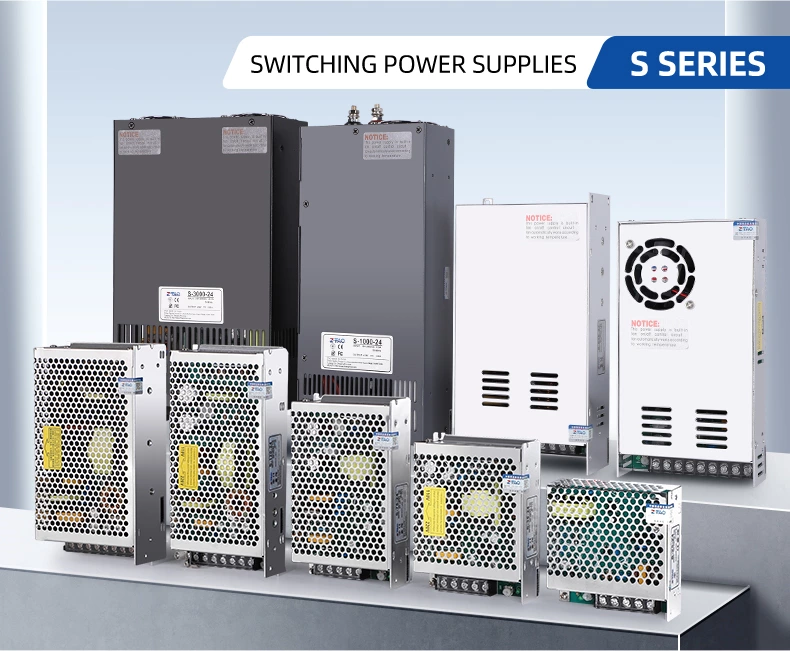

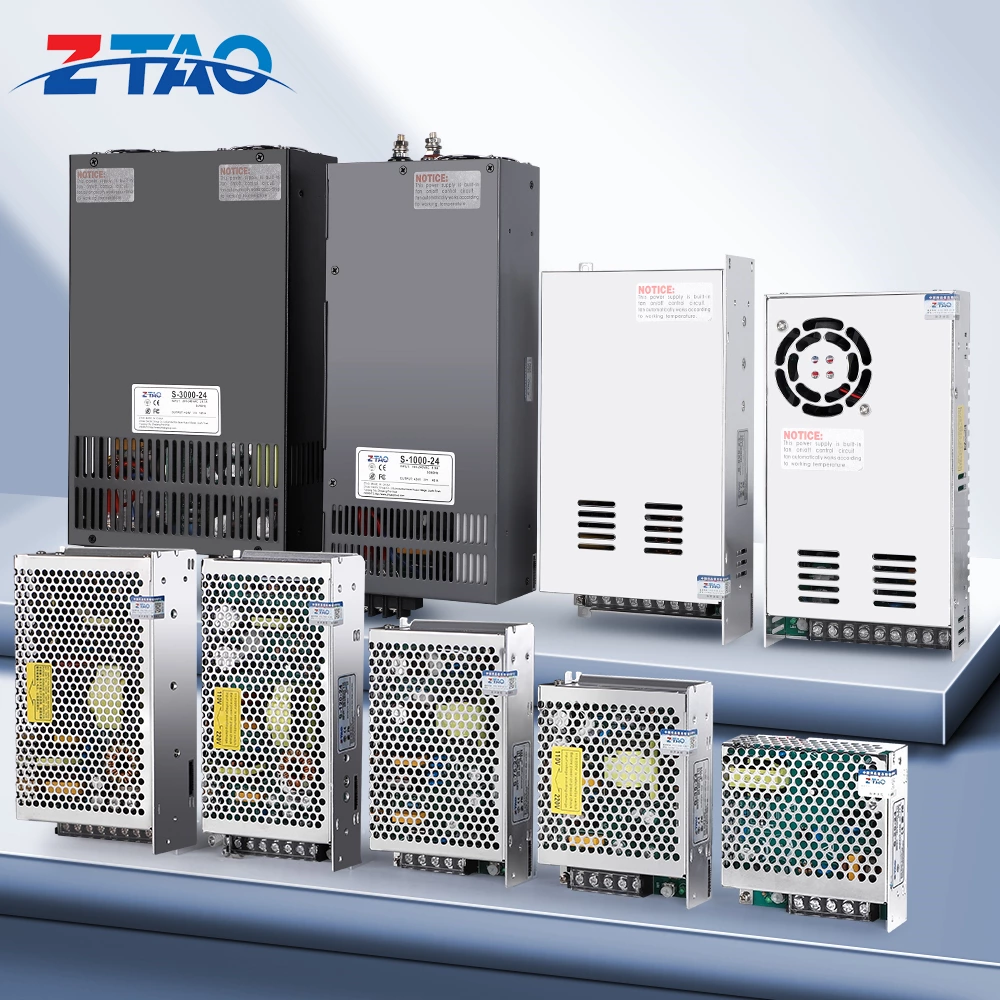

S Series Power Supply for Industrial Control Systems 15W-3000W 5v 12V 24V 48v Switching Power Supply Industrial Power Supply

Place of Origin;

Yueqing city,wenzhou city ,China

Brand Name:

ZTAO

Model Number:

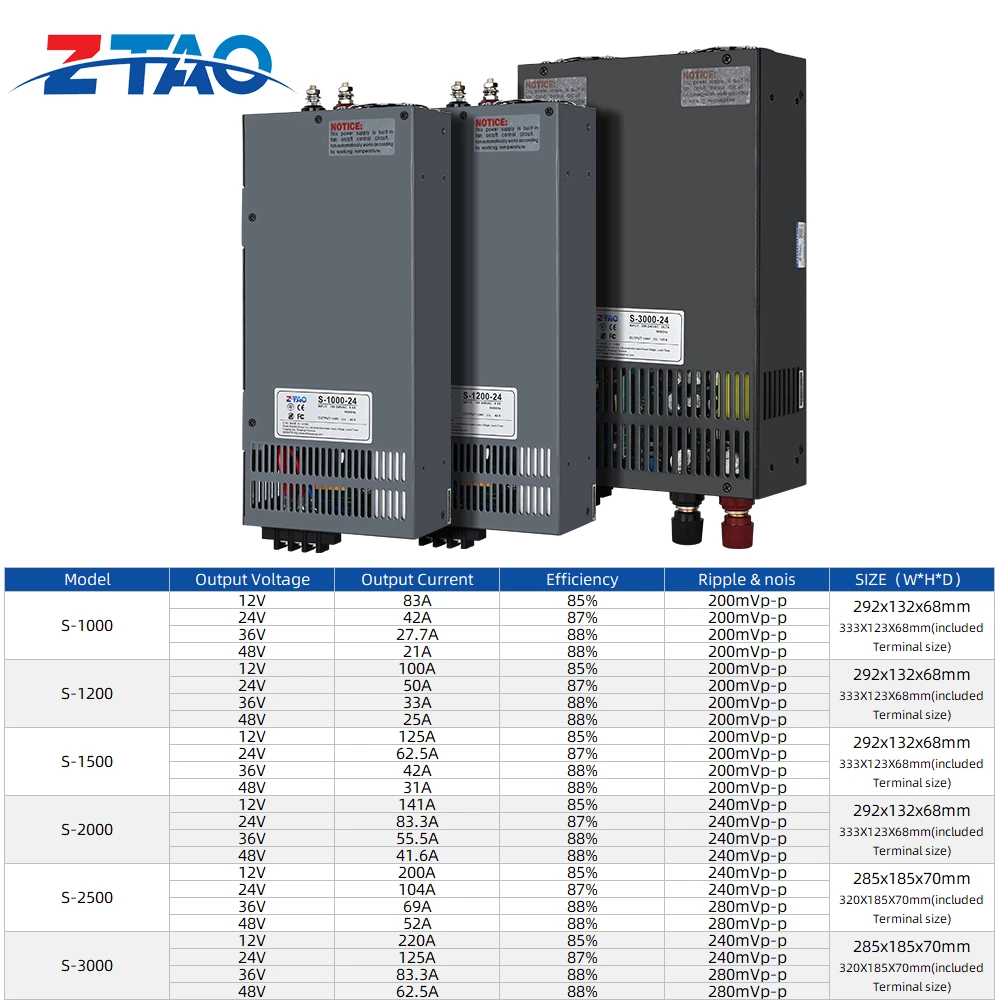

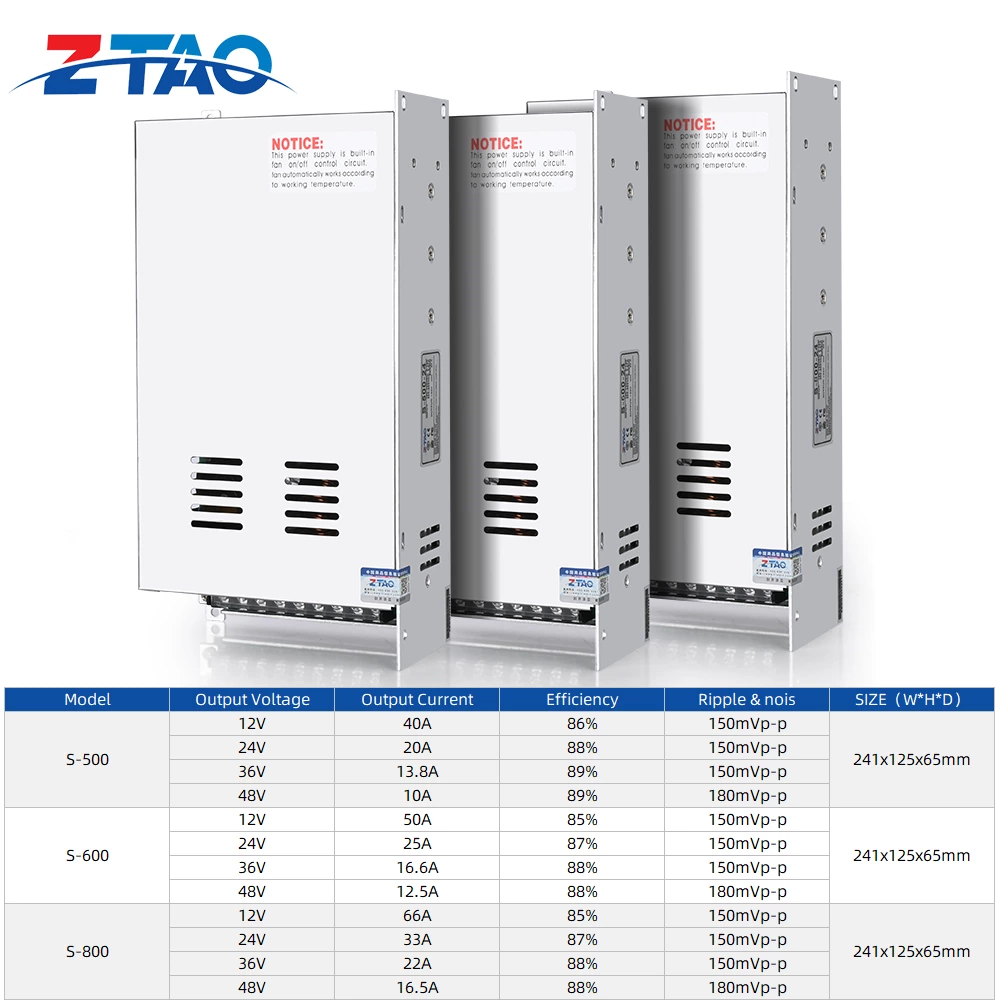

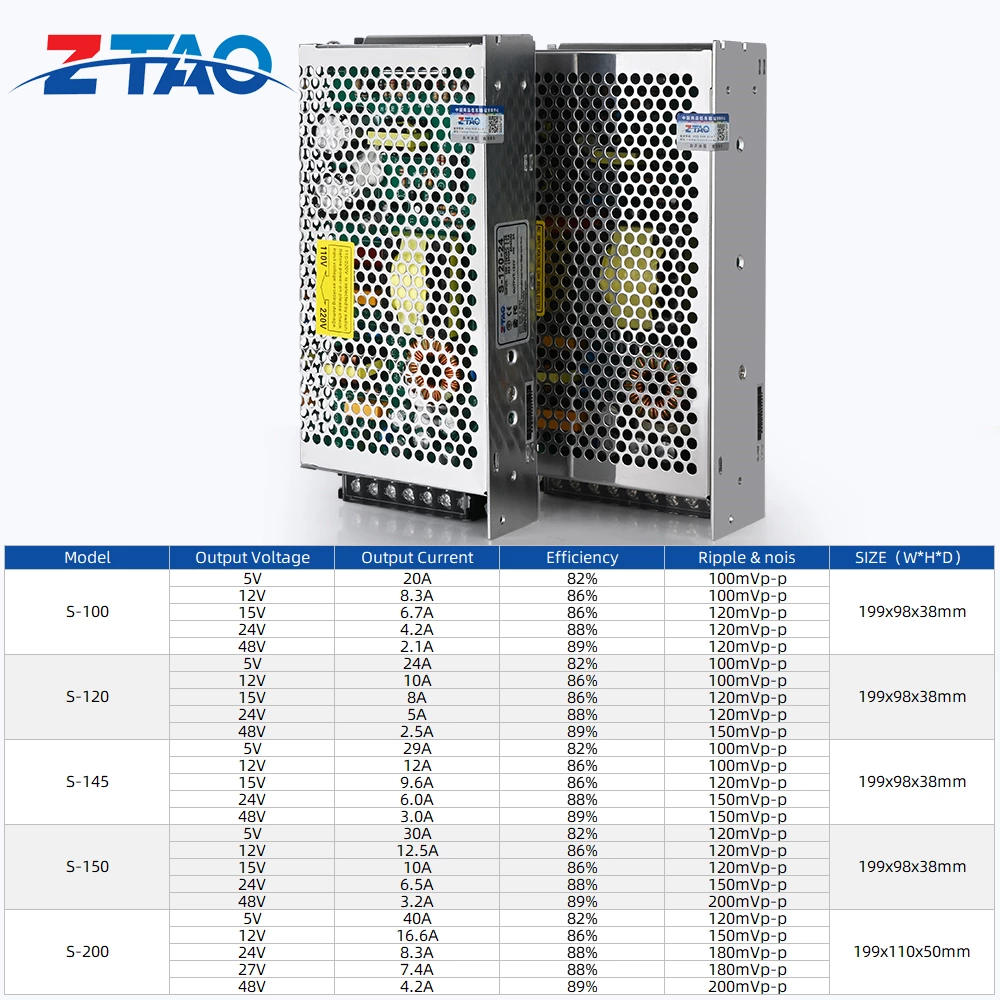

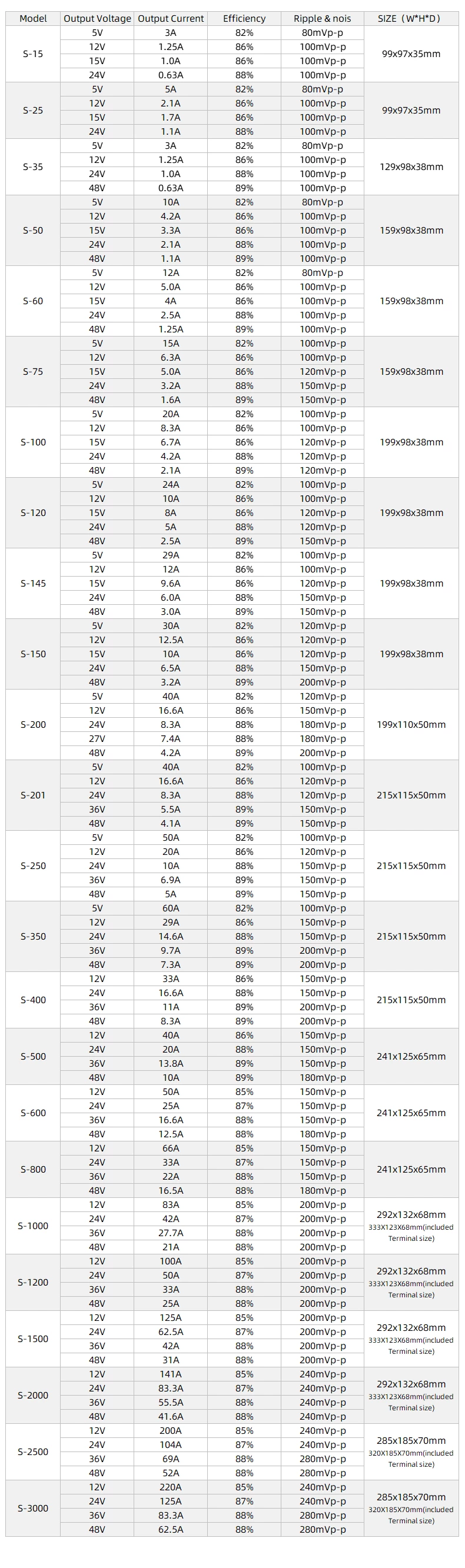

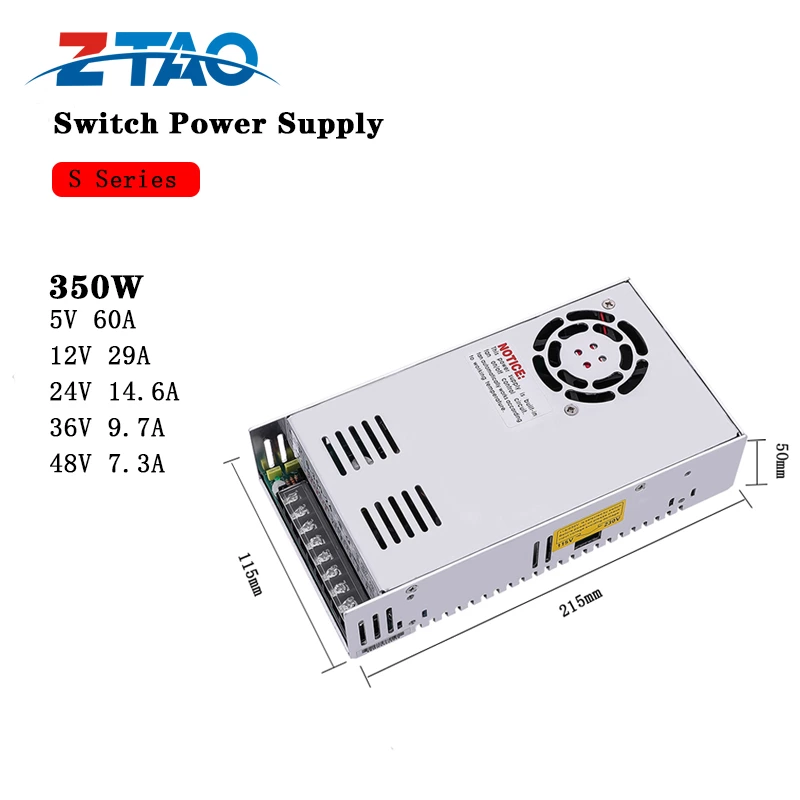

S-15-24, S-25-24, S-35-24, S-50-24, S-60-24, S-75-24, S-100-24, S-120-24, S-145-24, S-150-24, S-200-24, S-250-24, S-350-24, S-400-24, S-500-24, S-600-24, S-800-24, S-1000-24, S-1200-24, S-1500-24, S-2000-24, S-2500-24, S-3000-24

Input Voltage:

100~120VAC/200~240VAC（Switch switching） 240~340VDC 100~240VAC 140~340VDC 195~240VAC 273~340VDC

Output Voltage:

5V/12V /15V/24v/48V or customized

Output Frequency:

50/60Hz

Output Current:

5A, 6A, 10A, 14.6a, 20A, 50A, 100A, 125A, 0.63A, 1.1A, 1.5A, 2.1A, 2.5A, 3.2A, 4.2A, 6.5A, 8.3A, 16.6A, 25A, 33A, 42A, 62.5A, 83.3A or customized

Output Power

15W-3000W

Efficiency:

75%, 80%, 81%, 74%, 84%, 85%

Workig Temperature:

~10℃~+60℃

Certification:

CE FCC ROHS ISO9001

Test:

100% Full loading burn-in test

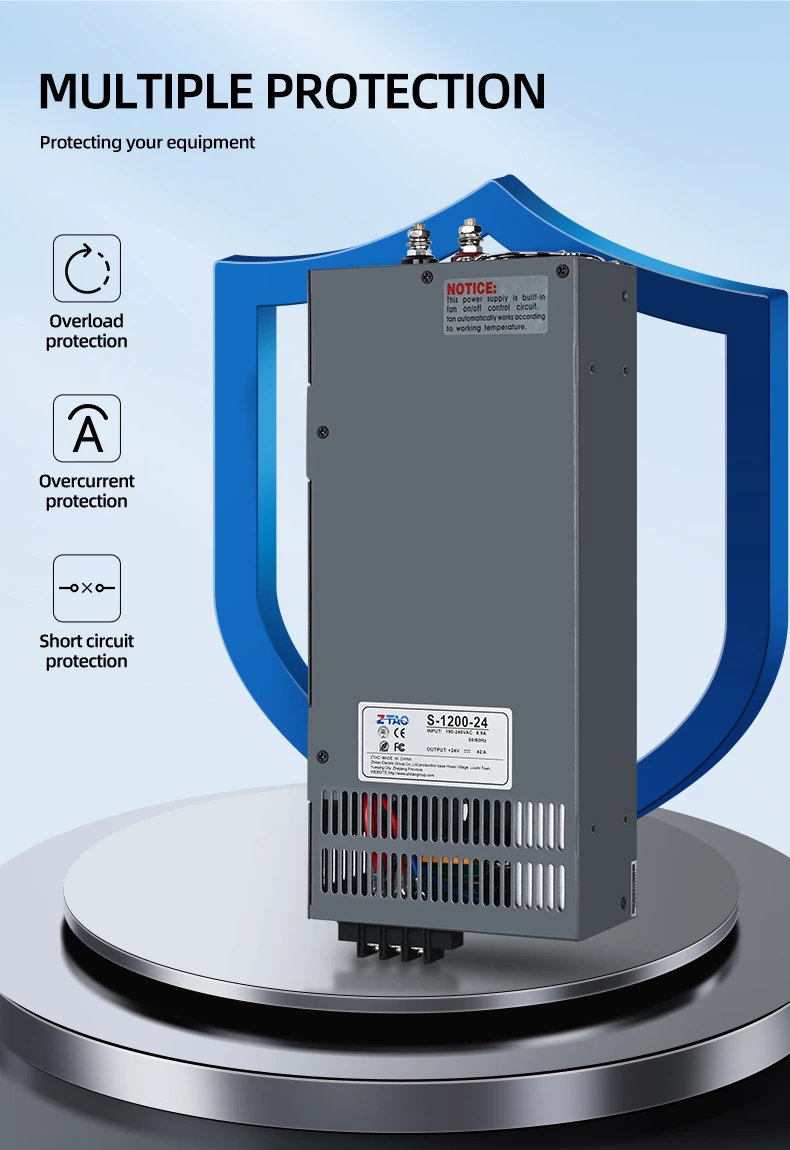

Protection:

Short Circuit Protection, Overcurrent Protection, Overvoltage protection, Over Temperature Protection, Overloading Protection, Over Power Protection

Warranty

3 years
