S Single Switch Power Supply

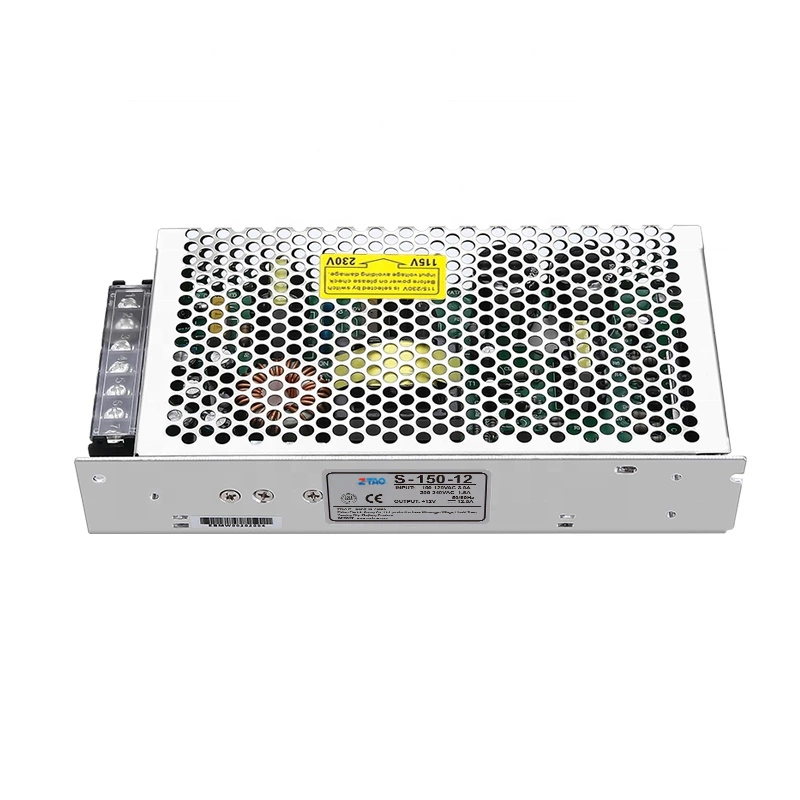

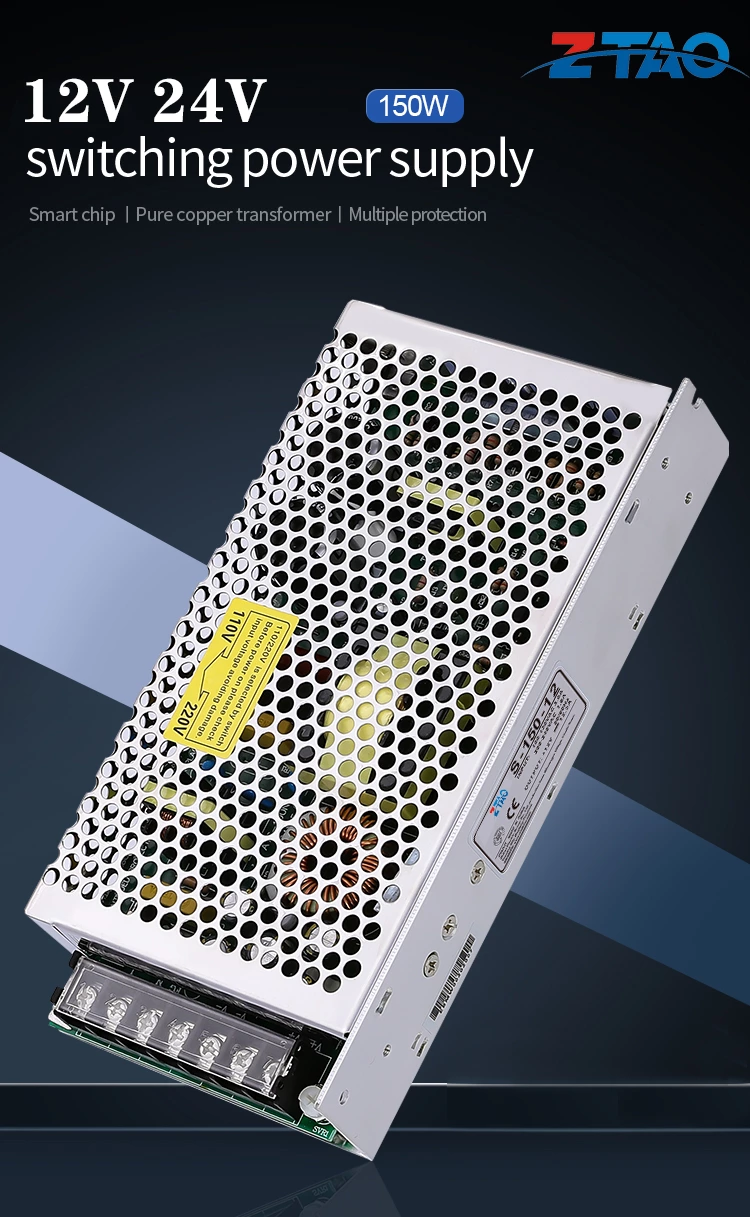

High Quality Real pass EMC Efficiency 93% S-150-24 24V 150W 6.5A Industrial Switching Power Supply

MODEL S-150-5 S-150-12 S-150-24 S-150-36 S-150-48 OUTPUT DC Voltage 5V 12V 24V 36V 48V Rated Current 28A 12.5A 6.5A 4.2A 3.2A Current range 0~28A 0~12.5A 0
Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
S-150-36
Output Type:
Single
Input Voltage:
100~132VAC/185~264VAC 260~370VDC(switch on220VAC)
Output Voltage:
12V/24V/36V/48V can be choose or customized
Output Frequency:
50~60Hz
Output Current:
4.2A
Output Power
150W
Efficiency:
82%
Workig Temperature:
-10℃~+60℃
Certification:
CE FCC ROHS ISO9001
Test:
100%Full Load Burn-in Test
Protection:
Shortcuit Overtemp Overload overvoltage
Warranty
3 Years
Size
199*98*38mm(L*W*H)

MODEL



S-150-5

S-150-12

S-150-24

S-150-36

S-150-48

OUTPUT

DC Voltage

5V

12V

24V

36V

48V

Rated Current

26A

12.5A

6.5A

4.2A

3.2A

Current range

0~26A

0~12.5A

0~6.5A

0~4.2A

0~3.2A

Rated power

130W

150W

156W

151.2W

153.6W

Ripple&noise(max.)

80mVp-p

120mVp-p

120mVp-p

200mVp-p

200mVp-p

Voltage ADJ. range

5~7V

12~14V

24~28V

36~38V

48V~53V

Voltage tolerance

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

Line regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load regulation

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

Setup,Rise,Time

100ms, 50ms/230VAC 100ms,60ms/115VAC(full load)

Hold up time(typ)

25ms/230VAC   50ms/115VAC(full load)

INPUT

Voltage range

100~132VAC/185~264VAC  260~370VDC(switch on220VAC)

Frequency range

50~60Hz

Efficiency (Typ)

78%

80%

81%

82%

82%

AC current (Typ)

3.0A/115VAC  1.6A/230VAC

Inrush current (Typ)

Cold start:35A/115VAC 70A/230VAC

Leakage current

<3.5mA/240VAC

PROTECTION

Over load

105%~150% in rated output power

Protection type: Hiccup mode,recovers automatically after fault condition is removed

Over voltage

8~10V

15~16.5V

29~33V

40~45V

58-65V

Protection mode,tum off output voltage, restart to recover

Environment

Working TEMP

-10℃~+60℃

Working humidity

20%~65% RH non-condensing

Storage TEMP humidity

-10℃~+65℃.  10%~95% RH

TEMP.coefficient

±0.03%℃(0~50℃)

Vibration

10~500Hz,2G 10min./1cycle,60min each along X,Y,Z axes Install in accordance with IEC60068-2-6

SAFETY

Safety regulations

UL60950-1,CB(IEC60950-1).In line with the certification

Withstand voltage

I/P-O/P:1.5KVAC  I/P-FG:1.5KVA  O/P-FG:0.4KVAC

Insolation resistance

l/P-O/P  I/P-FG,  0/P-FG: 100M Ohms/500VDC

Electromagnetic compatible emission

Compliance toEN55022(CISPR22)CLASS B,EN61000-3-2,-3,

EMC immunity requirements

Compliance to EN61000-4-2,3.4.5.6.8,11. EN55024,EN1000-6-2,Class A heavy industry standard

OTHERS

MTBF

≥260K hrs.MIL-HDBK-217F(25℃)

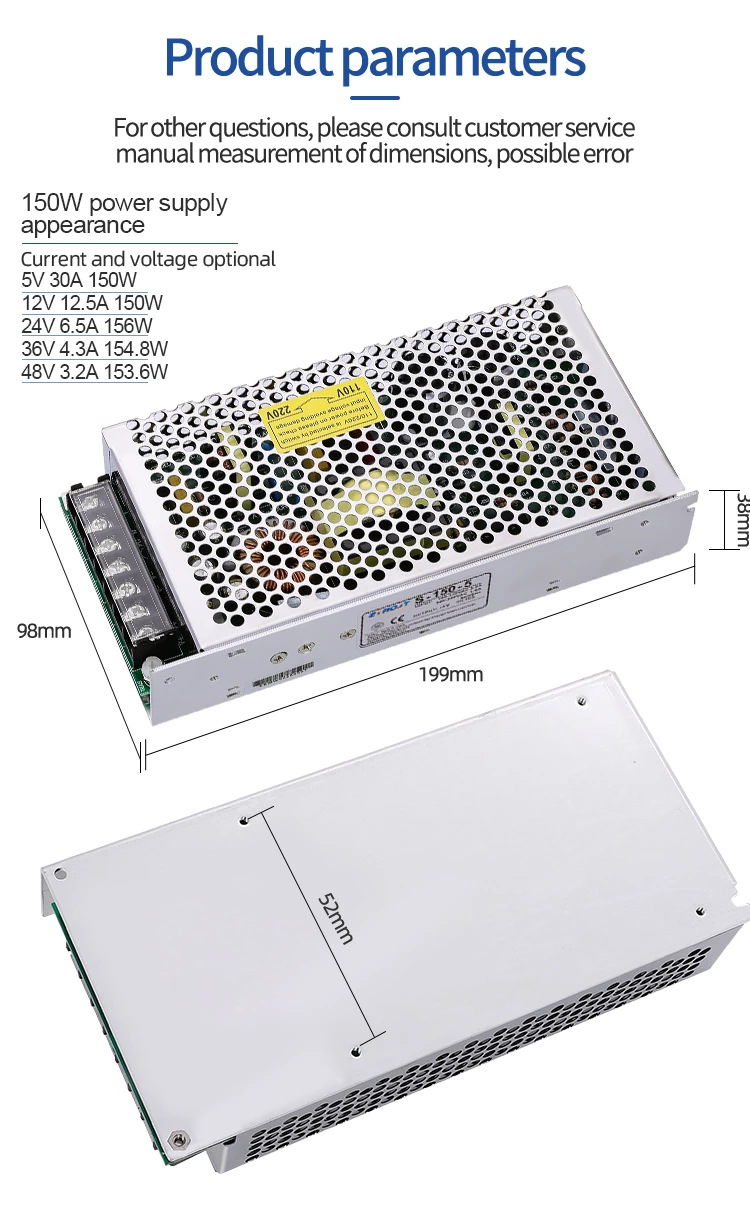

Dimension

199*98*38mm(L*W"H)

Packing

0.58Kg:30PCS/18Kg/0.95CUFT
