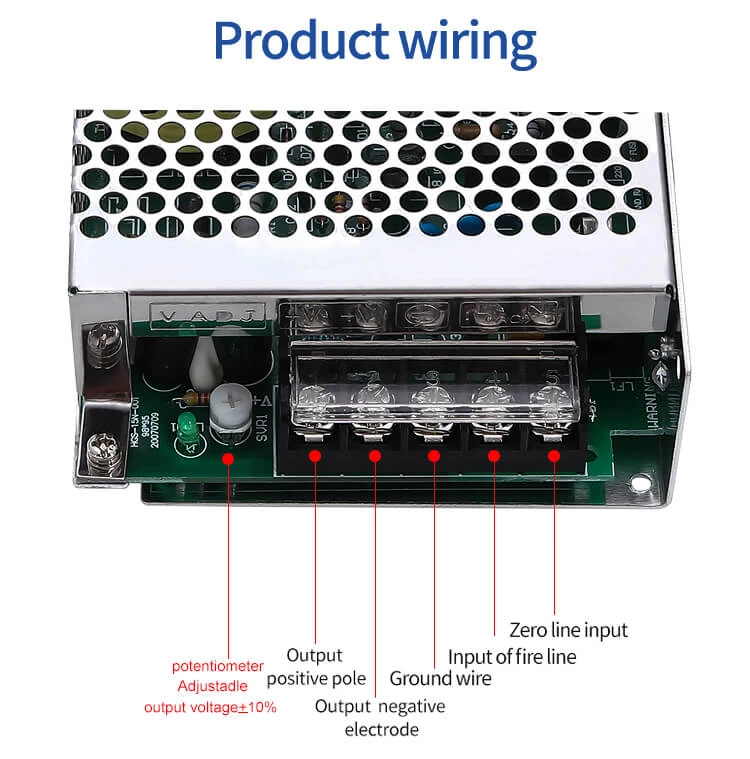

S Single Switch Power Supply

DC 24V SMPS Single Output 35W 1.5A Led Switching Mode Power Supply

MODEL S-35-5 S-35-12 S-35-24 S-35-36 S-35-48 OUTPUT DC Voltage 5V 12V 24V 36V 48V Rated Current 7.0A 3.0A 1.5A 1.0A 0.75A Current range 0-7.0A 0-3.0A 0~1.5A
Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
S-35-36
Output Type:
Single
Input Voltage:
100~132VAC/185~264VAC 260~370VDC(switch on220VAC)
Output Voltage:
12V/24V/36V/48V can be choose or customized
Output Frequency:
50~60Hz
Output Current:
1A
Output Power
35W
Efficiency:
85%
Workig Temperature:
-10℃~+60℃
Materail:
Aluminum
Certification:
CE FCC ROHS ISO9001
Test:
100%Full Load Burn-in Test
Protection:
Shortcuit Overtemp Overload overvoltage
Warranty
3 Years
Size
129*98*38mm(L*W*H)

MODEL



S-35-5

S-35-12

S-35-24

S-35-36

S-35-48

OUTPUT

DC Voltage

5V

12V

24V

36V

48V

Rated Current

7.0A

3.0A

1.5A

1.0A

0.73A

Current range

0~7.0A

0~3.0A

0~1.5A

0~1.0A

0~0.73A

Rated power

35W

36W

36W

36W

36W

Ripple&noise

80mVp-P

100mVp-p

100mVp-p

120mVp-p

120mVp-p

Voltage ADJ. range

5~7V

12~14V

24~28V

36~38V

48V~53V

Voltage tolerance

±2.0%

±2.0%

±1.0%

±1.0%

±1.0%

Line regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load regulation

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

Setup,Rise,Time

200ms, 100ms/230VAC  200ms, 100ms/115VAC(full load)

Hold up time (Typ)

20ms/230VAC   18ms/115VAC(full load)

INPUT

Voltage range

100~132VAC/185~264VAC 260~370VDC(switch on220VAC)

Frequency range

50~60Hz

Efficiency (Typ)

80%

82%

85%

85%

86%

AC current (Typ)

1.3A/115VAC  0.65A/230VAC

Inrush current (Typ)

Cold start:18A/115VAC   36A/230VAC

Leakage current

<1mA/240VAC

PROTECTION

Over load

105%~150% in rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over voltage

8~10V

15~16.5V

29~33V

40~45V

58-65V

Protection mode, tum off output voltage, restart to recover

Environment

Working TEMP

-10℃~+60℃.

Working humidity

20~65% RH non-condensing

Storage TEMP humidity

-10℃~+65℃,10~95%RH

TEMP.coefficient

±0.03%℃(0~50℃)

Vibration

10~500Hz,2G 10min./1cycle .60min Each along X,Y,Z axes

SAFETY

Safety regulations

UL60950-1.   CB(IEC60950-1) In line with the certification

Withstand voltage

I/P-O/P:1.5KVAC  I/P-FG:1.5KVA  O/P-FG:0.4KVAC

Insolation resistance

I/P-O/P, I/P-FG,  O/P-FG:100M Ohms/500VDC

Electromagnetic compatible emission

Compliance to EN55022(CISPR22)CLASS B, EN61000-3-2,-3,

EMC immunity requirements

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN1000-6-1,Class A light industry standard

OTHERS

MTBF

≥394K hrs.MIL-HDBK-217F(25℃)

Dimension

129*98*38mm(L*W*H)

Packing

0.4Kg:30pcs/12Kg/0.7CUFT
