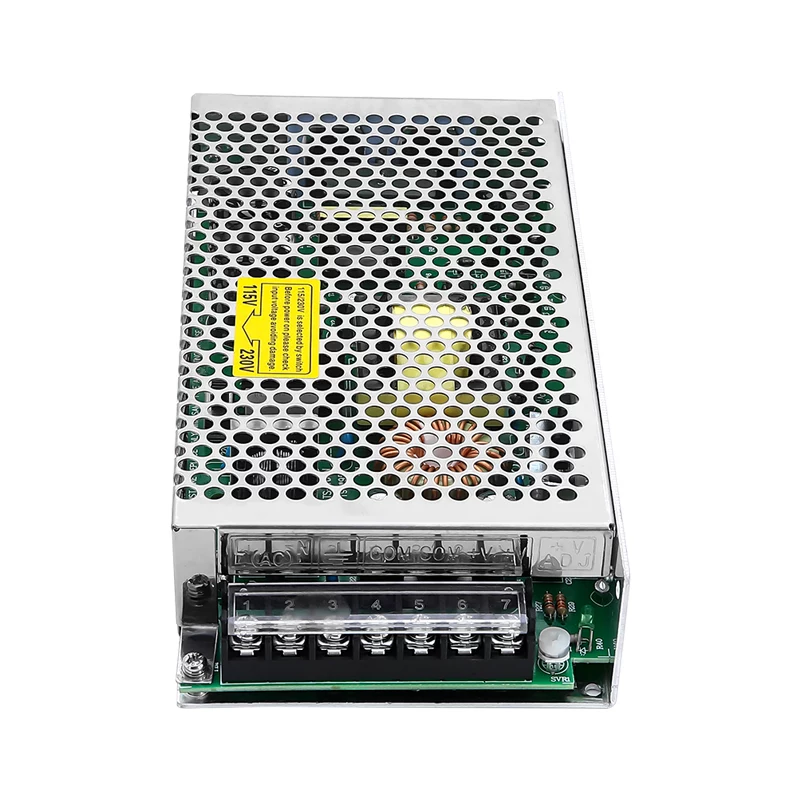

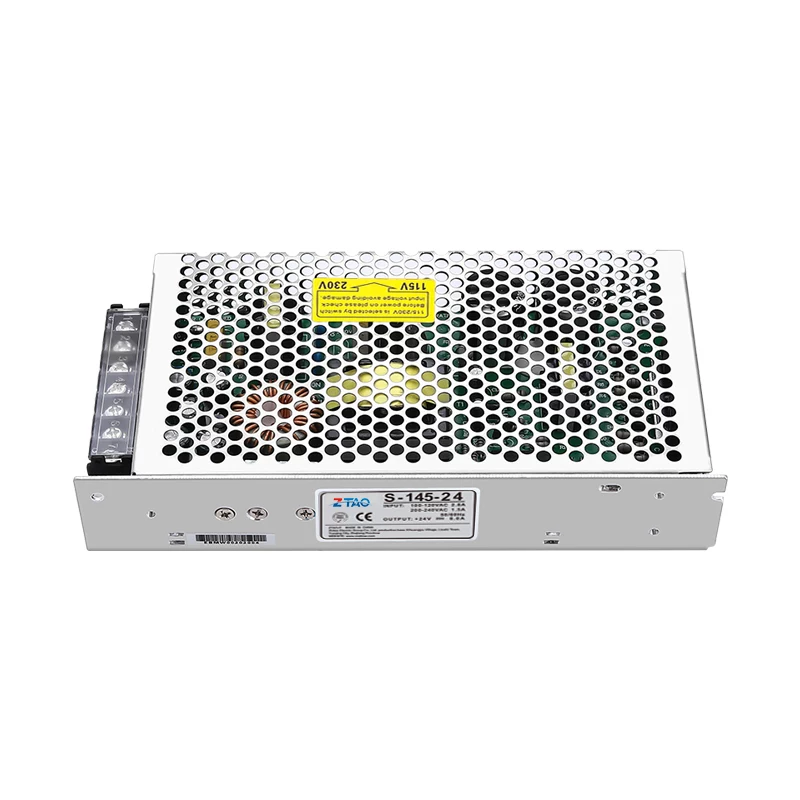

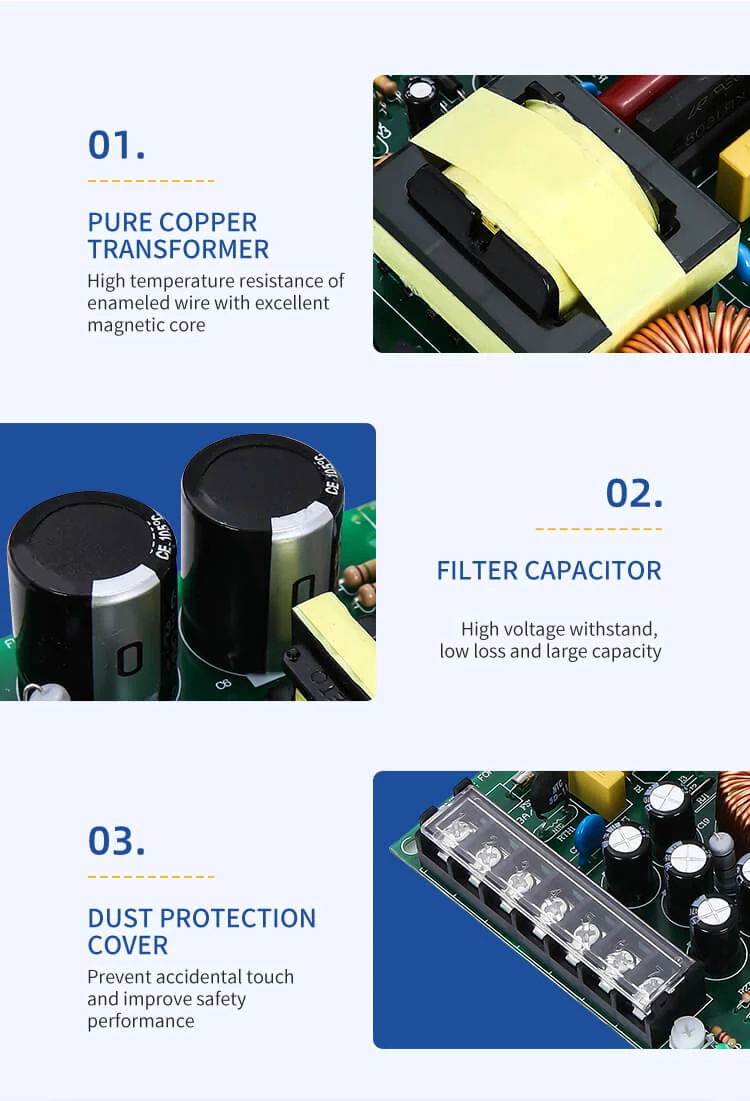

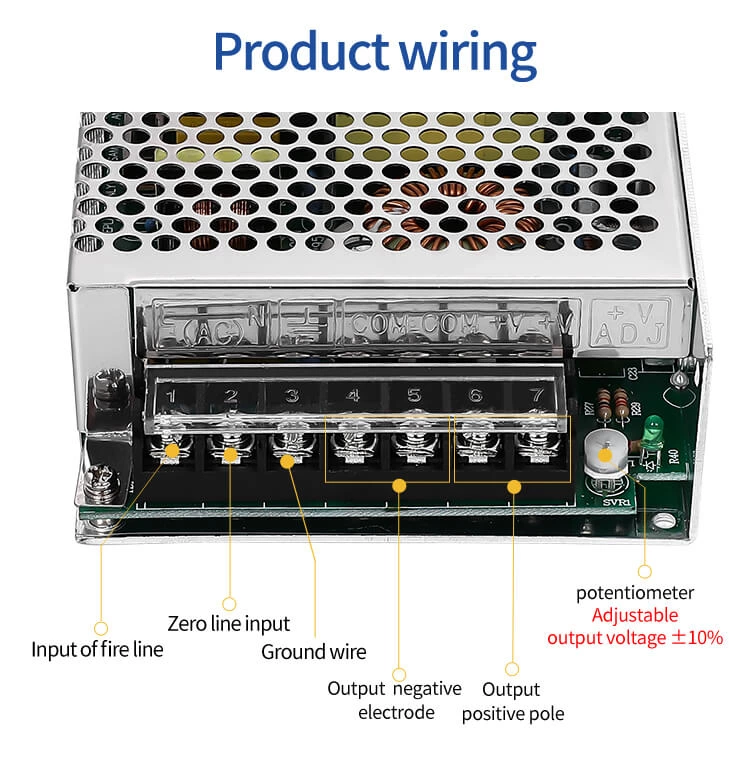

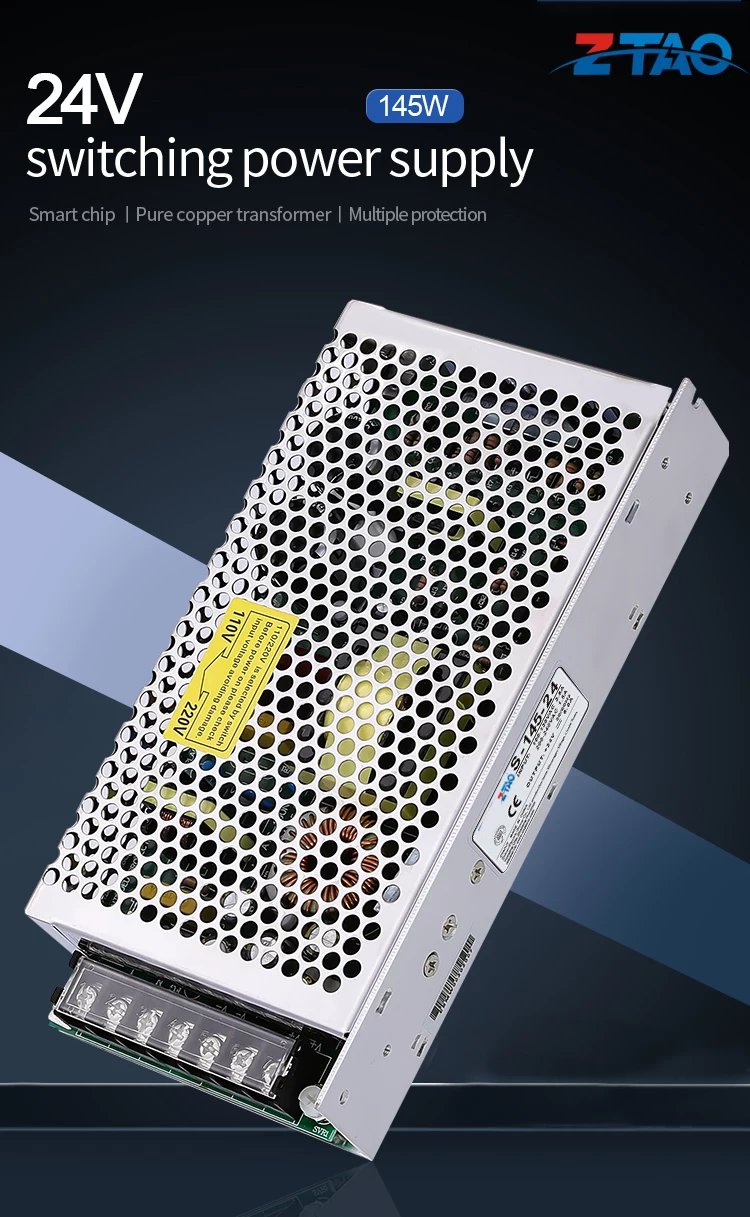

S Single Switch Power Supply

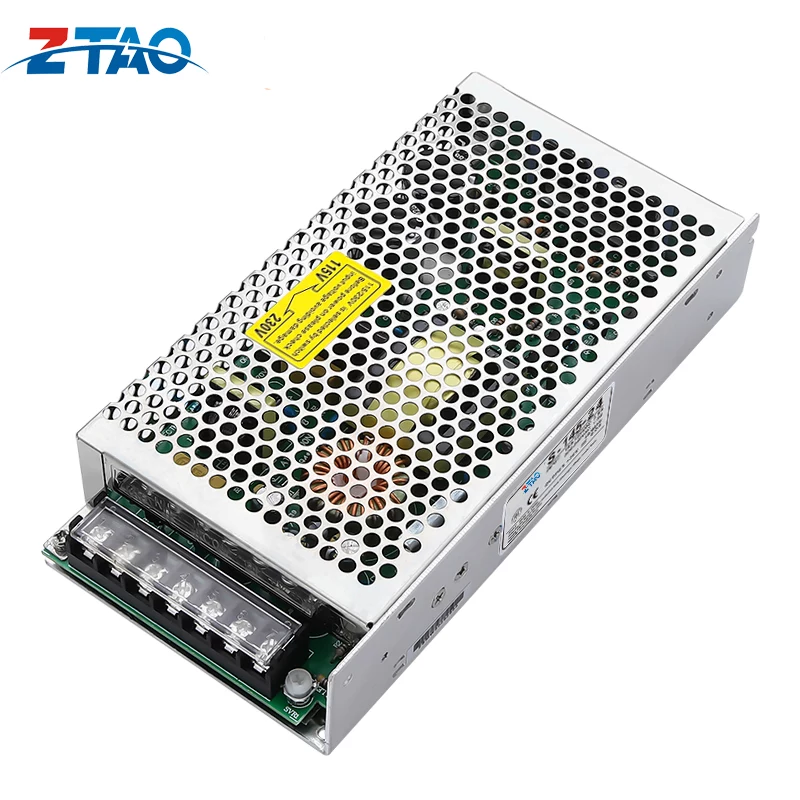

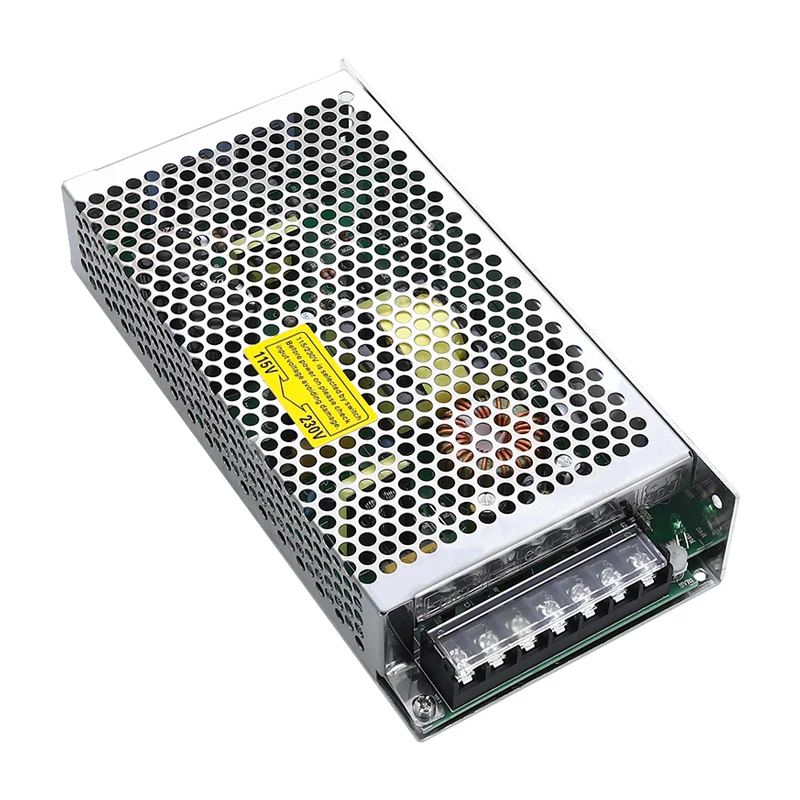

Constant Voltage 24V 145w PSU AC DC Switching Power Supply

MODEL S-145-5 S-145-12 S-145-24, S-145-36 S-145-48 OUTPUT DC Voltage 5V 12V 24V 36V 48V Rated Current 26A 12A 6.0A 4.0A 3.0A Current range 0~26A 0~12A 0~6A

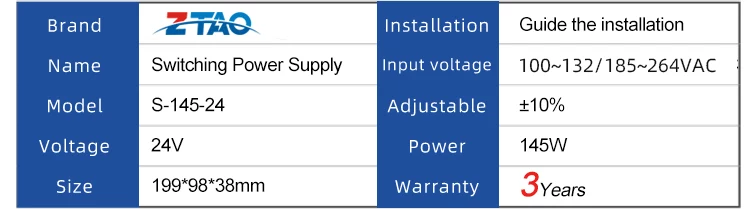

Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
S-145-24
Output Type:
Single
Input Voltage:
100~132VAC/185~264VAC 260~370VDC(switch on220VAC)
Output Voltage:
24V/12V/48V can be choose
Output Frequency:
50~60Hz
Output Current:
6A
Output Power
145W
Efficiency:
81%
Workig Temperature:
-10℃~+60℃
Certification:
CE FCC ROHS ISO9001
Test:
100%Full Load Burn-in Test
Protection:

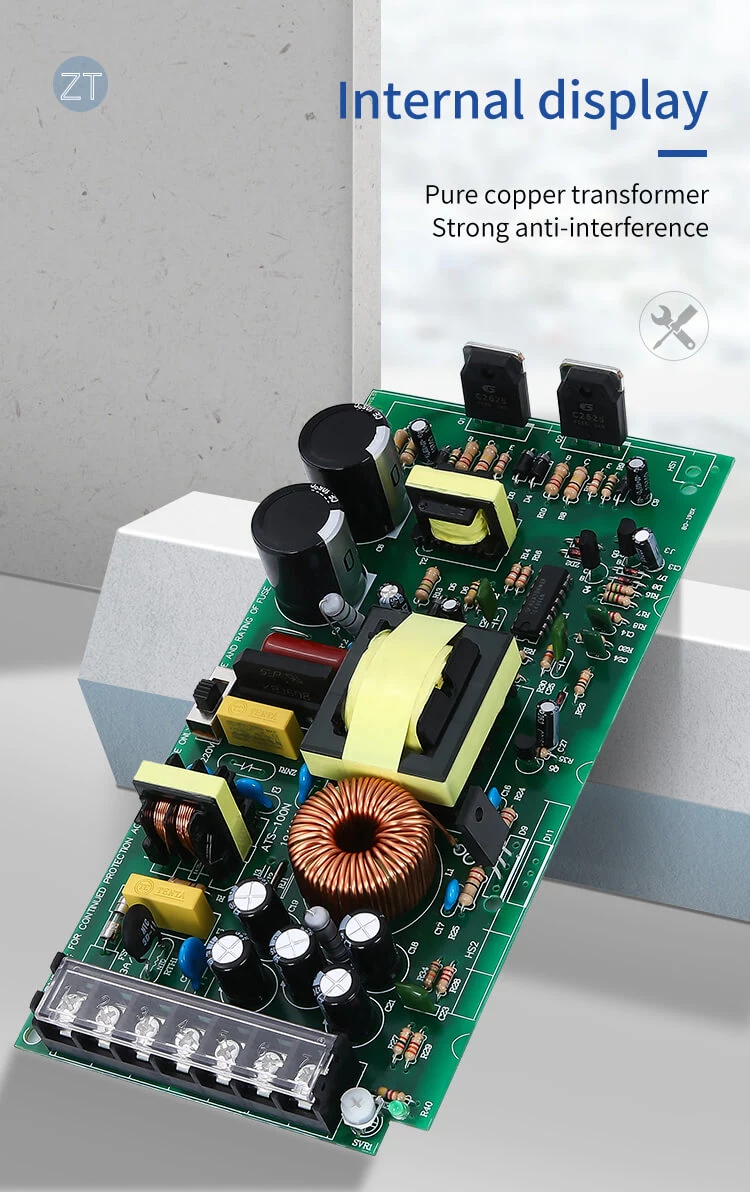

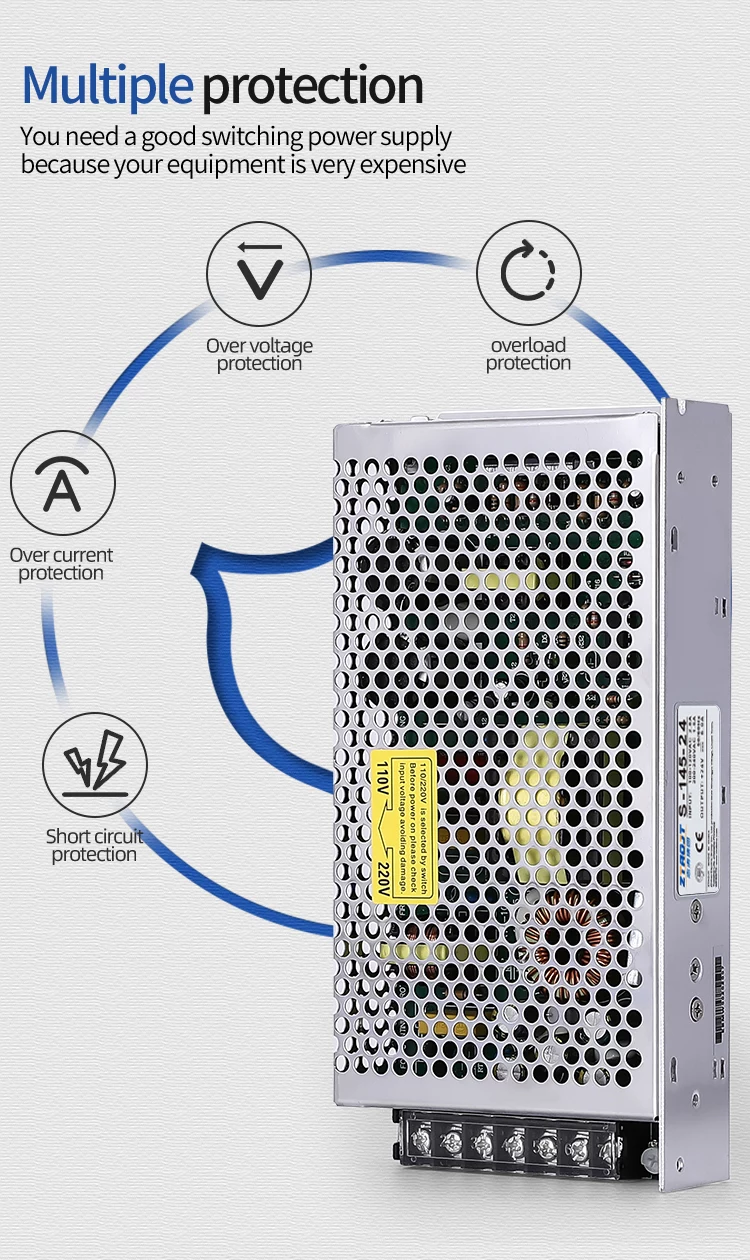

Shortcuit Overtemp Overload overvoltage
Warranty
3 Years

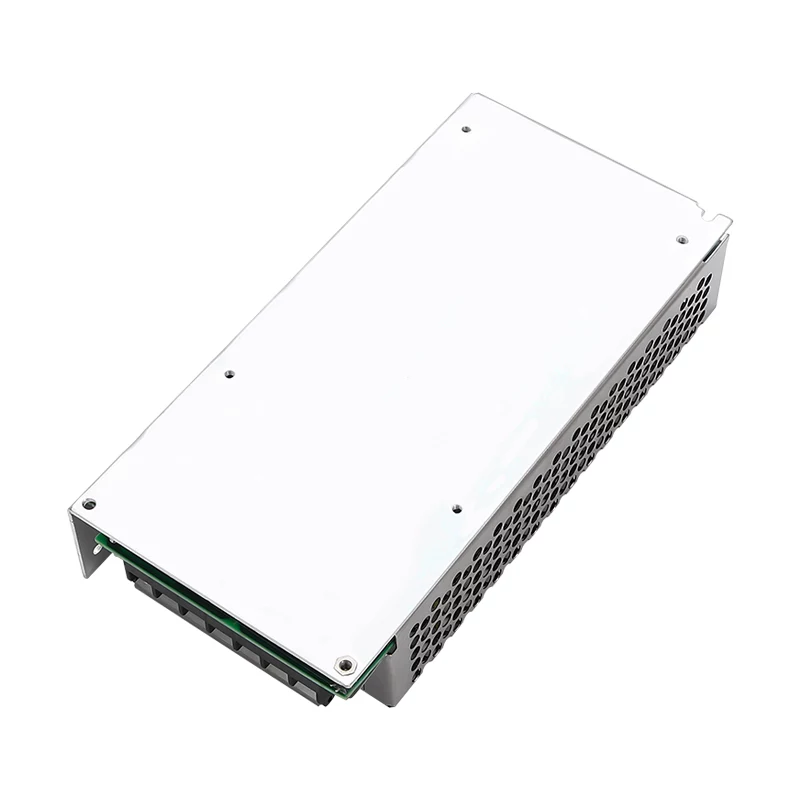

Size

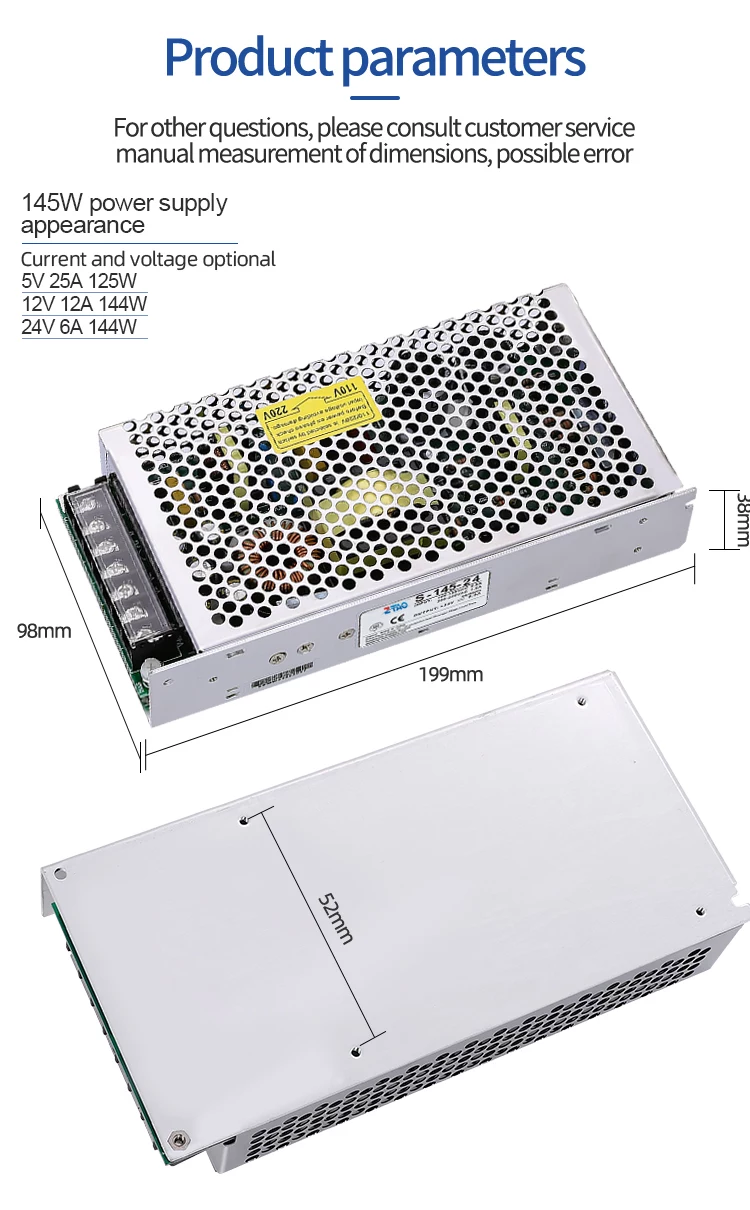

199*98*38mm(L*W*H)

MODEL



S-145-5

S-145-12

S-145-24

S-145-36

S-145-48

OUTPUT

DC Voltage

5V

12V

24V

36V

48V

Rated Current

25A

12A

6.0A

4.0A

3.0A

Current range

0~25A

0~12A

0~6A

0~4A

0~3A

Rated power

125W

144W

144W

144W

144W

Ripple&noise(max.)

78mVp-p

100mVp-p

100mVp-p

120mVp-p

120mVp-p

Voltage ADJ. range

5~7V

12~14V

24~28V

36~38V

48V~53V

Voltage tolerance

±2.0%

±2.0%

±1.0%

±1.0%

±1.0%

Line regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load regulation

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

Setup,Rise,Time

100ms, 50ms/230VAC  100ms,60ms/115VAC(full load)

Hold up time(typ)

25ms/230VAC  50ms/115VAC(full load)

INPUT

Voltage range

100~132VAC/185~264VAC   260~370VDC(switch on220VAC)

Frequency range

50~60Hz

Efficiency (Typ)

78%

80%

81%

82%

82%

AC current (Typ)

2.8A/115VAC  1.5A/230VAC

Inrush current (Typ)

Cold start:35A/115VAC  70A/230VAC

Leakage current

<3.5mA/240VAC

PROTECTION

Over load

105%~150% in rated output power

Protection type: Hiccup mode,recovers automatically after fault condition is removed

Over voltage

8~10V

15~16.5V

29~33V

40~45V

58-65V

Protection mode,tum off output voltage, restart to recover

Environment

Working TEMP

-10℃~+60℃

Working humidity

20~65% RH non-condensing

Storage TEMP humidity

-10℃~+65℃. 10~95% RH

TEMP.coefficient

±0.03%℃(0~50℃)

Vibration

10~500Hz,2G 10min./1cycle,60min each along X,Y,Z axes Install in accordance with IEC60068-2-6

SAFETY

Safety regulations

UL60950-1,CB (EN60950-1)In line with the certification

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.4KVAC

Insolation resistance

l/P-O/P  I/P-FG,  0/P-FG: 100M Ohms/500VDC

Electromagnetic compatible emission

Compliance to EN55022(CISPR22)CLASS B,EN61000-3-2,-3.

EMC immunity requirements

Compliance to EN61000-4-2,3.4.5.6.8,11. EN55024,EN1000-6-2Class A heavy industry standard

OTHERS

MTBF

≥260K hrs.MIL-HDBK-217F(25℃)

Dimension

199*98*38mm(L*W"H)

Packing

0.58Kg:30PCS/18Kg/0.95CUFT
