MODEL |
|
S-800-24 |
S-800-36 |
S-800-48 |
|
OUTPUT |
DC Voltage |
24V |
36V |
48V |
|
Rated Current |
33A |
22A |
16.5A |
|
|
Current range |
0~33A |
0~22A |
0~16.5A |
|
|
Rated power |
792W |
792W |
801W |
|
|
Ripple&noise |
150mVp-p |
200mVp-p |
200mVp-p |
|
|
Voltage ADJ. range |
24~28V |
36~38V |
48~53V |
|
|
Voltage tolerance |
±1.0% |
±1.0% |
±1.0% |
|
|
Line regulation |
±0.5% |
±0.5% |
±0.5% |
|
|
Load regulation |
±1.0% |
±1.0% |
±1.0% |
|
|
Setup,Rise,Time |
200ms, 50ms/230VAC 200ms，50ms/115VAC(full load) |
|||
|
Hold up time(typ) |
20ms/230VAC 20ms/115VAC(full load) |
|||
|
INPUT |
Voltage range |

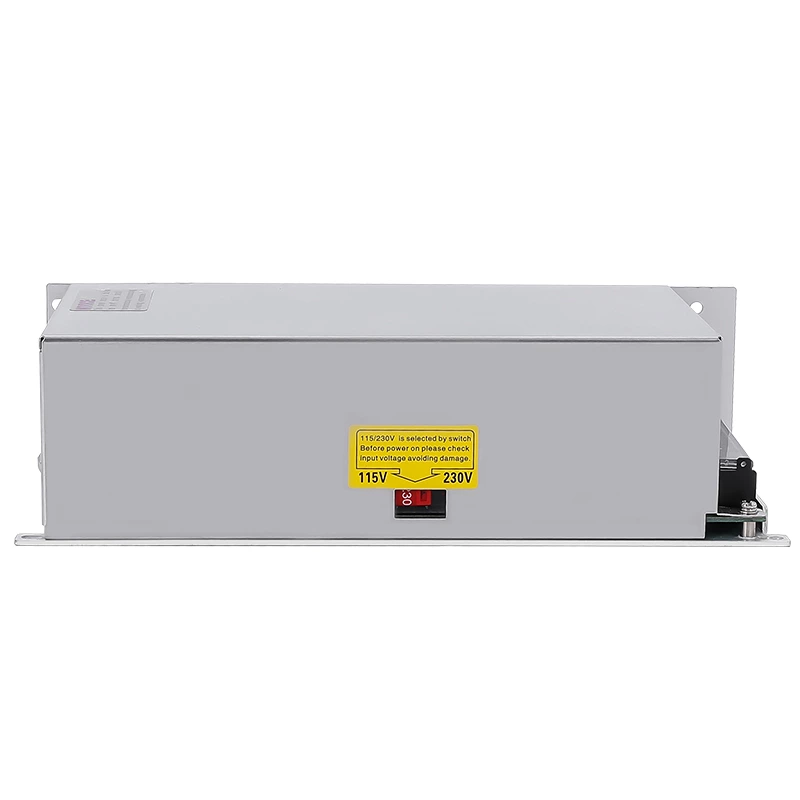

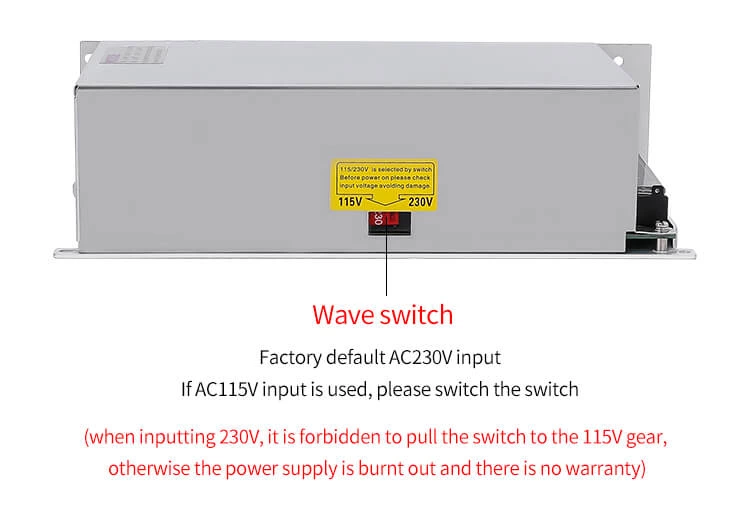

100～132VAC/185～264VAC 260～370VDC（switch on230VAC） |
||
|
Frequency range |
50~60Hz |
|||
|
Efficiency (Typ) |
84% |
85% |
85% |
|
|
AC current (Typ) |
8.5A/100~120VAC 4.2A/200~230VAC |
|||
|
Inrush current (Typ) |
Cold start: 30A/115VAC 60A/230VAC |
|||
|
Leakage current |
<3.5mA/240VAC |
|||
|
PROTECTION |
Over load |
105%~150% in rated output power |
||
|
Protection type: Hiccup mode,recovers automatically after fault condition is removed |
||||
|
Over voltage |
29~33V |
40~45V |
58~65V |
|
|
Protection mode,tum off output voltage, restart to recover |
||||
|
|
Fan switch control |
Fan temperature control |
||
|
RTH3≥60℃ Fan turn fast ≥80℃ Close the output |
||||
|
Environment |
Working TEMP |
-10℃~+60℃ |
||
|
Working humidity |
20%~65% RH non-condensing |
|||
|
Storage TEMP humidity |
-10℃~+65℃. 10%~95% RH |
|||
|
TEMP.coefficient |
±0.03%℃(0~50℃) |
|||
|
Vibration |
10~500Hz，2G 10min./1cycle，60min each along X,Y,Z axes Install in accordance with IEC60068-2-6 |
|||
|
SAFETY |
Safety regulations |
UL60950-1. CB(IEC60950-1)In line with the certification |
||
|
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.4KVAC |
|||
|
OTHERS |
MTBF |
≥260K hrs.MIL-HDBK-217F(25℃) |
||
|

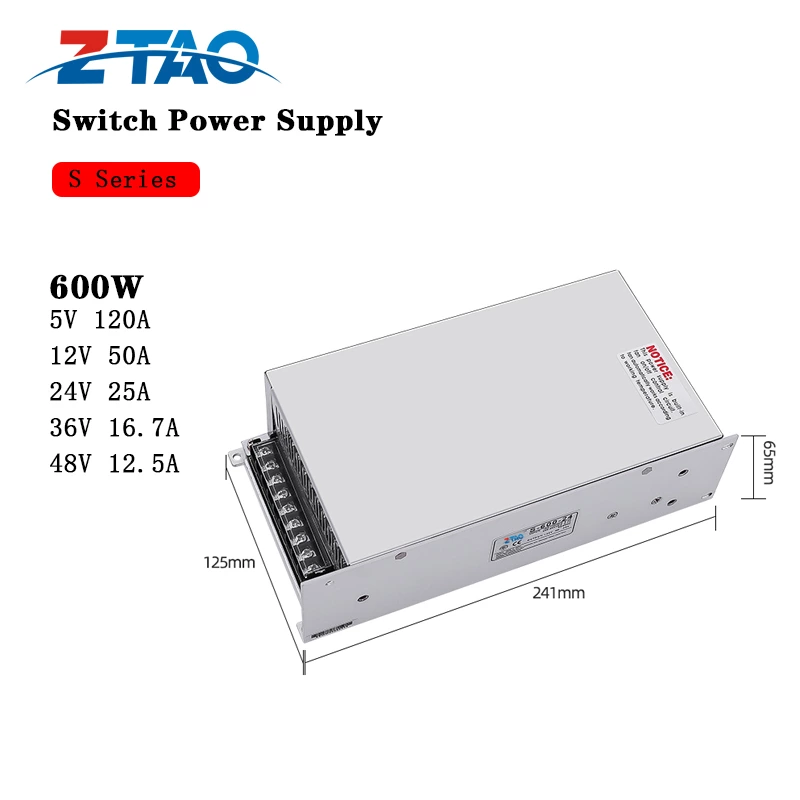

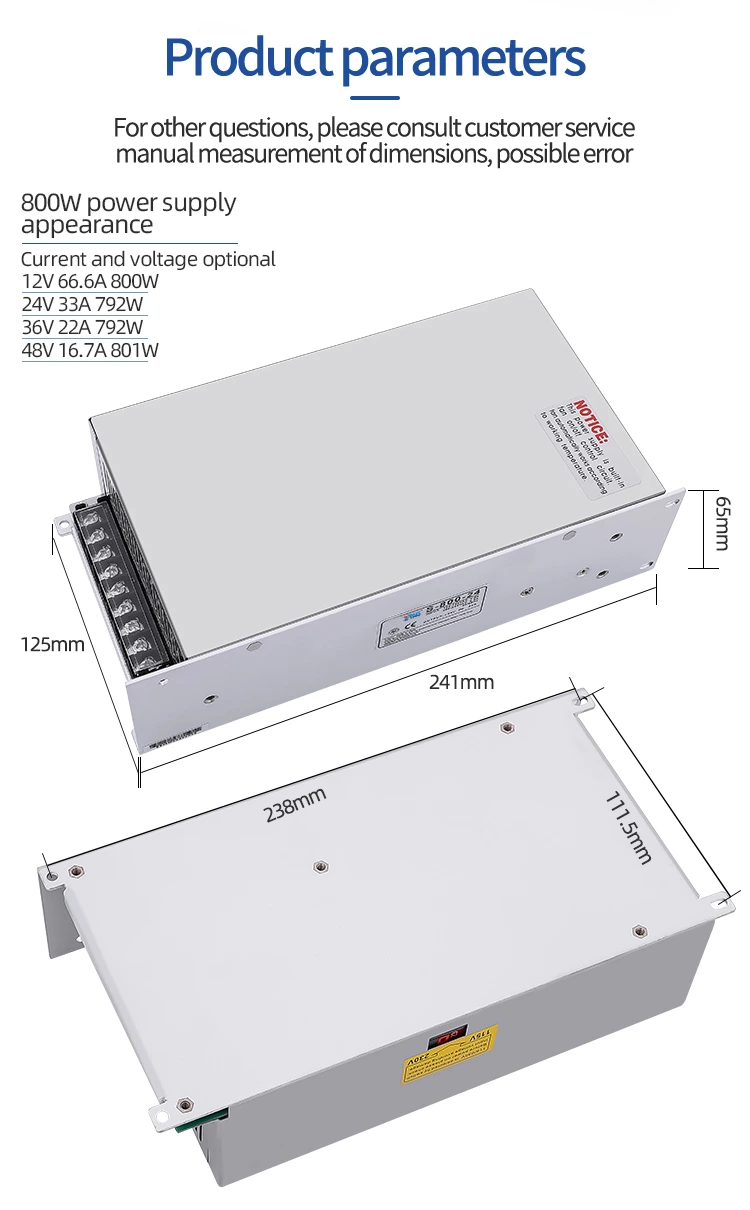

Dimension |

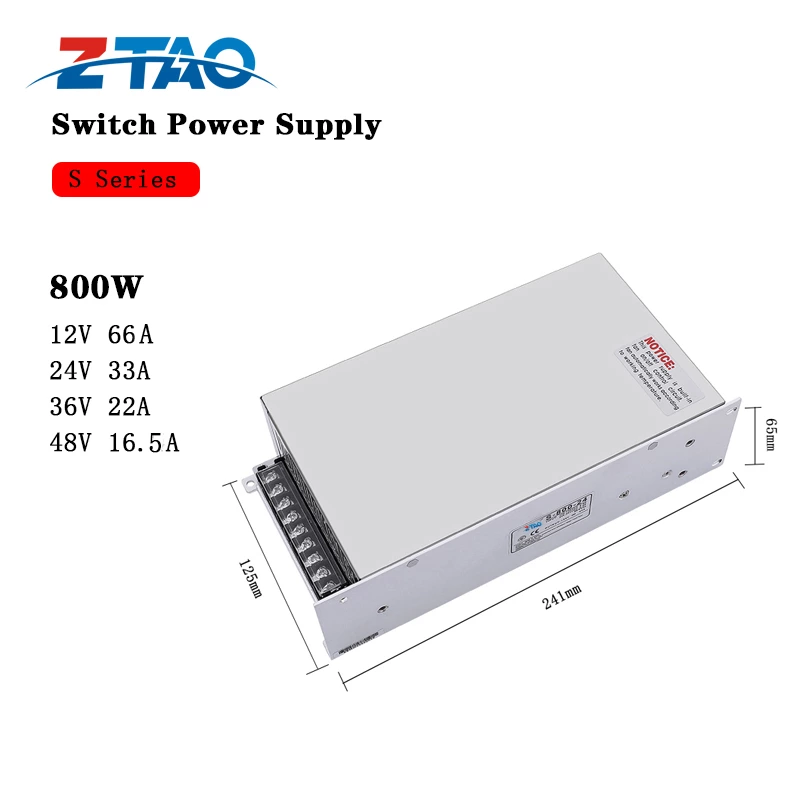

241*125*65mm(L*W"H) |
|||
|
Packing |
1.28Kg:12PCS/16Kg /1.0CUFT |
|||
