MODEL |
|
S-15-5 |
S-15-12 |
S-15-24 |
S-15-36 |
S-15-48 |
|
OUTPUTV |
DC Voltage |
5V |
12V |
24V |
36V |
48V |
|
Rated current |
3A |
1.25A |
0.63A |
0.4A |
0.31A |
|
|
current range |
0~3A |
0~1.25A |
0~0.63A |
0~0.4A |
0~0.31A |
|
|
Rated power |
15W |
15W |
15.12W |
14.4w |
14.88W |
|
|
Ripple&noise |
50mVp-p |
100mVp-p |
100mVp-p |
120mVp-p |
200mVp-p |
|
|
Voltage ADJ. |
5~7V |
12~14V |
24~28V |
36~38V |
48~53V |
|
|
Voltage tolerance |
±2.0% |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Line regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Load regulation |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Setup,Rise,Time |
200ms,50ms/230VAC 200ms，50ms/115VAC(full load) |
|||||
|
Hold up time |
20ms/230VAC 18ms/115VAC(full load) |
|||||
|
INPUT |
Voltage range |
100～132VAC/185～264VAC 260～370VDC（switch on220VAC） |
||||
|
Frequency range |
50~60Hz |
|||||
|
Efficiency |
75% |
78% |
80% |
82% |
84% |
|
|
AC current |
2.6A/115VAC 1.6A/230VAC |
|||||
|
Inrush current |
Cold start 13A/115VAC 25A/230VAC |
|||||
|
Leakage current |
<0.75mA/240VAC |
|||||
|
PROTECTION |
over load |
105%~150%rated output power |
||||
|
Protection type:Hiccup mode, recovers automatically after fault condition is removed |
||||||
|
over voltage |
8~10V |
15~16.5V |
29~33V |
40~45V |
58~65V |
|
|
Protection mode, tum off output voltage, restart to recover |
||||||
|
Environment |
Working TEMP |
-10℃~+60℃ |
||||
|
Working humidity |
20~65% RH non-condensing |
|||||
|
Storage TEMP humidity |
-10~+60℃，10-95%RH |
|||||
|
TEMP.coefficient |
±0.03%℃(O~50℃) |
|||||
|
Vibration |
10~500Hz，2G 10min/1cycle, 60min each along x,YZ axes |
|||||
|
SAFETY |
Safety regulations |
UL60950-1,CB(IEC60950-1) In line with the certification |
||||
|
Withstand voltage |
I/P-0/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.5KVAC |
|||||
|
Insolation resistance |
I/P-O/P，I/P-FG, O/P-FG: 10OM Ohms/50OVDC/ |
|||||
|
EMC compatible emission |
Compliance to EN55011,EN55032(CISPR32)CLASS B,EN61000-3-2,-3,EAC TP TC O20 |
|||||
|
EMC Immunity |
compliance to EN61000-4-2,3.4.5.6.8.11,EN55024.EN1000-6-1 Class A light industry standard |
|||||
|
OTHERS |
MTBF |
≥384K hrs.MIL-HDBK-217F(25℃) |
||||
|

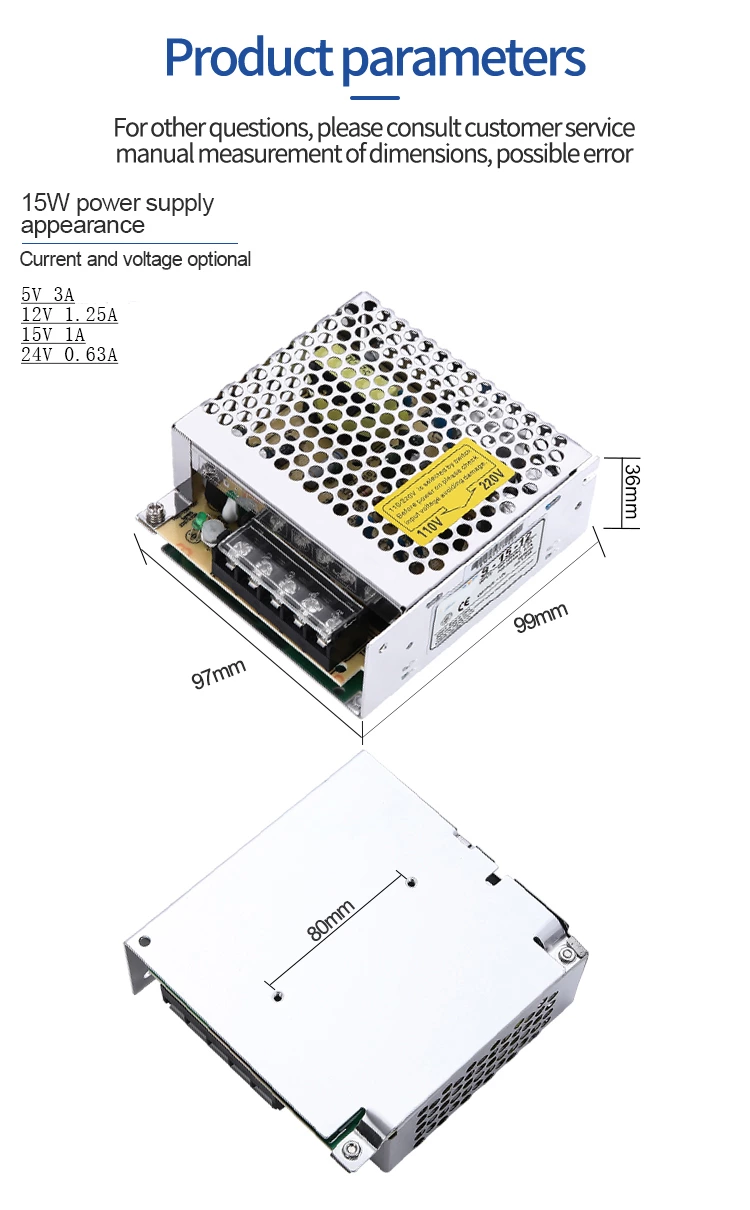

Dimension |
99*97*36mm(L*W*H) |
|||||
|
Packing |
0.32Kg.45PCS/17Kg/0.93CUFT |
|||||
