S Single Switch Power Supply

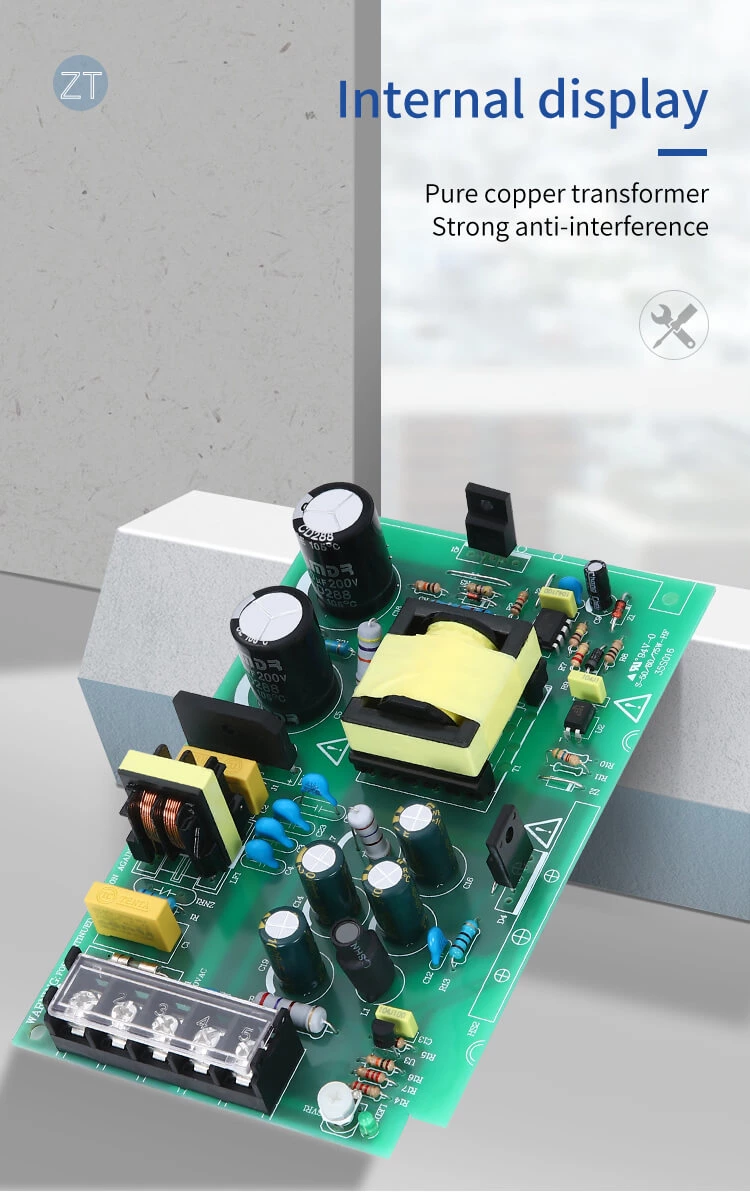

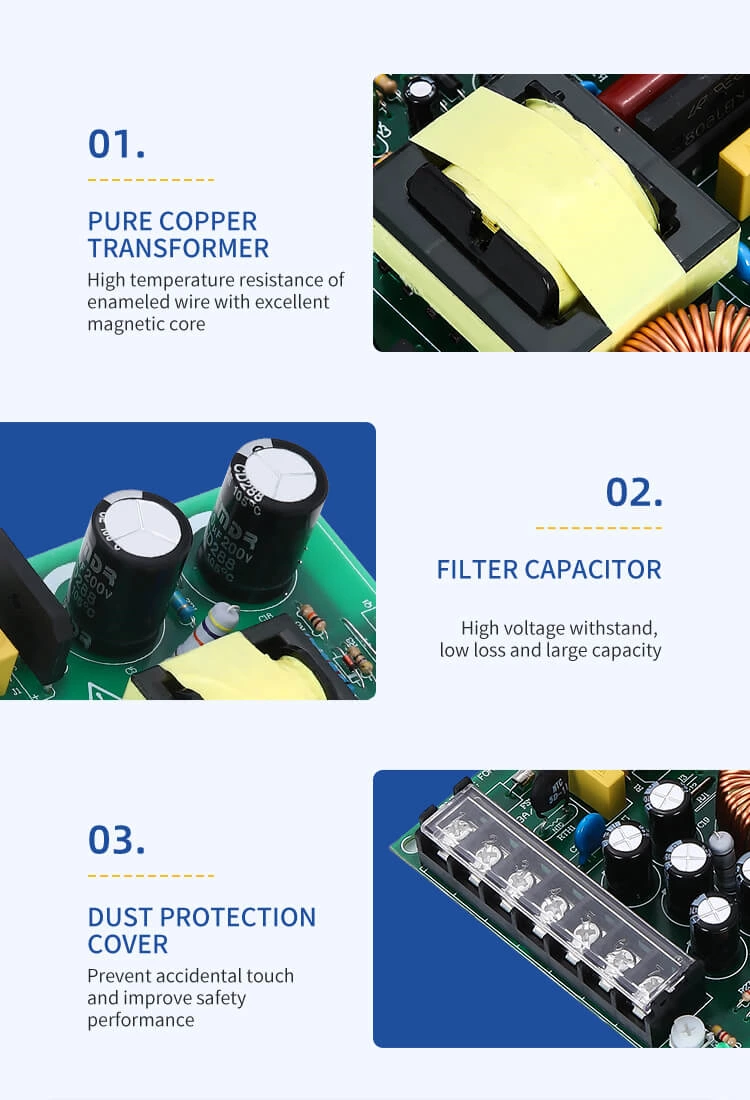

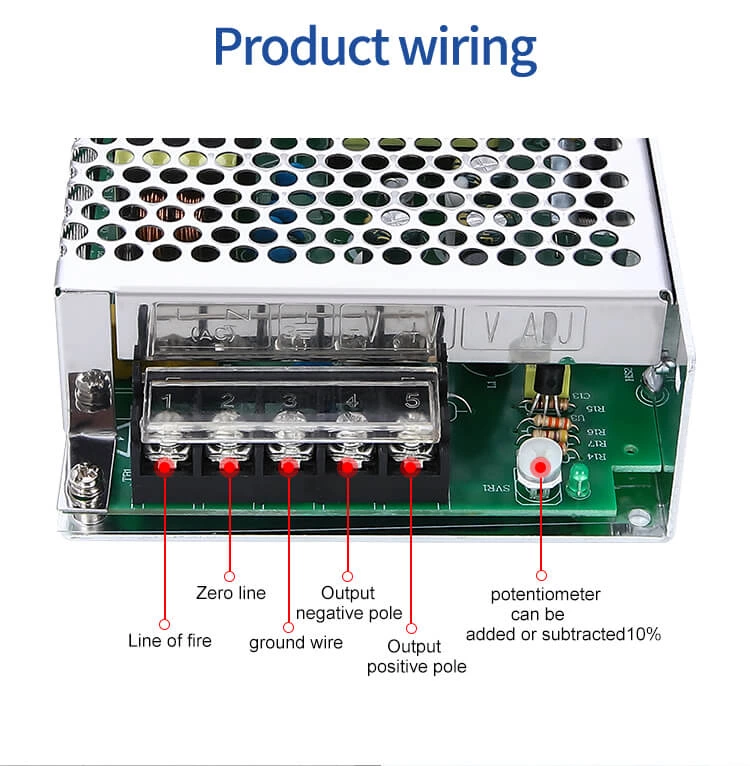

75W 24V 3.2A DC Switching Power Supply for Automation Equipment

MODEL S-75-12 S-75-15 S-75-24, S-75-36 S-75-48 OUTPUT DC Voltage 12V 15V 24V 36V 48V Rated Current 6.25A 5A 3.1A 2.1A 1.6A Current range 0~6.25A 0~5A 0-3.1A
Place of Origin;
Zhejiang, China
Brand Name:
ZTAOJT
Model Number:
S-75-24
Output Type:
Single
Input Voltage:
100~264VAC 140~373VDC
Output Voltage:
12V/24V/36V/48V can be choose or customized
Output Frequency:
50~60Hz
Output Current:
3.2A
Output Power
75W
Efficiency:
82%
Workig Temperature:
-10℃~+60℃
Certification:
CE FCC ROHS ISO9001
Test:
100%Full Load Burn-in Test
Protection:
Shortcuit Overtemp Overload overvoltage
Warranty
3 Years
Size
159*98*38mm(L*W*H)

MODEL



S-75-5

S-75-12

S-75-24

S-75-36

S-75-48

OUTPUT

DC Voltage

5V

12V

24V

36V

48V

Rated Current

12A

6.3A

3.2A

2.1A

1.6A

Current range

0~12A

0~6.3A

0~3.2A

0~2.1A

0~1.6A

Rated power

60W

75.6W

76.8W

75.6W

76.8W

Ripple&noise

78mVp-p

100mVp-p

100mVp-p

120mVp-p

120mVp-p

Voltage ADJ. range

5~7V

12~14V

24~28V

36~38V

48V~53V

Voltage tolerance

±2.0%

±2.0%

±1.0%

±1.0%

±1.0%

Line regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load regulation

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

Setup,Rise,Time

200ms,78ms/230VAC  200ms,85ms/115VAC(full load)

Hold up time(typ)

20ms/230VAC   45ms/115VAC(full load)

INPUT

Voltage range

100~264VAC  140~373VDC

Frequency range

50~60Hz

Efficiency (Typ)

76%

80%

82%

82%

84%

AC current (Typ)

1.6A/115VAC  0.8A/230VAC

Inrush current (Typ)

Cold start:20A/115VAC 40A/230VAC

Leakage current

<1mA240VAC

PROTECTION

Over load

105%~150% in rated output power

Protection type: Hiccup mode,recovers automatically after fault condition is removed

Over voltage

8~10V

12~15V

29-33V

40~-45V

58-65V



Protection mode,tum off output voltage, restart to recover

Environment

Working TEMP

-10℃~+60℃

Working humidity

20~65% RH non-condensing

Storage TEMP humidity

-10℃~+60℃.10~95%RH

TEMP.coefficient

±0.03%℃(0~50℃)

Vibration

10~500Hz,2G 10min./1cycle,60min each along X,Y,Z axes Install in accordance with IEC60068-2-6

SAFETY

Safety regulations

UL60950-1,CB(IE60950-1) In line with the certification

Withstand voltage

I/P-O/P:1.5KVAC  I/P-FG:1.5KVA  O/P-FG:0.4KVAC

Insolation resistance

l/P-O/P I/P-FG,   0/P-FG: 100M Ohms/500VDC

Electromagnetic compatible emission

Compliance to EN55022(CISPR22)CLASS B,EN61000-3-2,-3

EMC immunity requirements

Compliance to EN61000-4-2,3.4.5.6.8,11. EN55024,EN1000-6-1 Class A light industry standard

OTHERS

MTBF

≥370K hrs.MIL-HDBK-217F(25℃)

Dimension

159*98*38mm(L*W"H)

Packing

0.45Kg:30PCS/14Kg/0.9CUFT

75W 24V 3.2A DC Switching Power Supply for Automation Equipment
