S Single Switch Power Supply

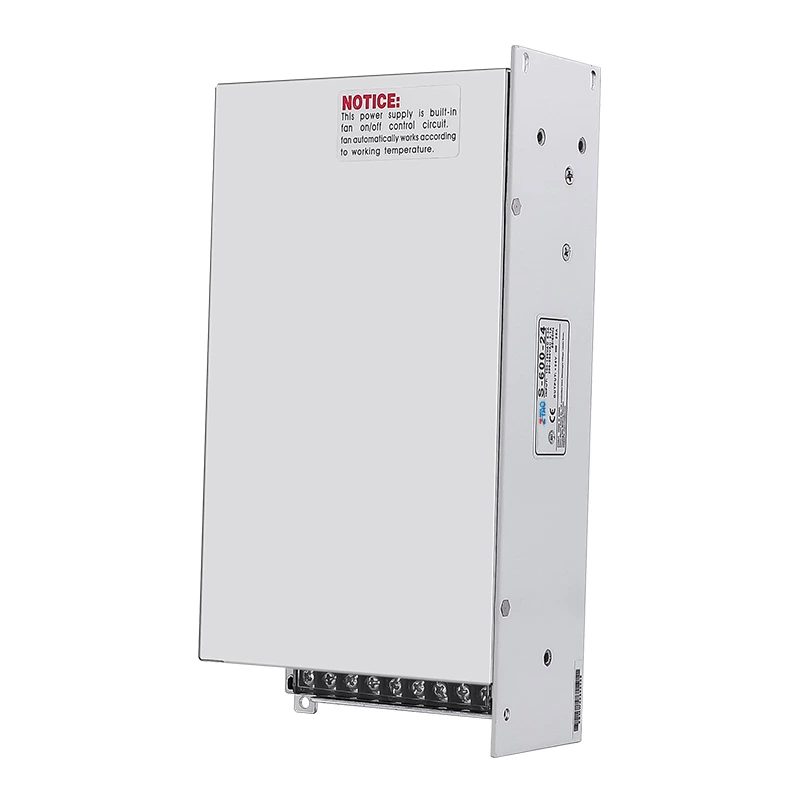

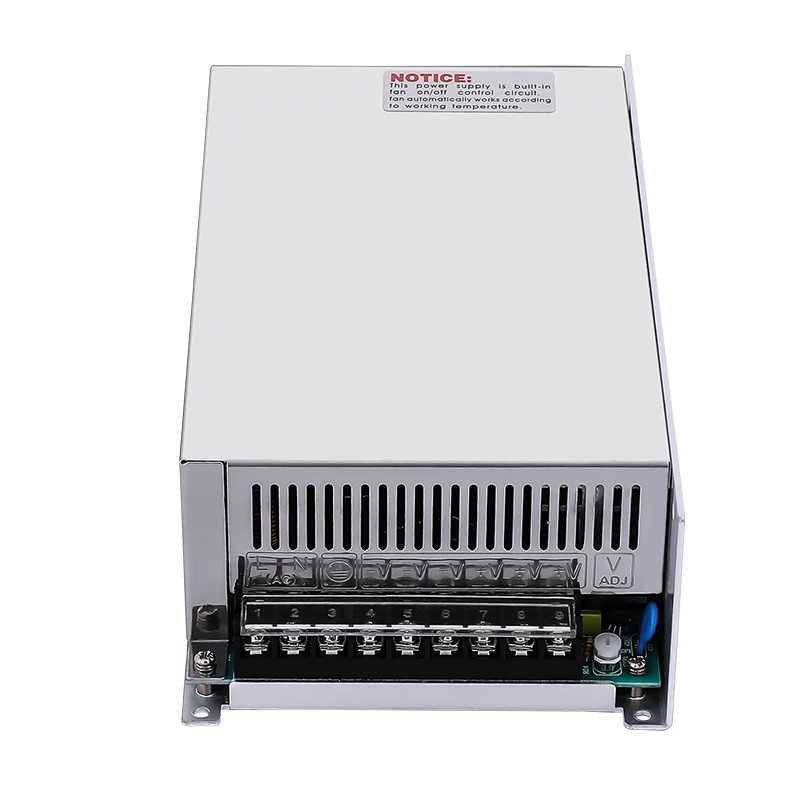

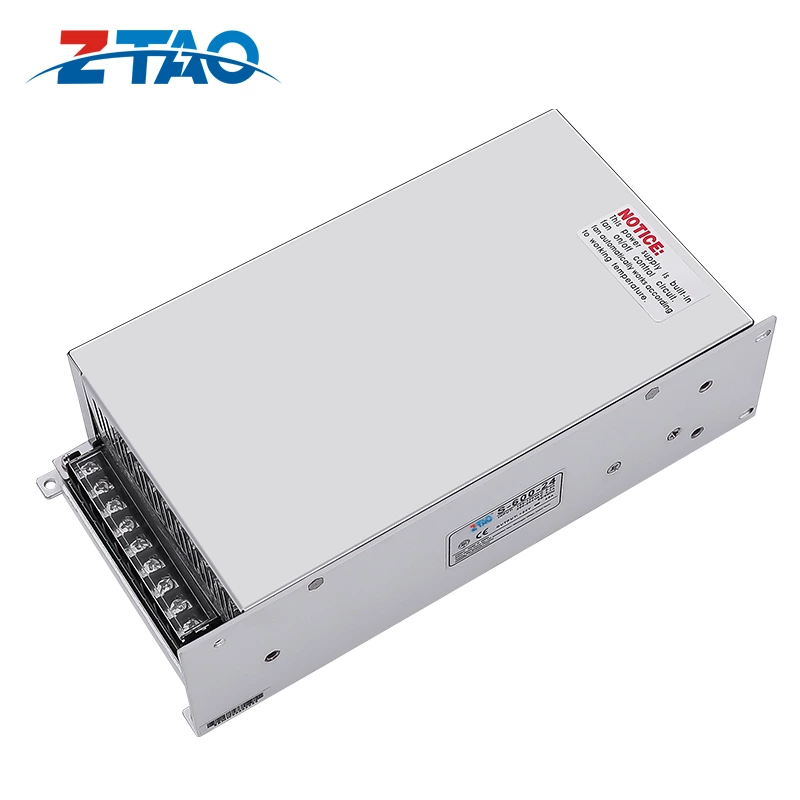

600W 24V 25A DC Switching Power Supply 12v 50a for Industrial Control Equipment

MODEL S-600-12 S-600-24 S-600-36 S-600-48 OUTPUT DC Voltage 12V 24V 36V 48V Rated Current 50A 25A 16.7A 12.5A Current range 0~50A 0~25A 0~16.7A 0~12.5A Rated

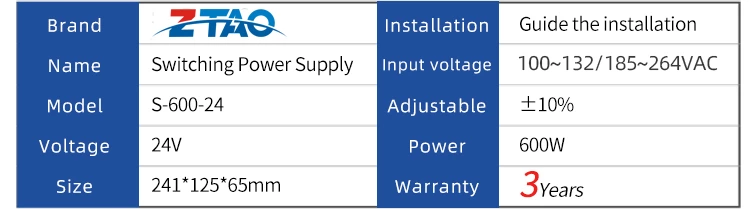

Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
S-600-24
Output Type:
Single
Input Voltage:
100~132VAC/185~264VAC 260~370VDC(switch on230VAC)
Output Voltage:
12V/24V/36V/48V can be choose and customized
Output Frequency:
50~60Hz
Output Current:
25A
Output Power
600W
Efficiency:
84%
Workig Temperature:
-10℃~+60℃
Certification:
CE FCC ROHS ISO9001
Test:
100%Full Load Burn-in Test
Protection:
Shortcuit Overtemp Overload overvoltage
Warranty
3 Years
Size
241*125*65mm(L*W*H)

MODEL



S-600-12

S-600-24

S-600-36

S-600-48

OUTPUT

DC Voltage

12V

24V

36V

48V

Rated Current

50A

25A

16.7A

12.5A

Current range

0~50A

0~25A

0~16.7A

0~12.5A

Rated power

600W

600W

601.2W

600W

Ripple&noise(max.)note2

150mVp-p

150mVp-p

200mVp-p

200mVp-p

Voltage ADJ. range

12~14V

24~28V

36~38V

48~53V

Voltage tolerance note3

±1.0%

±1.0%

±1.0%

±1.0%

Line regulation note4

±0.5%

±0.5%

±0.5%

±0.5%

Load regulation note5

±0.5%

±0.5%

±0.5%

±0.5%

Setup,Rise,Time

200ms, 50ms/230VAC  200ms,50ms/115VAC(full load)

Hold up time(typ)

20ms/230VAC   20ms/115VAC(full load)

INPUT

Voltage range

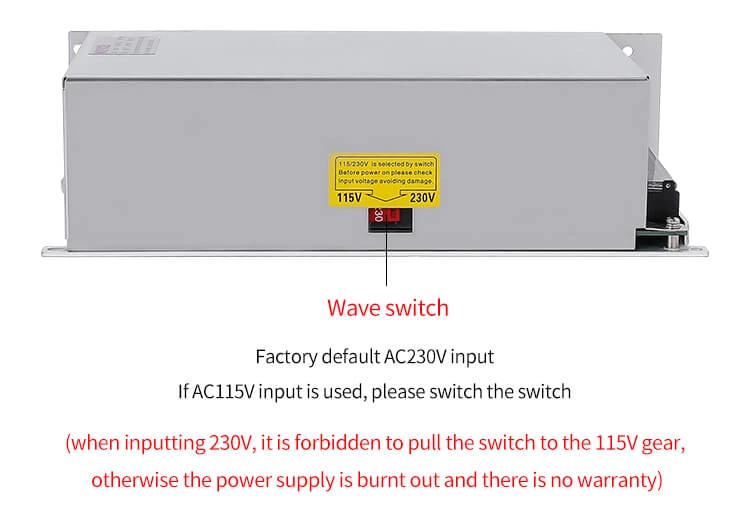

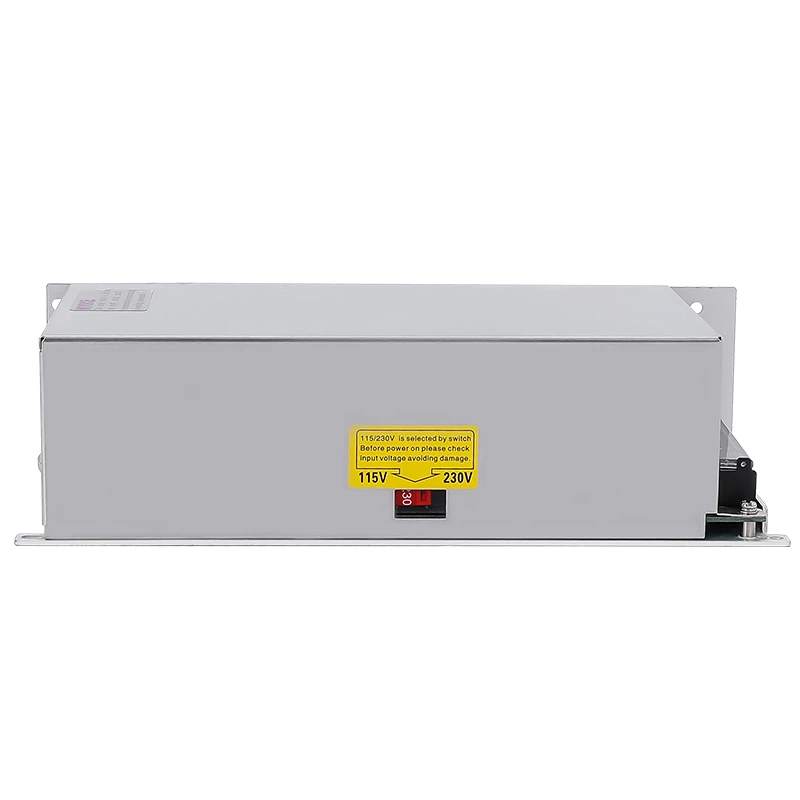

100~120VAC  200~260VAC(switch replacement)

Frequency range

50~60Hz

Efficiency (Typ)

82%

85%

85%

85%

AC current (Typ)

6.2A/115VAC  3.1A/230VAC

Inrush current (Typ)

Cold start:  30A/115VAC  60A/230VAC

Leakage current

<6mA/240VAC

PROTECTION

Over load

105%~150% rated output power

Protection type: Hiccup mode,recovers automatically after fault condition is removed

Over voltage

15~16.5V

29~33V

40~45V

58~65V

Protection mode,tum off output voltage, restart to recover

Fan switch control

RTH2≥50℃ Open the fan ≤45℃ Close the fan

(12~48V)

RTH≥50℃ The fan on ≥80℃ Close the output



Environment

Working TEMP

-10℃~+60℃

Working humidity

20%~65% RH non-condensing

Storage TEMP humidity

-10℃~+75℃.  10%~95% RH

TEMP.coefficient

±0.03%℃(0-50℃)

Vibration

10~500Hz,2G 10min./1cycle,60min.each along X,Y,Z axes

SAFETY

Safety regulations

UL.508,UL60950-1,TUV EN60950-1.EAC TPTC 004

Withstand voltage

I/P-O/P:1.5KVAC  I/P-FG:1.5KVA  O/P-FG:0.5KVAC

Insolation resistance

l/P-O/P  I/P-FG,  0/P-FG: 100M Ohms/500VDC/25℃/70% RH

Electromagnetic compatible emission

Compliance to EN55011 ,EN55032(CISPR32)CLASS B,EN61000-3-2,3,EAC TP TC 020

EMC immunity requirements

Compliance to EN61000-4-2,3.4.5.6.8,11. EN55024,EN1000-6-2(EN50082-2),

OTHERS

MTBF

≥260K hrs.MIL-HDBK-217F(25℃)

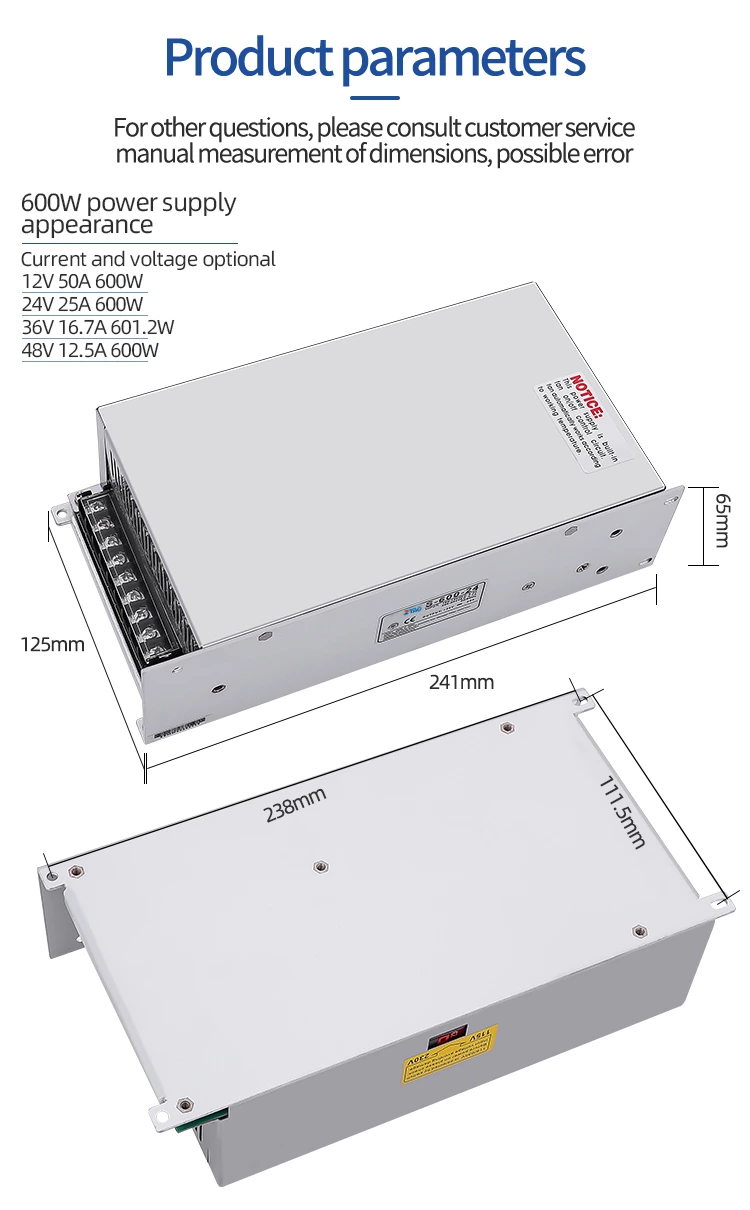

Dimension

241*125*65mm(L*W"H)

Packing

1.28Kg:12PCS/16Kg
