MODEL |
|
S-350-5 |
S-350-12 |
S-350-24 |
S-350-36 |
S-350-48 |
|
OUTPUT |
DC Voltage |
5V |
12V |
24V |
36V |
48V |
|
Rated Current |
60A |
29A |
14.6A |
9.7A |
7.3A |
|
|
Current range |
0~60A |
0~29A |
0~14.6A |
0~9.7A |
0~7.3A |
|
|
Rated power |
300W |
348W |
350.4W |
349.2W |
350.4W |
|
|
Ripple&noise(max.)note2 |
100mVp-p |
150mVp-p |
150mVp-p |
160mVp-p |
160mVp-p |
|
|
Voltage ADJ. range |
5~7V |
12~14V |
24~28V |
36~38V |
48V~53V |
|
|
Voltage tolerance note3 |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Line regulation note4 |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Load regulation note5 |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Setup,Rise,Time |
200ms, 50ms/230VAC 200ms，50ms/115VAC(full load) |
|||||
|
Hold up time(typ) |
20ms/230VAC 20ms/115VAC(full load) |
|||||
|
INPUT |

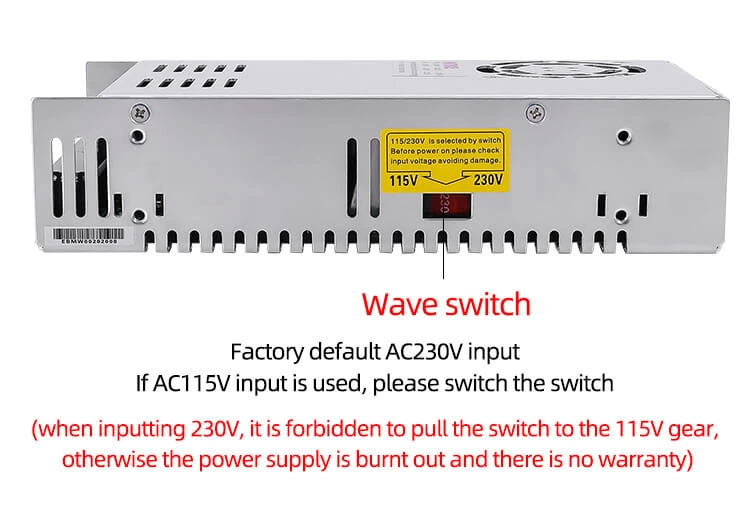

Voltage range |
100~260VAC |
||||
|
Frequency range |
50~60Hz |
|||||
|
Efficiency (Typ) |
80% |
82% |
85% |
85% |
85% |
|
|
AC current (Typ) |
5.5A/115VAC 2.5A/230VAC |
|||||
|
Inrush current (Typ) |
Cold start:35A/115VAC 70A/230VAC |
|||||
|
Leakage current |
<6mA/240VAC |
|||||
|

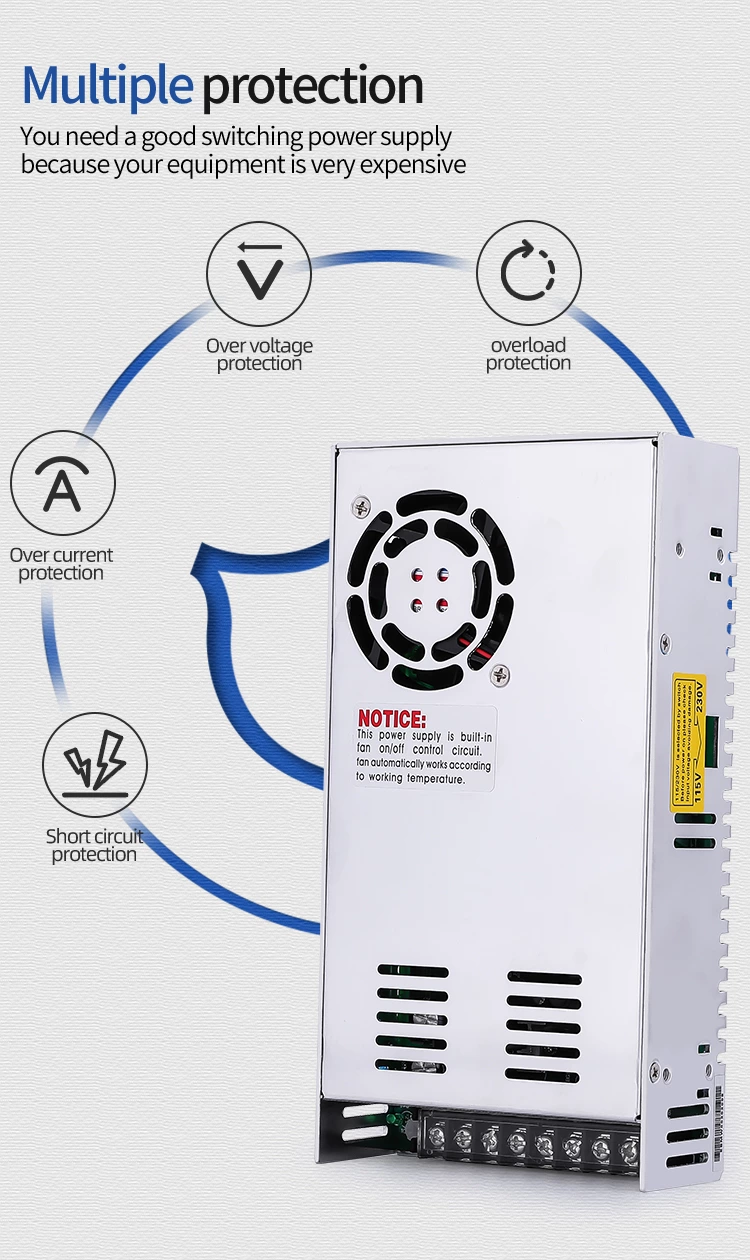

PROTECTION |
Over load |
105%~150% rated output power |
||||
|
Protection type: Hiccup mode,recovers automatically after fault condition is removed |
||||||
|
Over voltage |
8~10V |
15~16.5V |
29~33V |
40~45V |
58-65V |
|
|
Protection mode,tum off output voltage, restart to recover |
||||||
|

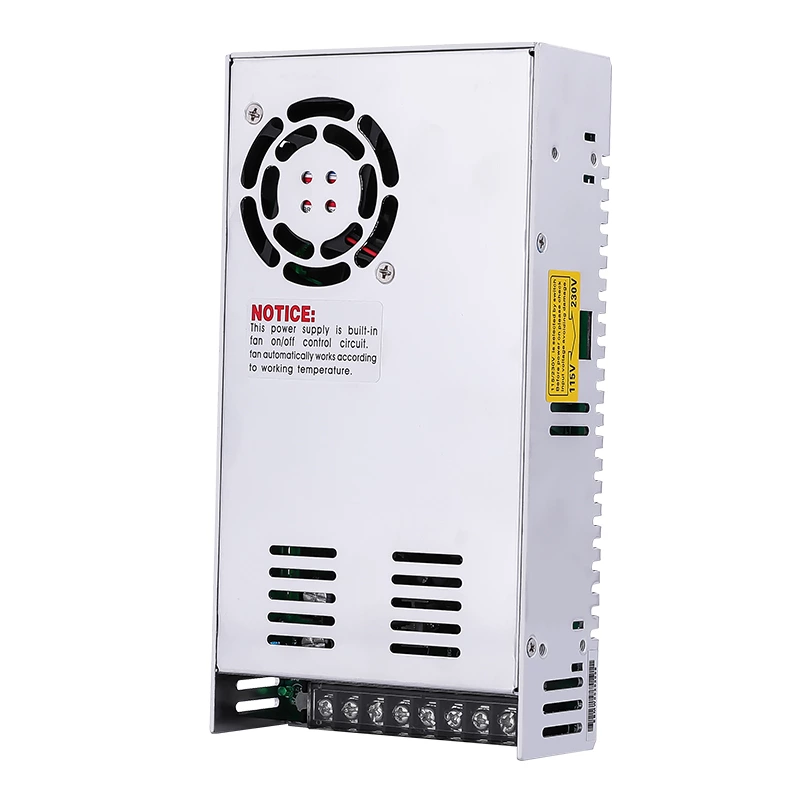

Fan switch control |
RTH2≥50℃ Open the fan ≤45℃ Fan closed（3.3~7.5V） |
|||||
|
RTH≥50℃ Open the fan ≤50℃ Fan closed(12~48V) |
||||||
|
Environment |
Working TEMP |
-10℃~+60℃ |
||||
|
Working humidity |
20%-65% RH non-condensing |
|||||
|
Storage TEMP humidity |
-10℃~+75℃. 10%~95% RH |
|||||
|
TEMP.coefficient |
±0.03%℃(0-50℃) |
|||||
|
Vibration |
10~500Hz，2G 10min./1cycle，60min.each along X,Y,Z axes |
|||||
|
SAFETY |
Safety regulations |
UL.508,UL60950-1,TUV EN60950-1.EAC TPTC 004 |
||||
|
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.5KVAC |
|||||
|
Insolation resistance |
l/P-O/P I/P-FG, 0/P-FG: 100M Ohms/500VDC/25℃/70% RH |
|||||
|
Electromagnetic compatible emission |
Compliance to EN55011 ,EN55032(CISPR32)CLASS B,EN61000-3-2,3,EAC TP TC 020 |
|||||
|
EMC immunity requirements |
Compliance to EN61000-4-2,3.4.5.6.8,11. EN55024,EN1000-6-2(EN50082-2), |
|||||
|
OTHERS |
MTBF |
≥260K hrs.MIL-HDBK-217F(25℃) |
||||
|

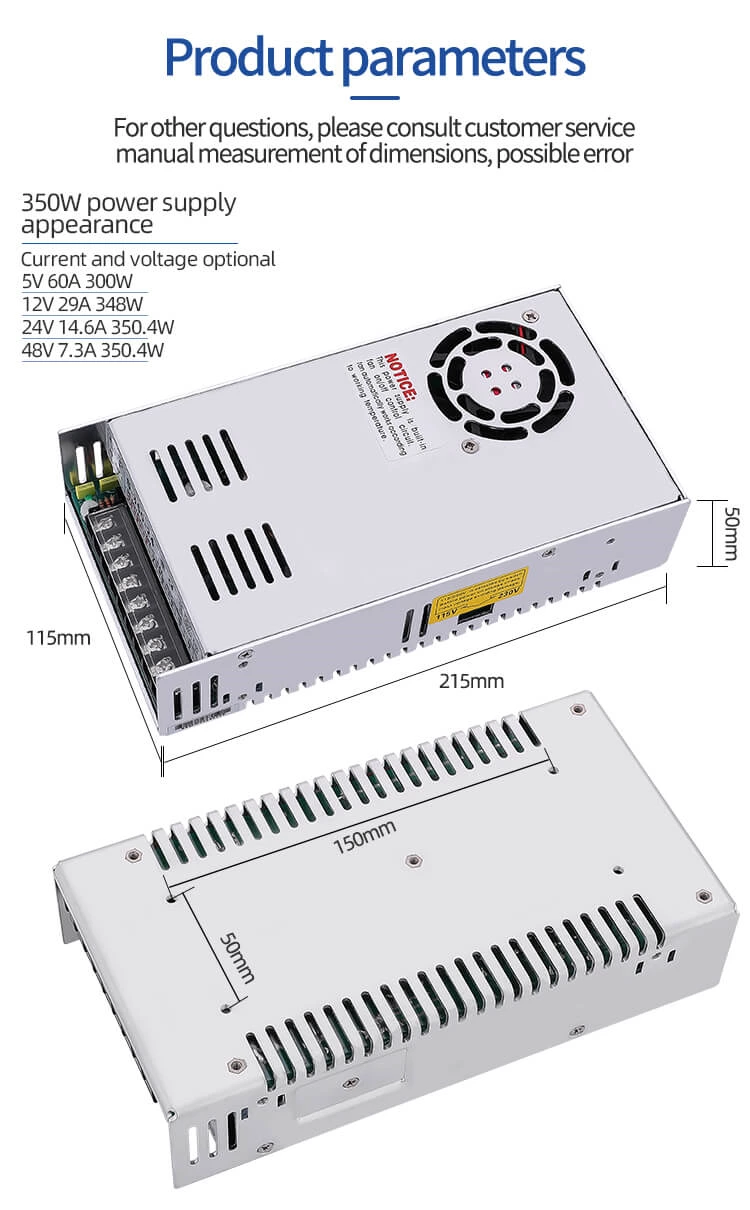

Dimension |
215*115*50mm(L*W"H) |
|||||
|
Packing |
1.05Kg:20PCS/20Kg |
|||||
