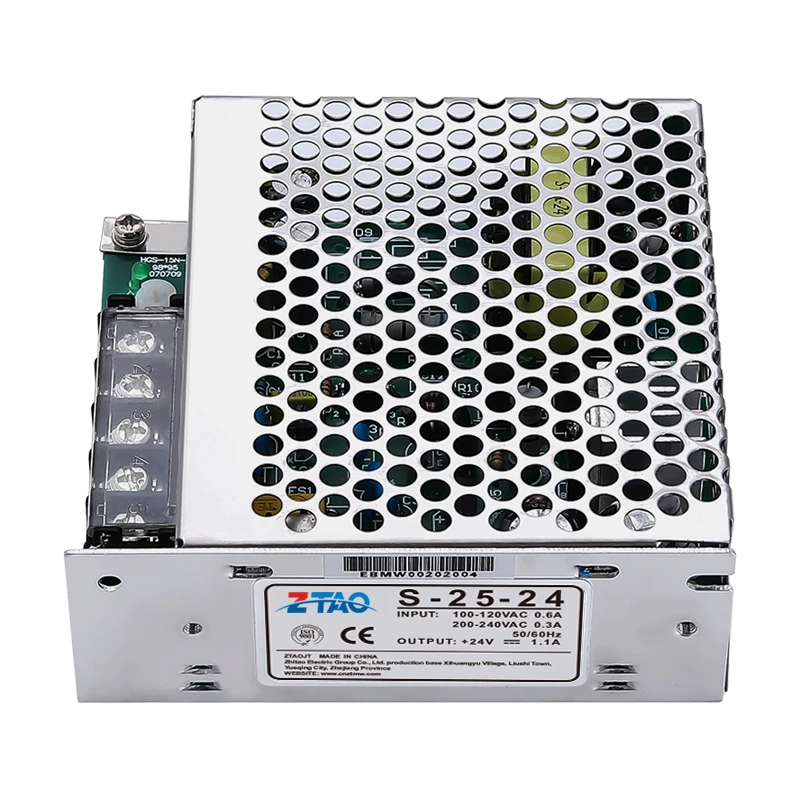

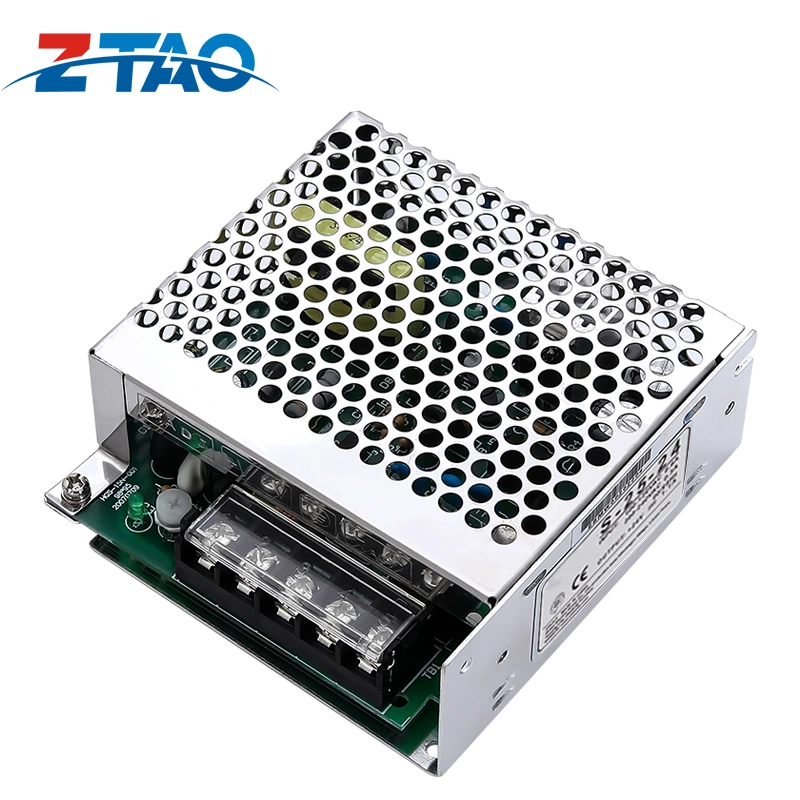

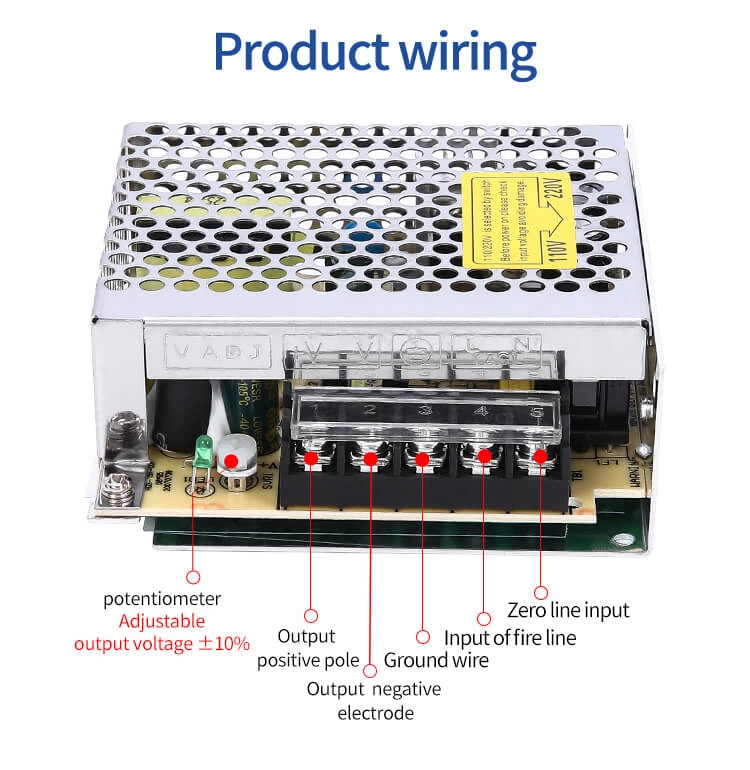

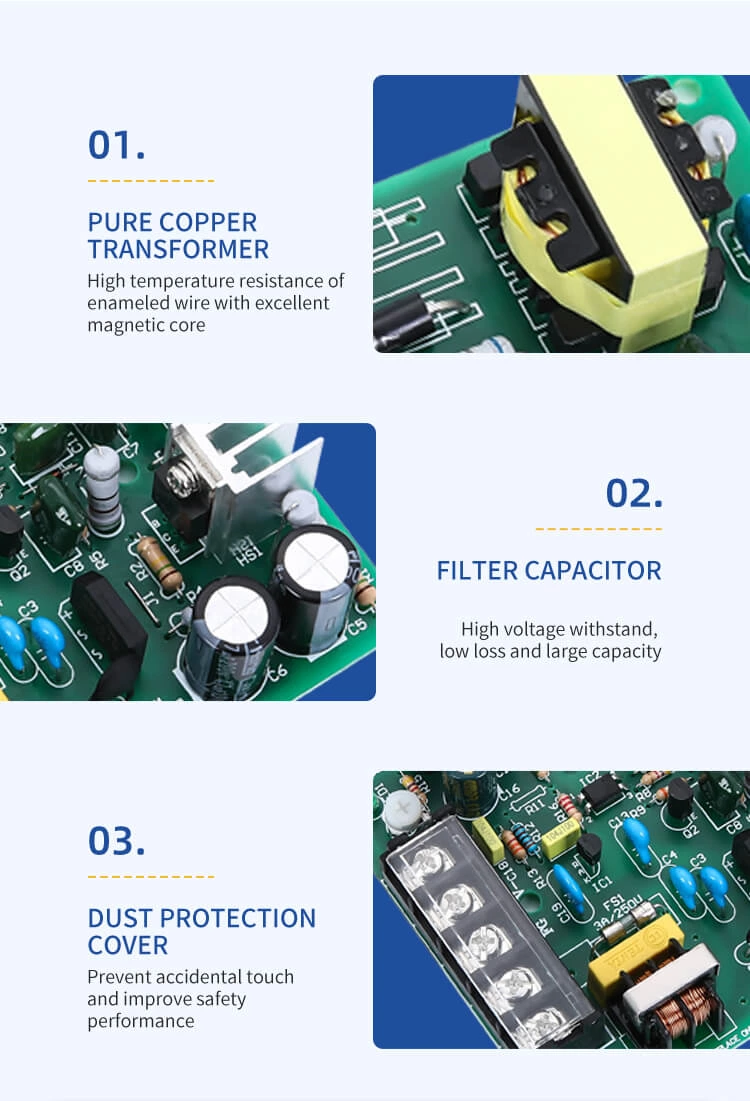

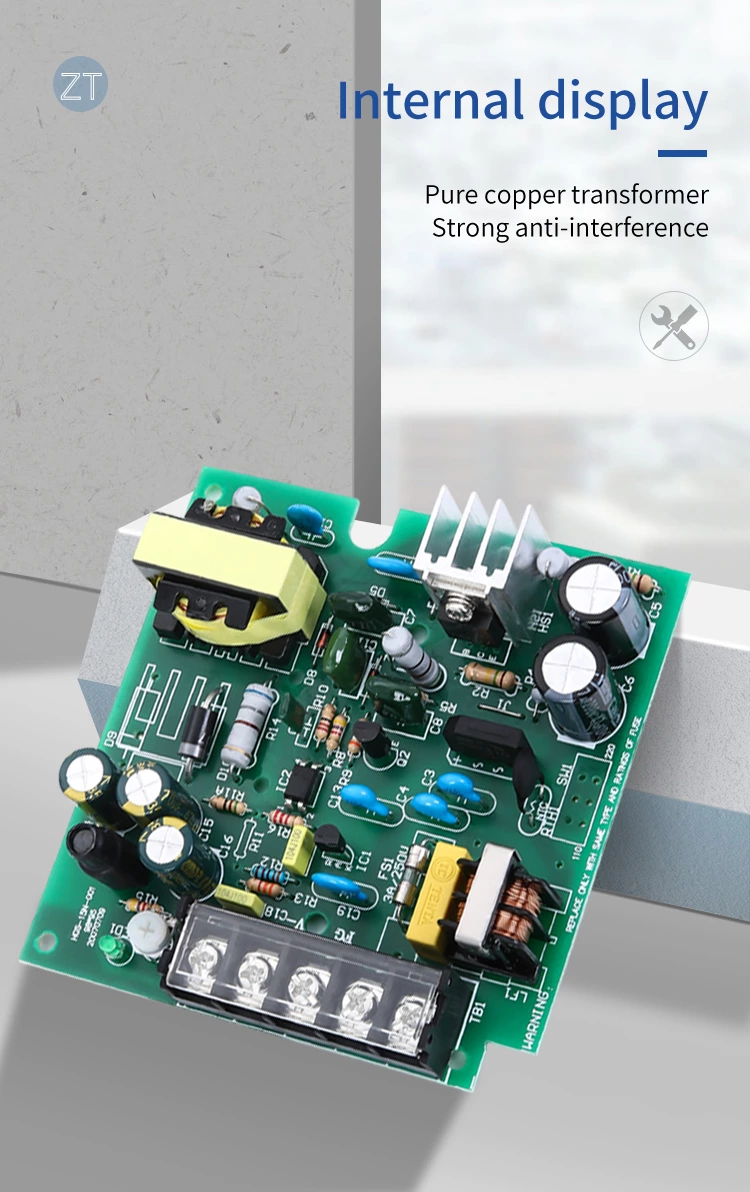

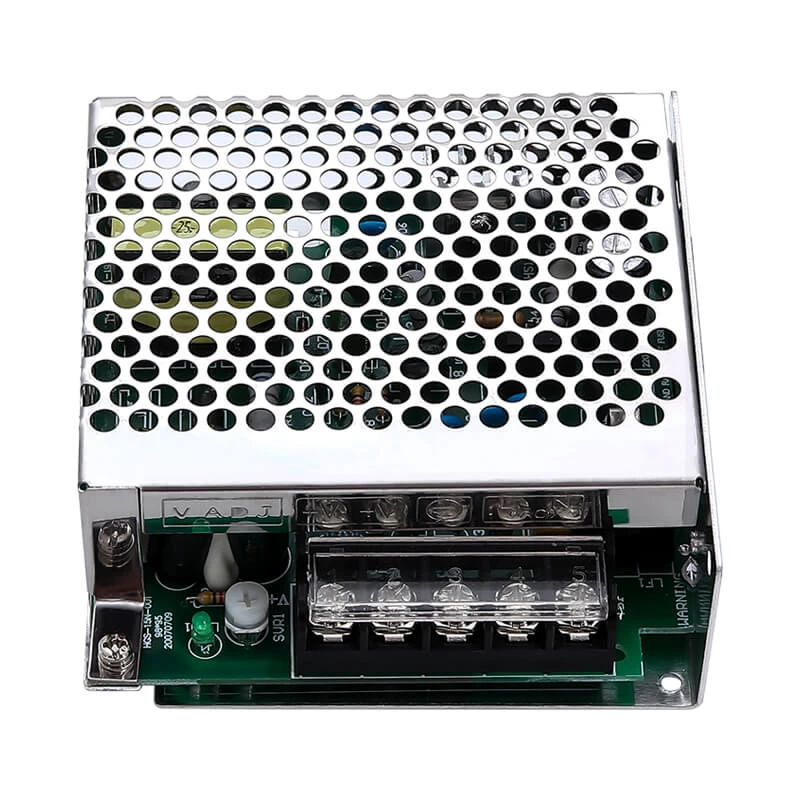

S Single Switch Power Supply

25W 24V smps types DC Switching Mode Power Supply for LED

MODEL S-25-5 S-25-12 S-25-24 S-25-36 S-25-48 OUTPUT DC Voltage 5V 12V 24V 36V 48V Rated Current 5A 2A 1.1A 0.69A 0.52A Current range 0~5A 0~2A 0~1.1A 0~69

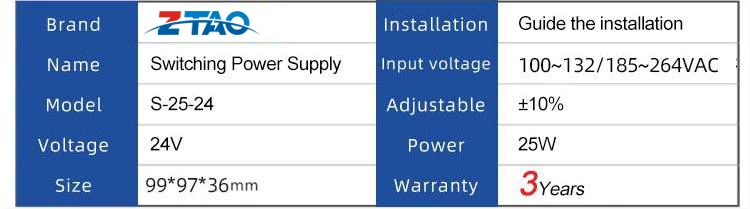

Place of Origin;
Zhejiang, China
Brand Name:
ZTAOJT
Model Number:
S-25-24
Output Type:
Single
Input Voltage:
100~132VAC/185~264VAC 260~370VDC(switch on220VAC)
Output Voltage:
24V/12V/48V can be choose
Output Frequency:
50~60Hz
Output Current:
1.1A
Output Power
25W
Efficiency:
80%
Workig Temperature:
-10℃~+60℃
Certification:
CE FCC ROHS ISO9001
Test:
100%Full Load Burn-in Test
Protection:
Shortcuit Overtemp Overload overvoltage
Warranty
3 Years
Size
99*97*36mm(L*W*H)

MODEL



S-25-5

S-25-12

S-25-24

S-25-36

S-25-48

OUTPUT

DC Voltage

5V

12V

24V

36V

48V

Rated Current

5A

2A

1.1A

0.69A

0.52A

Current range

0~5A

0~2A

0~1.1A

0~69A

0~0.52A

Rated power

25W

24W

26.4W

24.84W

24.96W

Ripple&noise(max.)

50mVp-P

100mVp-p

100mVp-p

120mVp-p

200mVp-p

Voltage ADJ. range

5~7V

12~14V

24~28V

36~38V

48V~53V

Voltage tolerance

±2.0%

±2.0%

±1.0%

±1.0%

±1.0%

Line regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load regulation

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

Setup,Rise,Time

200ms, 50ms/230VAC   200ms, 50ms/115VAC(full load)

Hold up time (Typ)

20ms/230VAC  18ms/115VAC(full load)

INPUT

Voltage range

100~132VAC/185~264VAC  260~370VDC(switch on220VAC)

Frequency range

50~60Hz

Efficiency (Typ)

75%

78%

80%

82%

84%

AC current (Typ)

2.6A/115VAC  1.6A/230VAC

Inrush current (Typ)

Cold start:13A/115VAC   25A/230VAC

Leakage current

<0.75mA/240VAC

PROTECTION

Over load

105%~150% in rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over voltage

8~10V

15-16.5V

29~33V

40~45V

58~65V

Protection mode, tum off output voltage, restart to recover

Environment

Working TEMP

-10℃~+60℃.

Working humidity

20~65% RH non-condensing

Storage TEMP humidity

-10℃~+60℃,10-95% RH

TEMP.coefficient

±0.03%℃(0~50℃)

Vibration

10~500Hz,2G 10min./1cycle .60min Each along X,Y,Z axes

SAFETY

Safety regulations

UL60950-1.CB(IEC60950-1)In line with the certification

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.4KVAC

Insolation resistance

I/P-O/P, I/P-FG,  O/P-FG:100M Ohms/500VDC

Electromagnetic compatible emission

Compliance to EN55011, EN55011 EN55032(CISPR32)CLASS B, EN61000-3-2,-3,EAC TP TC 020

EMC immunity requirements

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN1000-6-1 Class A light industry standard

OTHERS

MTBF

≥384K hrs.MIL-HDBK-217F(25℃)

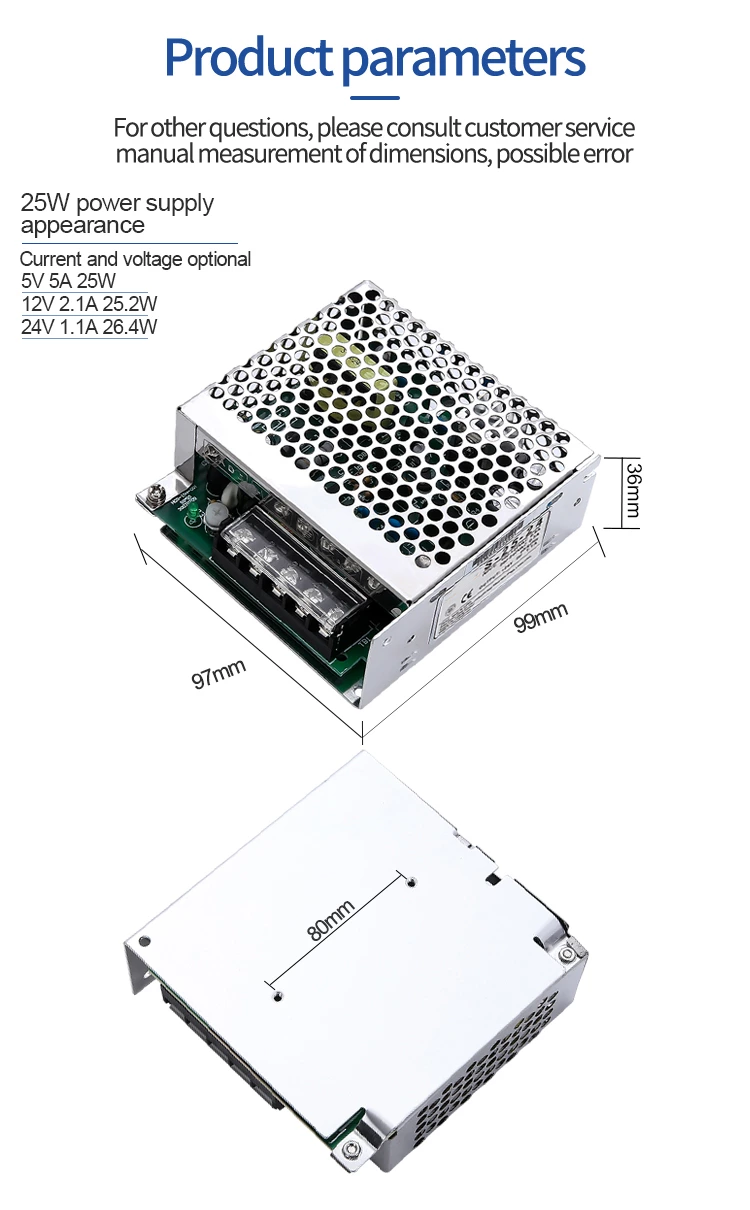

Dimension

99*97*36mm(L*W*H)

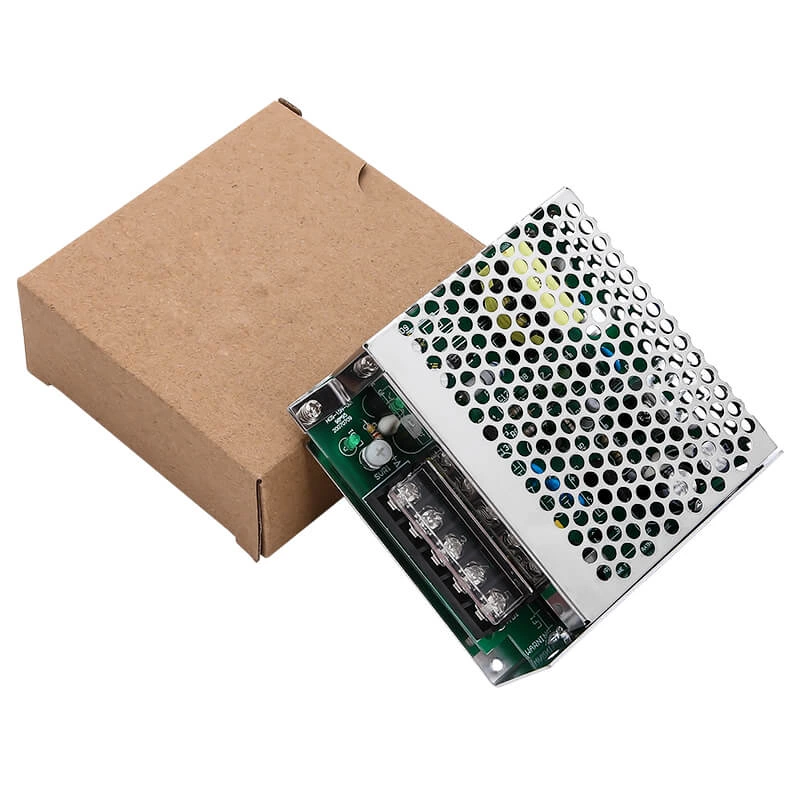

Packing

0.32Kg:45pcs/17Kg/0.93CUFT
