| MODEL | S-1200-12 | S-1200-24 | S-1200-36 | S-1200-48 | ||
| OUTPUT | DC Voltage | 12V | 24V | 36V | 48V | |
| Rated Current | 100A | 50A | 33.4A | 25A | ||
| Current range | 0~100A | 0~50A | 0~33.4A | 25A | ||
| Rated power | 1200W | 1200W | 1202.4W | 1200W | ||
| Ripple&noise | 200mVp-p | 240mVp-p | 240mVp-p | 240mVp-p | ||
| Voltage ADJ. range | 12~14V | 24~28V | 36~38V | 48~53V | ||
| Voltage tolerance | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ||
| Line regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||
| Load regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||
| Setup,Rise,Time | 200ms, 50ms/230VAC 230ms 50/115VAC(full load) | |||||
| Hold up time | 20ms/230VAC 20ms/115VAC (full load) | |||||
| INPUT | Voltage range | 100~120VAC 200~260VAC (switch replacement) | ||||
| Frequency range | 50~60Hz | |||||
| Efficiency | 82% | 83% | 83% | 83% | ||
| AC current | 8.5A 190~230VAC | |||||
| Inrush current | Cold start: 50A/230VAC | |||||
| Leakage current | <6mA/240VAC | |||||

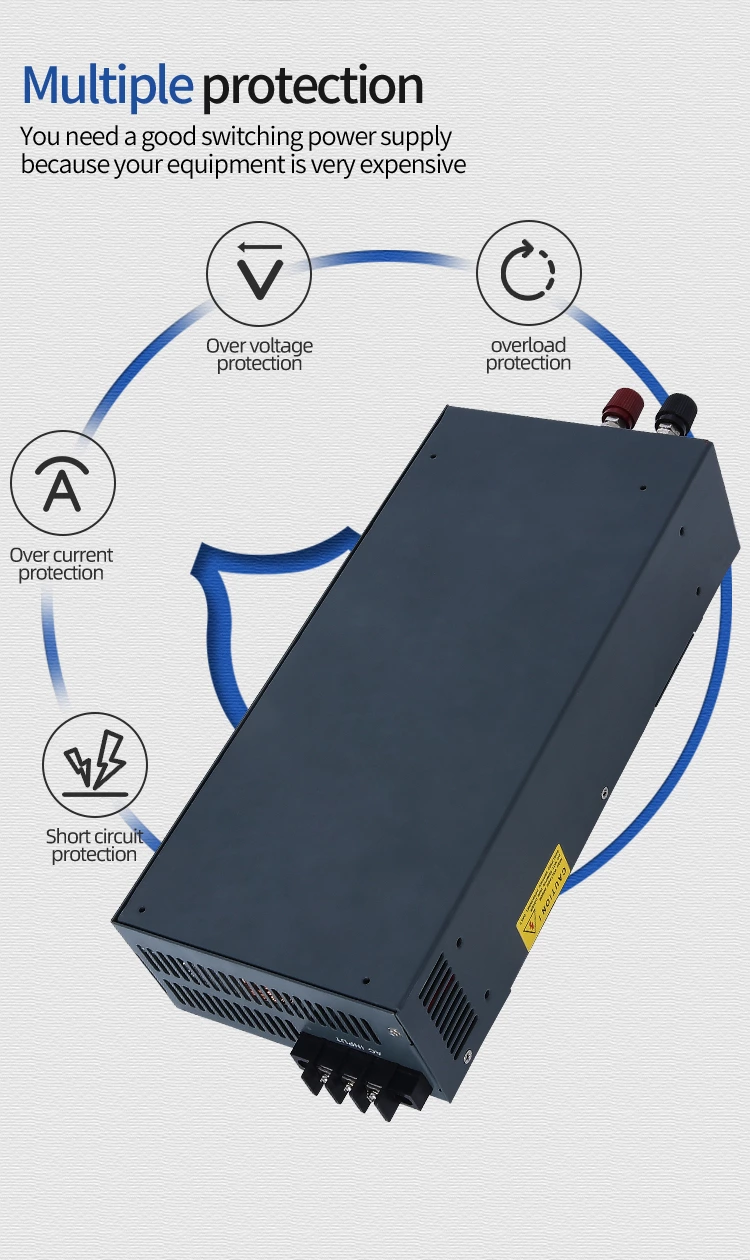

| PROTECTION | Over load | 105%~150% rated output power | ||||
| Protection type: Hiccup mode,recovers automatically after fault condition is removed | ||||||
| Over voltage | 15~16.5V | 29~33V | 40~45V | 58~65V | ||
| Protection mode,tum off output voltage, restart to recover | ||||||
| FUNCTION | Fan switch control | Fan temperature control | ||||
| over-temperature protection | RTH3：≥60℃ Fan turn fast ≥85℃Close the output (18V~48V) | |||||
| Environment | Working TEMP | -10℃~+60℃ | ||||
| Working humidity | 20%~65% RH non-condensing | |||||
| Storage TEMP humidity | -10℃~+65℃. 10%~95% RH | |||||
| TEMP.coefficient | ±0.03%℃(0-50℃) | |||||
| Vibration | 10~500Hz，2G 10min./1cycle，60min.each along X,Y,Z axes Installation in accordance with IEC60068-2-6 | |||||
| SAFETY | Safety regulations | Ul60950-1,CB(IEC60950-1) In line with the certification | ||||
| Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.4KVAC | |||||
| OTHERS | MRBF | ≥245K hrs.MIL-HDBK-210F(25℃) | ||||

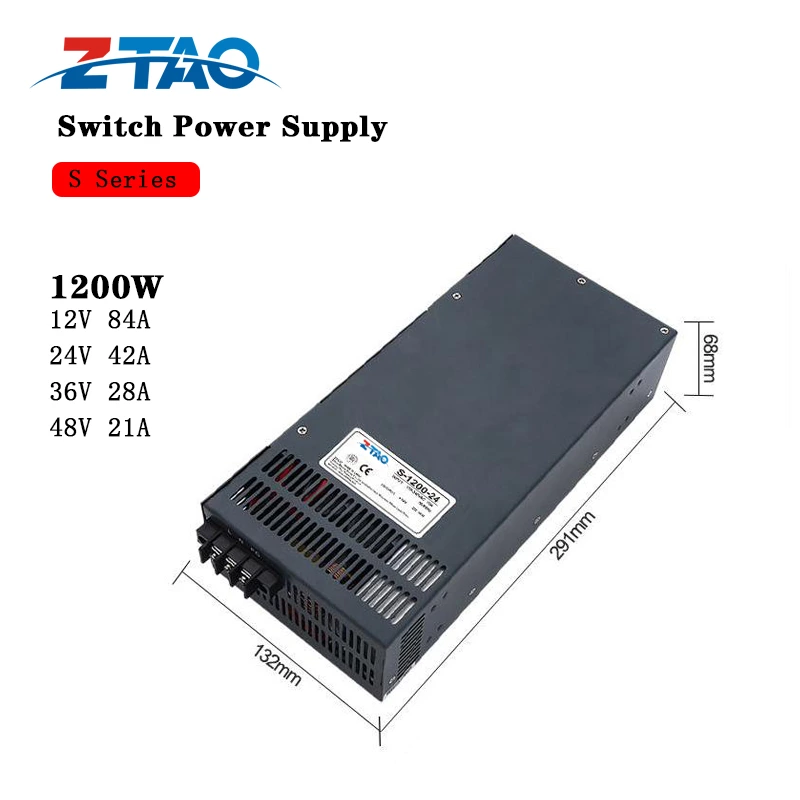

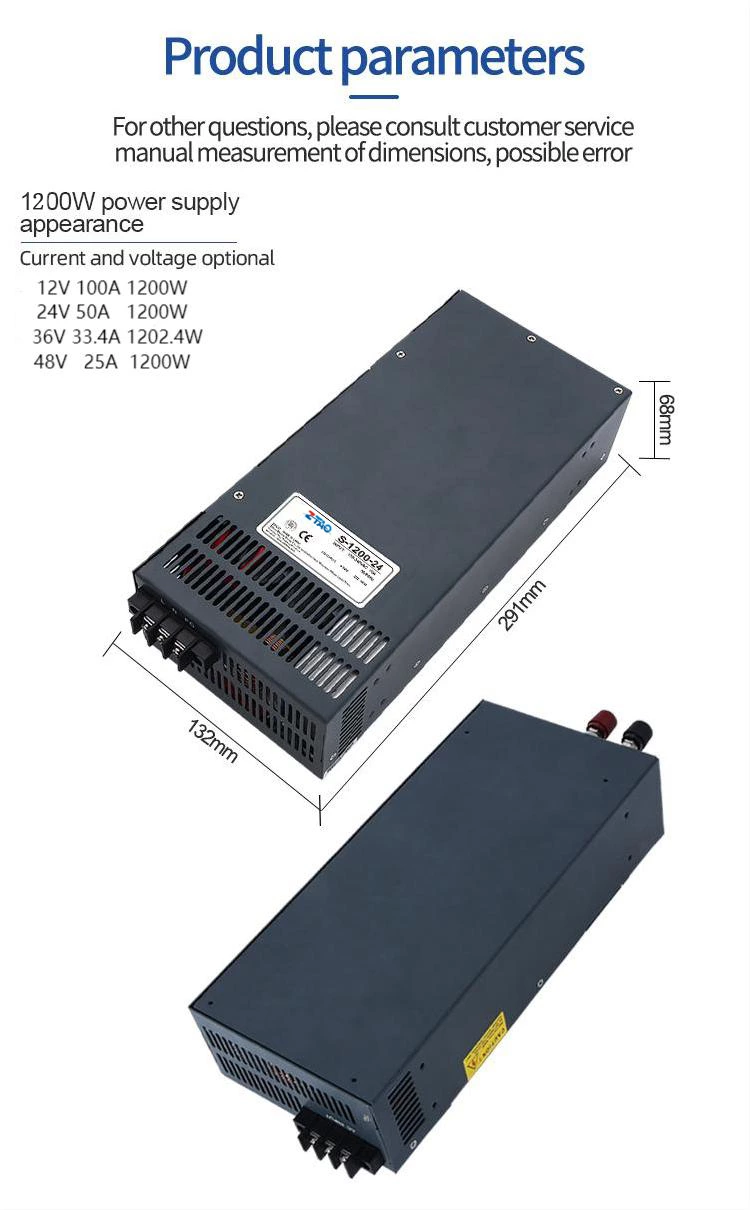

| Dimension | 291*132*68mm | |||||
| Packing | 2.1Kg:6PCS/13Kg 0.9CUFT | |||||
