S Single Switch Power Supply

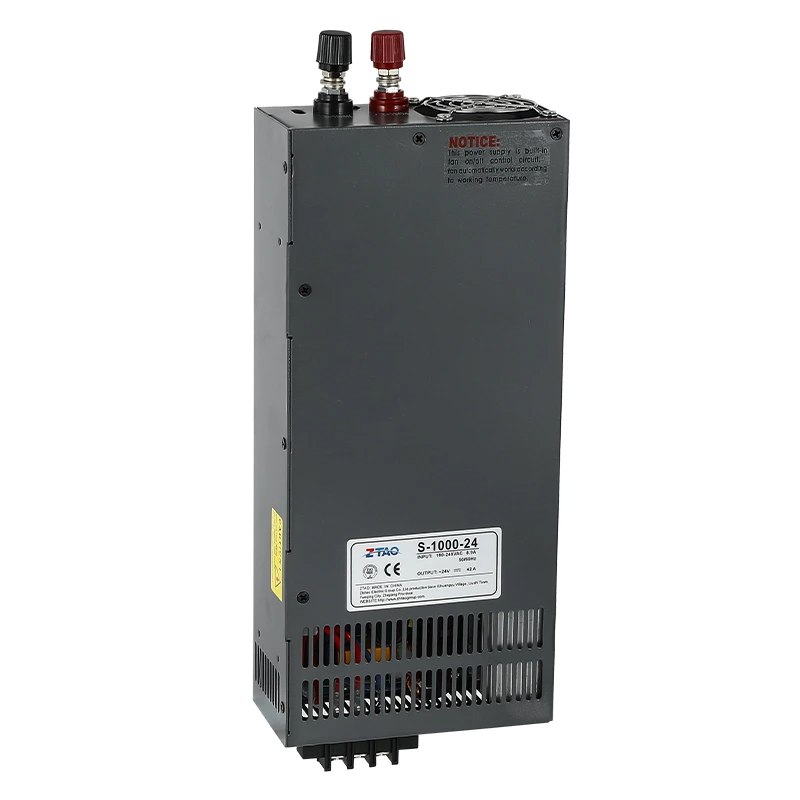

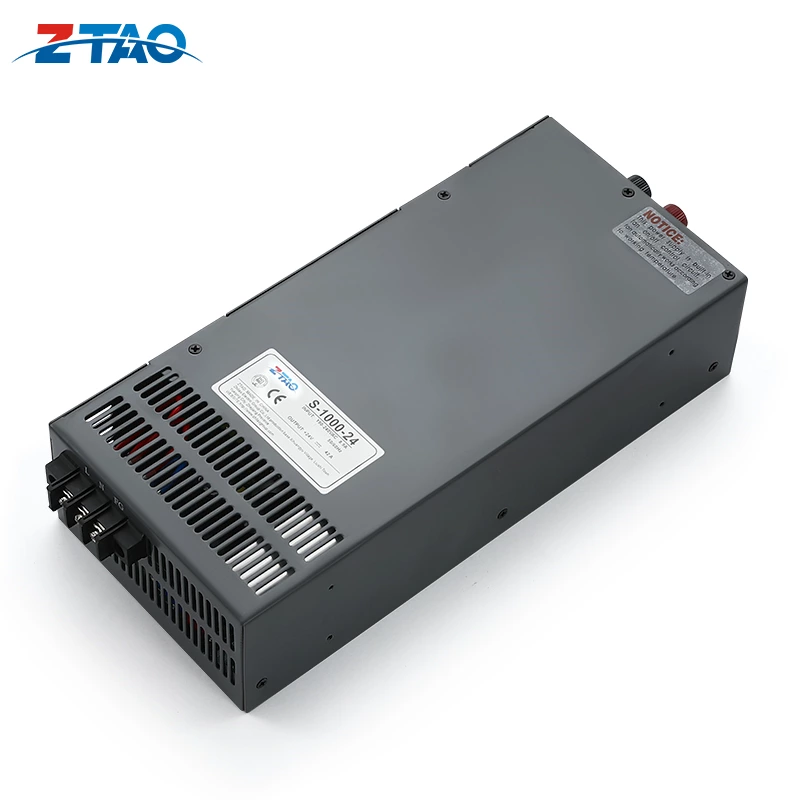

The New S-1000-12 1000W 12V 80 Amp 24V 42A 48V 20A Smps Ac to Dc Switching Power Supply CCTV Power Supply

Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
S-1000-12 S-1000-24 S-1000-36 S-1000-48
Output Type:
Single
Input Voltage:
185~264VAC 260~373VDC
Output Voltage:
12v 24V 48V 36V can be choose (also can be do the customzied )
Output Frequency:
50~60Hz
Output Current:
84A
Output Power
1000W
Efficiency:
82%
Workig Temperature:
-10℃~+60℃
Certification:
CE FCC ROHS ISO9001
Test:
100%Full Load Burn-in Test

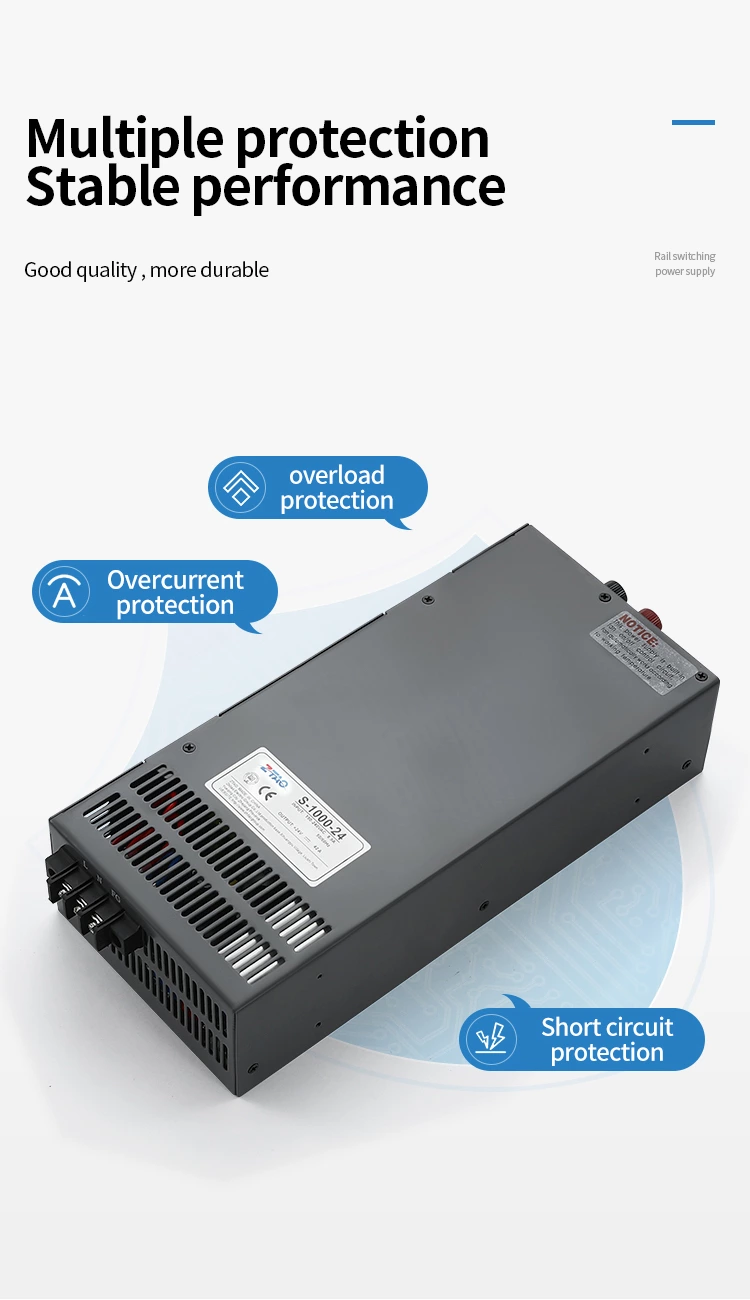

Protection:
Shortcuit Overtemp Overload overvoltage
Warranty
3 Years

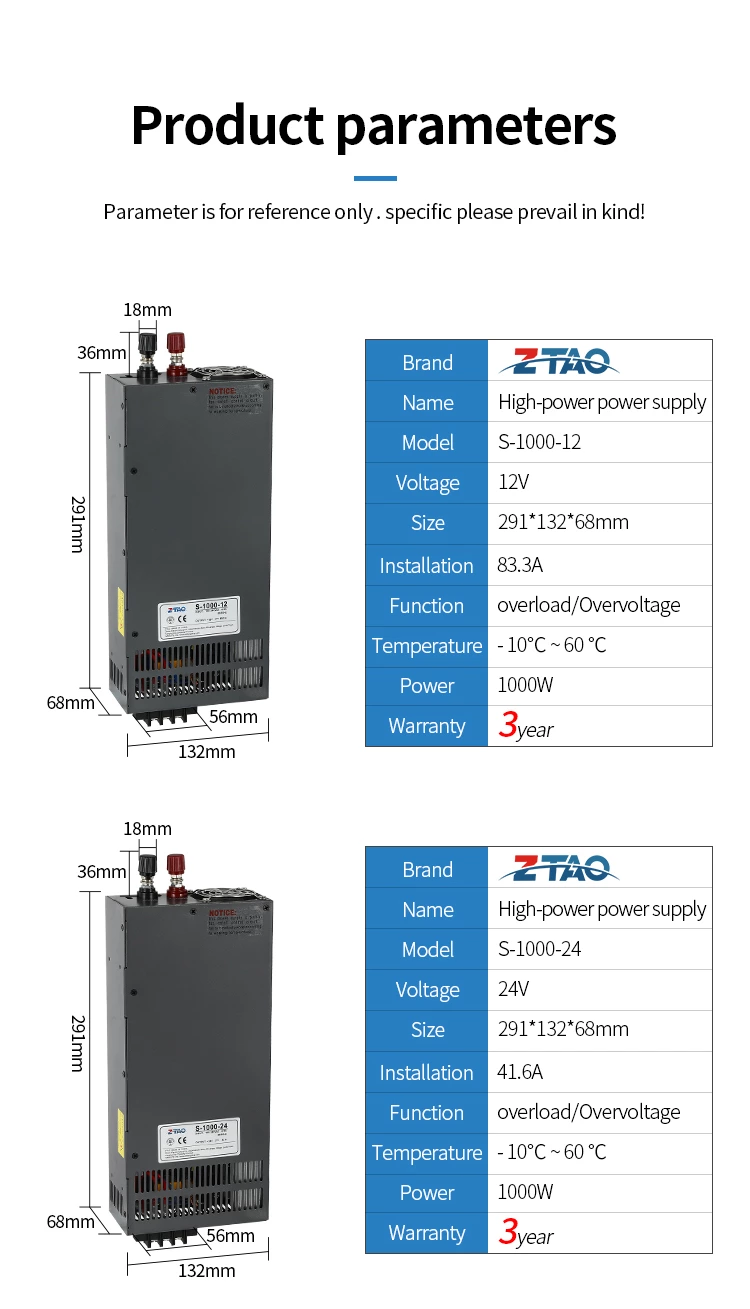

Size
291*132*68mm(L*W*H)

The New S-1000-12 1000W 12V 80 Amp 24V 42A 48V 20A Smps Ac to Dc Switching Power Supply CCTV Power Supply

The New S-1000-12 1000W 12V 80 Amp 24V 42A 48V 20A Smps Ac to Dc Switching Power Supply CCTV Power Supply



MODEL   S-1000-12 S-1000-24 S-1000-36 S-1000-48
OUTPUT DC Voltage 12V 24V 36V 48V
Rated Current 83A 42A 27.7A 21A
Current range 0~83A 0~42A 0~27.7A 0~21A
Rated power 1008W 1008W 1008W 1008W
Ripple&noise 200mVp-p 240mVp-p 240mVp-p 240mVp-p
Voltage ADJ. range 12~14V 24~28V 36~38V 48~53V
Voltage tolerance ±2.0% ±1.0% ±1.0% ±1.0%
Line regulation ±0.5% ±0.5% ±0.5% ±0.5%
Load regulation ±1.0% ±1.0% ±1.0% ±1.0%
Setup,Rise,Time 200ms, 50ms/230VAC (full load)
Hold up time(typ) 20ms/230VAC   (full load)
INPUT Voltage range 185~264VAC  260~373VDC
Frequency range 50~60Hz
Efficiency (Typ) 82%  83% 83% 83%
AC current (Typ) 7.5A 190~230VAC
Inrush current (Typ) Cold start:   50A/230VAC
Leakage current <6mA/240VAC
PROTECTION Over load 105%~150% in rated output power
Protection type: Hiccup mode,recovers automatically after fault condition is removed
Over voltage 15~16.5V       29~33V 40~45V 58~65V
Protection mode,tum off output voltage, restart to recover
FUNCTION Fan switch control The fan turn straight
over-temperature protection ≥90℃Close the output

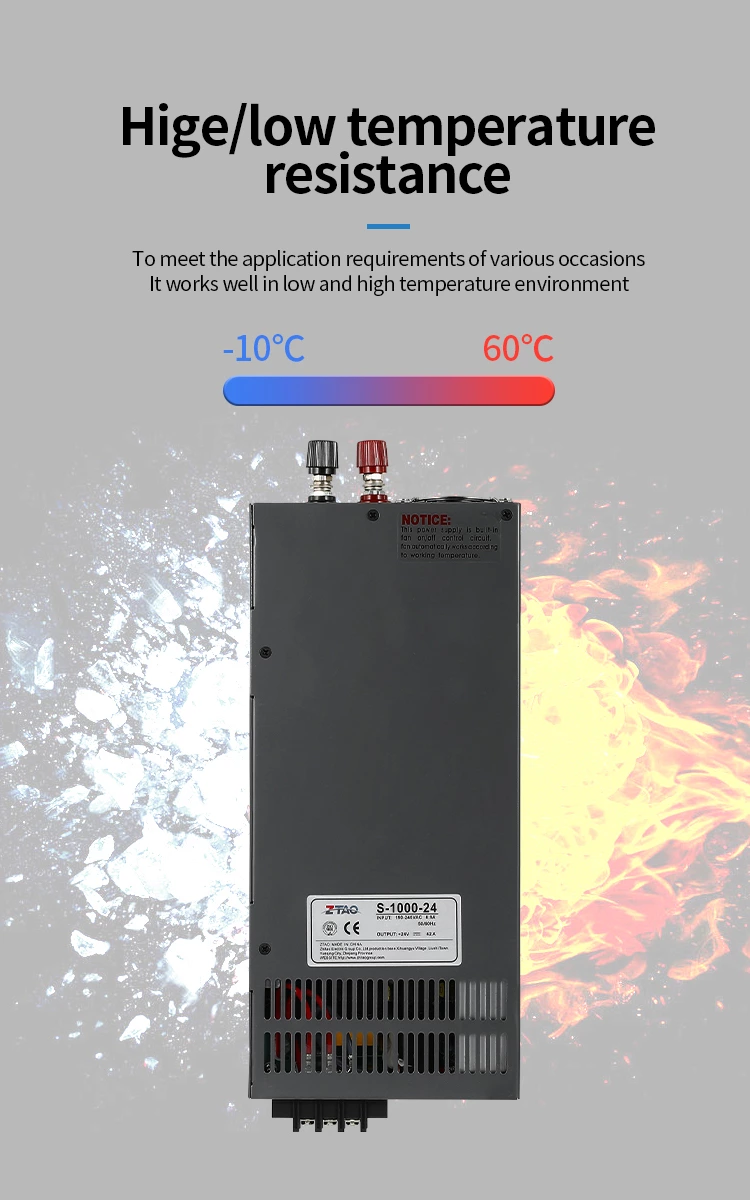

Environment Working TEMP -10℃~+60℃
Working humidity 20%~65% RH non-condensing
Storage TEMP humidity -10℃~+65℃.  10%~95% RH
TEMP.coefficient ±0.03%℃(0~50℃)
Vibration 10~500Hz,2G 10min./1cycle,60min each along X,Y,Z axes Install in accordance with IEC60068-2-6
SAFETY Safety regulations Ul60950-1,CB(IEC60950-1) are certified
Withstand voltage I/P-O/P:1.5KVAC  I/P-FG:1.5KVA  O/P-FG:0.4KVAC
OTHERS MRBF ≥245K hrs.MIL-HDBK-210F(25℃)

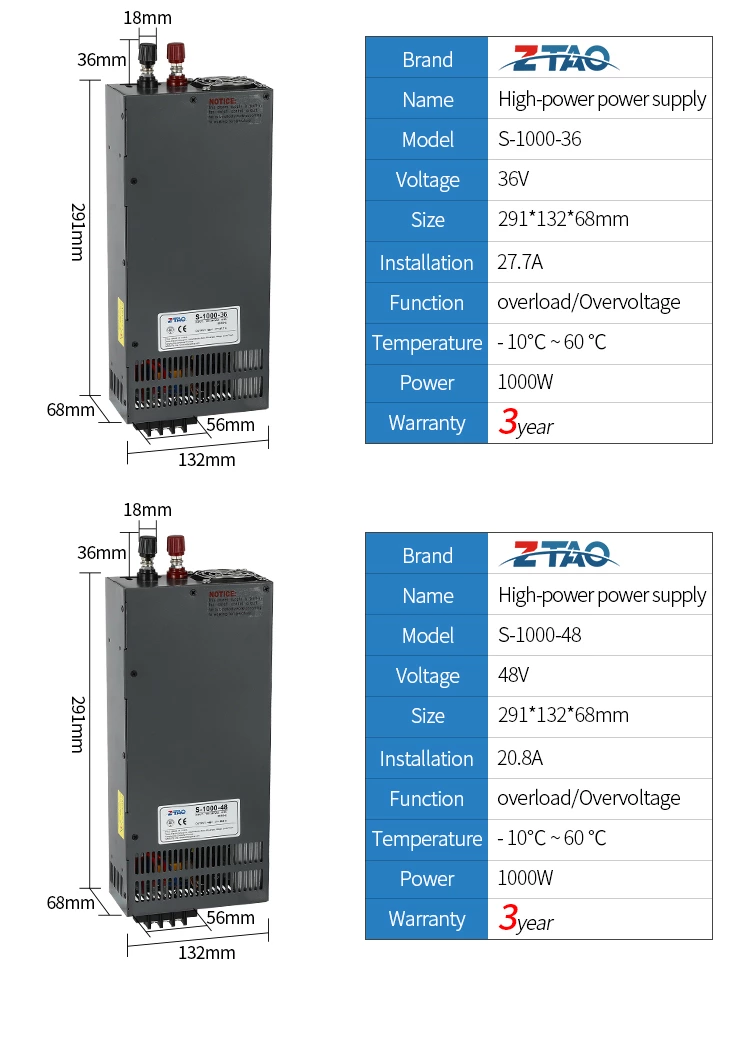

Dimension 291*132*68mm(L*W"H)
Packing 2.1Kg:6PCS/13Kg/0.9CUFT
