MODEL |
|
NES-35-5 |
NES-35-12 |
NES-35-24 |
NES-35-36 |
NES-35-48 |
|
DC OUTPUT |
DC Voltage |
5V |
12V |
24V |
36V |
48V |
|
Rated Current |
7A |
3A |
1.5A |
1A |
0.75A |
|
|
Current range |
0~7A |
0~3A |
0~1.5A |
0~1A |
0~0.75A |
|
|
Rated power |
35W |
36W |
35W |
36W |
36W |
|
|
Ripple&noise |
50mVp-p |
100mVp-p |
100mVp-p |
120mVp-p |
200mVp-p |
|
|
Voltage ADJ. range |
5~7V |
12~14V |
24~28V |
36~38V |
48~53V |
|
|
Voltage tolerance |
±2.0% |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Line regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Load regulation |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Setup,Rise Time |
500ms，30ms/230VAC 1200ms,30ms/115VAC （full load） |
|||||
|
AC INPUT |
Hold up time (Typ) |
50ms/230VAC 10ms/115VAC （full load） |
||||
|
Voltage range |
100~264VAC 140~373VDC |
|||||
|
Frequency range |
50~60Hz |
|||||
|
Efficiency (Typ) |
78% |
80% |
82% |
83% |
84% |
|
|
AC current (Typ) |
0.75A/115VAC 0.5A/230VAC |
|||||
|
Inrush current (Typ) |
Cold start：15A/115VAC 25A/230VAC |
|||||
|
Leakage current |
<2mA/240VAC |
|||||
|

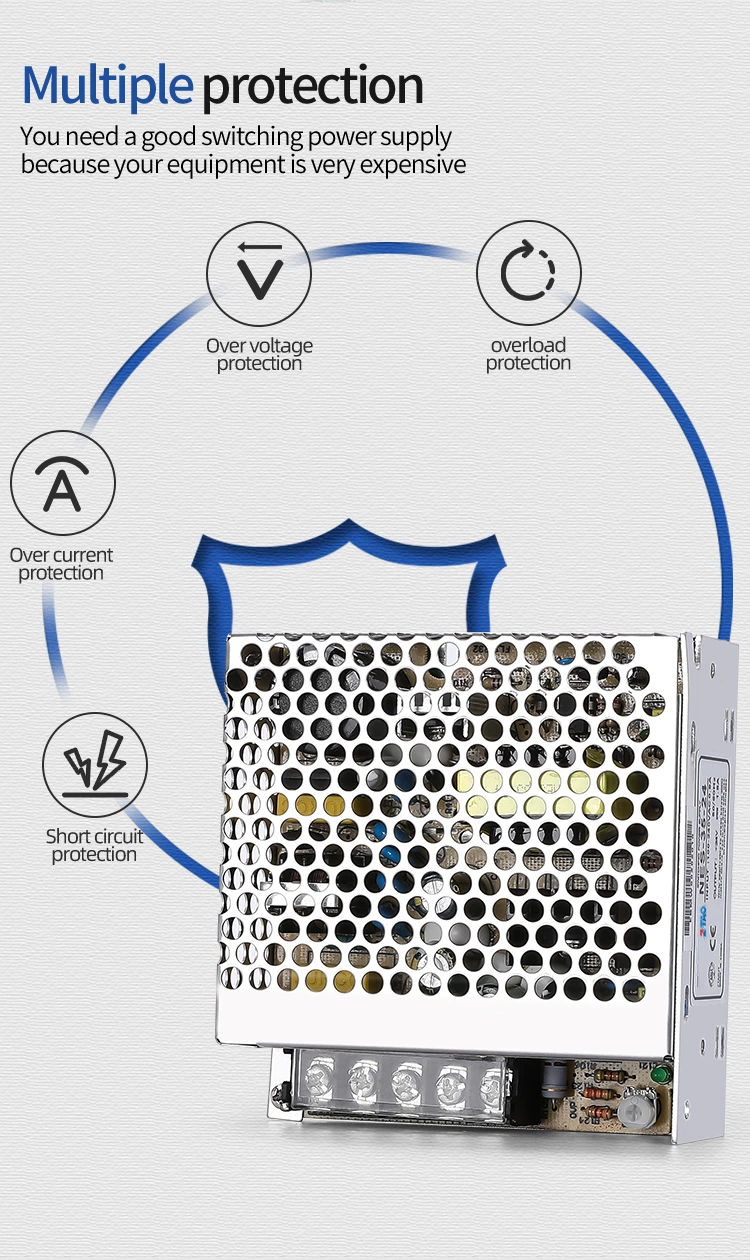

PROTECTION |
Over load |
105%~150% in rated output power |
||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||||
|
Over voltage |
5.75~6.75V |
13.8~16.2V |
27.6~32.4V |
37.2~38.6V |
55~64.8V |
|
|
Protection mode, tum off output voltage, restart to recover |
||||||
|
ENVIRONMENT |
-10~+60℃ |
|||||
|
20~65% RH non-condensing |
||||||
|
Storage TEMP humidity |
-10~+60℃，10~95%RH |
|||||
|
TEMP coefficient |
±0.03%℃（0~50℃） |
|||||
|
Vibration |
10~500Hz，2G 10min./1 cycle . 60min Each along X,Y,Z axes, install accord with IEC60068-2-6 |
|||||
|
SAFETY |
Safety regulations |
UL60950-1，CB(IEC60950-1) In line with the certification |
||||
|
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.4KVAC |
|||||
|
Insolation resistance |
I/P-O/P，I/P-FG, O/P-FG: 100M Ohms/500VDC |
|||||
|
Electromagnetic compatible emission |
Compliance to EN55011 EN55032（CISPR32）CLASS B，EN61000-3-2,-3 EAC TP TC 020 |
|||||
|
EMC immunity |
Compliance to EN61000-4-2,3,4,5,6,8,11，EN55024，EN1000-6-1, Class A light industry standard |
|||||
|
OTHERS |
MRBF |
≥384K hrs.MIL-HDBK-217F（25℃） |
||||
|

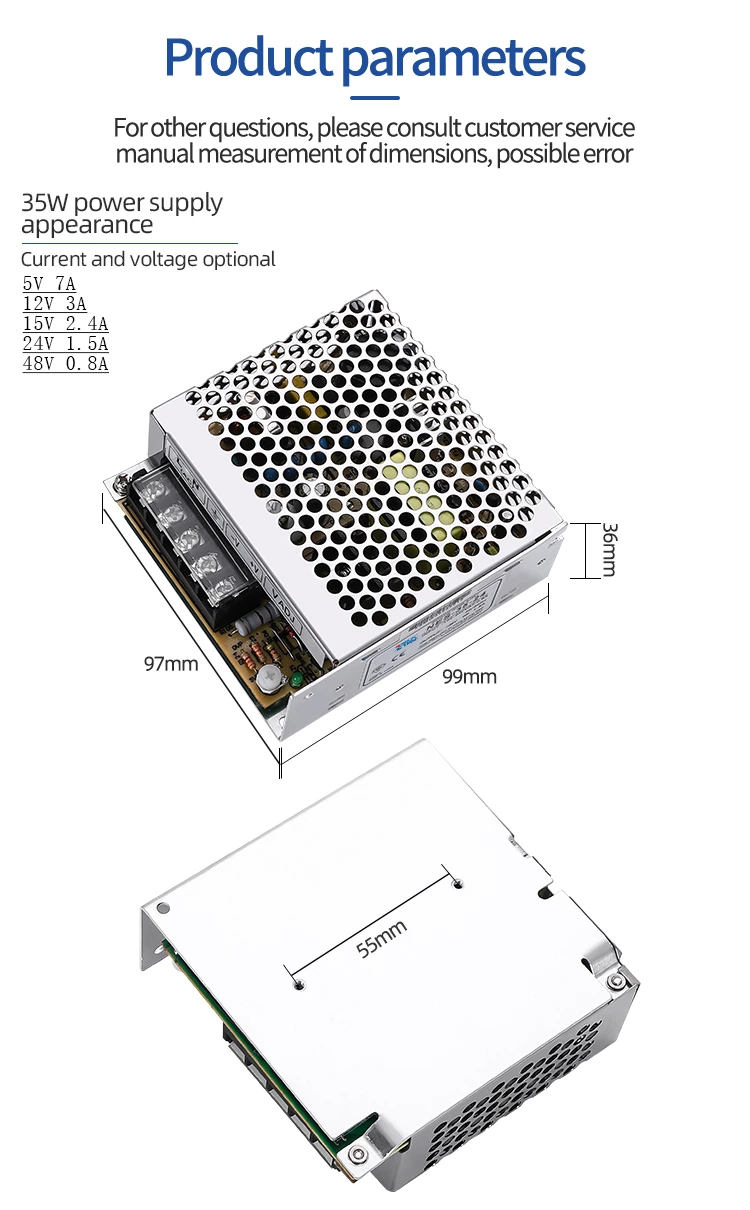

Dimension |
99*97*36mm（L*W*H） |
|||||
|
Packing |
0.32Kg：45PCS/17Kg/0.93CUFT |
|||||
