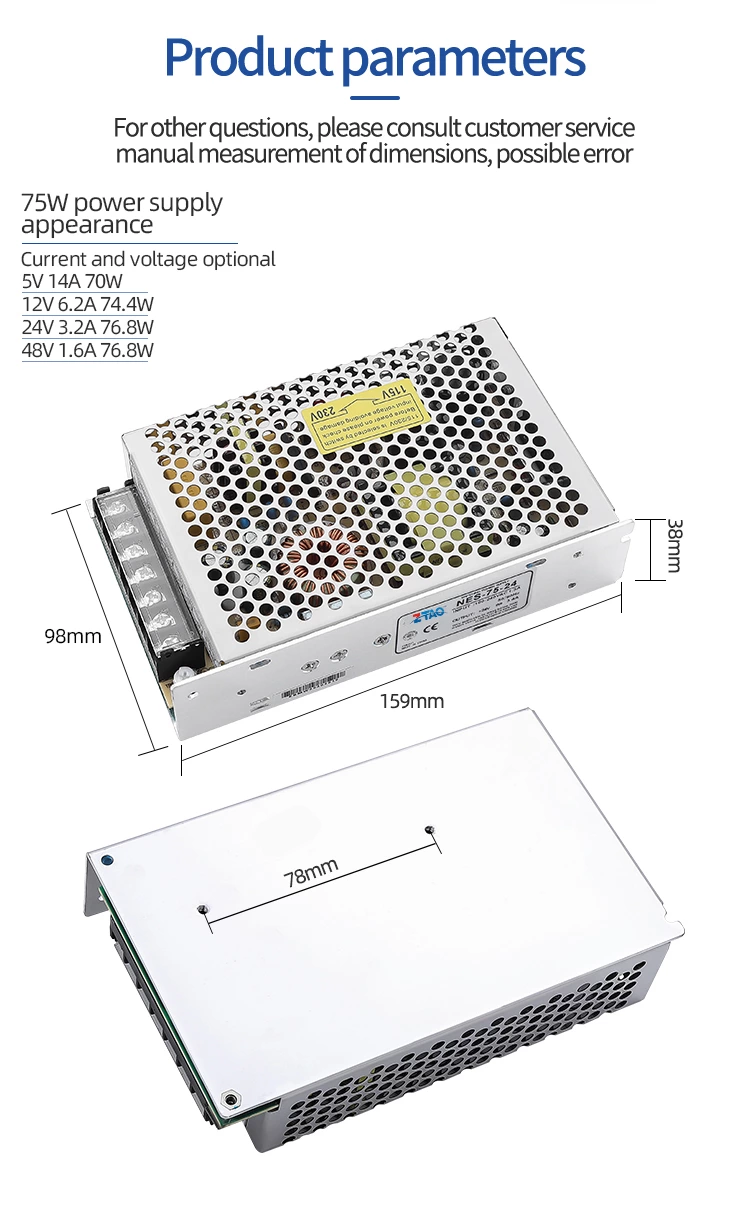

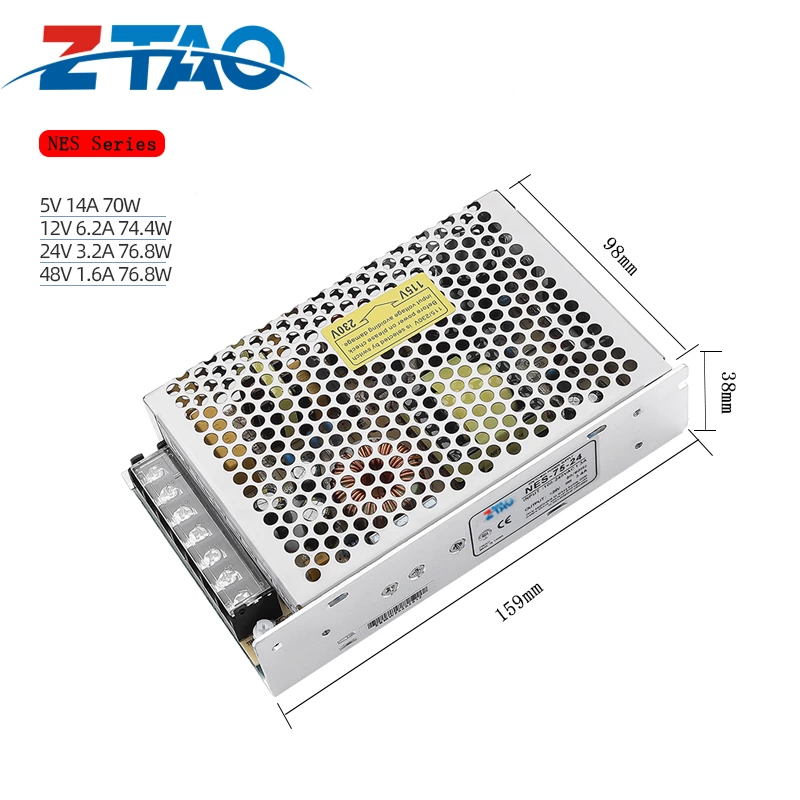

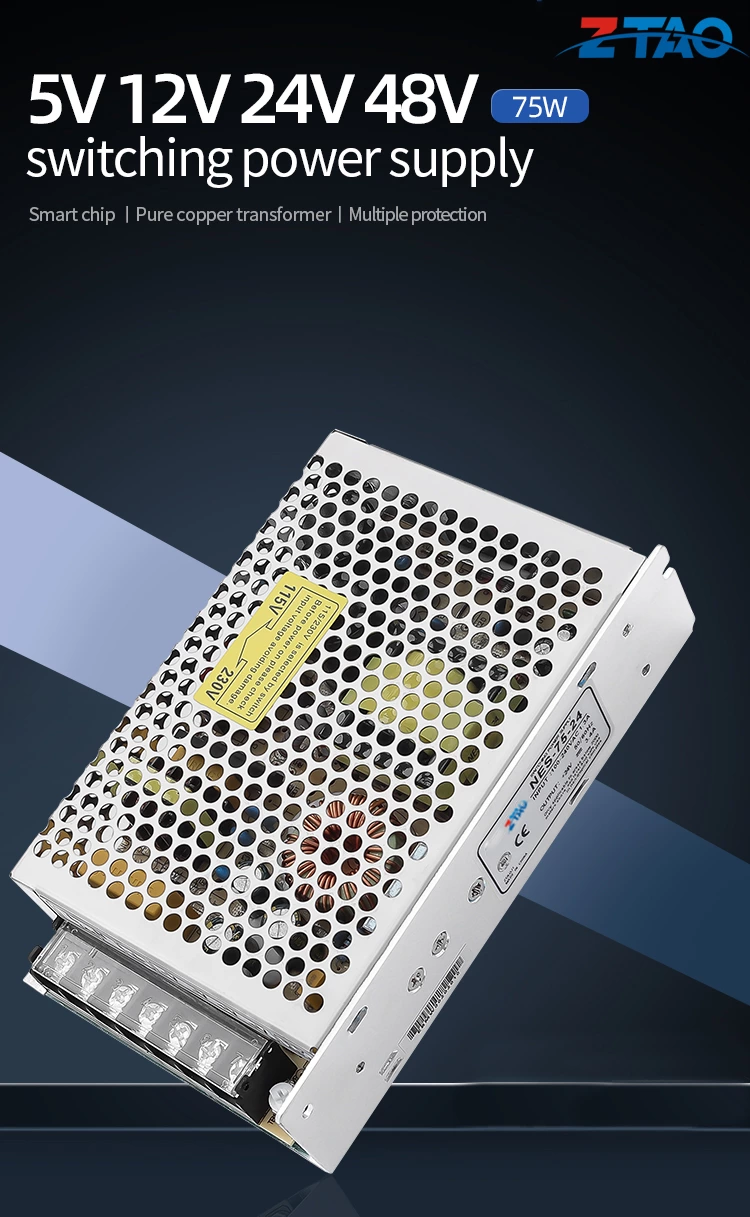

Model |
NES-75-5 |
NES-75-12 |
NES-75-24 |
NES-75-48 |
|
DC Voltage |
5V |
12V |
24V |
48V |
|
Rated Current |
14A |
6.2A |
3.2A |
1.6A |
|
Current range |
0~14A |
0~6.2A |
0~3.2A |
0~1.6A |
|
Rated power |
75W |
75W |
75W |
75W |
|
Ripple&noise |
80mVp-p |
120mVp-p |
200mVp-p |
240mVp-p |
|
Voltage ADJ. |
4.75~5.5V |
10.8~13.2V |
21.6~26.4V |
43.2V-52.8V |
|
Efficiency |
77% |
82% |
84% |
86% |
|
|
105%~150%rated output power |
|||
|

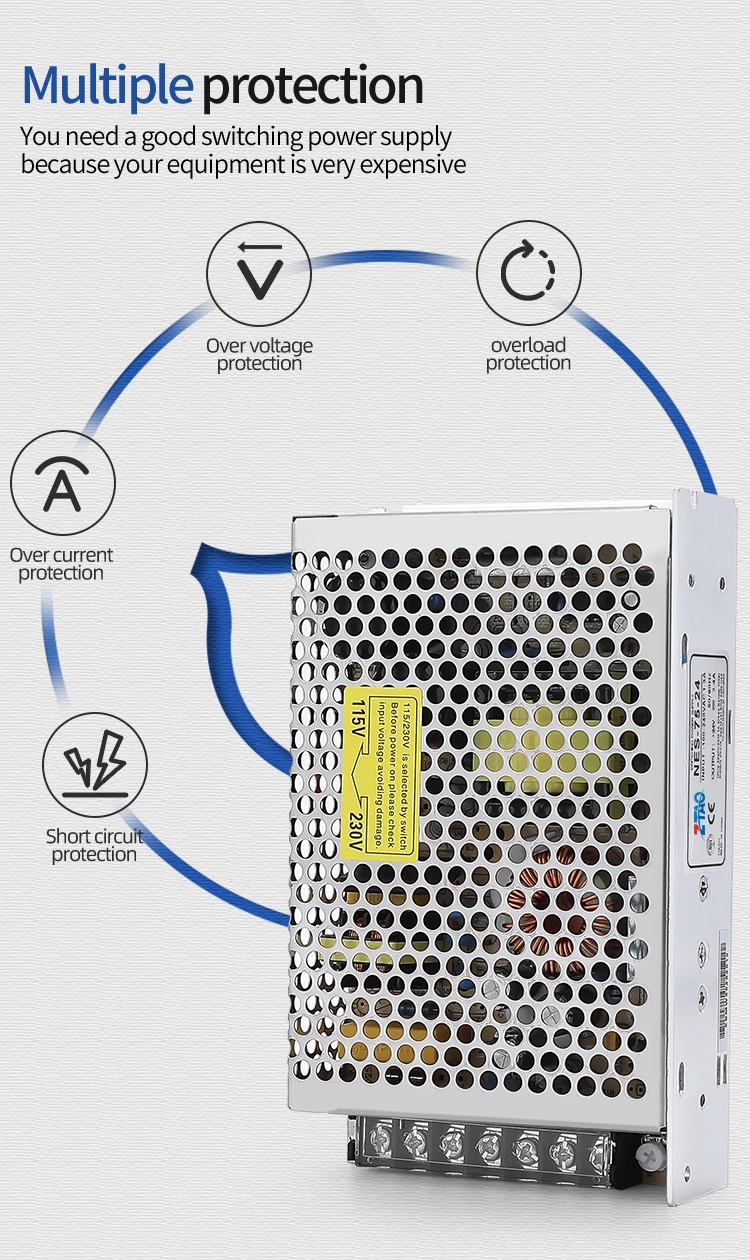

Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||
|
|
5.75~6.75V |
13.8~16.2V |
27.6~32.6V |
55.2~64.8V |
|
Protection mode, tum off output voltage, restart to recover |
||||
