MODEL |
|
NES-15-5 |
NES-15-12 |
NES-15-15 |
NES-15-24 |
NES-15-48 |
|
OUTPUTV |
DC Voltage |
5V |
12V |
15V |
24V |
48V |
|
Rated Current |
3A |
1.3A |
1A |
0.7A |
0.35A |
|
|
Current range |
0~3A |
0~1.3A |
0~1A |
0~0.7A |
0~0.35A |
|
|
Rated power |
15W |
15.6W |
15W |
16.8W |
16.8W |
|
|
Ripple&noise |
150mVp-p |
150mVp-p |
150mVp-p |
200mVp-p |
240mVp-p |
|
|
Voltage ADJ. range |
4.75~5.5V |
10.8~13.2V |
13.5~16.5V |
21.6~26.4V |
43.2V-52.8V |
|
|
Voltage tolerance |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Line regulation |
±1.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Load regulation |
±1.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Setup,Rise,Time |
1000ms, 30ms/230VAC 1000ms，30ms/115VAC(full load) |
|||||
|
Hold up time(TYP) |
100ms/230VAC 20ms/115VAC(full load) |
|||||
|
INPUT |
Voltage range |
100~264VAC 140~373VDC |
||||
| Frequency range |
50~60Hz |
|||||
|
Efficiency(Typ) |
78% |
80% |
80% |
85% |
85% |
|
|
AC current(Typ) |
0.55A/115VAC 0.35A/230VAC |
|||||
|
Inrush current(Typ) |
Cold start 15A/115VAC 25A/230VAC |
|||||
|
Leakage current |
<2mA/240VAC |
|||||
|
PROTECTION |
Over load |
105%~150%rated output power |
||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||||
|
Over voltage |
5.75~6.75V |
13.8~16.2V |
17.25~20.25v |
27.6~32.6V |
55.2~64.8V |
|
|
Protection mode, tum off output voltage, restart to recover |
||||||
|
Environment |
Working TEMP |
-10℃~+60℃ |
||||
|
Working humidity |
20~65% RH non-condensing |
|||||
|
Storage TEMP humidity |
-10~+60℃，10~95%RH |
|||||
|
TEMP.coefficient |
±0.03%℃(0~50℃) |
|||||
|
Vibration |
10~500Hz，2G 10min./1cycle, 60min each along X,Y,Z axes |
|||||
|
SAFETY |
Safety regulations |
CE ROHS FCC In line with the certification |
||||
|
Withstand voltage |
I/P-0/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.4KVAC |
|||||
|
Insolation resistance |
I/P-O/P，I/P-FG, O/P-FG: 100M Ohms/500VDC |
|||||
|
Electromagnetic compatible emission |
Compliance to EN55011 EN55032(CISPR32)CLASS B, EN61000-3-2,-3,EAC TP TC 020 |
|||||
|
EMC Immunity |
Compliance to EN61000-4-2, 3.4.5.6.8.11, EN55024.EN1000-6-1,Class A light industry standard |
|||||
|
OTHERS |
MTBF |
≥563 K hrs. MIL-HDBK-217F(25℃) |
||||
|

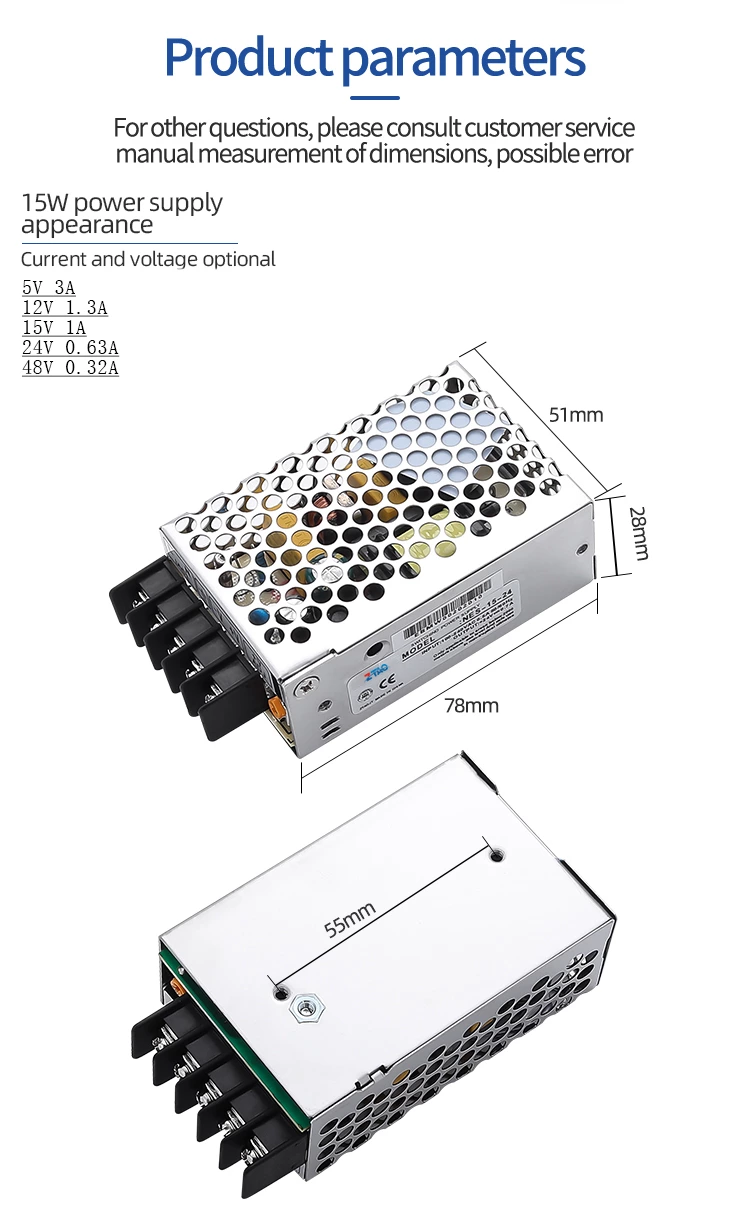

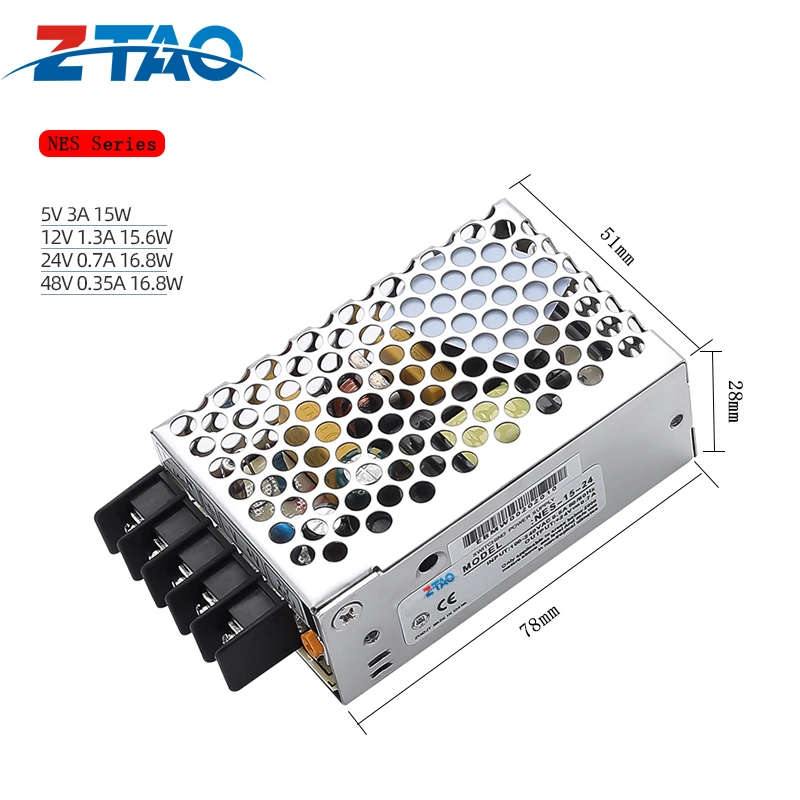

Dimension |
78*51*28mm(L*W*H) |
|||||
|
Packing |
0.14Kg:60PCS/10Kg |
|||||
