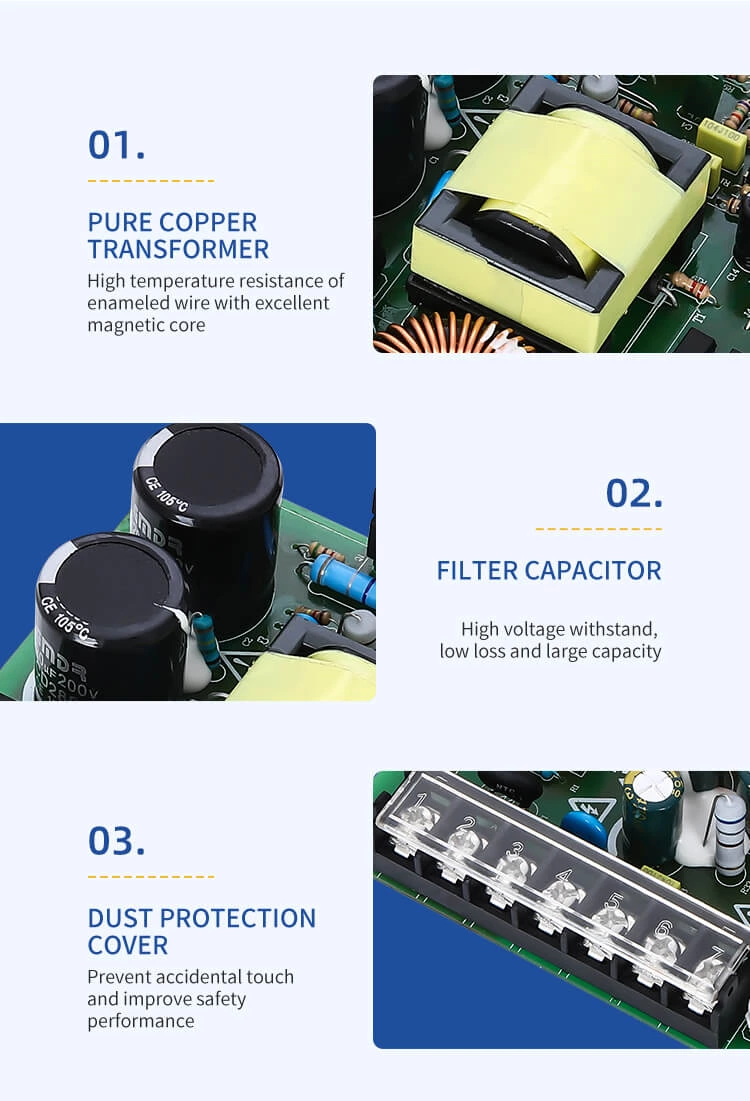

MS Mini Size Switch Power Supply

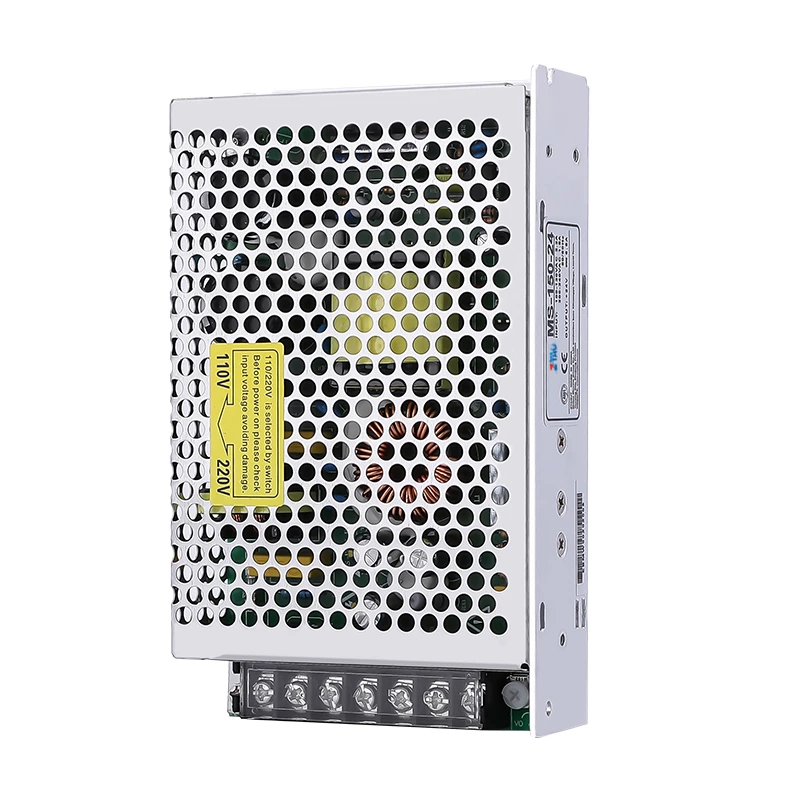

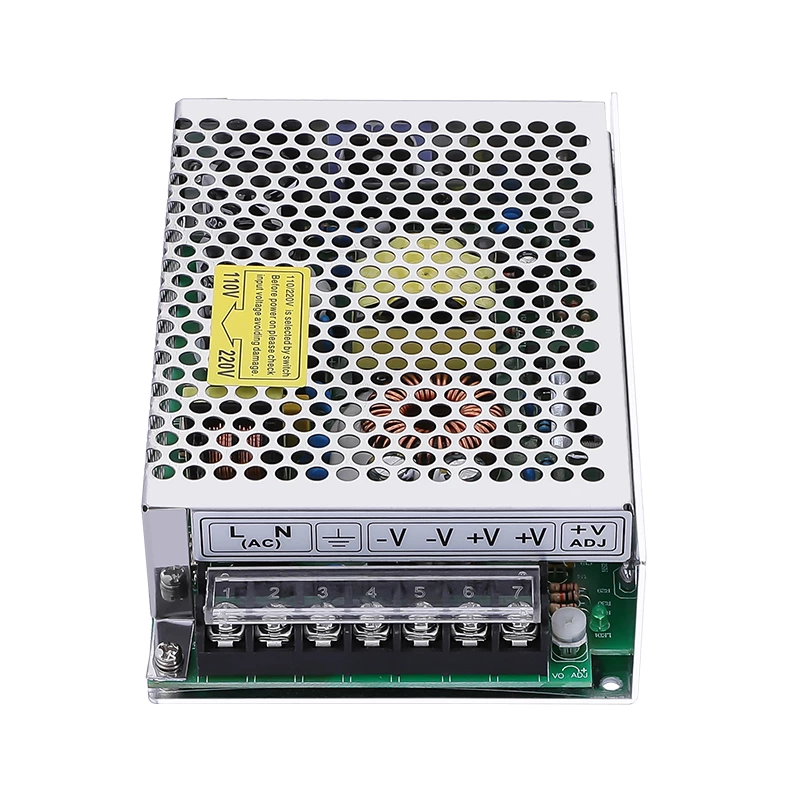

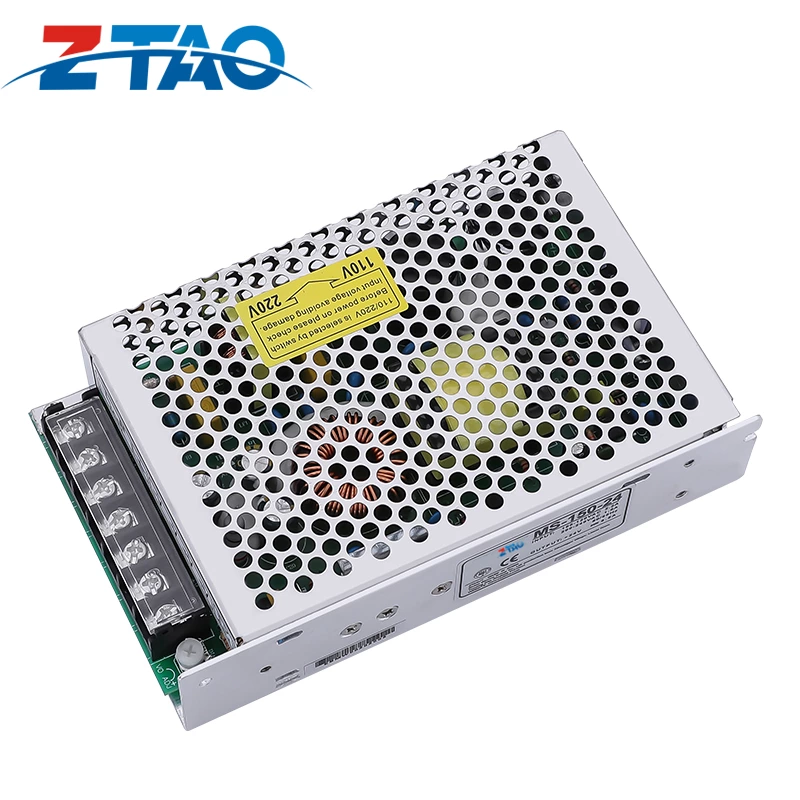

MS-150-24 150W 12v 12.5a 24V 6.5A AC DC Ms Size Led Switch Mode Power Supply

MODEL MS-150-5 MS-150-12 MS-150-15 MS-150-24 MS-150-36 MS-150-48 DC OUTPUT DC Voltage 5v 12v 15v 24v 36v 48v Rated Current 24A 12.5A 10A 6.5A 4.2A 3.2A Curr

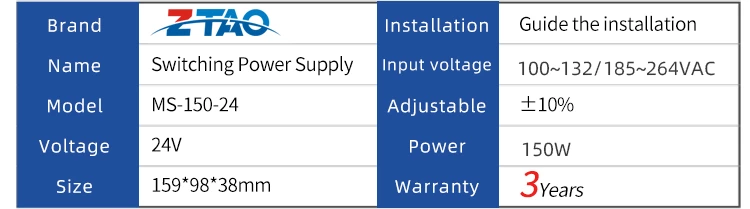

Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
MS-150-24
Output Type:
Single
Input Voltage:
100~132VAC/185~264VAC 260~370VDC(switch on220VAC)
Output Voltage:
12V/24V/36V/48V can be choose or customized
Output Frequency:
50~60Hz
Output Current:
6.5A
Output Power
150W
Efficiency:
83%
Workig Temperature:
-10℃~+60℃
Certification:
CE FCC ROHS ISO9001
Test:
100%Full Load Burn-in Test
Protection:
Shortcuit Overtemp Overload overvoltage
Warranty
3 Years

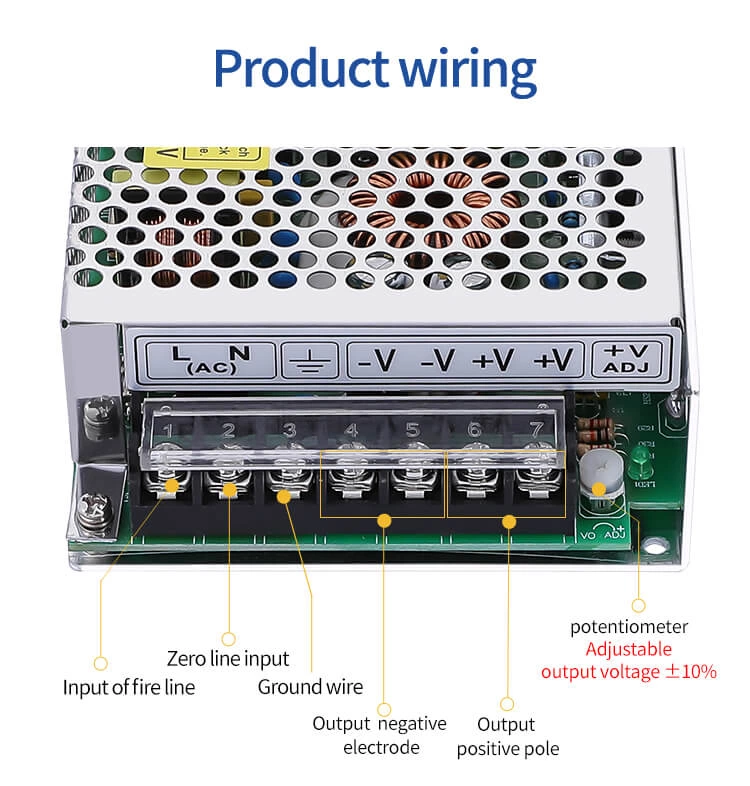

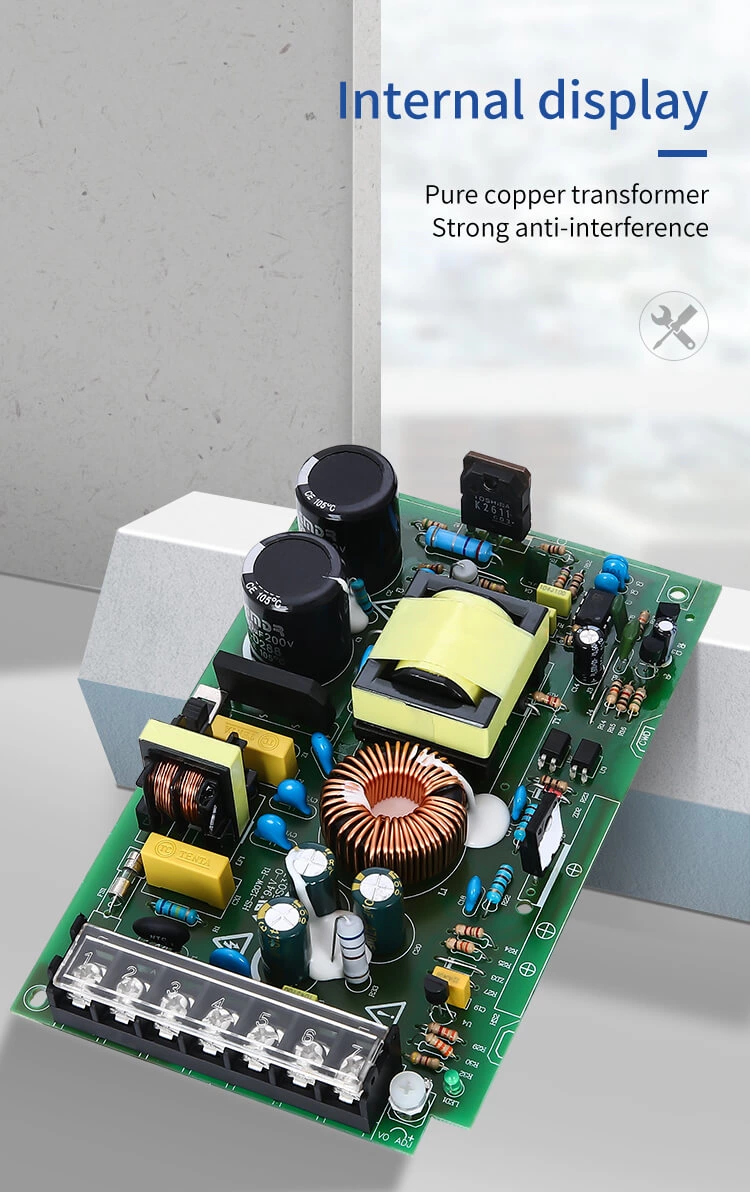

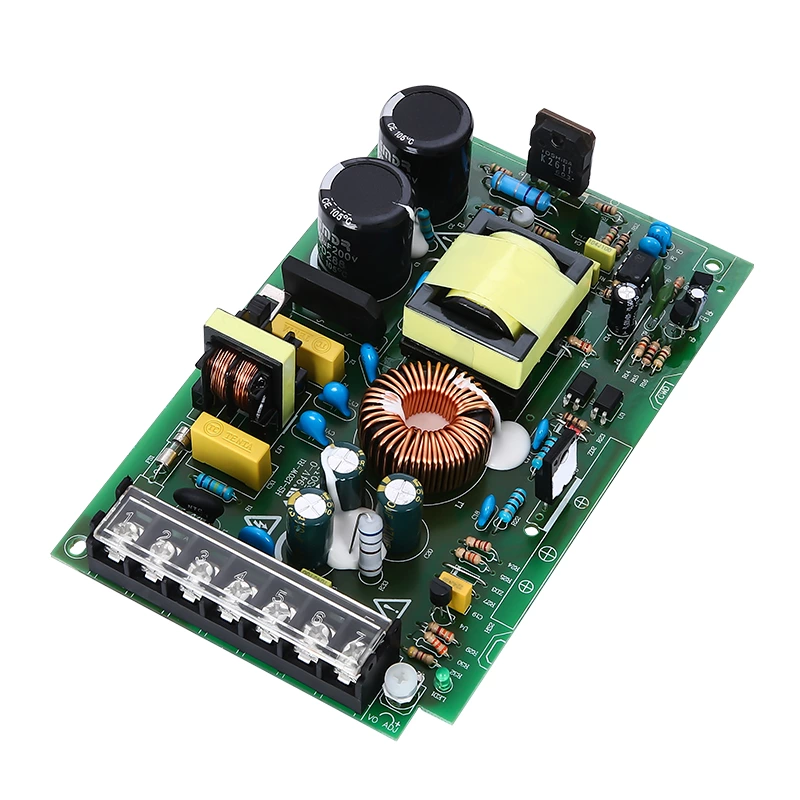

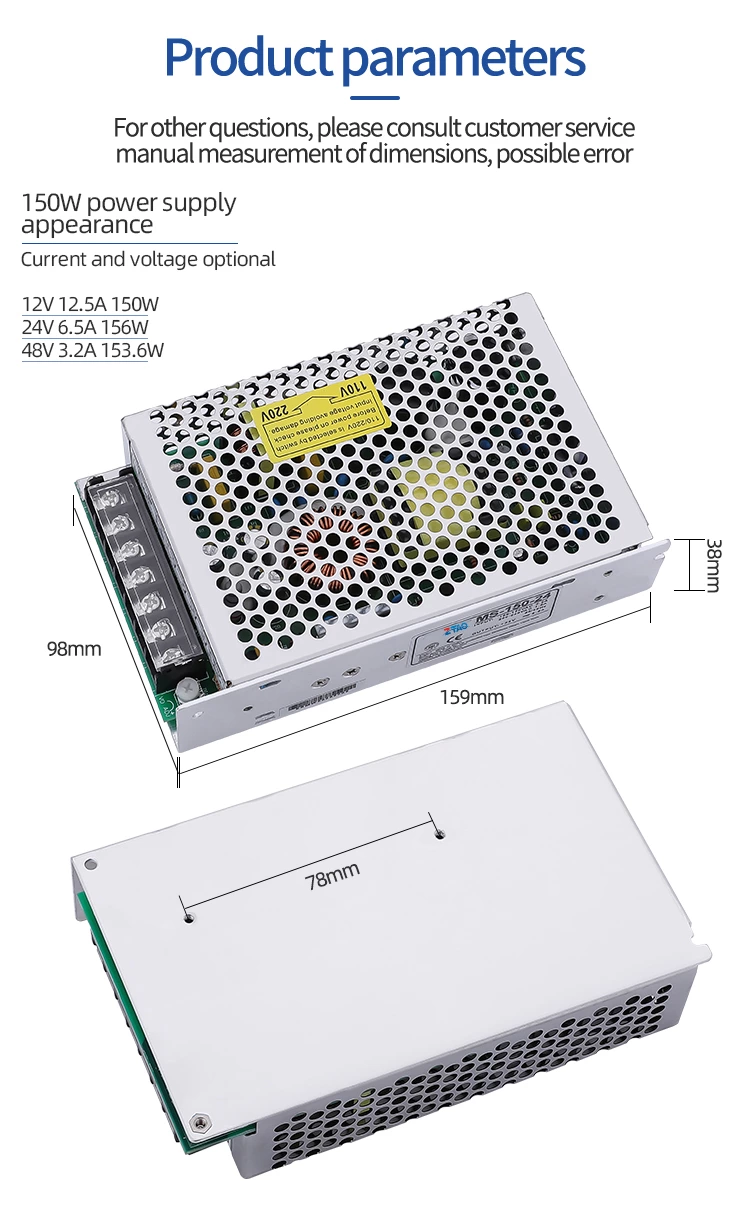

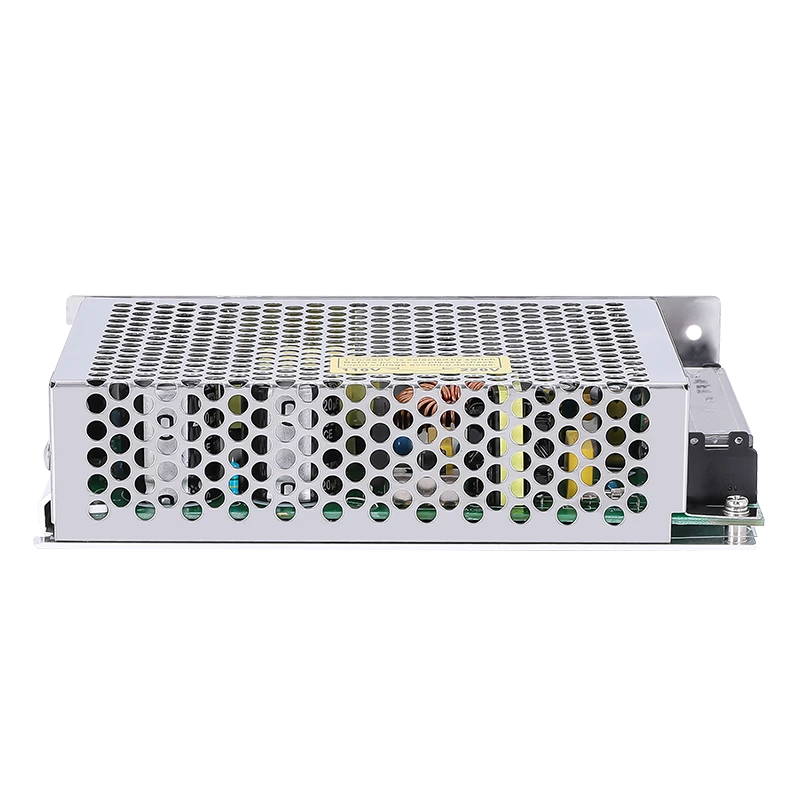

Size
159*98*38mm(L*W*H)

MODEL



MS-150-5

MS-150-12

MS-150-15

MS-150-24

MS-150-36

MS-150-48

DC OUTPUT

DC Voltage

5V

12V

15V

24V

36V

48V

Rated Current

24A

12.5A

10A

6.5A

4.2A

3.2A

Current range

0~24A

0~12.5A

0~10A

0~6.5A

0~4.2A

0~3.2A

Rated power

120W

150W

150W

156W

151.2W

153.6W

Ripple&noise

100mVp-p

120mVp-p

120mVp-p

150mVp-p

200mVp-p

200mVp-p

Voltage ADJ. range

4.5~5.5V

10.2~13.8V

13.5~18V

24~28V

32.4~39.6V

43.2~52.8V

Voltage tolerance

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

Line regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load regulation

±1.0%

±1.0%

±0.5%

±1.0%

±0.5%

±0.5%

Setup,Rise Time

800ms,50ms/230VAC     300ms,50ms/115VAC(full load)

AC INPUT

Hold up time (Typ)

80ms/230VAC    10ms/115VAC (full load)

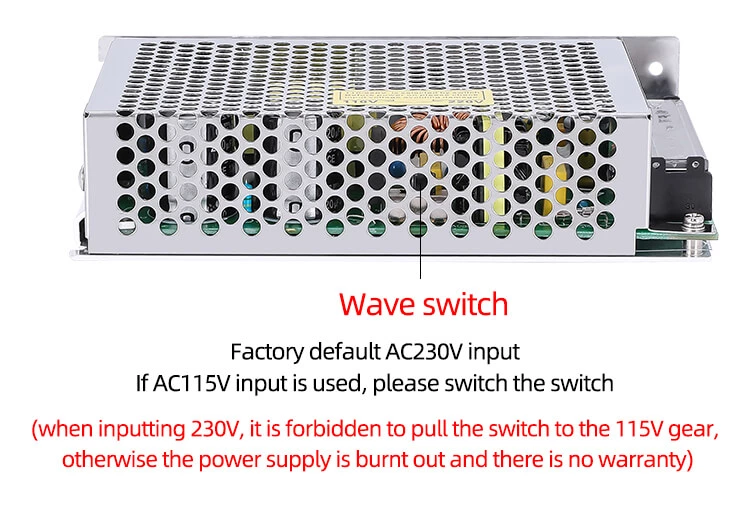

Voltage range

100~132VAC/185~264VAC   260~370VDC(switch on220VAC)

Frequency range

50~60Hz

Efficiency (Typ)

80%

81%

81%

83%

85%

85%

AC current (Typ)

2A/115VAC  1A/230VAC

Inrush current (Typ)

Cold start:15A/115V  30A/230VAC

Leakage current

<3.5mA/240VAC

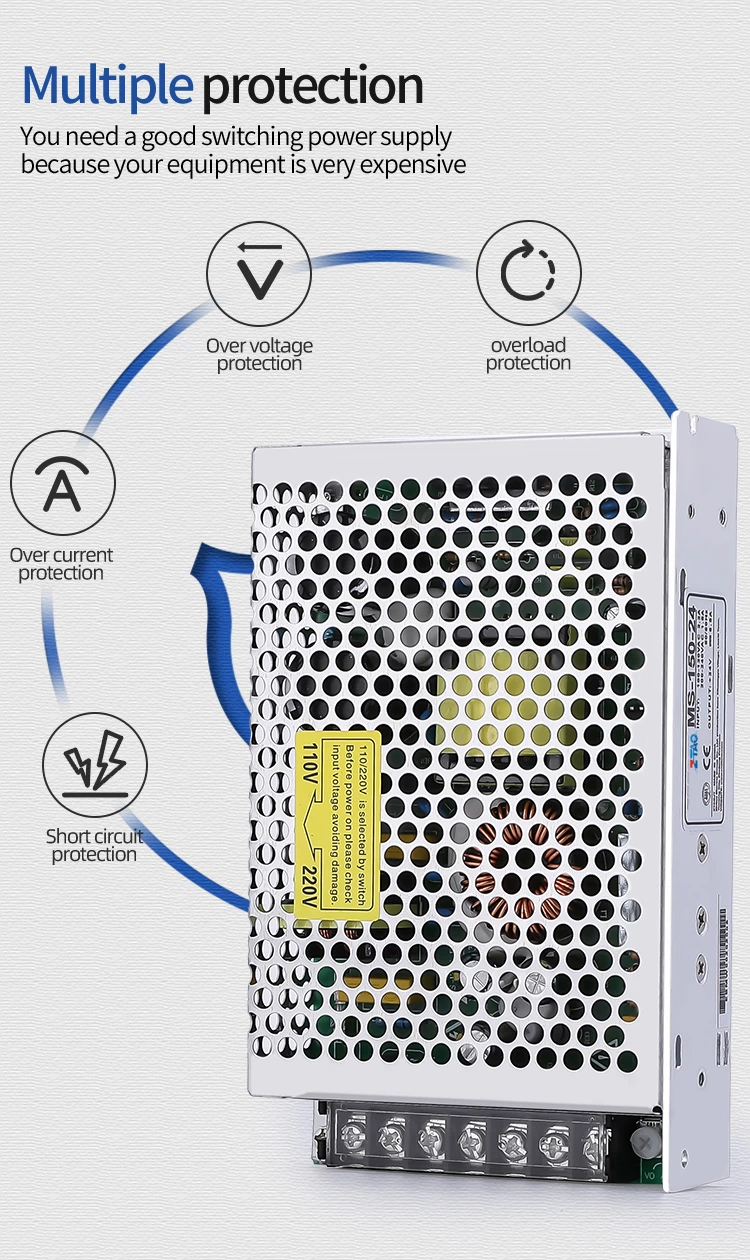

PROTECTION

Over load

115%~150% in rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over voltage

5.75~6.9V

13.8~16.2V

18.75~21.75V

28.8~33.6V

41.4~48.6V

55.2~64.8V

Protection mode, tum off output voltage, restart to recover

ENVIRONMENT

operating TEMP

-10~+60℃

operating humidity

20~65% RH  non-condensing

Storage TEMP humidity

-10~+60℃,10~95%RH

TEMP coefficient

±0.03%℃(0~50℃)

Vibration

10~500Hz,2G  10min/cycle   60min Each along X,Y,Z axes

SAFETY

Safety regulations

UL60950-1,TUV EN60750-1 In line with the certification

Withstand voltage

I/P-O/P:1.5KVAC  I/P-FG:1.5KVA  O/P-FG:0.5KVAC

Insolation resistance

I/P-O/P,I/P-FG  O/P-FG:100M  Ohms/500VDC

Electromagnetic compatible emission

Compliance to EN55032(CISPR32)CLASS B,EN61000-3-2,-3 EAC TP TC 020

EMC immunity

Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024,EN1000-6-1 Class A heavy and light industry standard

OTHERS

Dimension

159*98*38mm(L*W*H)

Packing

0.6Kg:20PCS/13Kg/0.92CUFT
