| MODEL |
|
MS-1000-24 |
MS-1000-36 |
MS-1000-48 |
| DC OUTPUT |
DC Voltage |
24v |
36v |
48v |
| Rated Current |
42A |
28A |
21A |
| Current range |
0~42A |
0~28A |
0~21A |
| Rated power |
1008W |
1008W |
1008W |
| Ripple&noise |
150mVp-p |
200mVp-p |
200mVp-p |
| Voltage ADJ. range |
0~28V |
0~38V |
0~53V |
| Voltage tolerance |
±1.0% |
±1.0% |
±1.0% |
| Line regulation |
±0.5% |
±0.5% |
±0.5% |
| Load regulation |
±1.0% |
±1.0% |
±1.0% |
| Setup,Rise Time |
200ms，50ms/230VAC （full load） |
| AC INPUT |
Hold up time (Typ) |
20ms/230VAC （full load） |
| Voltage range |
185～240VAC 260～340VDC |
| Frequency range |
50~60Hz |
| Efficiency (Typ) |
84% |
85% |
85% |
| AC current (Typ) |
4.5A/200~240VAC |
| Inrush current (Typ) |
Cold start :30A/115VAC 60A/230VAC |
| Leakage current |
<3.5mA/240VAC |
| PROTECTION |
Over load |
115%~150% in rated output power |
| protected mode：overcurrent115%~150% , Constant current current limit, Cut off the load and Shutdown restart |
| FUNCTION |

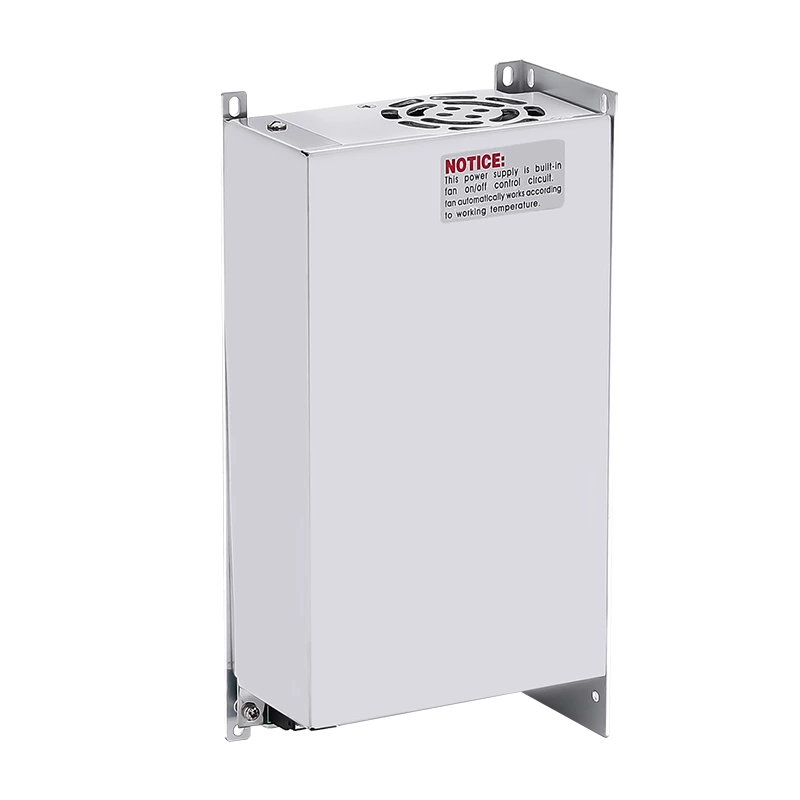

Fan switch control |
- RTH2: ≥50℃ Open the fan, ≤45℃ Close the fan
|
| over-temperature protection |
- RTH3: ≥55℃ Fan turn fast, ≥45℃ Close the output
|
| ENVIRONMENT |
operating temperature |
-10~+60℃ |
| operating humidity |
20~65%RH non-condensing |
| Storage TEMP humidity |
-10~+65℃，10~95%RH |
| TEMP coefficient |
±0.03%℃（0~50℃） |
| SAFETY |
Vibration |
10~500Hz，2G 10min/cycle 60min. Each along X,Y,Z axes,install accord with IEC60068-2-6 |
| Safety regulations |
Compliance to UL60950-1，CB(IEC60950-1) |
| OTHERS |
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.4KVAC |
| MRBF |
≥260K hrs.MIL-HDBK-217F（25℃） |
| Dimension |
241*125*65mm（L*W*H） |
| Packing |
1．6Kg:14PCS/24Kg |
