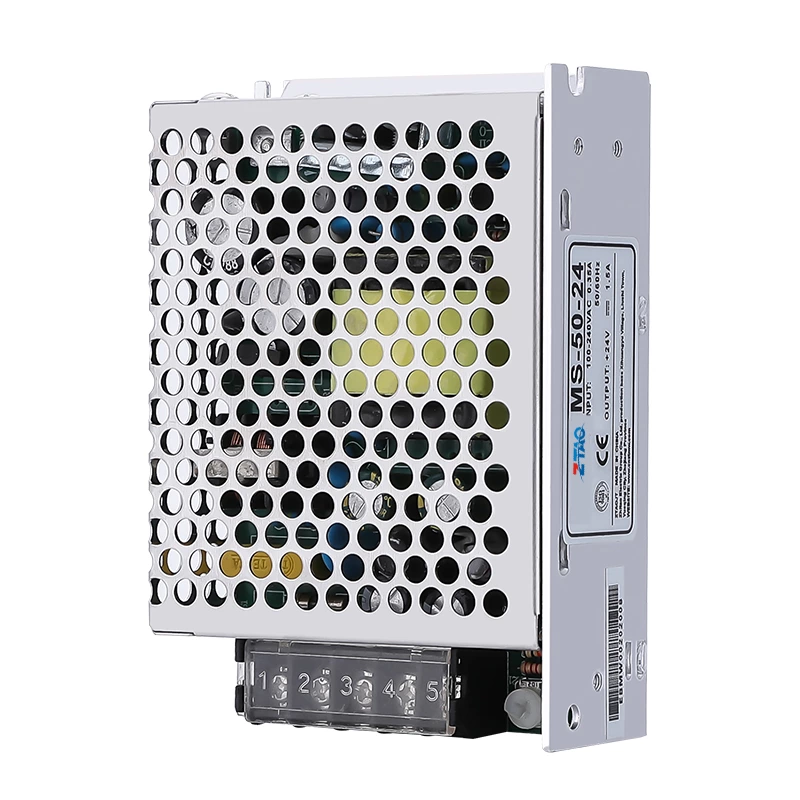

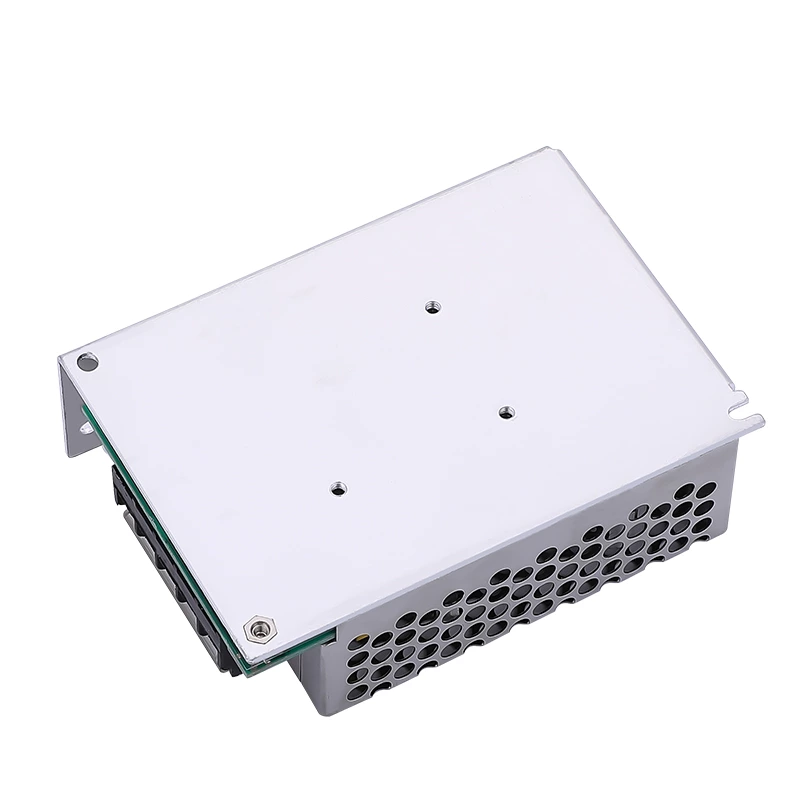

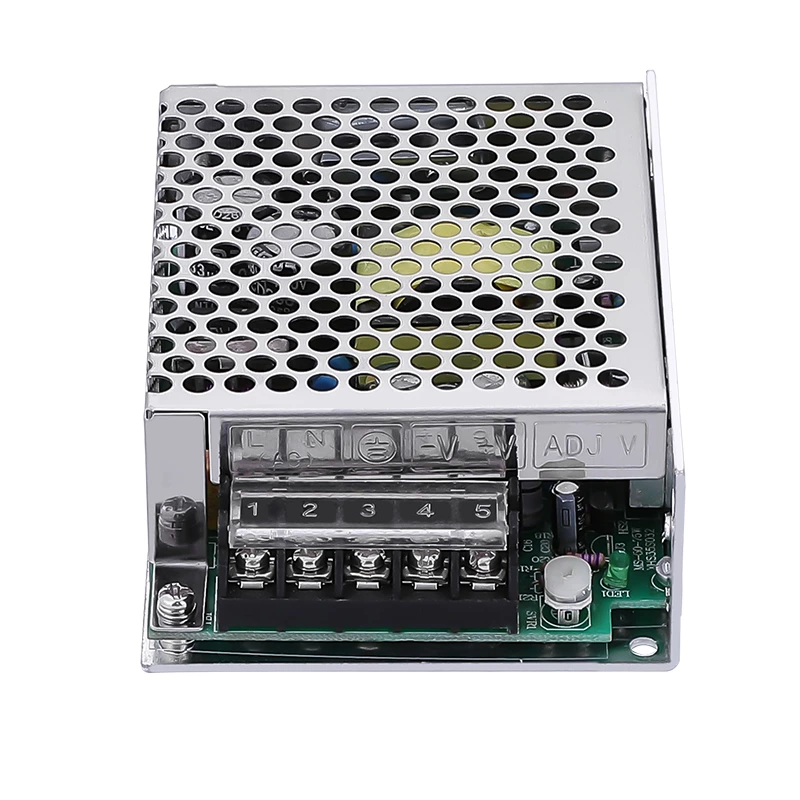

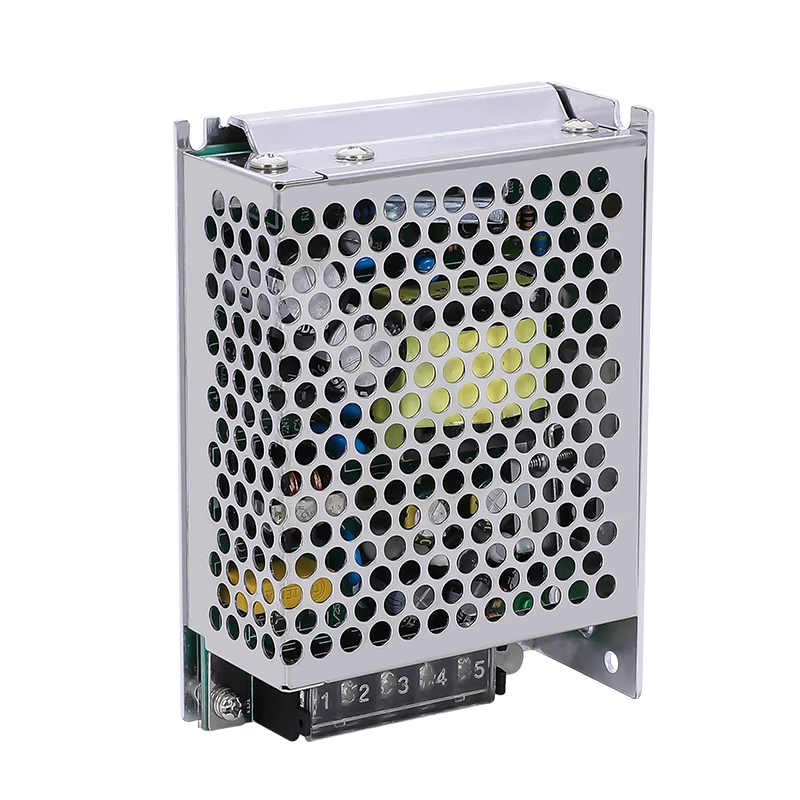

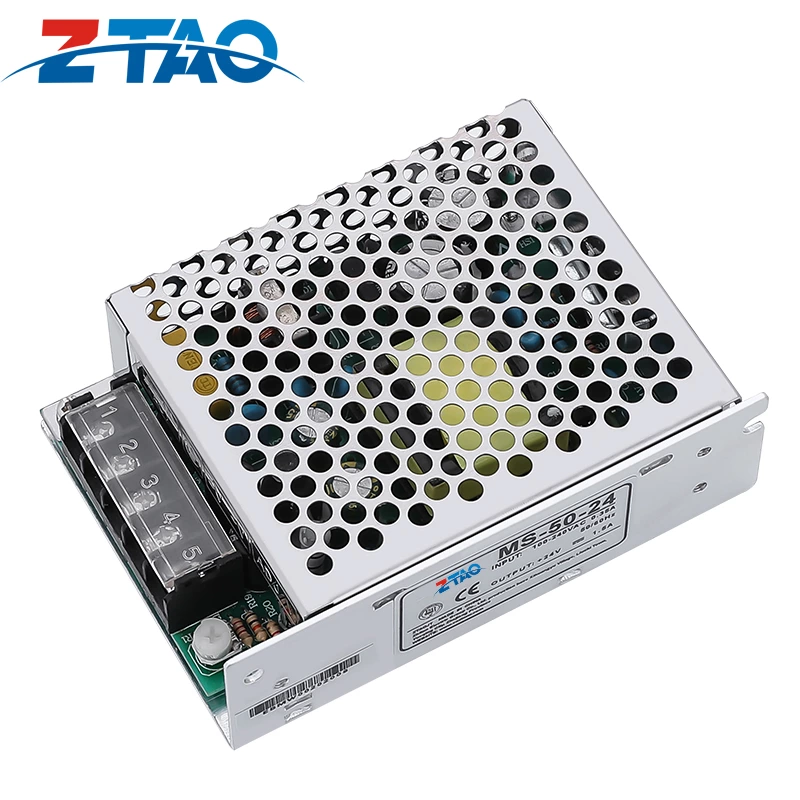

MS Mini Size Switch Power Supply

MS-50-24 5V 12V 24V 36V 48V 8A 4.2A 2.1A 1.4A 1.1A 50W Ac Dc Switching Power Supply

MODEL MS-50-5 MS-50-12 MS-50-15 MS-50-24 MS-50-36 MS-50-48 DC OUTPUT DC Voltage 5v 12v 15v 24v 36v 48v Rated Current 8A 4.1A 3.3A 2.1A 1.4A 1.1A Current ran

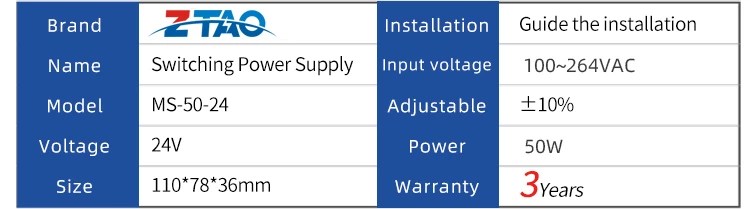

Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
MS-50-24
Output Type:
Single
Input Voltage:
100~264VAC 140~373VDC
Output Voltage:
12V/24V/36V/48V Can be choose or customized
Output Frequency:
50~60Hz
Output Current:
2.1A
Output Power
50W
Efficiency:
85%
Workig Temperature:
-10℃~+60℃
Certification:
CE FCC ROHS ISO9001
Test:
100%Full Load Burn-in Test
Protection:
Shortcuit Overtemp Overload overvoltage
Warranty
3 Years
Size
110*78*36mm(L*W*H)

MODEL



MS-50-5

MS-50-12

MS-50-15

MS-50-24

MS-50-36

MS-50-48

DC OUTPUT

DC Voltage

5V

12V

15V

24V

36V

48V

Rated Current

8A

4.2A

3.3A

2.1A

1.4A

1.1A

Current range

0~8A

0~4.2A

0~3.3A

0~2.1A

0~1.4A

0~1.1A

Rated power

40W

50.4W

49.5W

50.4W

50.4W

52.8W

Ripple&noise

100mVp-p

120mVp-p

120mVp-p

150mVp-p

200mVp-p

200mVp-p

Voltage ADJ. range

4.5~5.5V

10.2~13.8V

13.5~18V

24~28V

32.4~39.6V

43.2~52.8V

Voltage tolerance

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

Line regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load regulation

±1.0%

±1.0%

±0.5%

±1.0%

±0.5%

±0.5%

Setup,Rise Time

1000ms,30ms/230VAC     1000ms,30ms/115VAC  (full load)

AC INPUT

Hold up time (Typ)

30ms/230VAC    12ms/115VAC(full load)

Voltage range

100~264VAC  140~373VDC

Frequency range

50~60Hz

Efficiency (Typ)

78%

83%

83%

85%

85%

85%

AC current (Typ)

0.27A/100~264VAC

Inrush current (Typ)

Cold start:60A/230VAC

Leakage current

<3.5mA/240VAC

PROTECTION

Over load

115%~150% in rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over voltage

5.75~6.9V

13.8~16.2V

18.75~21.75V

28.8~33.6V

41.4~48.6V

55.2~64.8V

Protection mode, tum off output voltage, restart to recover

ENVIRONMENT

operating TEMP

-10~+60℃

operating humidity

20~65%RH  non-condensing

Storage TEMP humidity

-10~+60℃,10~95%RH

TEMP coefficient

±0.03%℃(0~50℃)

Vibration

10~500Hz,5G  10min/cycle   60min Each along X,Y,Z axes

SAFETY

Safety regulations

UL60950-1,TUV EN60750-1 In line with the certification

Withstand voltage

I/P-O/P:1.5KVAC  I/P-FG:1.5KVA  O/P-FG:0.5KVAC

Insolation resistance

I/P-O/P,I/P-FG  O/P-FG:100M  Ohms/500VDC

Electromagnetic compatible emission

Compliance to EN55032(CISPR32)CLASS B,EN61000-3-2,-3 EAC TP TC 020

  • EMC immunity



Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024,EN1000-6-1

OTHERS

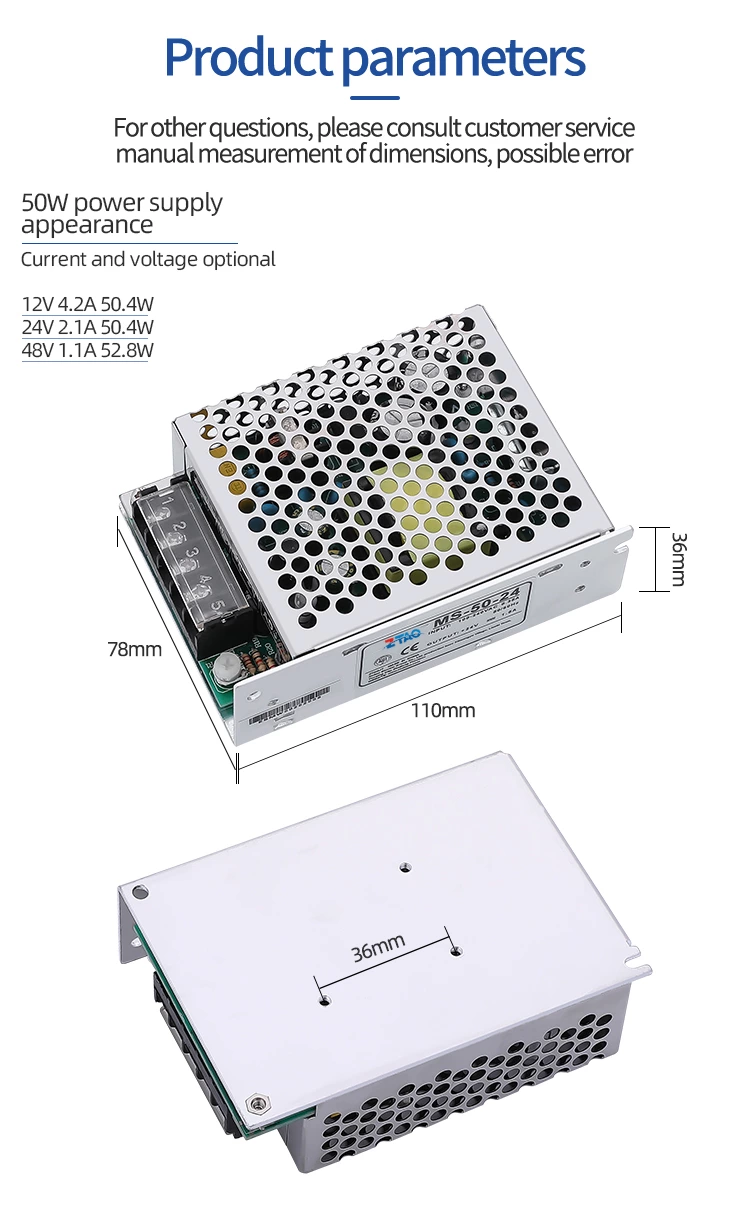

Dimension

110*78*36mm(L*W*H)

Packing

0.3Kg:30PCS/12Kg/0.7CUFT
