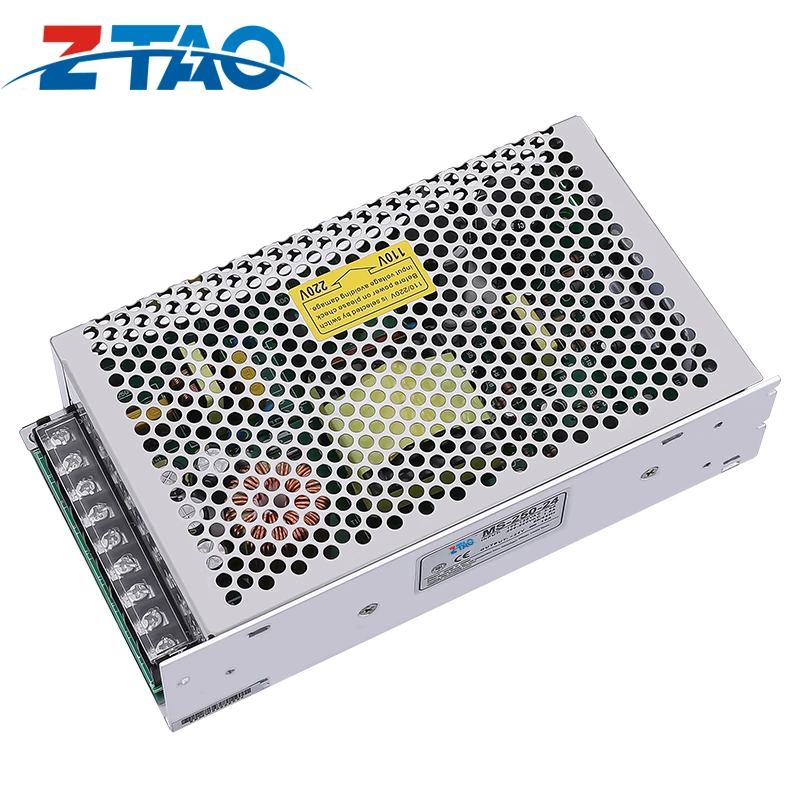

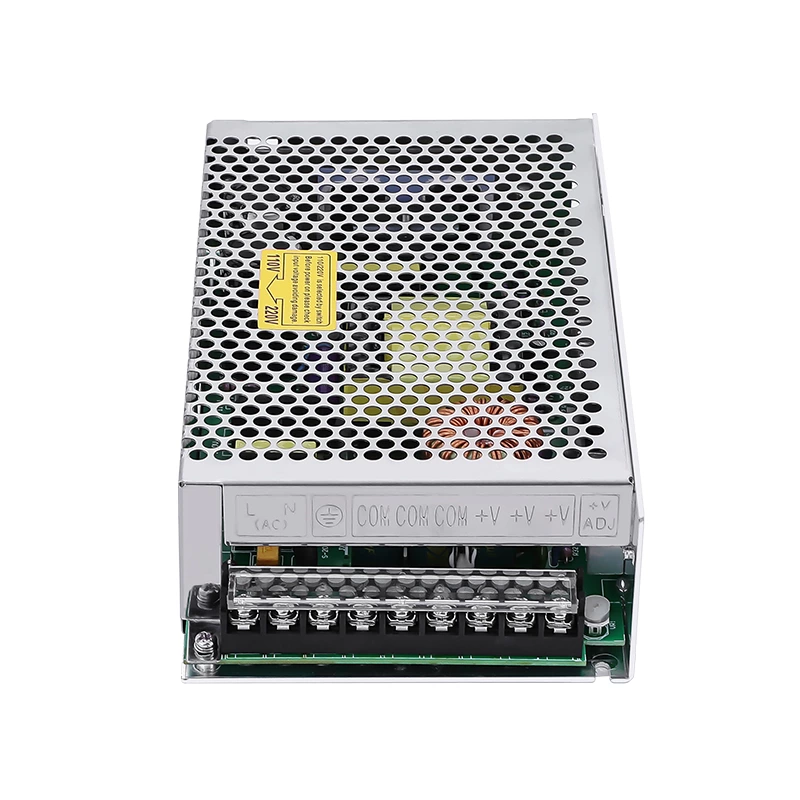

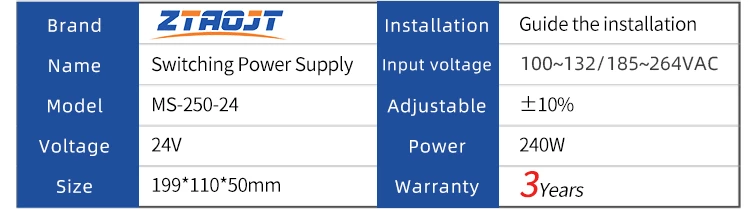

MS Mini Size Switch Power Supply

Ms-250-24 5v 40a 12v 20a 24v 10a 250w Switching Power Supply for 3d Printer

Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
MS-250-24
Output Type:
Single
Input Voltage:
100~132VAC/185~264VAC 260~370VDC(switch on220VAC)
Output Voltage:
12V/24V/36V/48V can be choose or customized
Output Frequency:
50~60Hz
Output Current:
10A
Output Power
250W
Efficiency:
84%
Workig Temperature:
-10℃~+60℃
Materail:
Aluminium
Certification:
CE FCC ROHS ISO9001
Test:
100%Full Load Burn-in Test
Protection:
Shortcuit Overtemp Overload overvoltage
Warranty
3 Years
Size
199*110*50mm(L*W*H)
MODEL   MS-250-5 MS-250-12 MS-250-15 MS-250-24 MS-250-36 MS-250-48
DC OUTPUT DC Voltage 5V 12V 15V 24V 36V 48V
Rated Current 40A 20A 16.6A 10A 7A 5A
Current range 0~40A 0~20A 0~16.6A 0~10A 0~7A 0~5A
Rated power 200W 240W 249W 240W 252W 240W
Ripple&noise(max.) 120mVp-p 150mVp-p 150mVp-p 160mVp-p 200mVp-p 200mVp-p
Voltage ADJ. range 4.5~5.5V 10.2~13.8V 13.5~18V 24~28V 32.4~39.6V 43.2~52.8V
Voltage tolerance ±2.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
Line regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load regulation ±1.0% ±1.0% ±0.5% ±1.0% ±0.5% ±0.5%
Setup,Rise Time 200ms,100ms/230VAC   200ms,100ms/115VAC  (full load)
AC INPUT Hold up time (Typ) 50ms/230VAC    50ms/115VAC (full load)

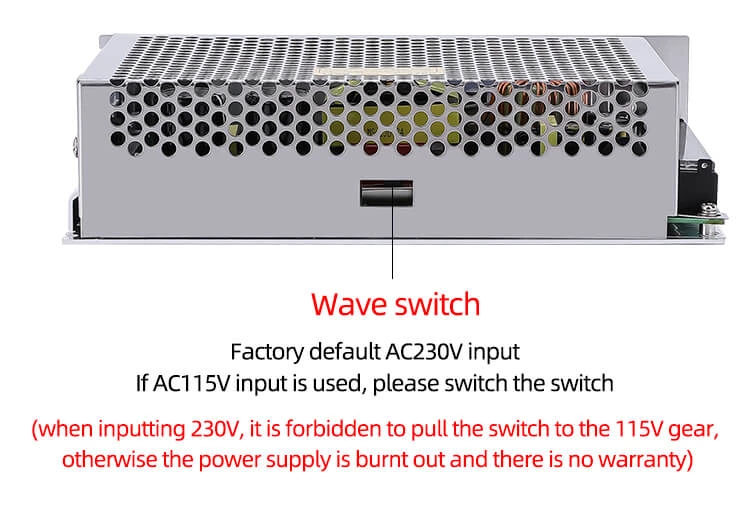

Voltage range 100~132VAC/185~264VAC  260~370VDC(switch on220VAC)
Frequency range 50~60Hz
Efficiency (Typ) 80% 81% 81% 84% 85% 85%
AC current (Typ) 4.5A/115VAC  2.5A/230VAC
Inrush current (Typ) Cold start:50A/115V  50A/230VAC
Leakage current <3.5mA/240VAC

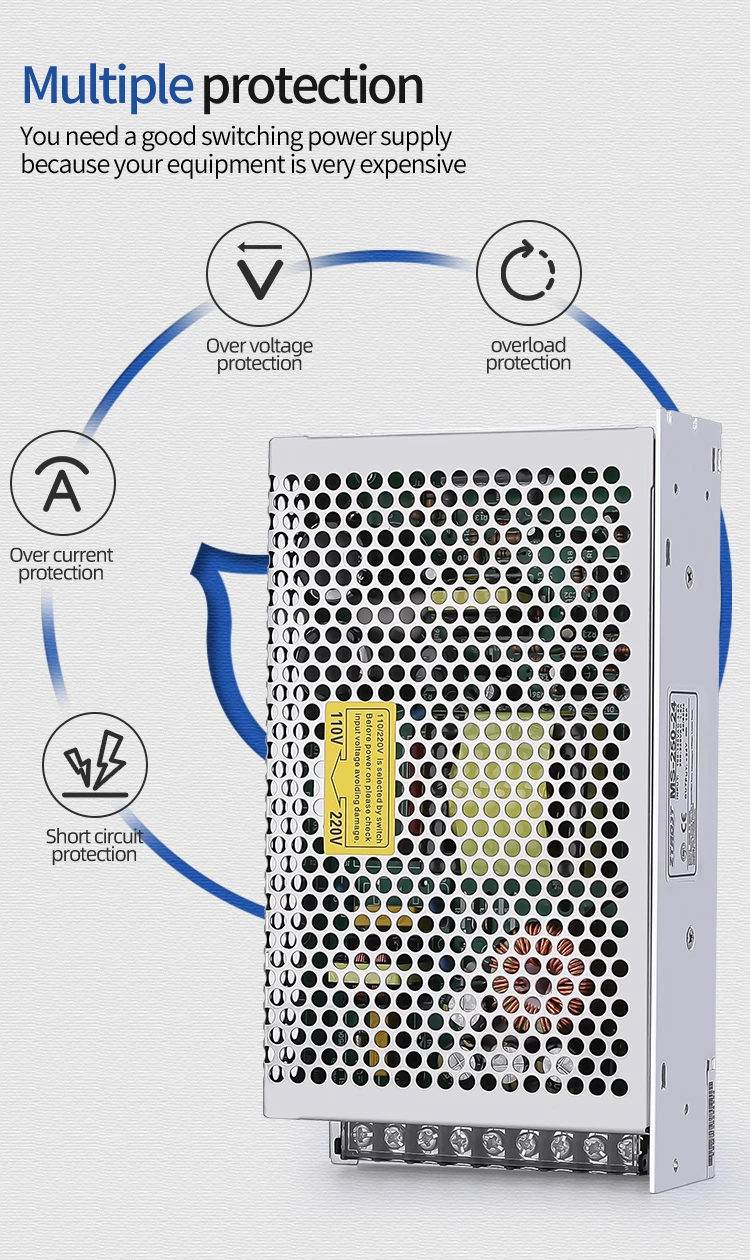

PROTECTION Over load 115%~150% in rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over voltage 5.75~6.9V 13.8~16.2V 18.75~21.75V 28.8~33.6V 41.4~48.6V 55.2~64.8V
Protection mode, tum off output voltage, restart to recover
ENVIRONMENT operating TEMP -10~+60℃
operating humidity 20~65%RH  non-condensing
Storage TEMP humidity -10~+60℃,10~95%RH
TEMP coefficient ±0.03%℃(0~50℃)
Vibration 10~500Hz,2G  10min/cycle   60min Each along X,Y,Z axes
SAFETY Safety regulations UL60950-1,TUV EN60750-1 In line with the certification
Withstand voltage I/P-O/P:1.5KVAC  I/P-FG:1.5KVA  O/P-FG:0.5KVAC
Insolation resistance I/P-O/P,I/P-FG,  O/P-FG:100M  Ohms/500VDC
Electromagnetic compatible emission Compliance to EN55032(CISPR32)CLASS B,EN61000-3-2,-3 EAC TP TC 020
EMC immunity Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024,EN1000-6-1 Class A heavy and light industry standard

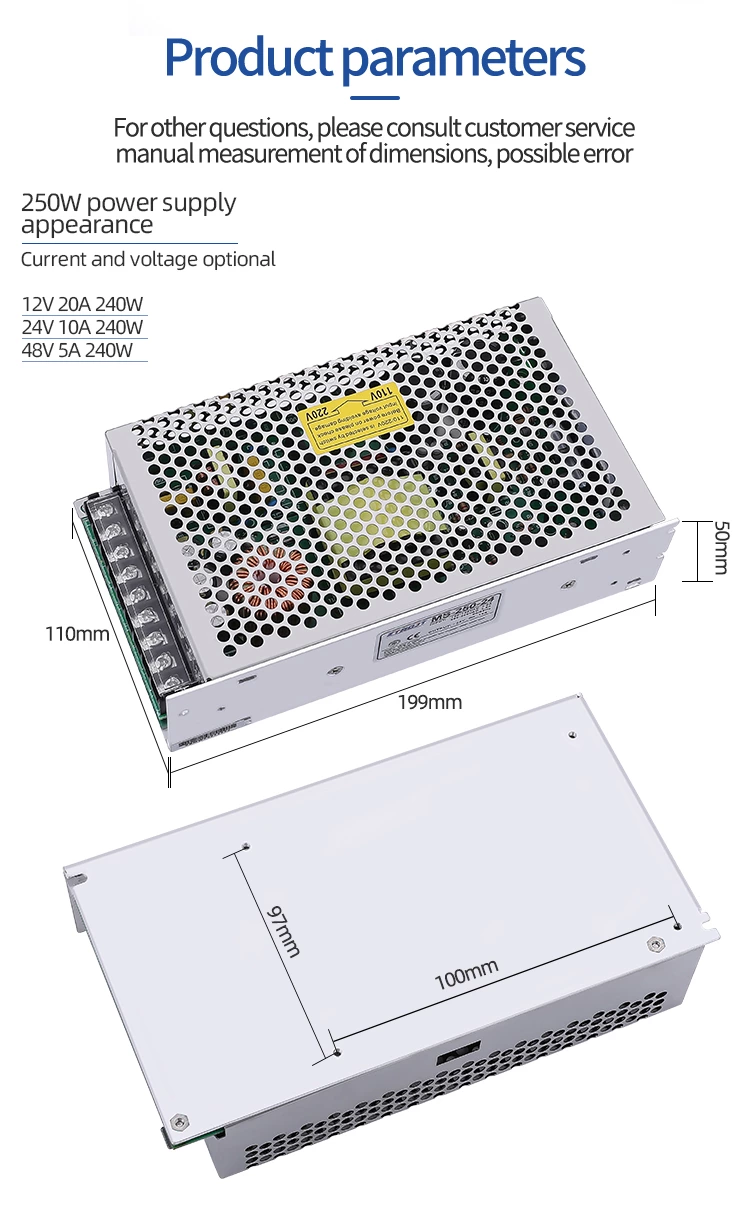

OTHERS Dimension 199*110*50mm(L*W*H)
Packing 0.8Kg:20PCS/17Kg/0.95CUFT
