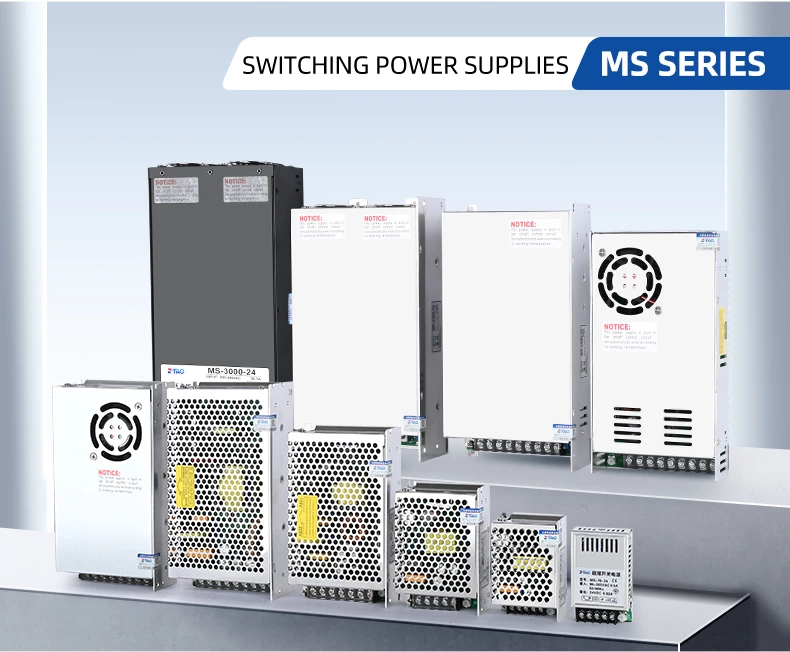

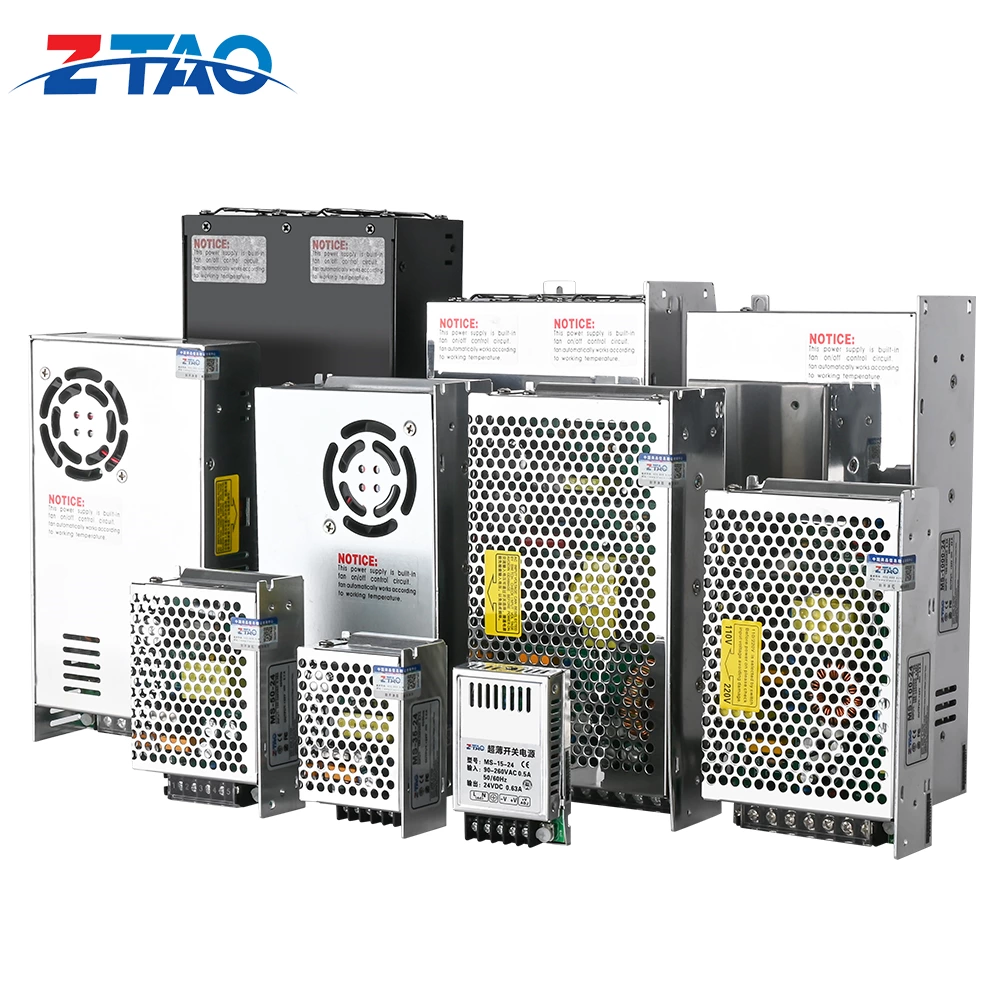

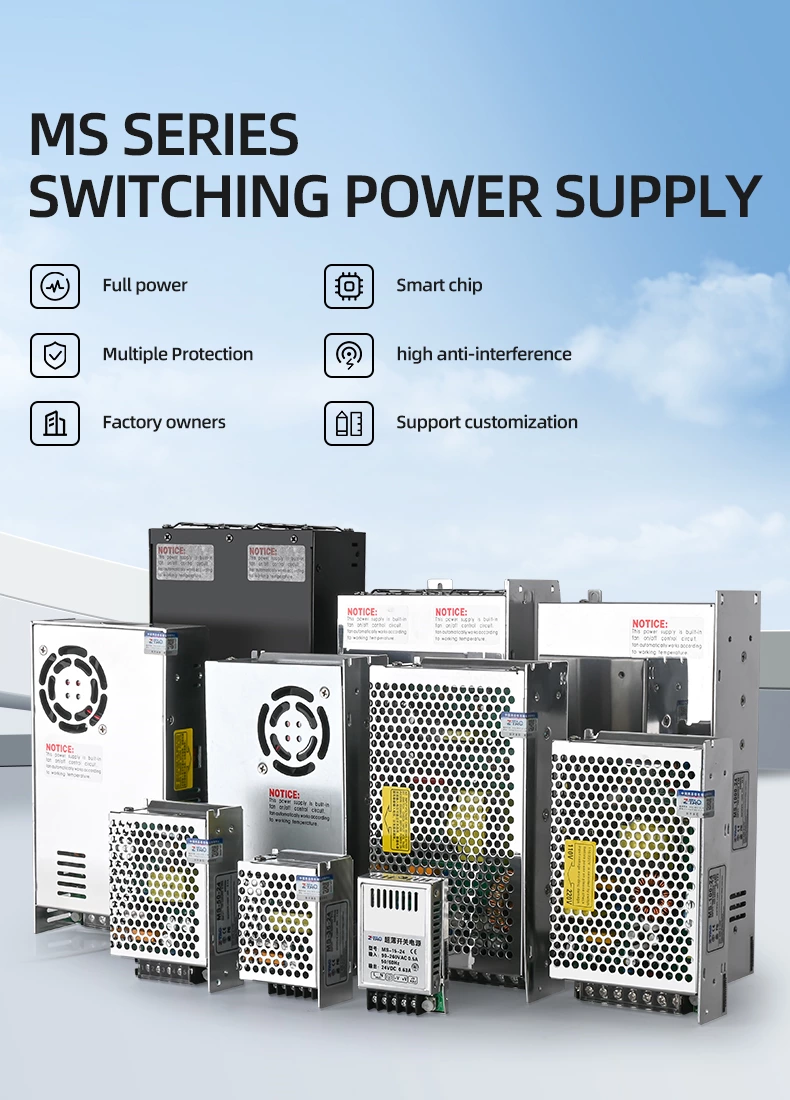

MS Mini Size Switch Power Supply

MS-600-24 24v 25a single output power supply for industrial power supply

Place of Origin;
Yueqing City, Wenzhou city ,China
Brand Name:
ZTAO
Model Number:
MS-600-24
Output Type:
Single output
Input Voltage:
100~132 VAC/195~264VAC SELECTABLE BY SWITCH
Output Voltage:
24v/12v/48v /36Vor customized
Output Frequency:
50/60Hz
Output Current:
25A/50A/12.5A/16.66A or customzied
Output Power
600W
Efficiency:
85% 87% 88% 89%
Workig Temperature:
~10℃~+65℃
Materail:
aluminum
Certification:
CE FCC ROHS ISO9001
Test:
100% full load burn-in test

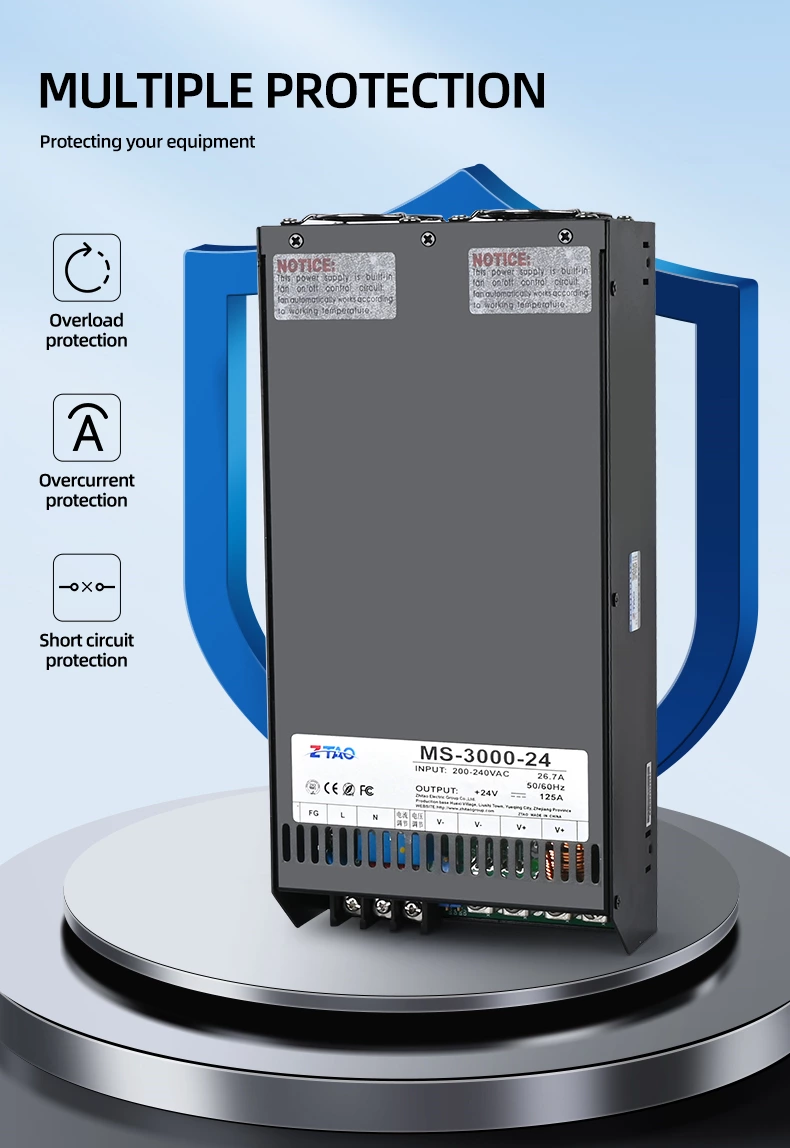

Protection:
Short Circuit Protection, Overcurrent Protection, Overvoltage protection, Over Temperature Protection, Overloading Protection, Over Power Protection
Warranty
3 years
Size
215*115*50mm(L*W*H)
