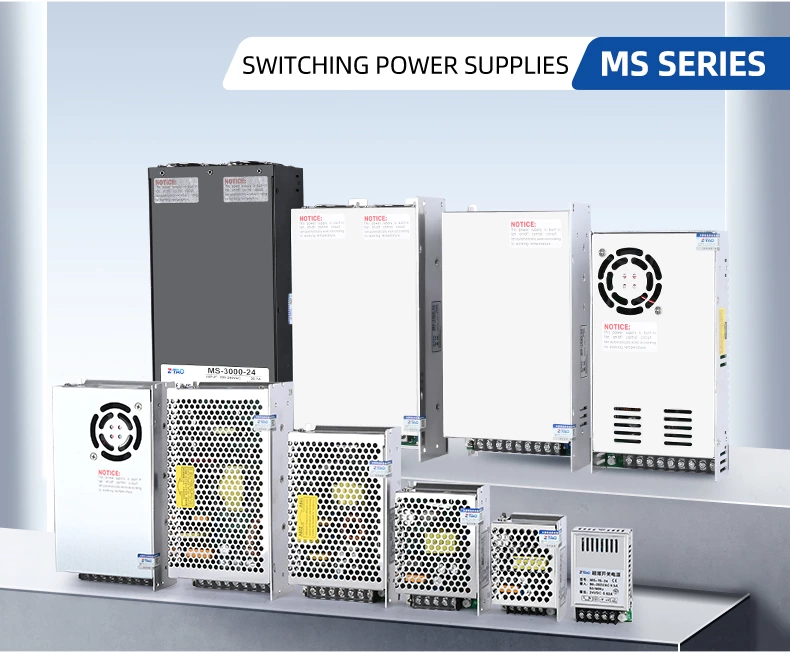

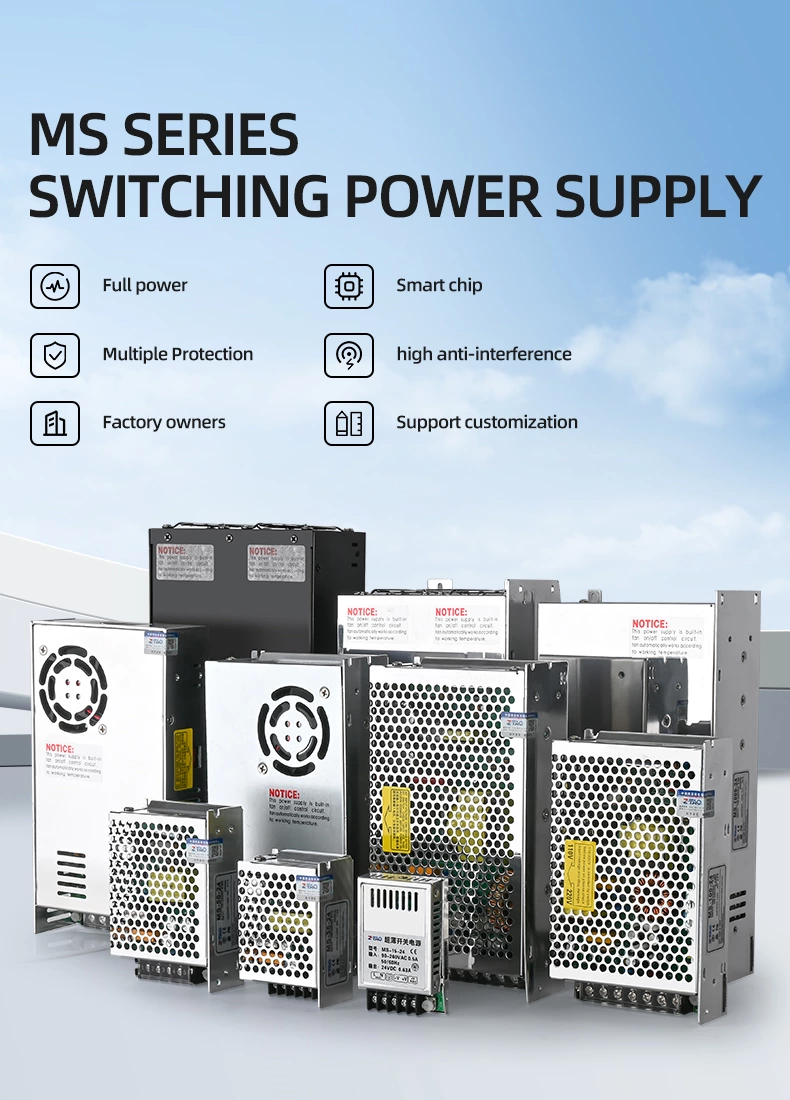

MS Mini Size Switch Power Supply

MS-3000 24v 125A 36v 83.3A 48v 62.5A 3000W switching power supply for industrial automation, electronic equipment, semiconductor equipment

Place of Origin;
Yueqing City, Wenzhou city ,China
Brand Name:
ZTAO
Model Number:
MS-3000-24
Output Type:
Single output
Input Voltage:
190~264VAC 266~370VDC
Output Voltage:
24v/36V/48v or customized
Output Frequency:
50/60Hz
Output Current:
125A/83.3A/62.5A
Output Power
3000W
Efficiency:
88% 90% 90%
Workig Temperature:
-20℃ ~+60℃
Materail:
aluminum
Certification:
CE FCC ROHS ISO9001
Test:
100% full load burn-in test

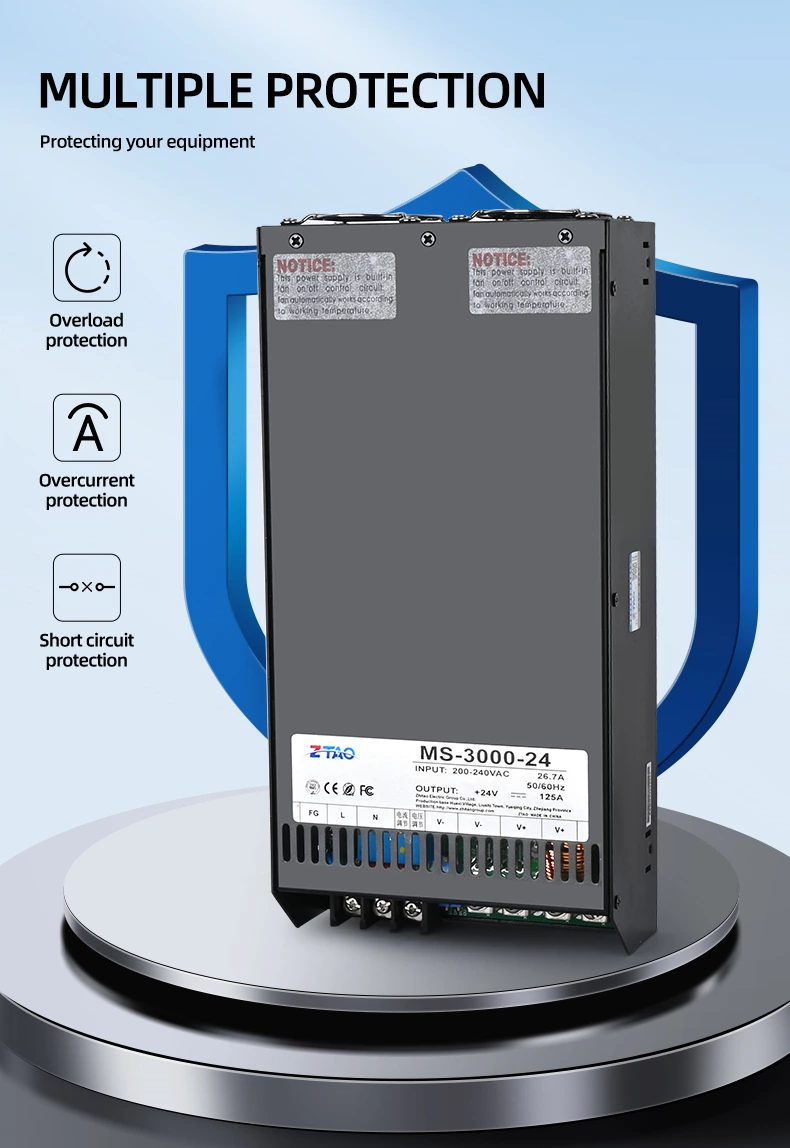

Protection:
Short Circuit Protection, Overcurrent Protection, Overvoltage protection, Over Temperature Protection, Overloading Protection, Over Power Protection
Warranty
3 years
Size
280*140*70mm(L*W*H)
