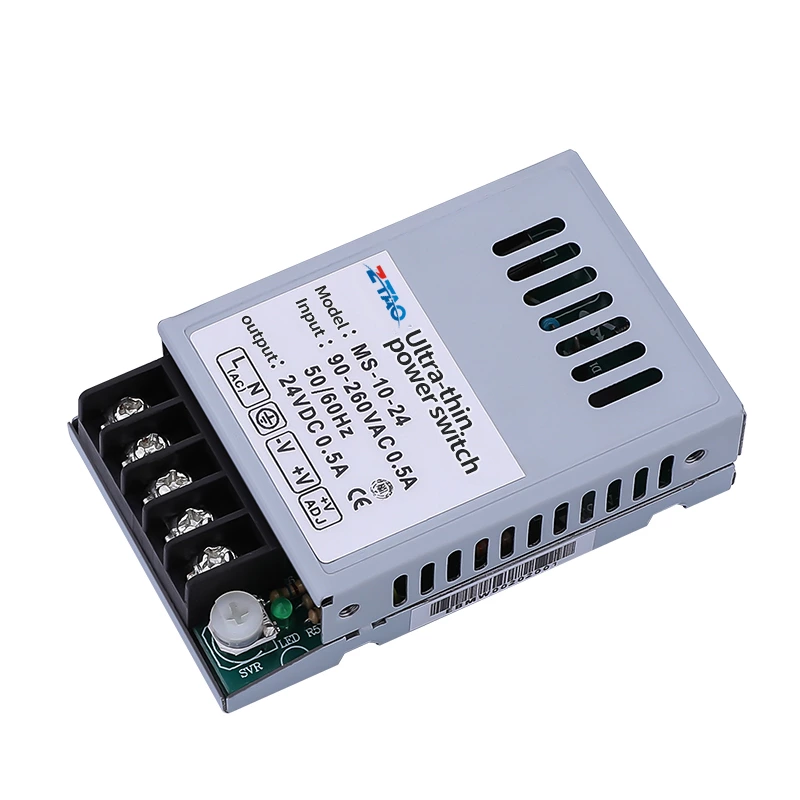

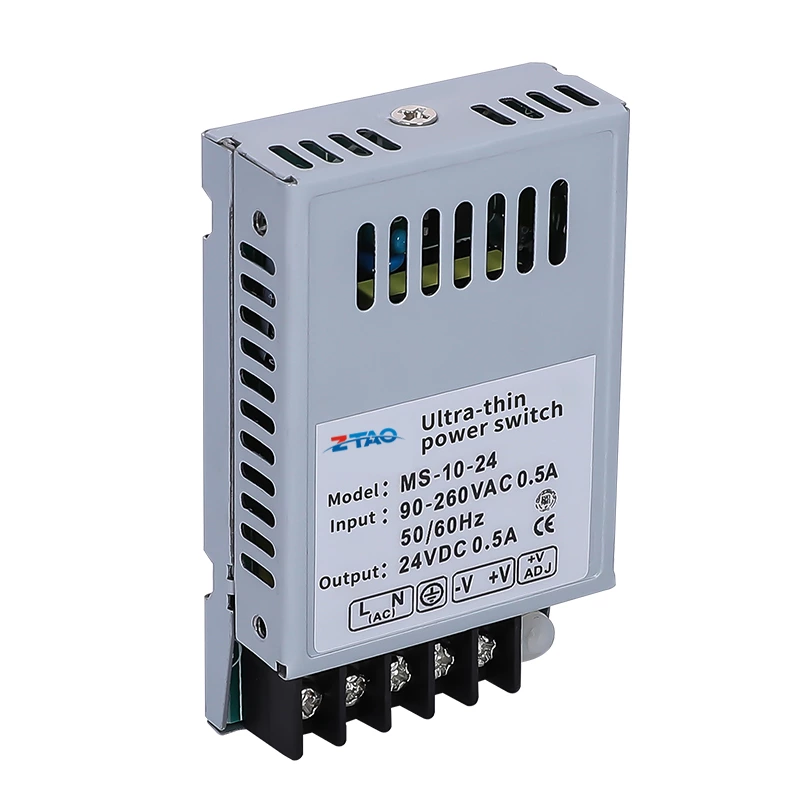

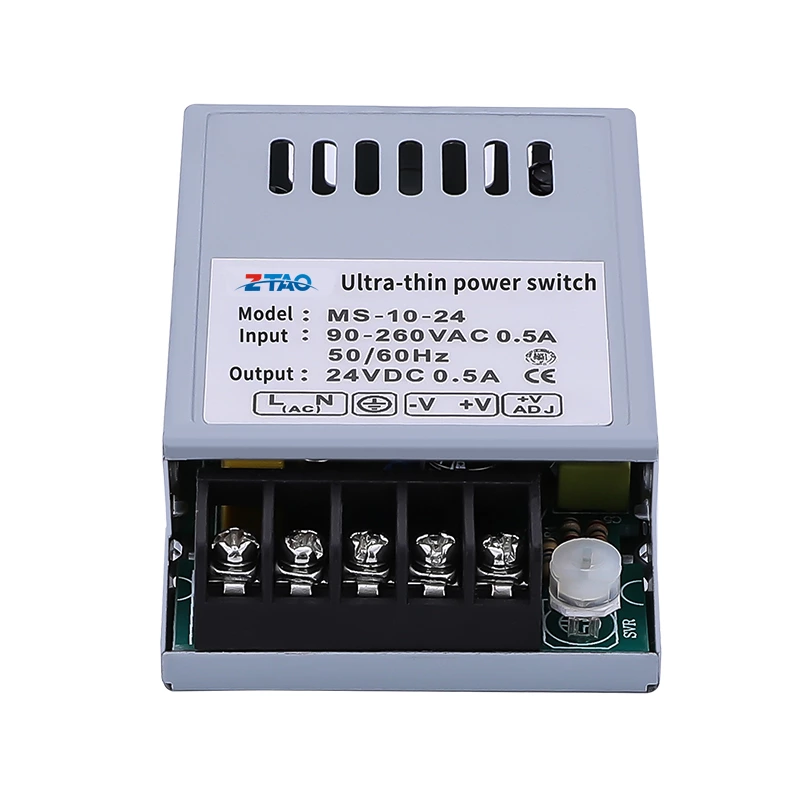

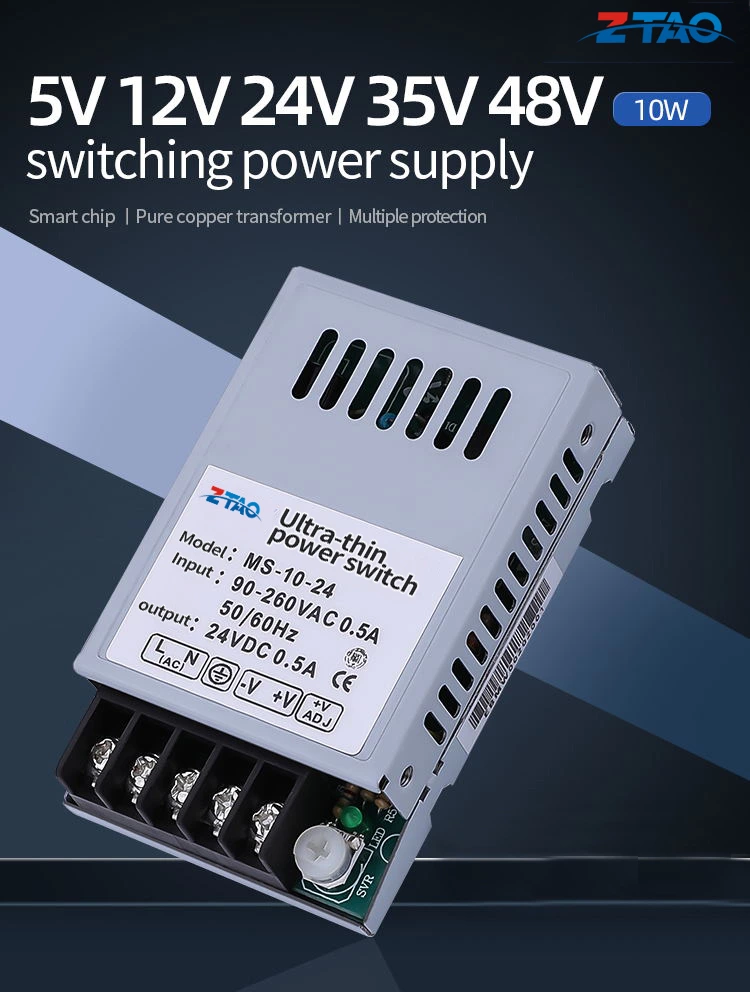

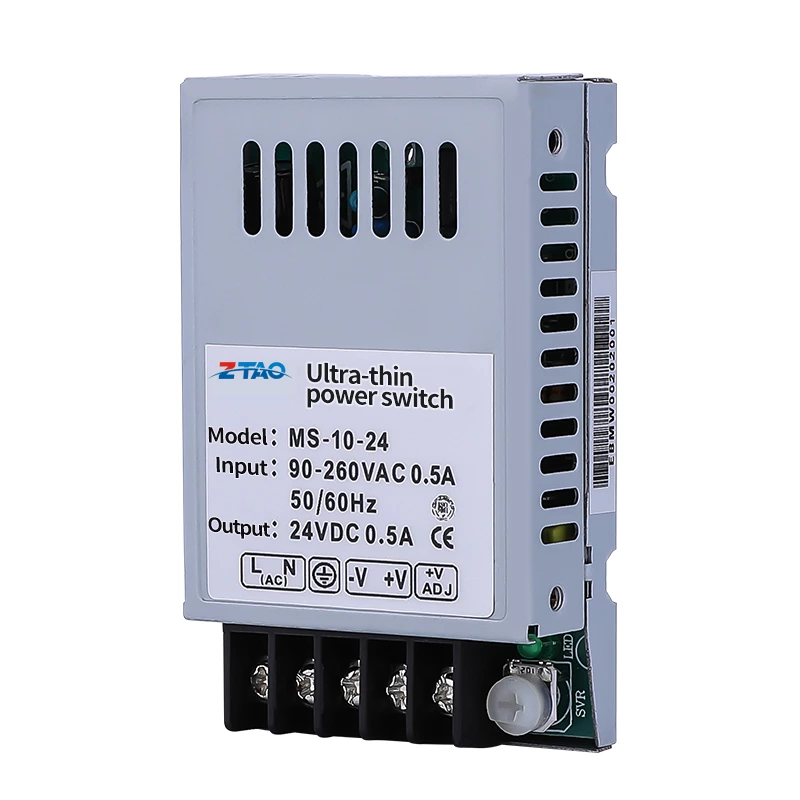

MS Mini Size Switch Power Supply

Ms-10-24 5v 2a 12v 0.84a 24v 0.42a 36v 0.28a 48v 0.21a 10w Mini Size Dc Switching Power Supply for Led

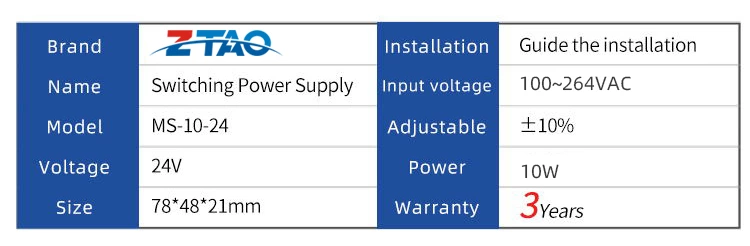

Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
MS-10-24
Output Type:
Single
Input Voltage:
100~264VAC 140~373VDC
Output Voltage:
12V/24V/36V/48V can be choose or customzied
Output Frequency:
50~60Hz
Output Current:
0.42A
Output Power
10W
Efficiency:
80%
Workig Temperature:
-10℃~+60℃
Materail:
Aluminum
Certification:
CE FCC ROHS ISO9001
Test:
100%Full Load Burn-in Test
Protection:
Shortcuit Overtemp Overload overvoltage
Warranty
3 Years
Size
78*48*21mm(L*W*H)
MODEL   MS-10-5 MS-10-12 MS-10-15 MS-10-24 MS-10-36 MS-10-48
OUTPUTV DC Voltage 5V 12V 15V 24V 36V 48V
Rated Current 2A 0.84A 0.67A 0.42A 0.28A 0.21A
Current range 0~2A 0~0.84A 0~0.67A 0~0.42A 0~0.28A 0~0.21A
Rated power 10W 10.08W 10.05W 10.08W 10.08W 10.08W
Ripple&noise 80mVp-p 100mVp-p 100mVp-p 120mVp-p 150mVp-p 150mVp-p
Voltage ADJ. 4.5~5.5V 10.2~13.8V 13.5~18V 24~28V 32.4~39.6V 43.2V-52.8V
Voltage tolerance ±2.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
Line regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load regulation ±1.0% ±1.0% ±0.5% ±1.0% ±0.5% ±0.5%
Setup,Rise,Time 1000ms, 30ms/230VAC 1000ms,30ms/115VAC(full load)
Hold up time(TYP) 30ms/230VAC  12ms/115VAC(full load)
INPUT Voltage range 100~264VAC  140~373VDC
Frequency range 50~60Hz
Efficiency(Typ) 75% 78% 79% 80% 81%       82%
AC current(Typ) 0.8A/100~264VAC
Inrush current(Typ) Cold start 30A/230VAC
Leakage current <0.9mA240VAC

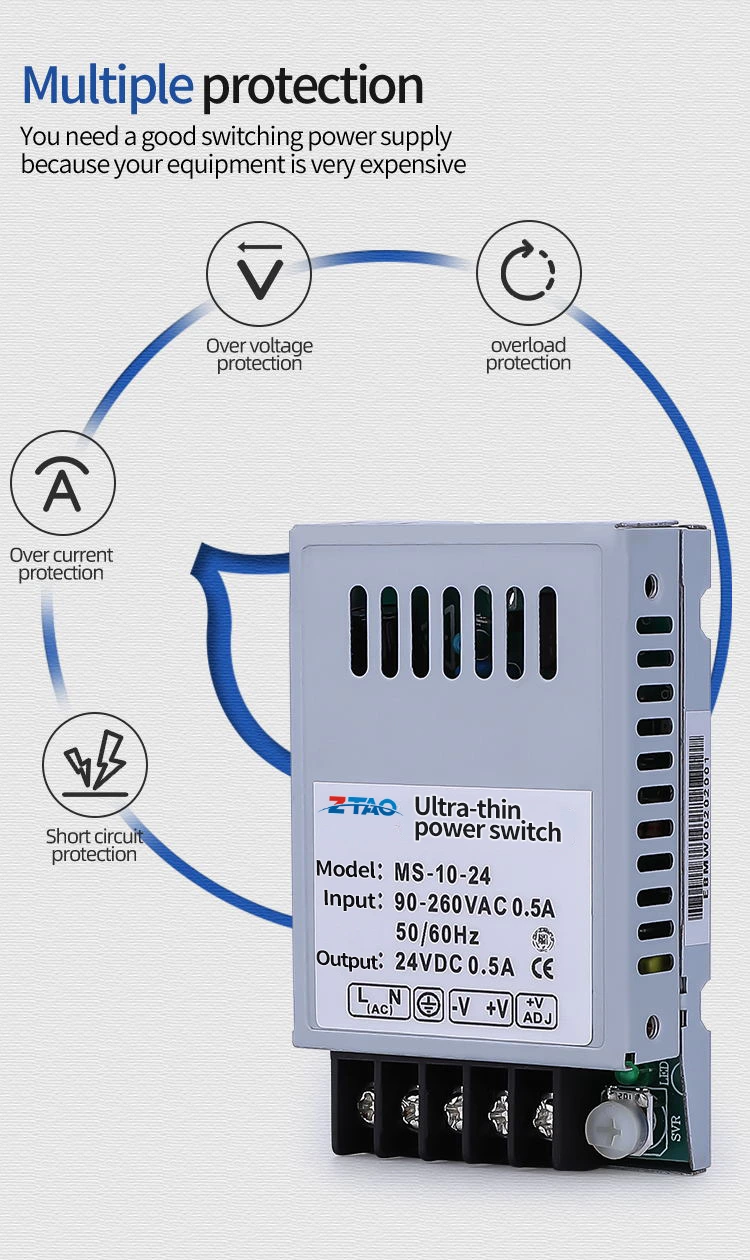

PROTECTION Over load 105%~150% in rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over voltage 5.75~6.9V          13.8~16.2V 18.75~21.75v 28.8~33.6V 41.4~48.6V 55.2~64.8V
Protection mode, tum off output voltage, restart to recover
Environment Working TEMP -10℃~+60℃
Working humidity 20~65%RH non-condensing
Storage TEMP humidity -20~+65℃,10~95%RH
TEMP.coefficient ±0.03%℃(0~50℃)
Vibration 10~500Hz,5G 10min./1cycle,60min each along X,Y,Z axes
SAFETY Safety regulations UL60950-1,TUV EN60750-1,In line with the certification
Withstand voltage I/P-0/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.5KVAC
Insolation resistance I/P-O/P,I/P-FG, O/P-FG: 100M Ohms/500VDC
Electromagnetic compatible emission Compliance to EN55032(CISPR32)CLASS B, EN61000-3-2,3,EAC TP TC 020
EMC Immunity Compliance to EN61000-4-2, 3.4.5.6.8.11, EN55024.EN1000-6-1 Class A heavy and light industry standard
OTHERS MTBF ≥760K hrs.MIL-HDBK-217F(25℃)

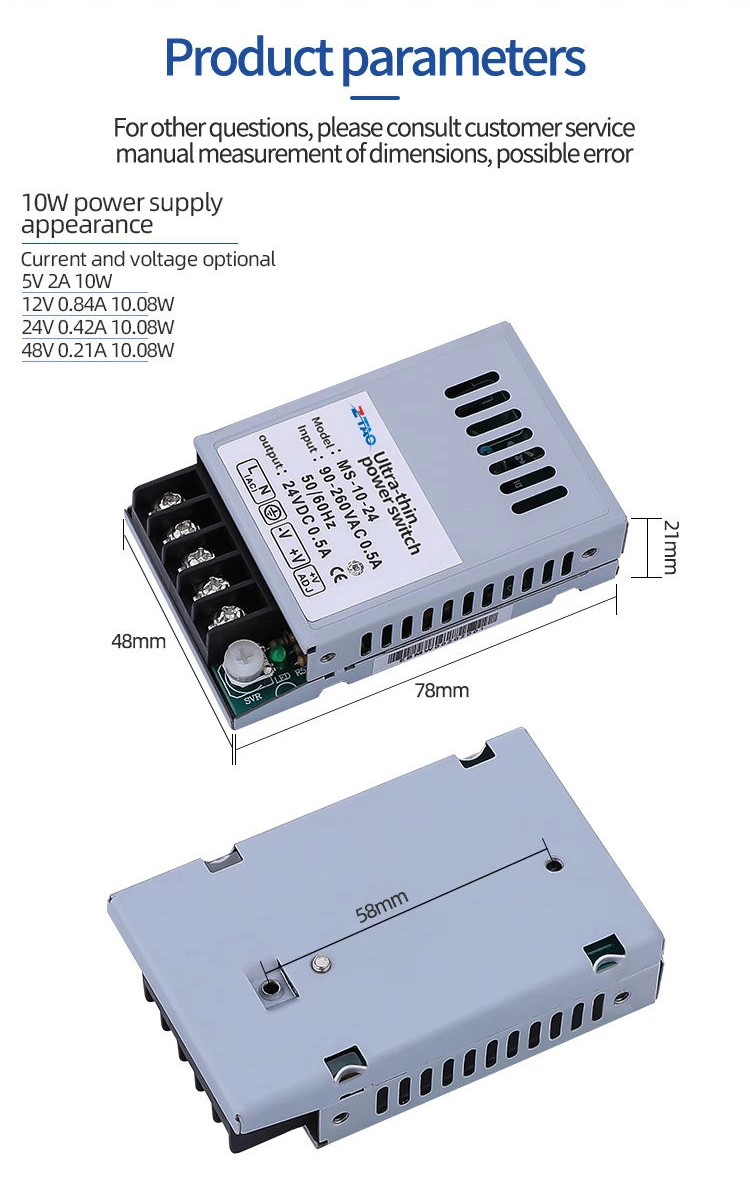

Dimension 78*48*21mm(L*W*H)
Packing 0.3Kg:60PCS/19Kg/0.34CUFT
