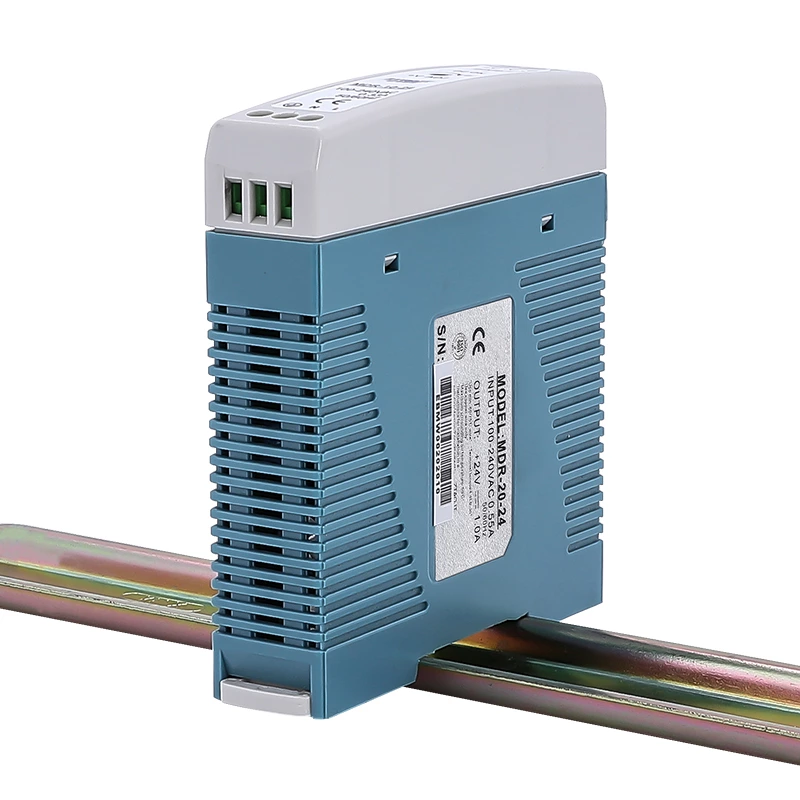

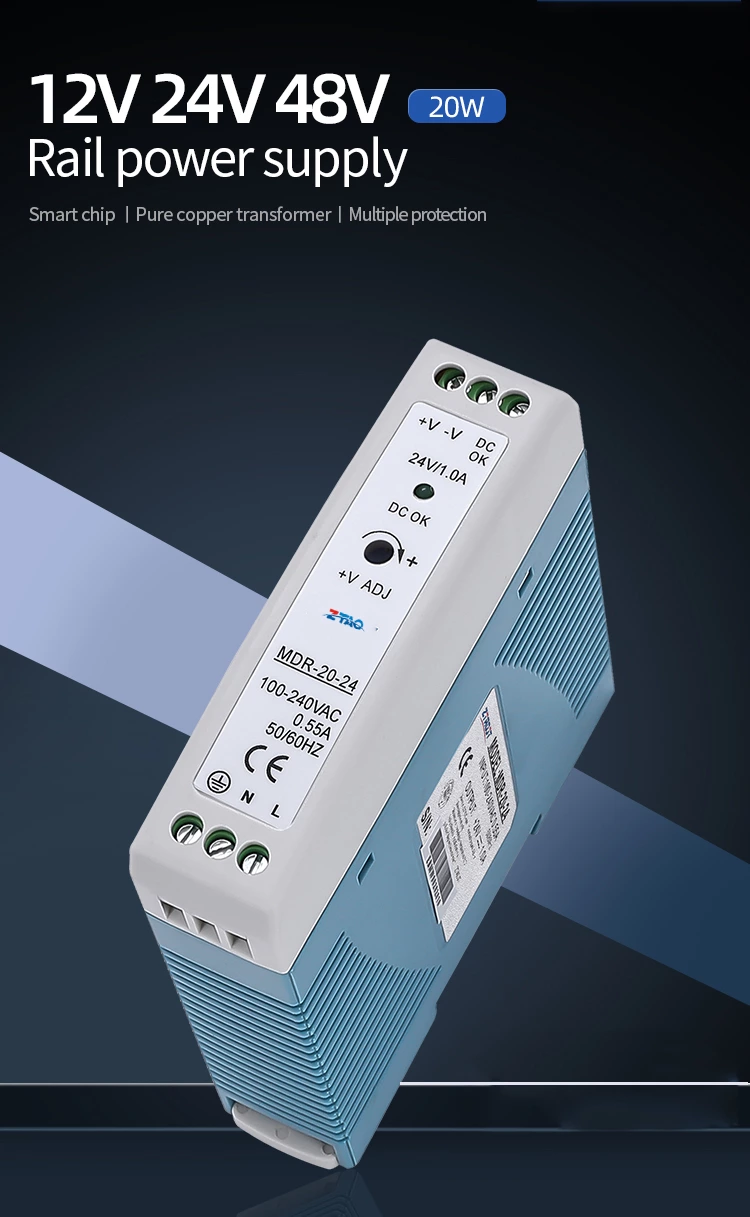

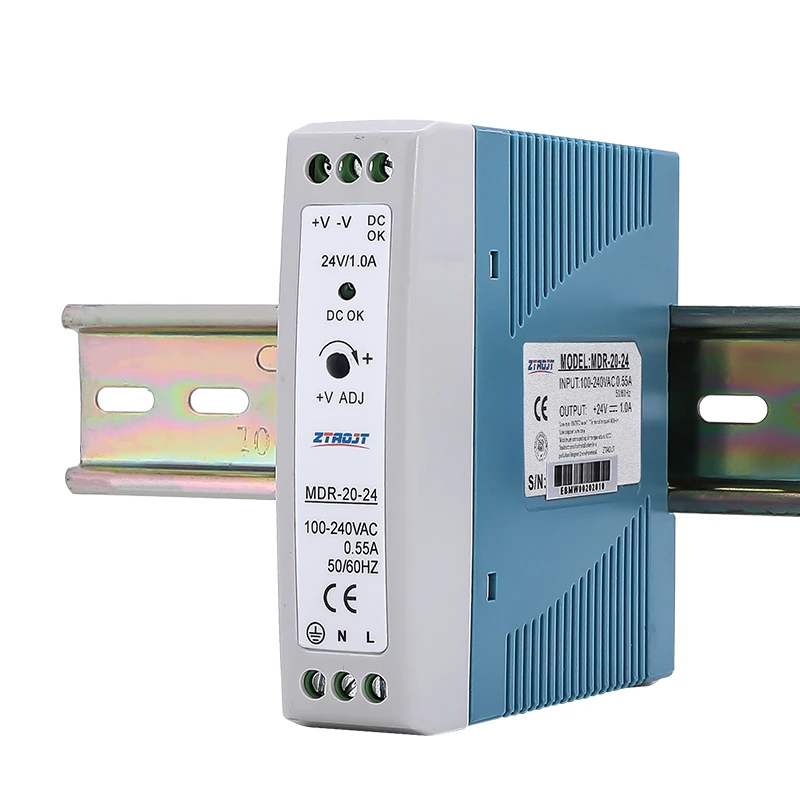

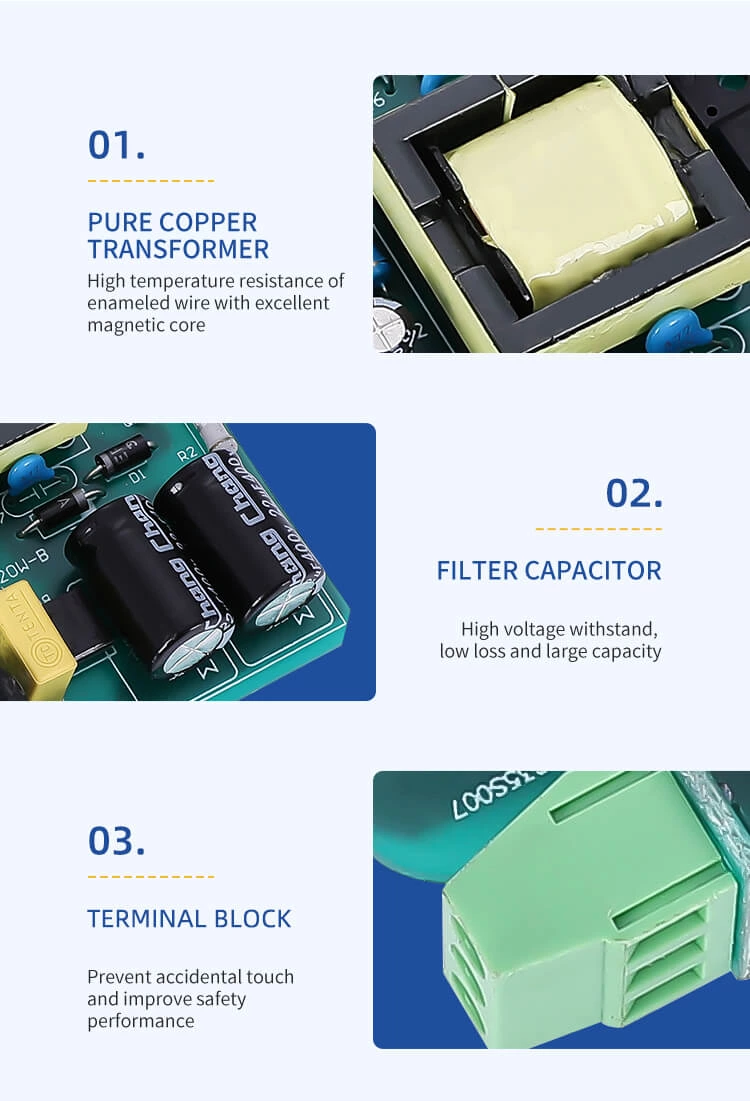

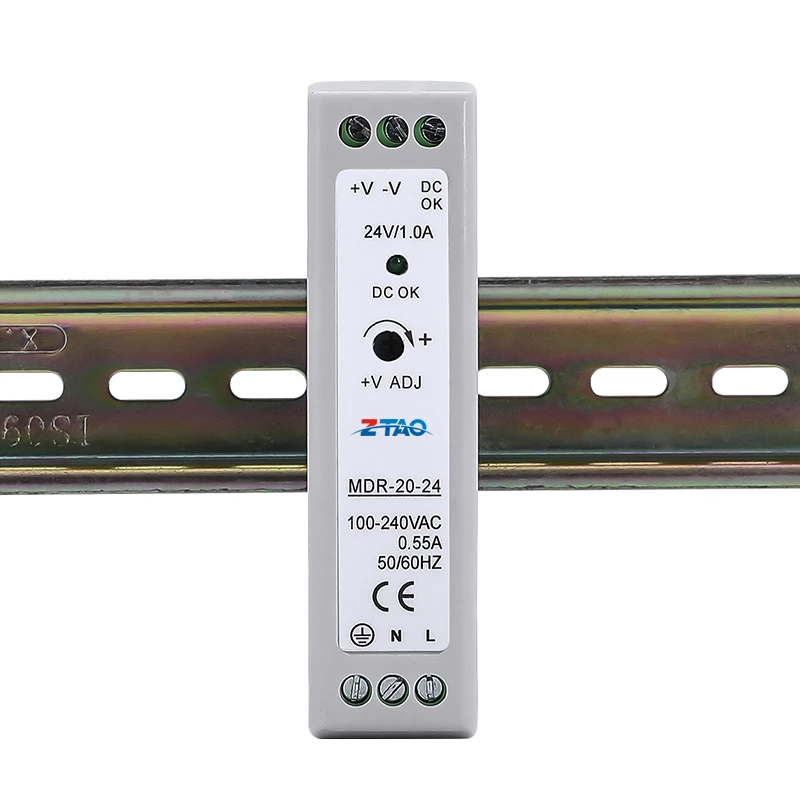

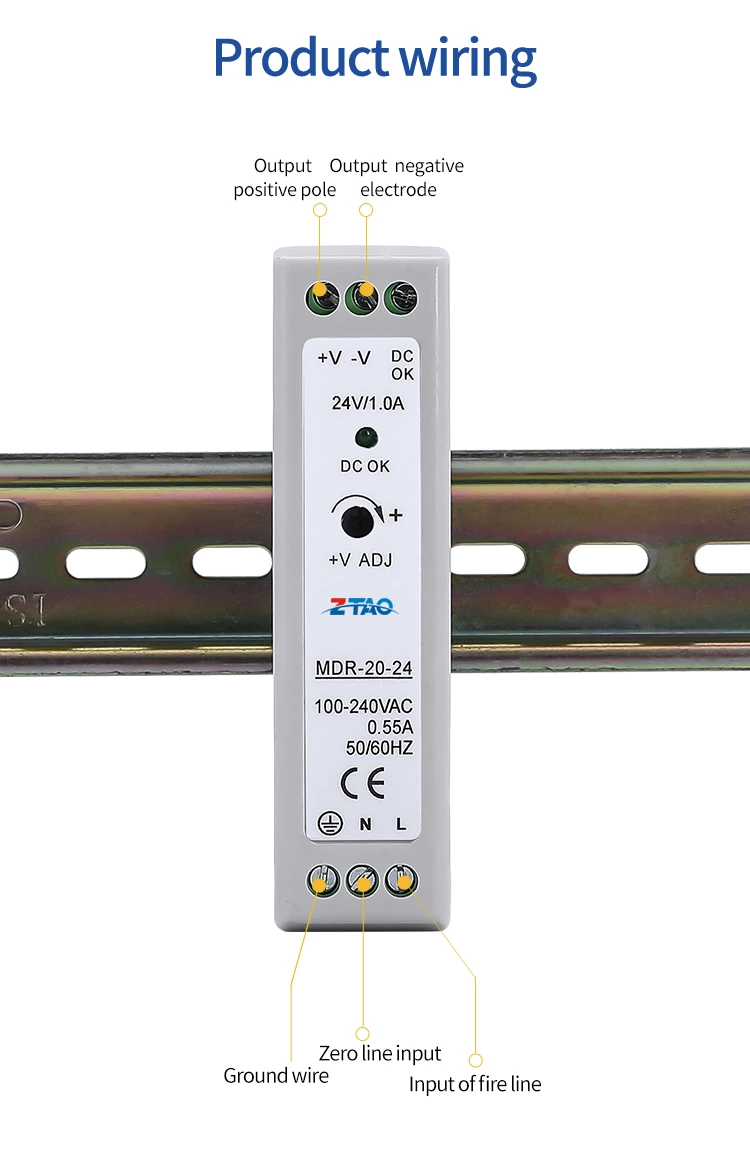

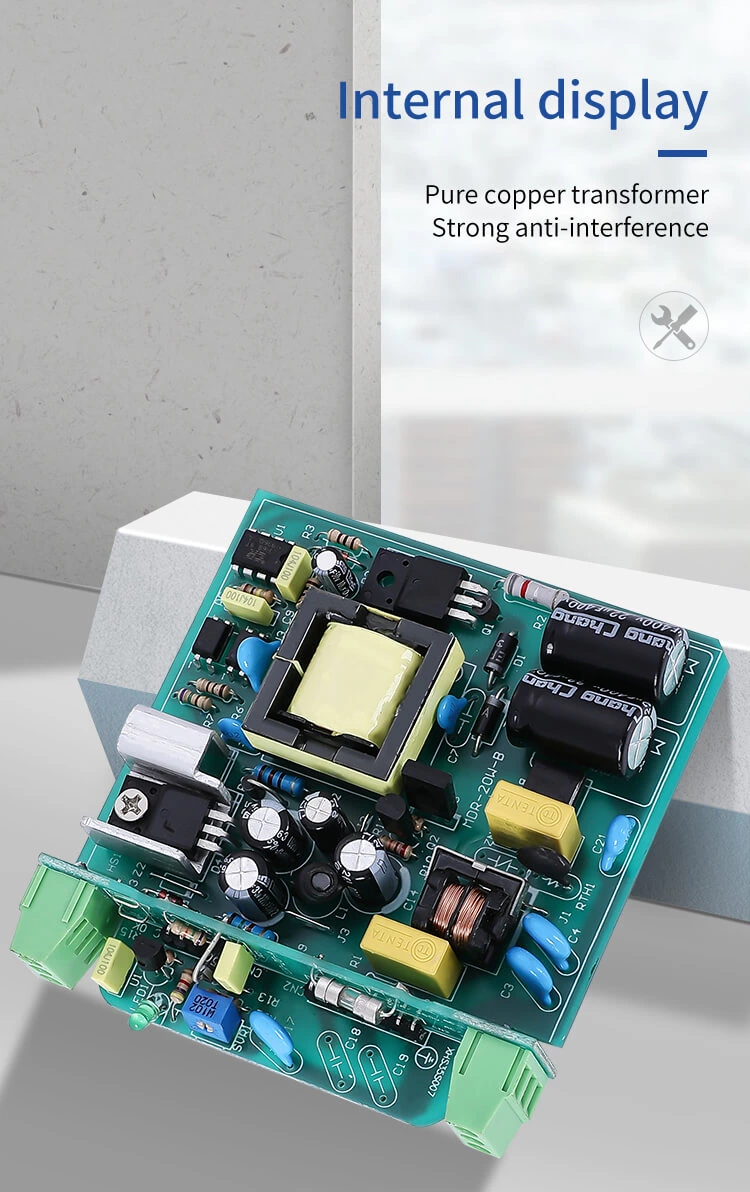

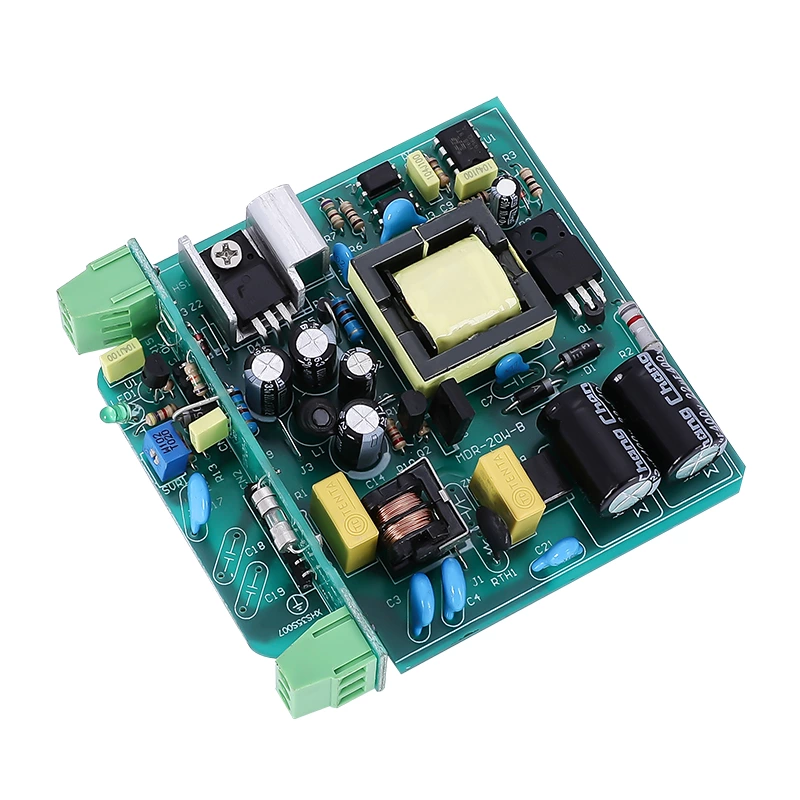

| MODEL | MDR-20-5 | MDR-20-12 | MDR-20-15 | MDR-20-24 | |
| OUTPUT | DC Voltage | 5V | 12V | 15V | 24V |
| Rated Current | 3A | 1.67A | 1.34A | 1A | |
| Current range | 0~3A | 0~1.67A | 0~1.34A | 0~1A | |
| Rated power | 15W | 20W | 20W | 24W | |
| Ripple&noise(max.) | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | |
| Voltage ADJ. range | 4.75~5.5V | 10.8~13.2V | 13.5~16.5V | 21.6~26.4V | |
| Voltage tolerance | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| Line regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Load regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Setup,Rise,Time | 500ms, 30ms/230VAC 1000ms，30ms/115VAC(full load) | ||||
| Hold up time(typ) | 50ms/230VAC 22ms/115VAC(full load) | ||||
| INPUT | Voltage range | 100～264VAC 140～370VDC | |||
| Frequency range | 50~60Hz | ||||
| Efficiency (Typ) | 76% | 80% | 81% | 84% | |
| AC current (Typ) | 0.33A/115VAC 0.21A/230VAC | ||||
| Inrush current (Typ) | Cold start: 35A/115VAC 70A/230VAC | ||||
| Leakage current | <1mA/240VAC | ||||

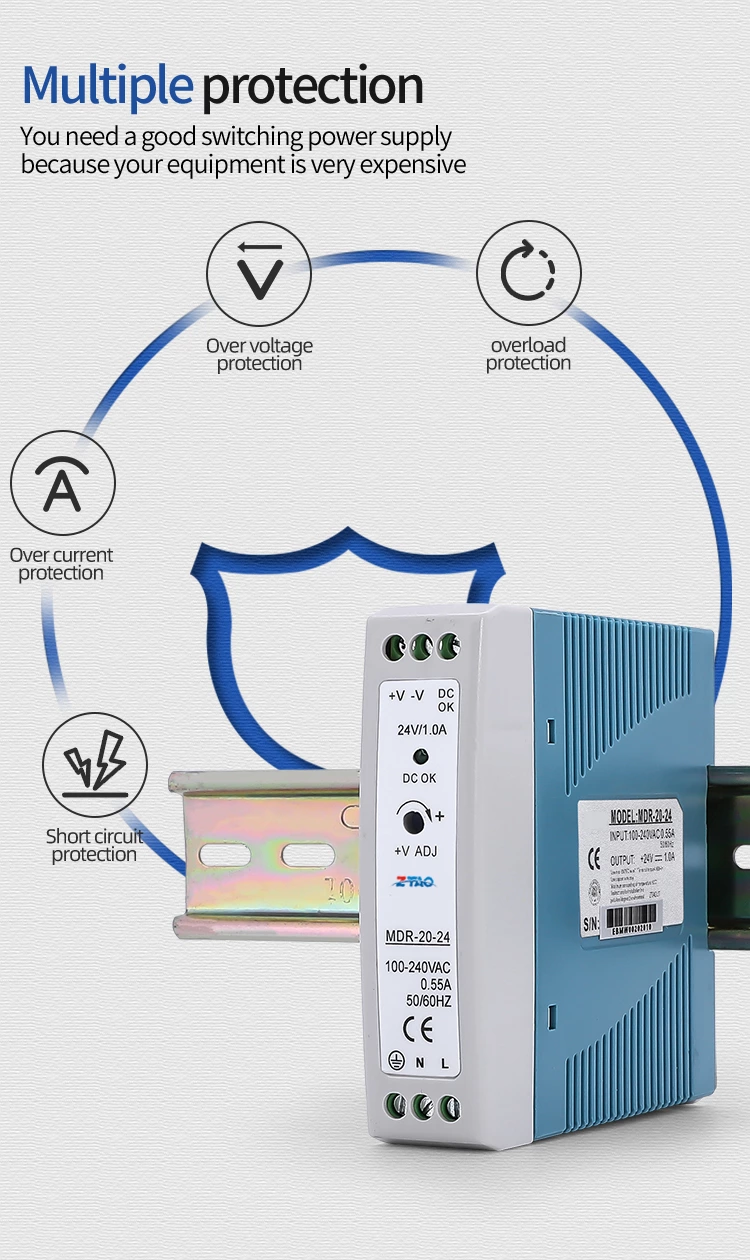

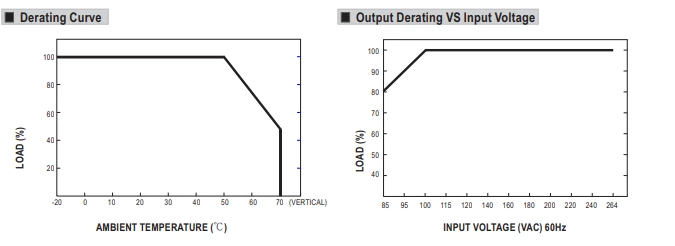

| PROTECTION | Over load | 105%~150% in rated output power | |||
| Protected mode: burp mode, automatic recovery after removal of abnormal load conditions | |||||
| Over voltage | 5.75~6.75V | 13.8~16.2V | 17.25~20.25V | 27.6~32.4V | |
| Protected mode: turn off the output and restore the normal output after the power is restarted | |||||
| Over temperature | Protection mode: turn off the output voltage, it can be automatically restored when the temperature returns to normal | ||||
| FUNCTION | DC OK The signal value | 3.75~6V/50mA | 9~13.5V/40mA | 11.5~16.5V/40mA | 18~27V/20mA |
| Environment | Working TEMP | -10℃~+60℃ | |||
| Working humidity | 20%-90% RH non-condensing | ||||
| Storage TEMP humidity | -10℃~+60℃. 10%~95% RH | ||||
| TEMP.coefficient | ±0.03%℃(0-50℃) | ||||
| Vibration | 10~500Hz，2G 10min./1cycle，60min.each along X,Y,Z axes Install conform to IEC60068-2-6 | ||||
| SAFETY | Safety regulations | UL508.UL60950-1,TUV EN60950-1,EAC TPTC 004 In line with the certification | |||
| Withstand voltage | I/P-O/P:3KVAC I/P-FG:2KVA O/P-FG:0.5KVAC | ||||
| Insolation resistance | l/P-O/P I/P-FG, 0/P-FG: 100M Ohms/500VDC/25℃/70% RH | ||||
| Electromagnetic compatible emission | Compliance to EN55011, EN55032 (CISPR32), Class B, EN61000-3-2,-3, EAC TP TC 020， | ||||
| EMC immunity requirements | Compliance.to.EN61000-4-2.3.4.5,6,8,11,EN55024.EN61000-6-2. （EN50082-2）Class A heavy industry standard, | ||||
| OTHERS | MTBF | ≥301.7K hrs.MIL-HDBK-217F(25℃) | |||

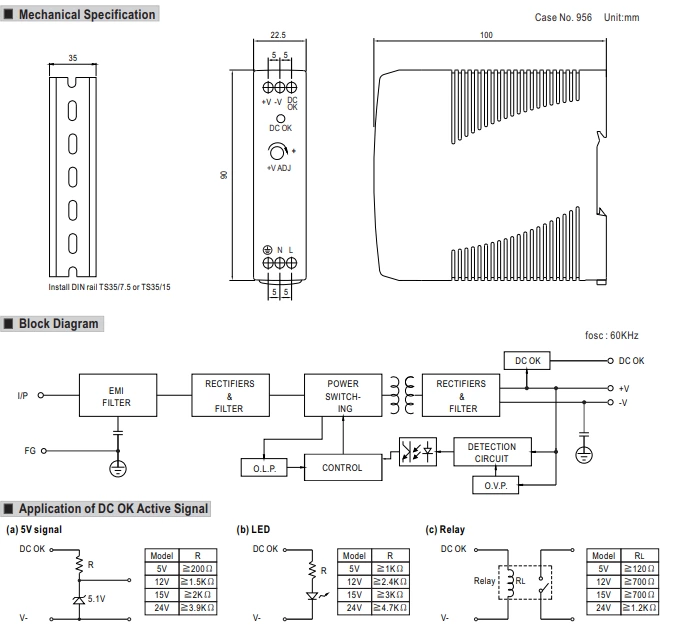

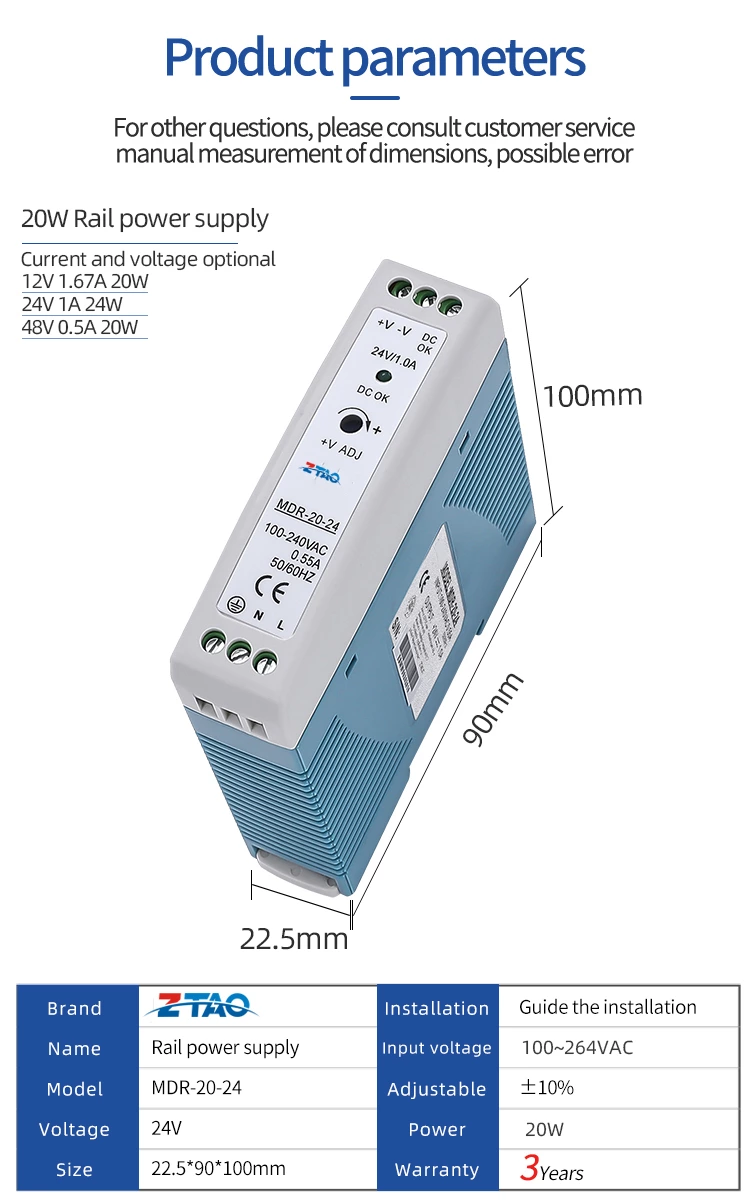

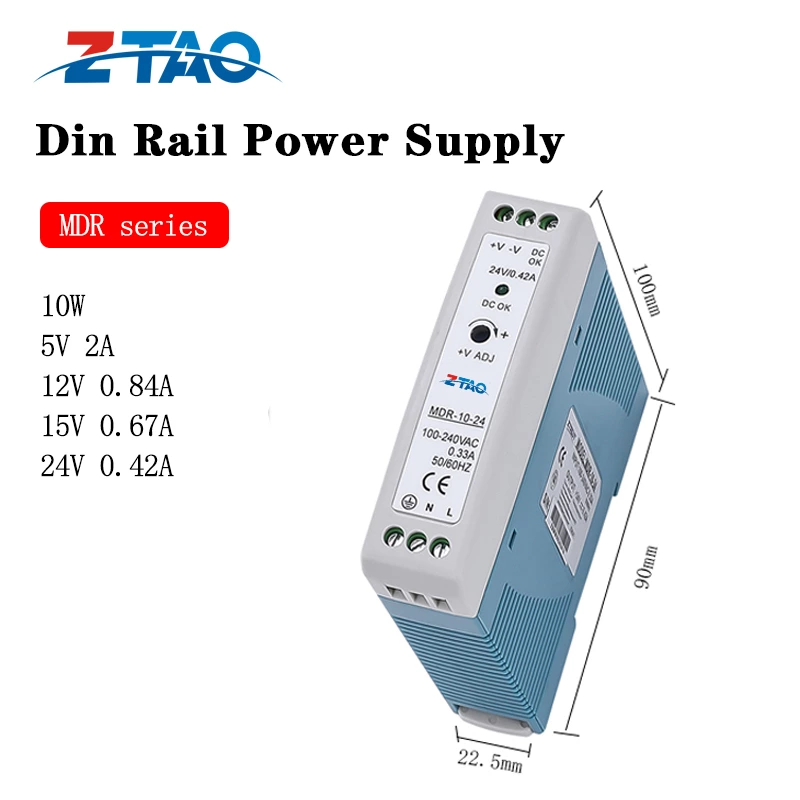

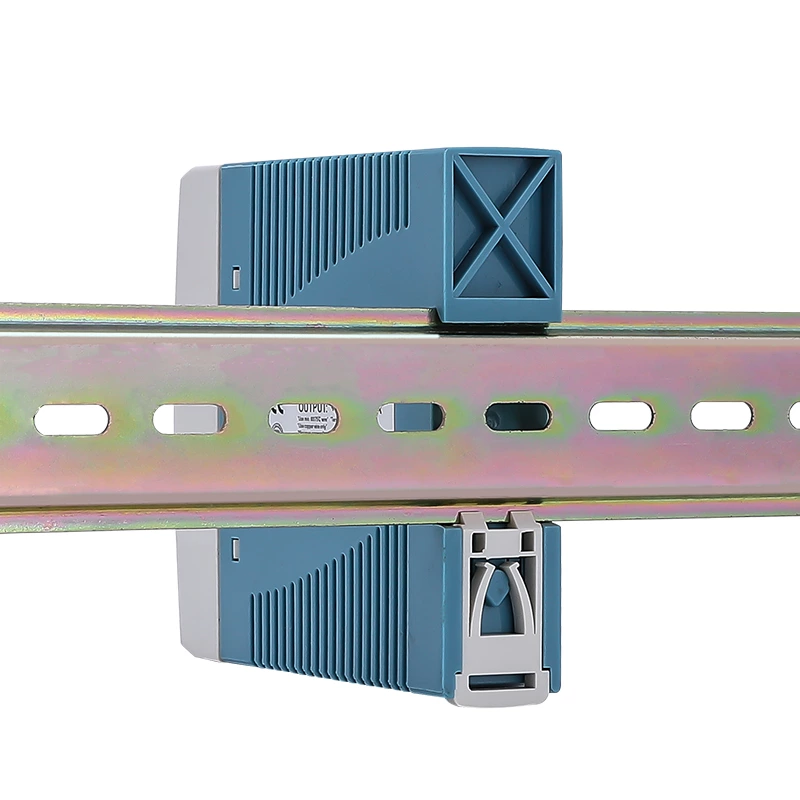

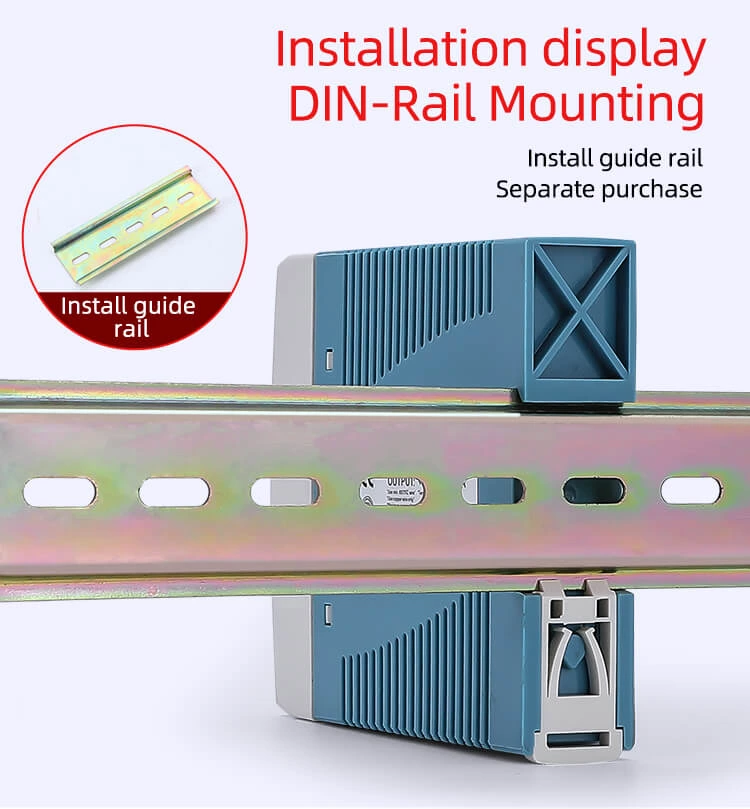

| Dimension | 22.5*90*100mm(W*H*D) | ||||
| Packing | 0.15Kg:50PCS/8Kg /0.85CUFT | ||||
