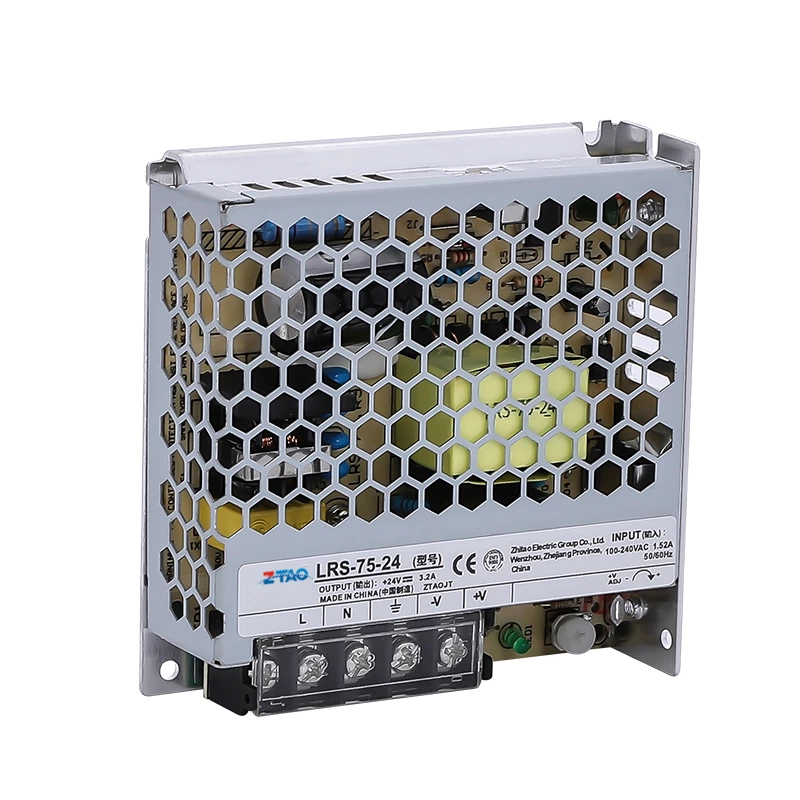

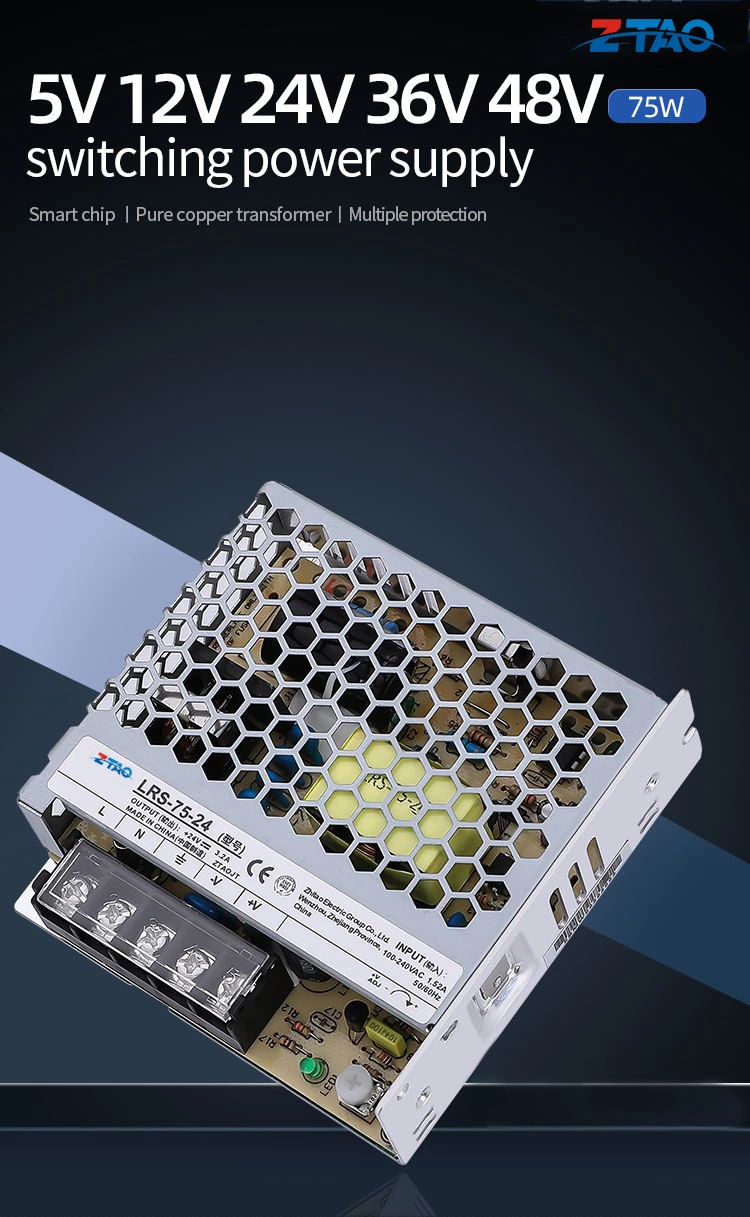

LRS Switch Power Supply

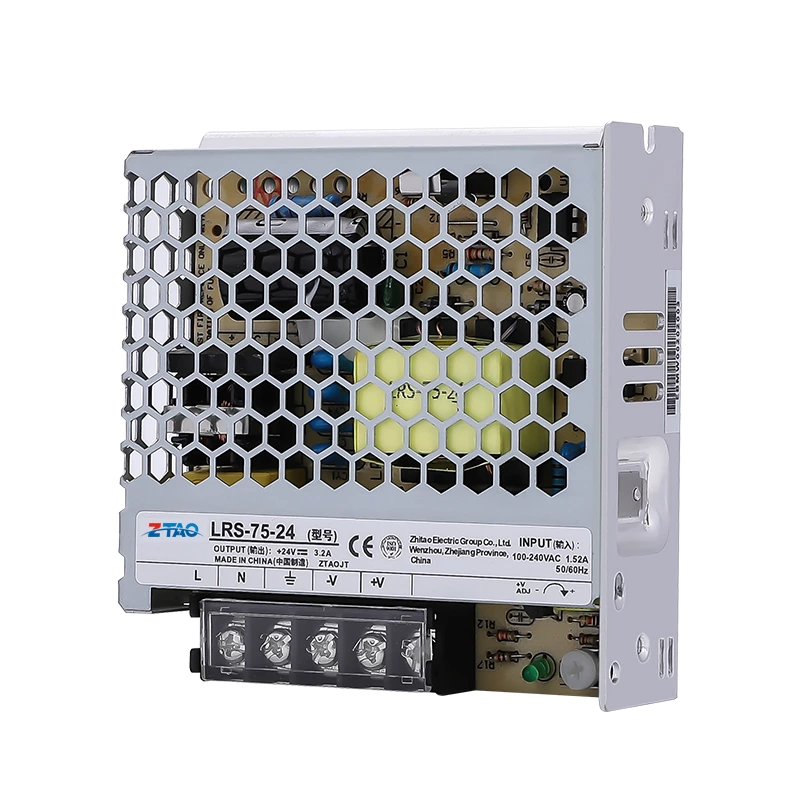

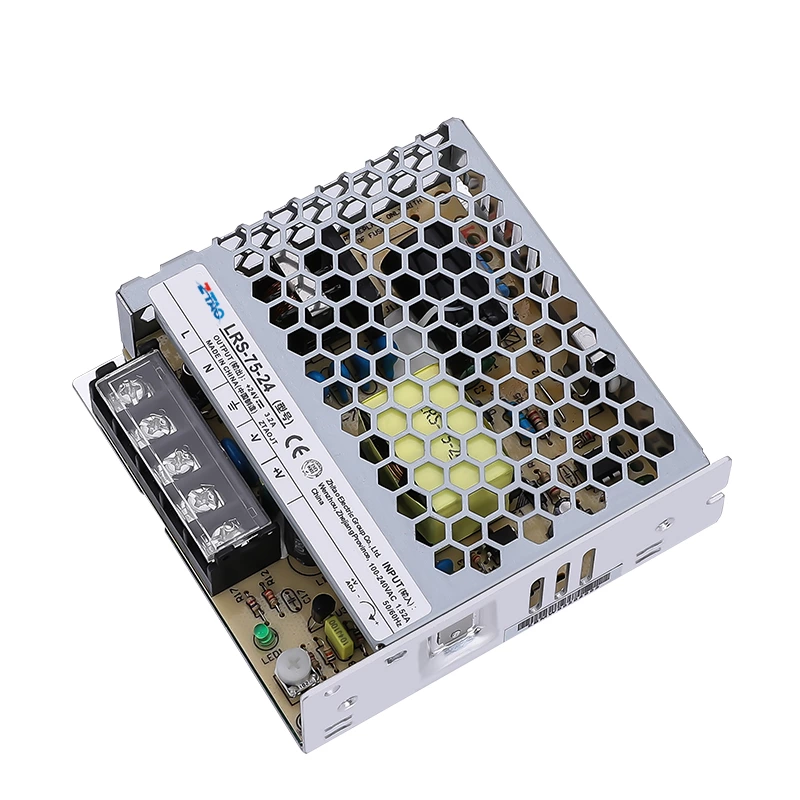

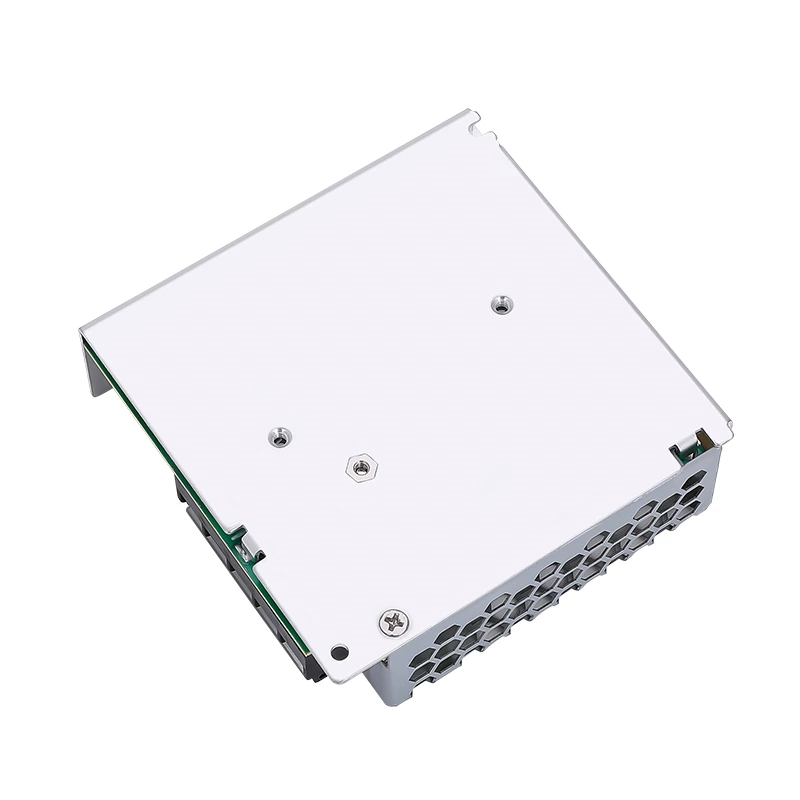

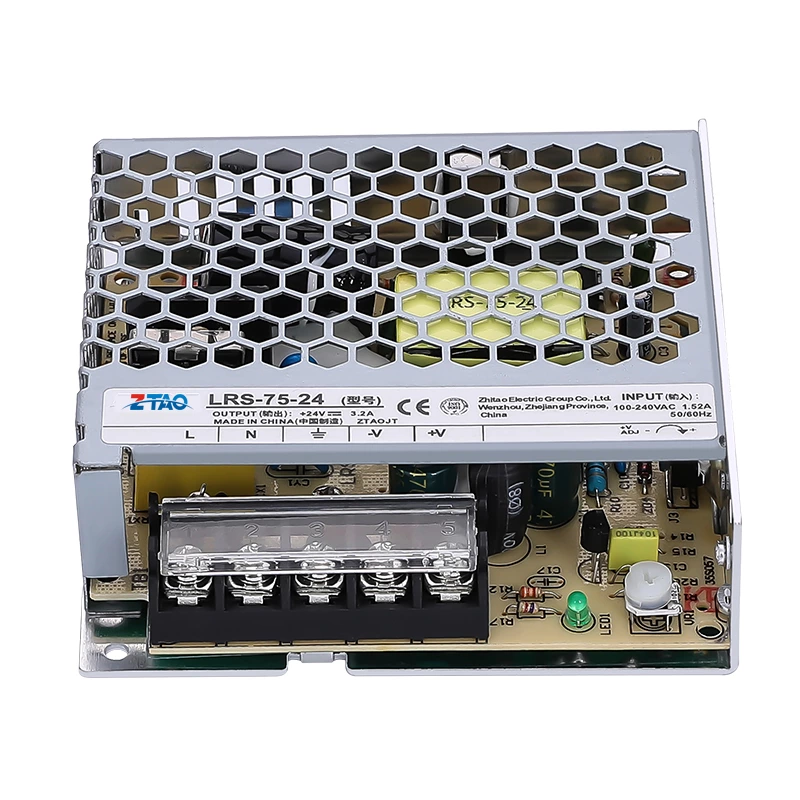

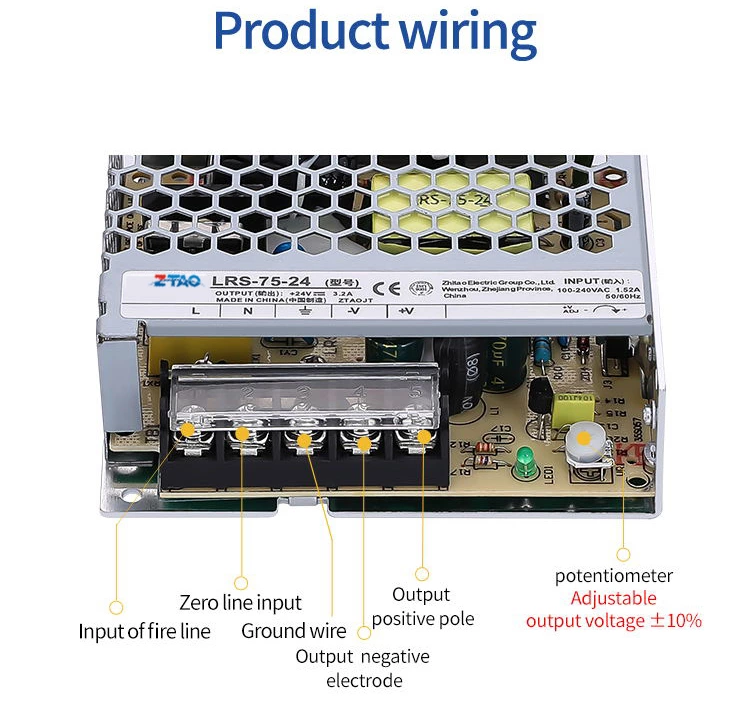

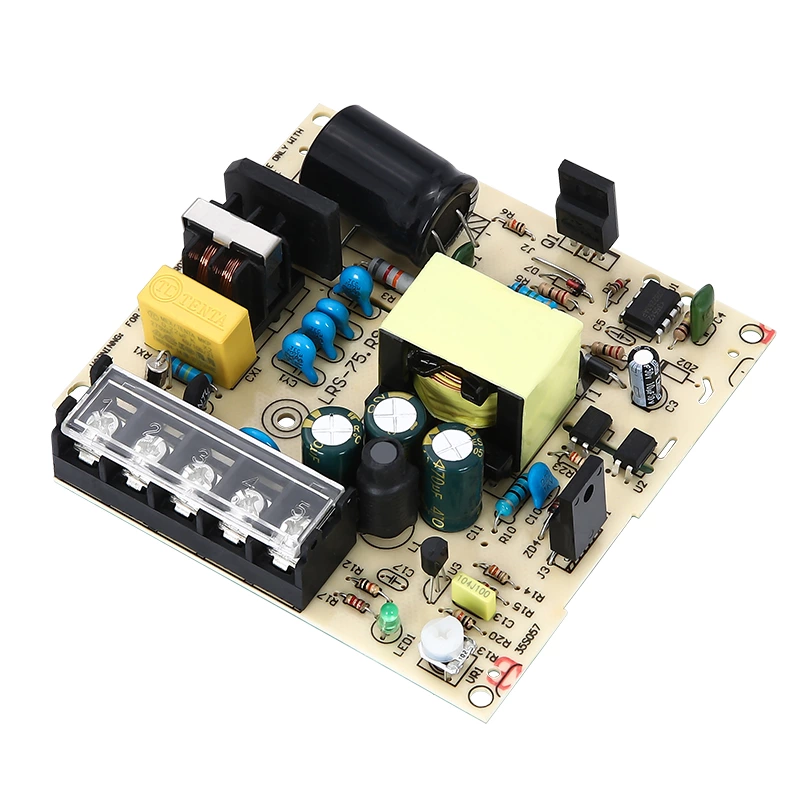

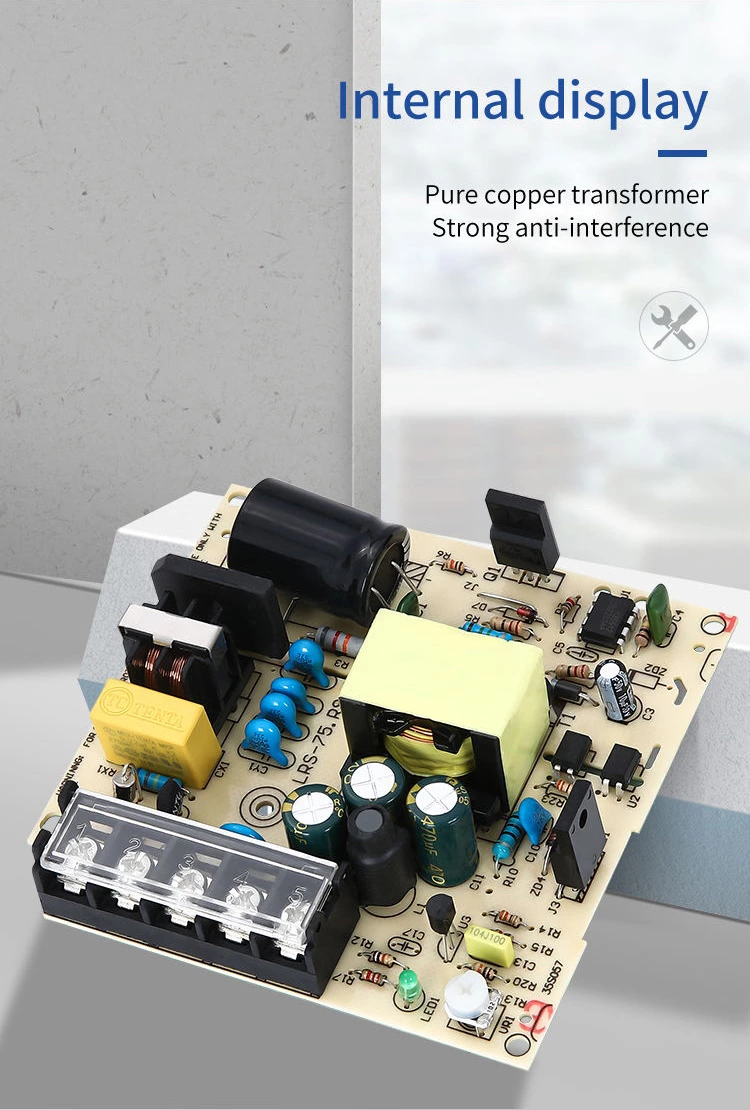

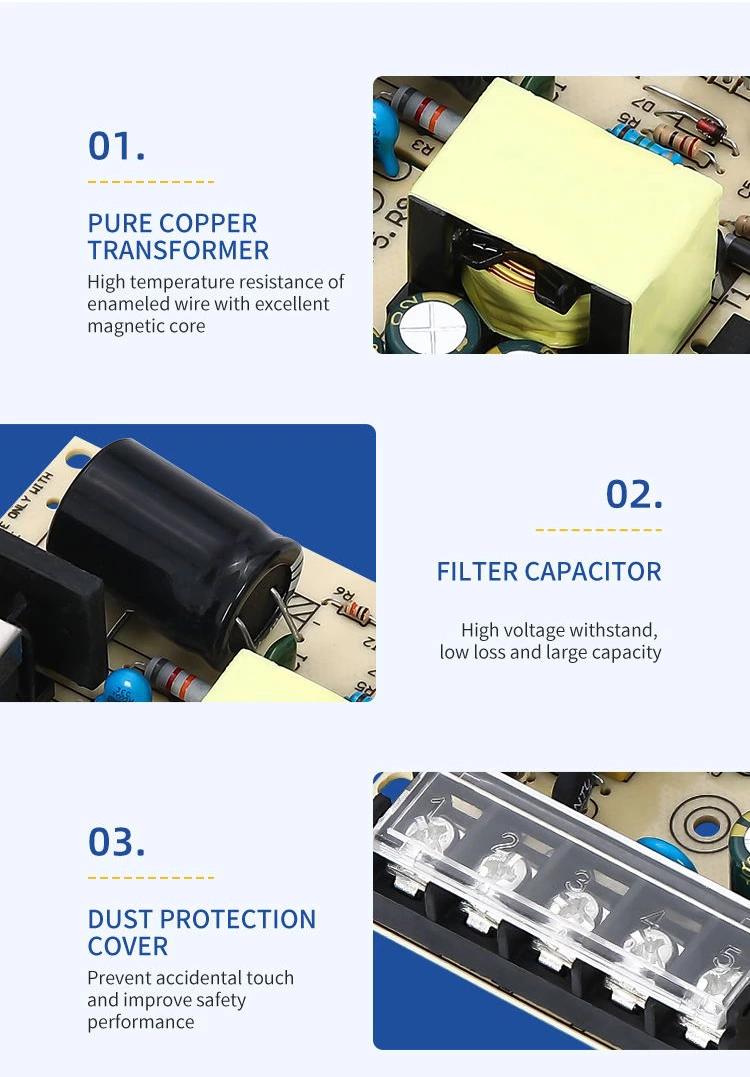

Manufacture Lrs-75-12 Ac-dc 75w 12v 6A Thin Switch Power Supply for CCTV Camera

MODEL LRS-75-5 LRS-75-12 LRS-75-15 LRS-75-24 LRS-75-36 LRS-75-48 OUTPUT DC Voltage 5V 12V 15V 24V 36V 48V Rated Current 14A 6A 5A 3.2A 2.1A 1.6A Current ran

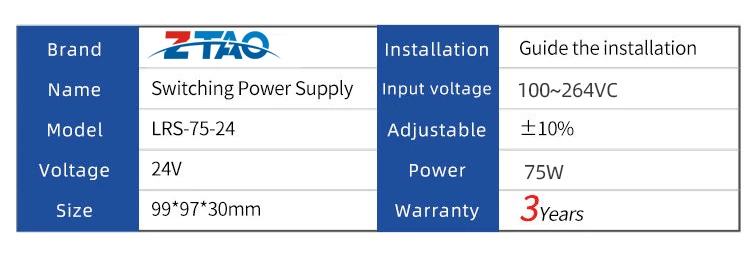

Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
LRS-75-12
Output Type:
Single
Input Voltage:
100~264VAC 140~373VDC
Output Voltage:
12V/24V/36V/48V can be choose or customized
Output Frequency:
50~60HZ
Output Current:
6A
Output Power
75W
Efficiency:
89%
Workig Temperature:
-10℃~+60℃
Certification:
CE FCC ROHS ISO9001
Test:
100%Full Load Burn-in Test
Protection:
Shortcuit Overtemp Overload overvoltage
Warranty
3 Years
Size
99*97*30mm(L*W*H)

MODEL



LRS-75-5

LRS-75-12

LRS-75-15

LRS-75-24

LRS-75-36

LRS-75-48

OUTPUT

DC Voltage

5V

12V

15V

24V

36V

48V

Rated Current

14A

6A

5A

3.2A

2.1A

1.6A

Current range

0~14A

0~6A

0~5A

0~3.2A

0~2.1A

0~1.6A

Rated power

70W

72W

75W

76.8W

75.6W

76.8W

Ripple&noise

100mVp-P

120mVp-p

120mVp-p

150mVp-p

200mVp-p

200mVp-p

Voltage ADJ.

4.5~5.5V

10.2~13.8V

13.5~18V

24~28V

32.4~39.6V

43.2~52.8V

Voltage tolerance

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

Line regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load regulation

±1.0%

±1.0%

±0.5%

±1.0%

±0.5%

±0.5%

Setup,Rise,Time

500ms,  30ms/230VAC   500ms, 30ms/115VAC full load

Hold up time

60ms/230VAC    12ms/115VAC full load

INPUT

Voltage range

100~264VAC  140~373VDC

Frequency range

50~60Hz

Efficiency (Typ)

86%

89%

89%

90%

91.5%

91.5%

AC current (Typ)

1.4A/115VAC    0.85A/230VAC

Inrush current

Cold start:  65A/230VAC

Leakage current

<0.75mA/240VAC

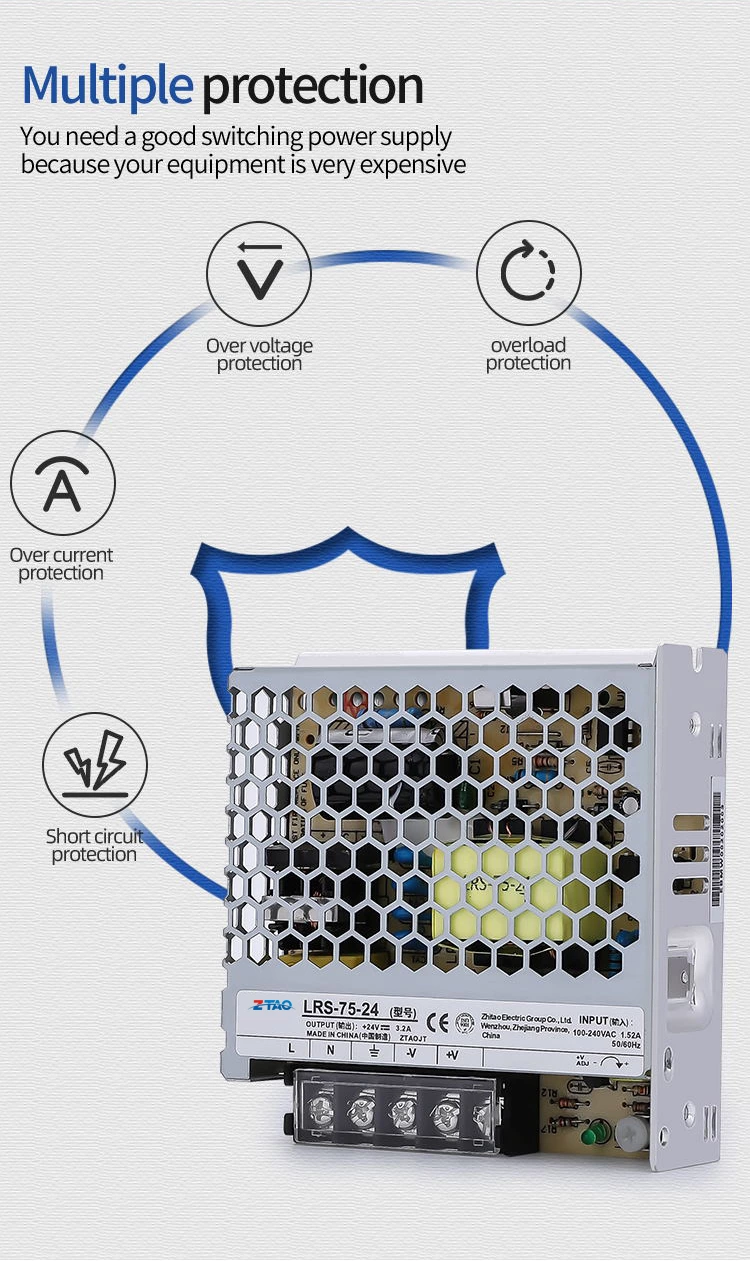

PROTECTION

Over load

115%~150% in rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over voltage

5.75~6.9V

13.8~16.2V

18.75~21.75V

28.8~33.6V

41.4~48.6V

55.2~64.8V

Protection mode, tum off output voltage, restart to recover

Environment

Working TEMP

-10℃~+60℃.

Working humidity

20~65% RH non-condensing

Storage TEMP humidity

-10℃~+60℃,10~95% RH

TEMP.coefficient

±0.03%℃ (0-50℃)

Vibration

10~500Hz,5G 10min./1cycle .  60min Each along X,Y,Z axes

SAFETY

Safety regulations

UL60950-1,TUV EN60750-1 In line with the certification

Withstand voltage

I/P-O/P:4KVAC I/P-FG:2KVA O/P-FG:1.25KVAC

Insolation resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

Electromagnetic compatible emission

Compliance to EN55032(CISPR32 )Class B, EN61000-3-2,-3, EAC TP TC 020

EMC immunity requirements

Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024  EN61000-6-1(EN50082-2),

Class A heavy Industry standard,

OTHERS

MTBF

≥760K hrs.MIL-HDBK-217F(25℃)

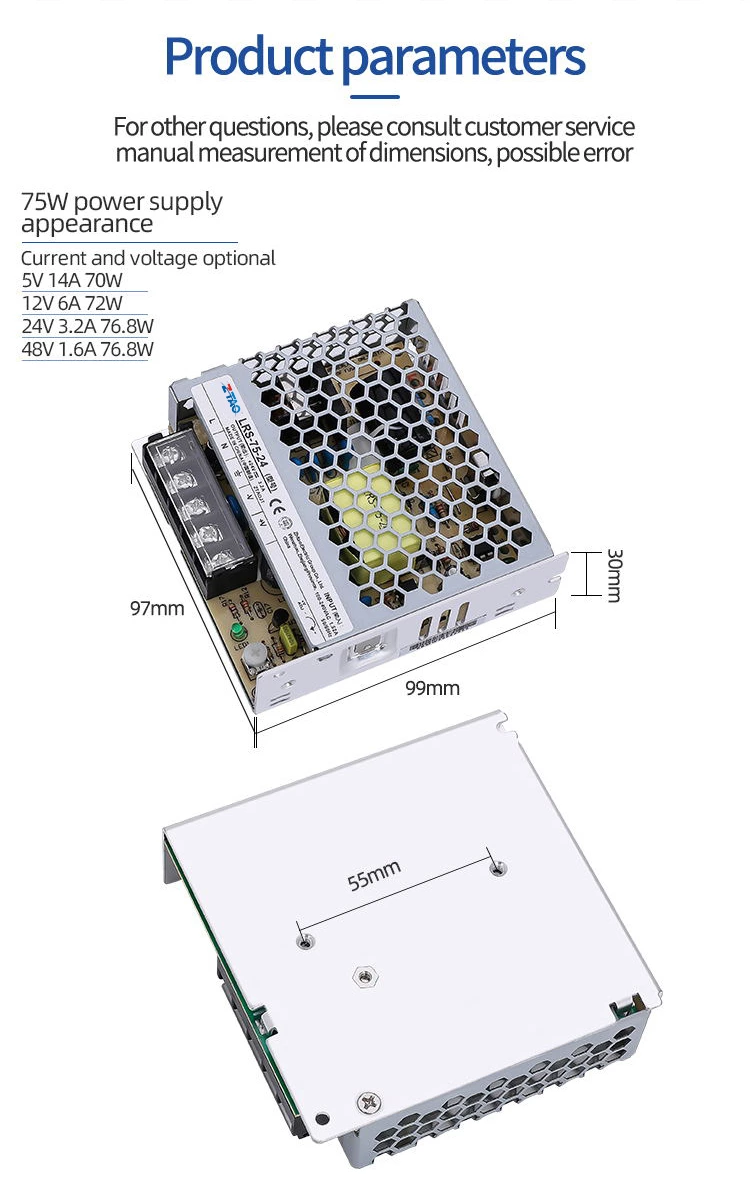

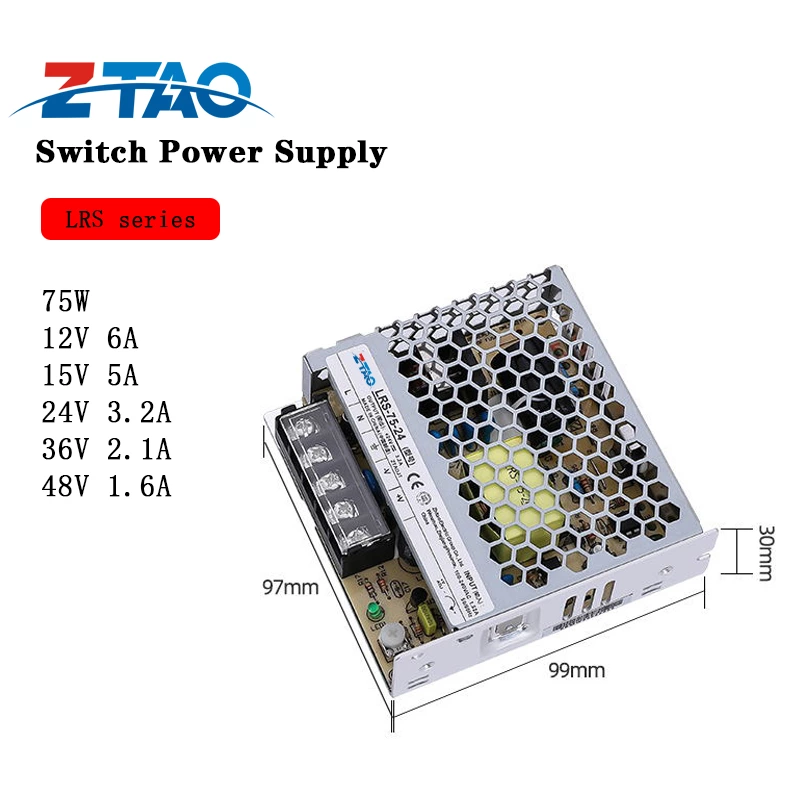

Dimension

99*97*30mm(L*W*H)

Packing

0.25Kg:45PCS/13Kg/0.77CUFT
