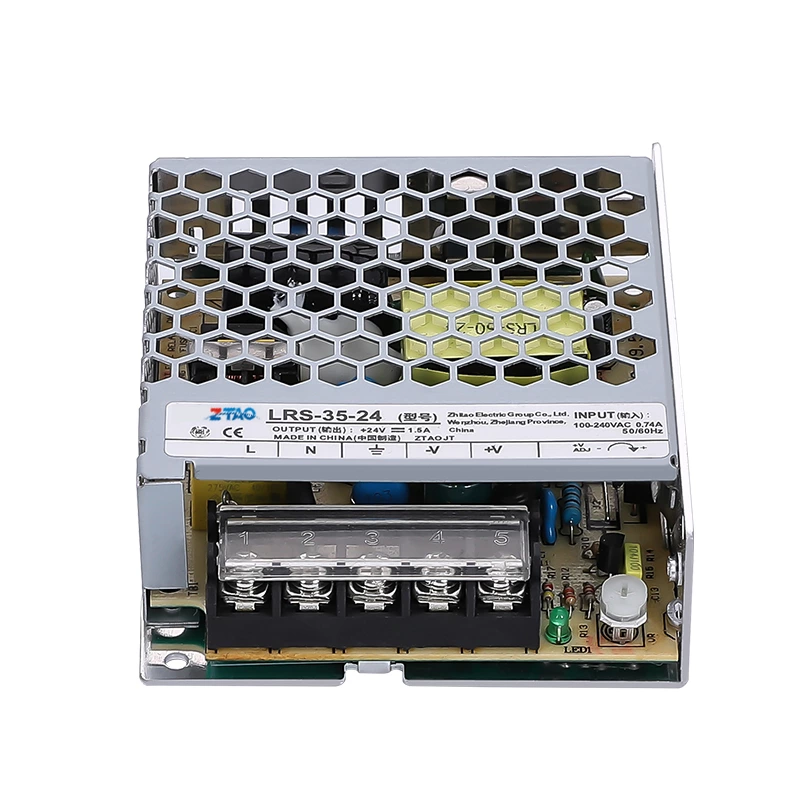

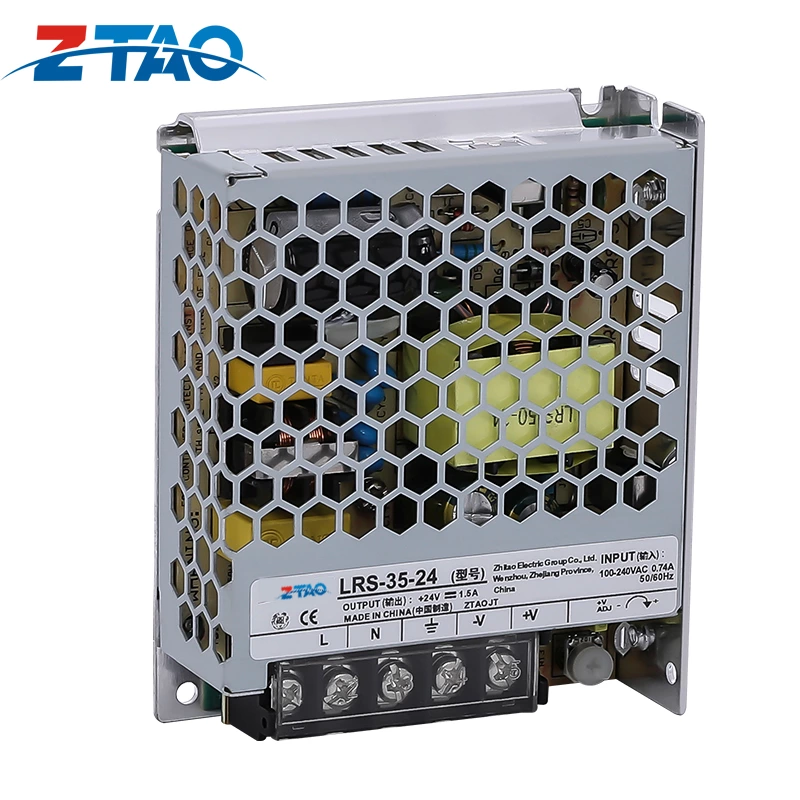

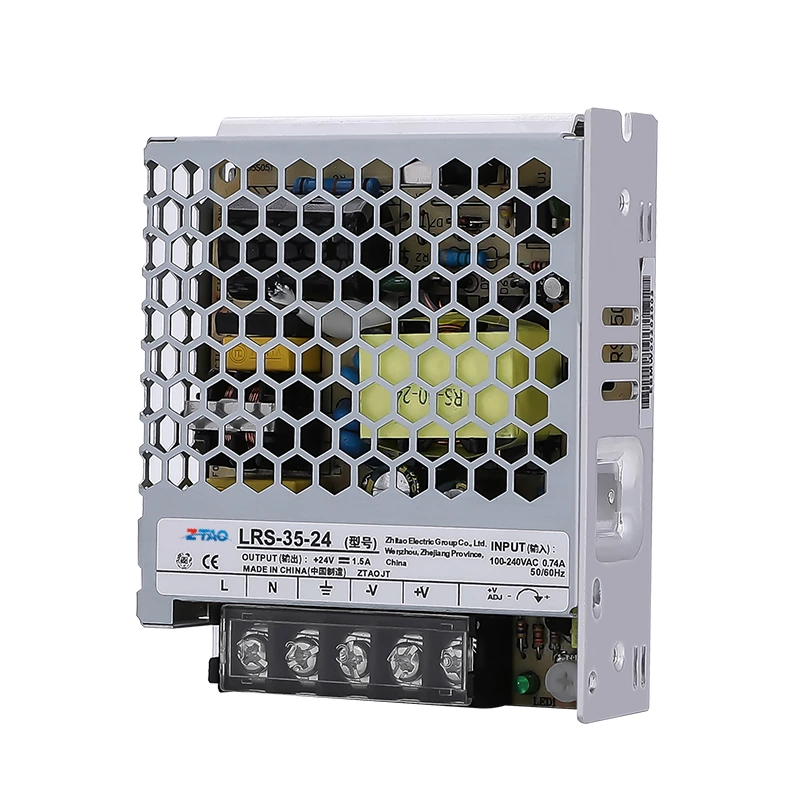

LRS Switch Power Supply

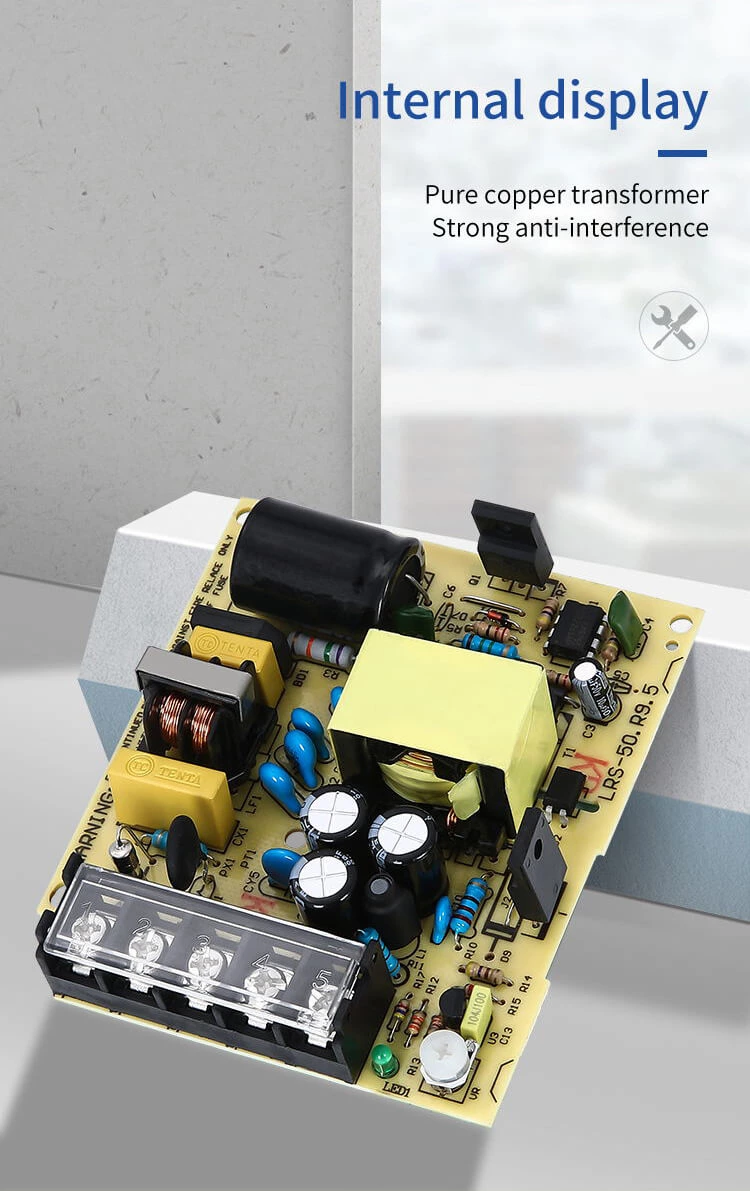

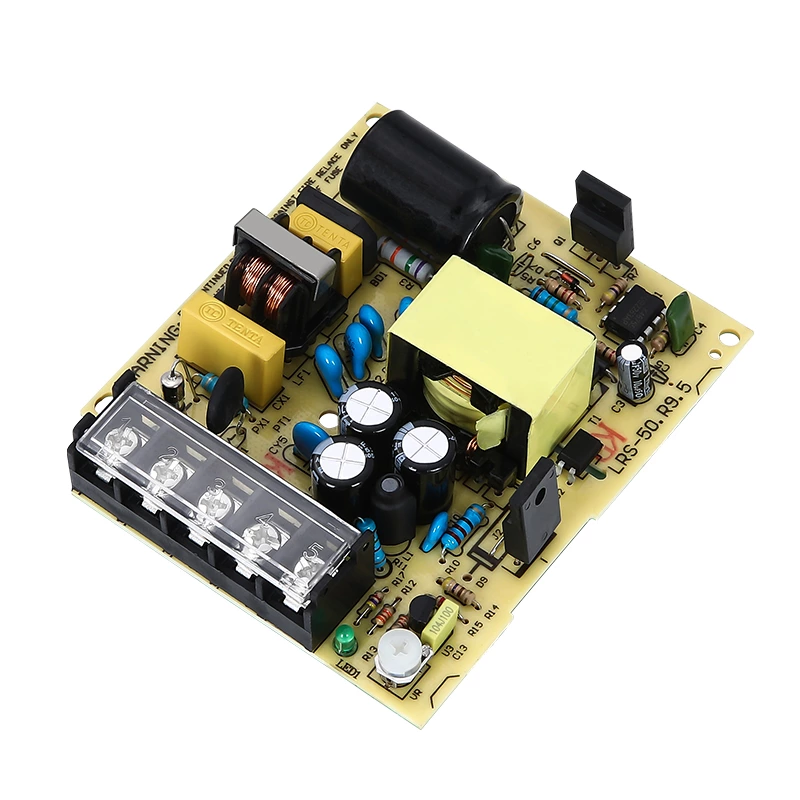

24V 1.5A 35W DC Switching Power Supply for ultrathin Transformer

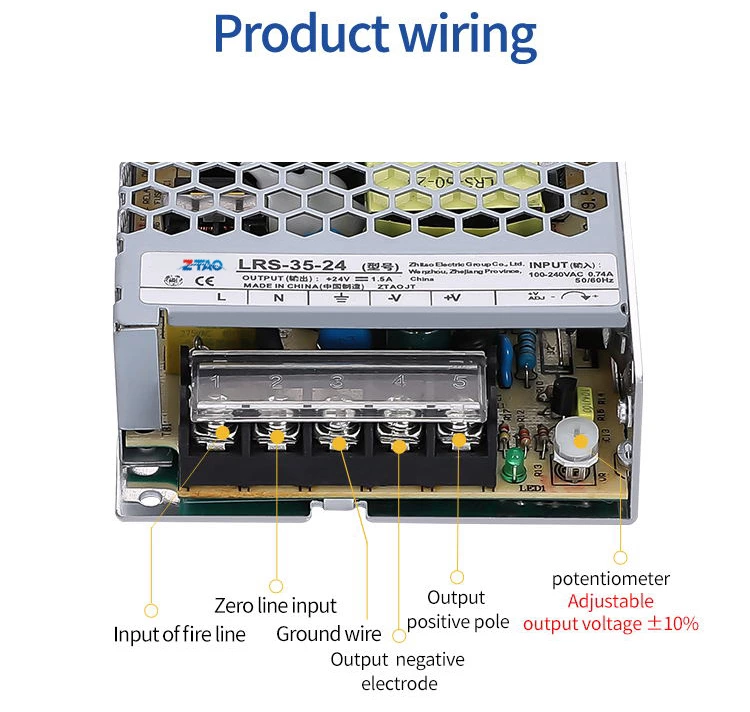

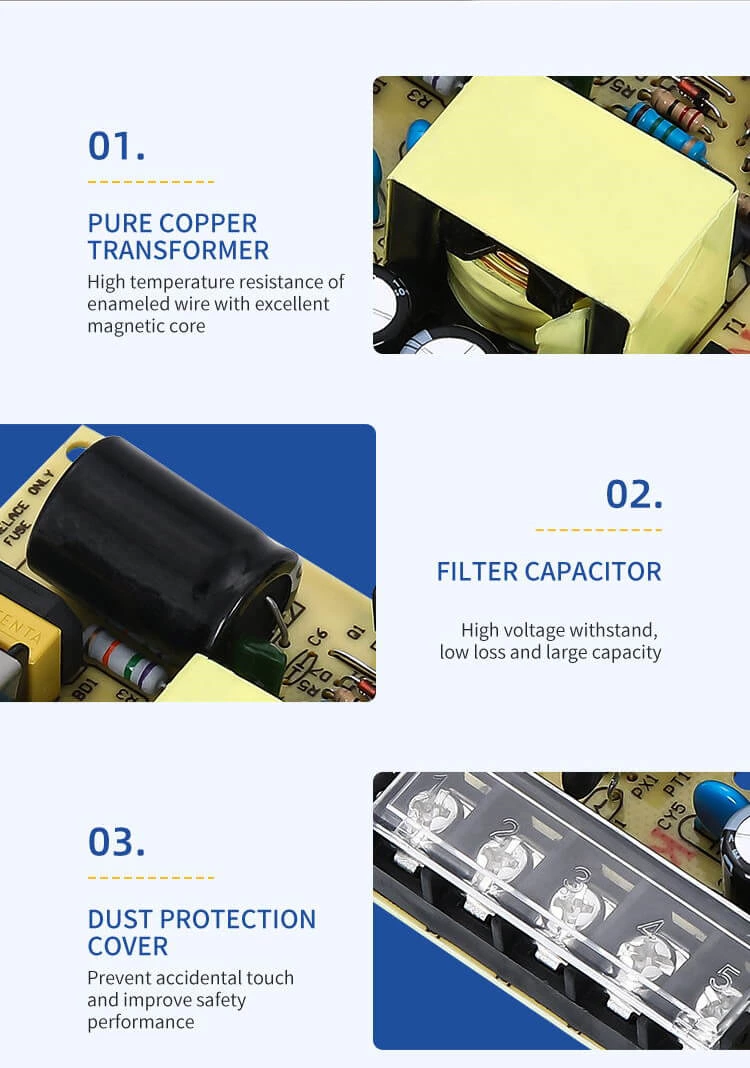

MODEL LRS-35-5 LRS-35-12 LRS-35-15 LRS-35-24 LRS-35-36 LRS-35-48 OUTPUT DC Voltage 5V 12V 15V 24V 36V 48V Rated Current 7.0A 3.0A 2.4A 1.5A 1.0A 0.8A Curren

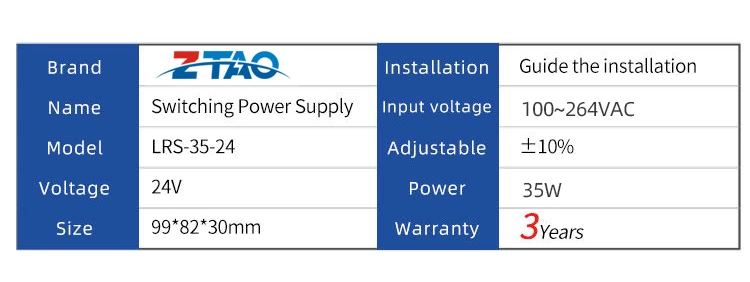

Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
LRS-35-24
Output Type:
Single
Input Voltage:
100~264VAC 140~373VDC
Output Voltage:
24V
Output Frequency:
50~60Hz
Output Current:
1.5A
Output Power
35W
Efficiency:
87%
Workig Temperature:
-10℃~+60℃
Materail:
Aluminium
Certification:
CE FCC ROHS ISO9001
Test:
100%Full Load Burn-in Test
Protection:

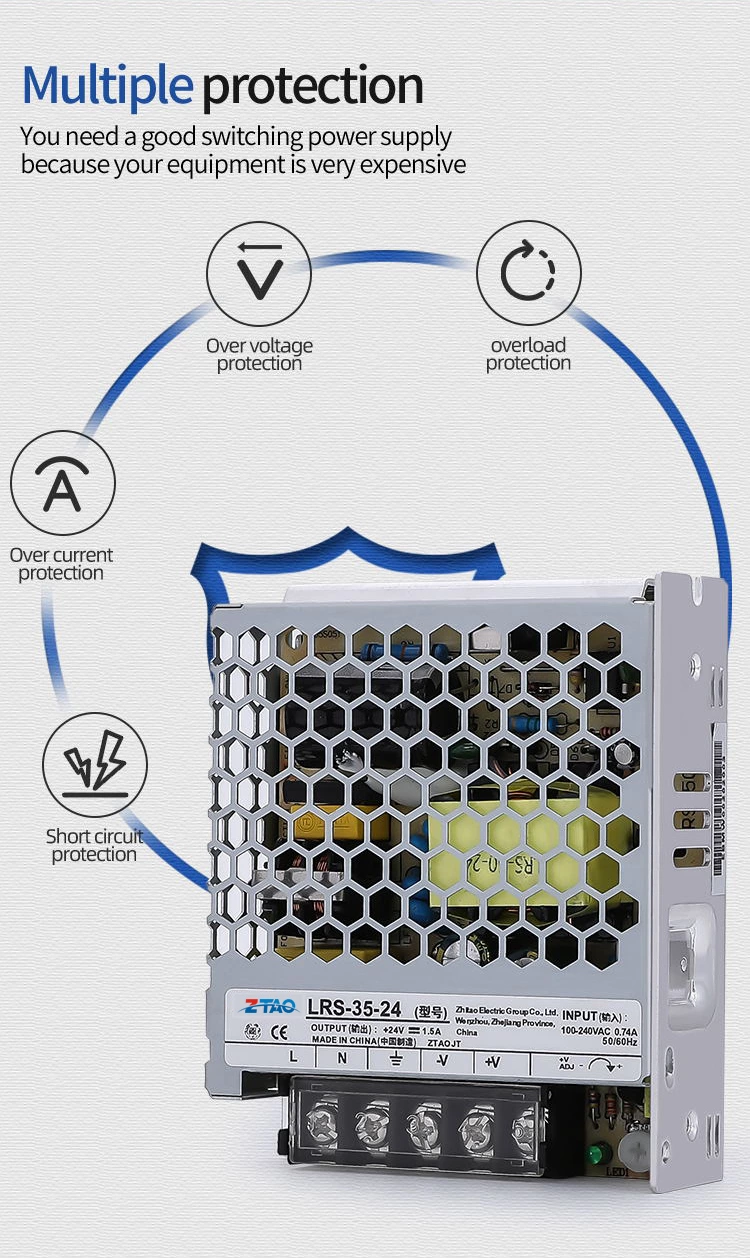

Shortcuit Overtemp Overload overvoltage
Warranty
3 Years

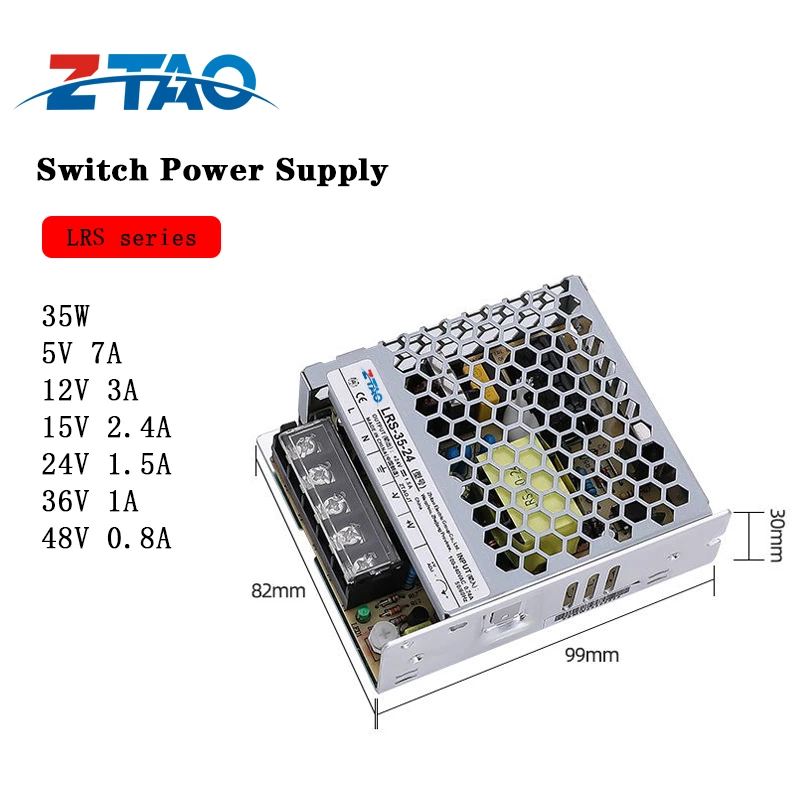

Size

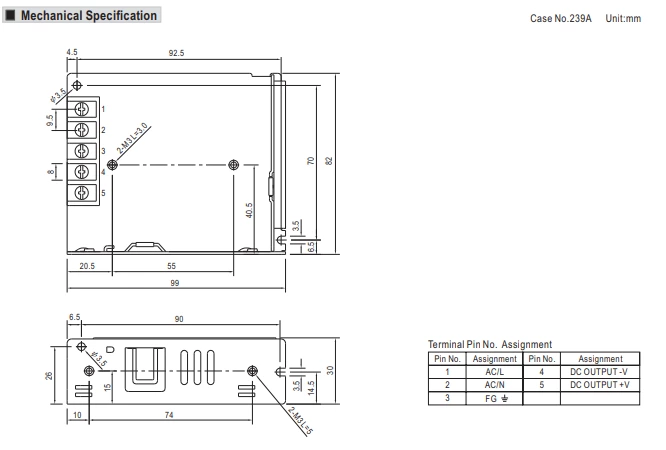

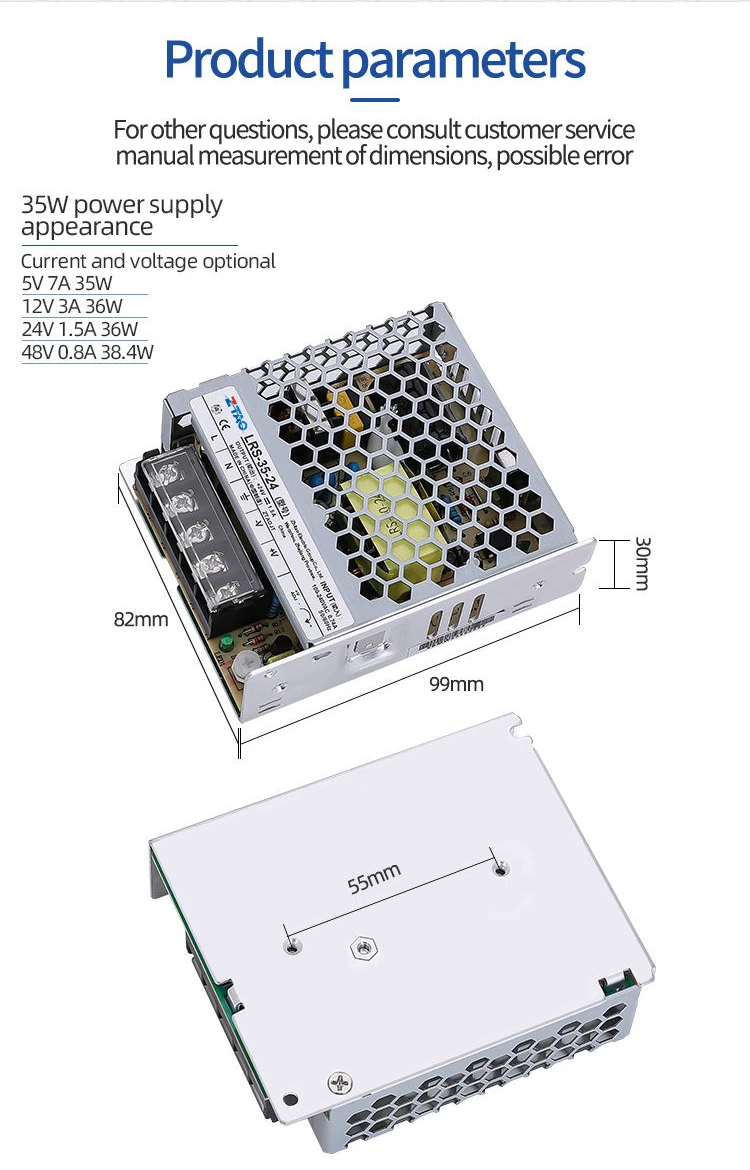

99*82*30mm(L*W*H)

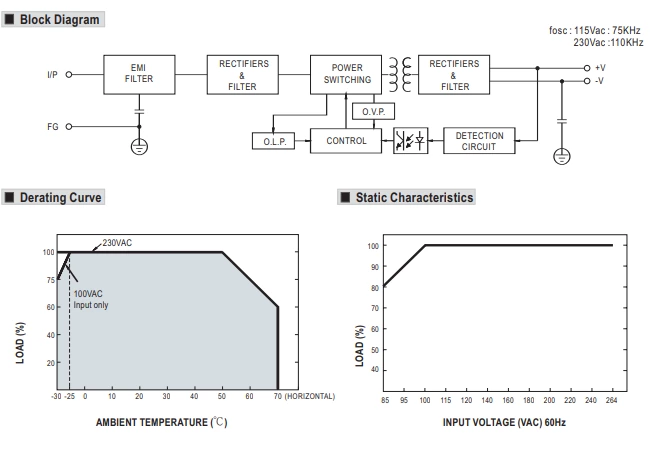

MODEL



LRS-35-5

LRS-35-12

LRS-35-15

LRS-35-24

LRS-35-36

LRS-35-48

OUTPUT

DC Voltage

5V

12V

15V

24V

36V

48V

Rated Current

7.0A

3.0A

2.4A

1.5A

1.0A

0.8A

Current range

0~7.0A

0~3.0A

0~2.4A

0~1.5A

0~1A

0~0.8A

Rated power

35W

36W

36W

36W

36W

38.4W

Ripple&noise

80mVp-P

120mVp-p

120mVp-p

150mVp-p

200mVp-p

200mVp-p

Voltage ADJ.

4.5~5.5V

10.2~13.8V

13.5~18V

24~28V

32.4~39.6V

43.2~52.8V

Voltage tolerance

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

Line regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load regulation

±1.0%

±1.0%

±0.5%

±1.0%

±0.5%

±0.5%

Setup,Rise,Time

1000ms,  30ms/230VAC   2000ms, 30ms/115VAC at full load

Hold up time

30ms/230VAC 12ms/115VAC at full load

INPUT

Voltage range

100~264VAC  140~373VDC

Frequency range

50~60Hz

Efficiency

80%

85%

85%

87%

87%

88%

AC current

0.7A/115VAC    0.42A/230VAC

Inrush current

Cold start: 45A/230VAC

Leakage current

<0.75mA/240VAC

PROTECTION

Over load

115%~150% in rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over voltage

5.75~6.9V

13.8~16.2V

18.75~21.75V

28.8~33.6V

41.4~48.6V

55.2~64.8V

Protection mode, tum off output voltage, restart to recover

Environment

Working TEMP

-10℃~+60℃.

Working humidity

20~65% RH non-condensing

Storage TEMP humidity

-10℃~+60℃,10-95% RH

TEMP.coefficient

±0.03%℃ (0~50℃)

Vibration

10~500Hz,5G 10min./1cycle .  60min Each along X,Y,Z axes.

SAFETY

Safety regulations

UL60950-1,TUV EN60750-1 In line with the certification

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.5KVAC

Insolation resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

Electromagnetic compatible emission

Compliance to EN55032(CISPR32 )Class B, EN61000-3-2,-3, EAC TP TC 020

EMC immunity requirements

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024,EN1000-6-2(EN50082-2),

Class A heavy Industry standard,

OTHERS

MTBF

≥760K hrs.MIL-HDBK-217F(25℃)

Dimension

99*82*30mm(L*W*H)

Packing

0.2Kg:60PCS/13Kg/0.85CUFT
