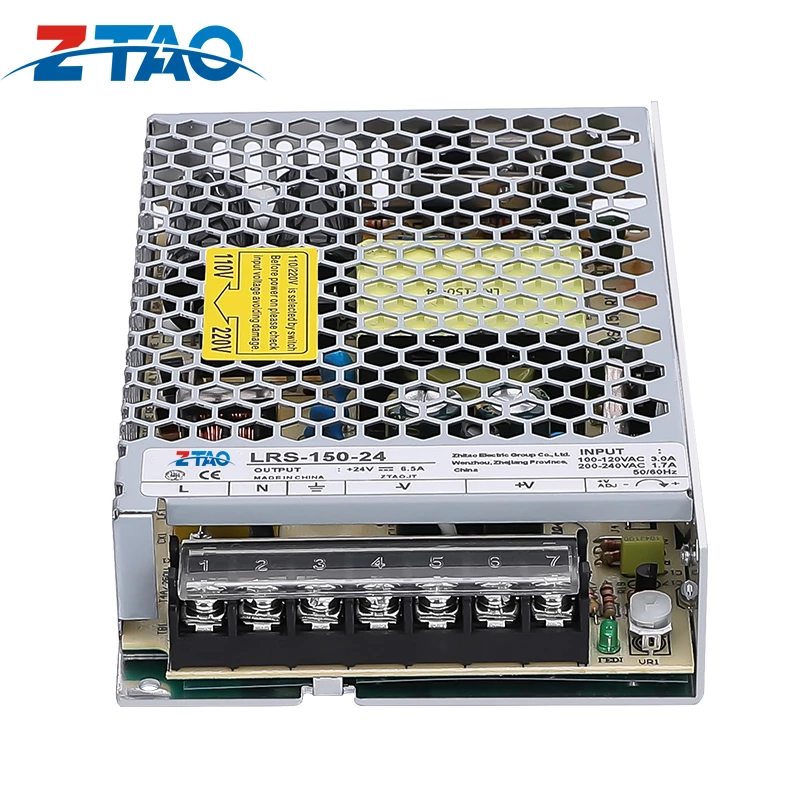

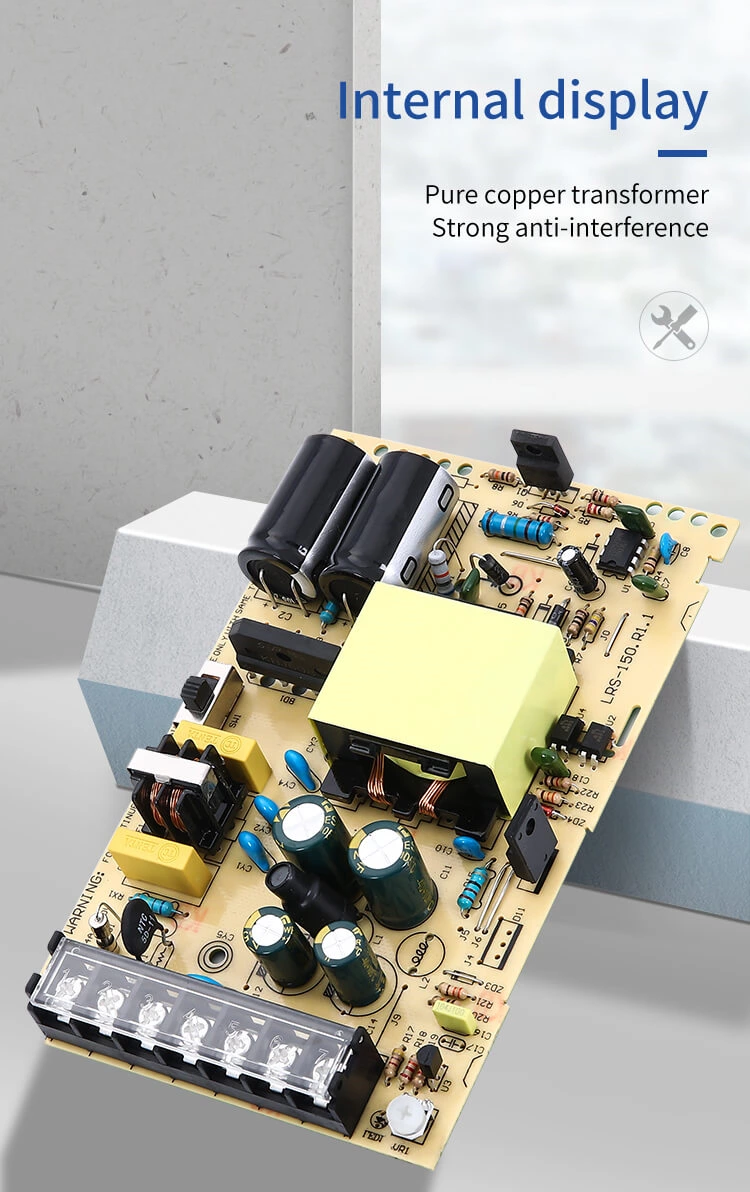

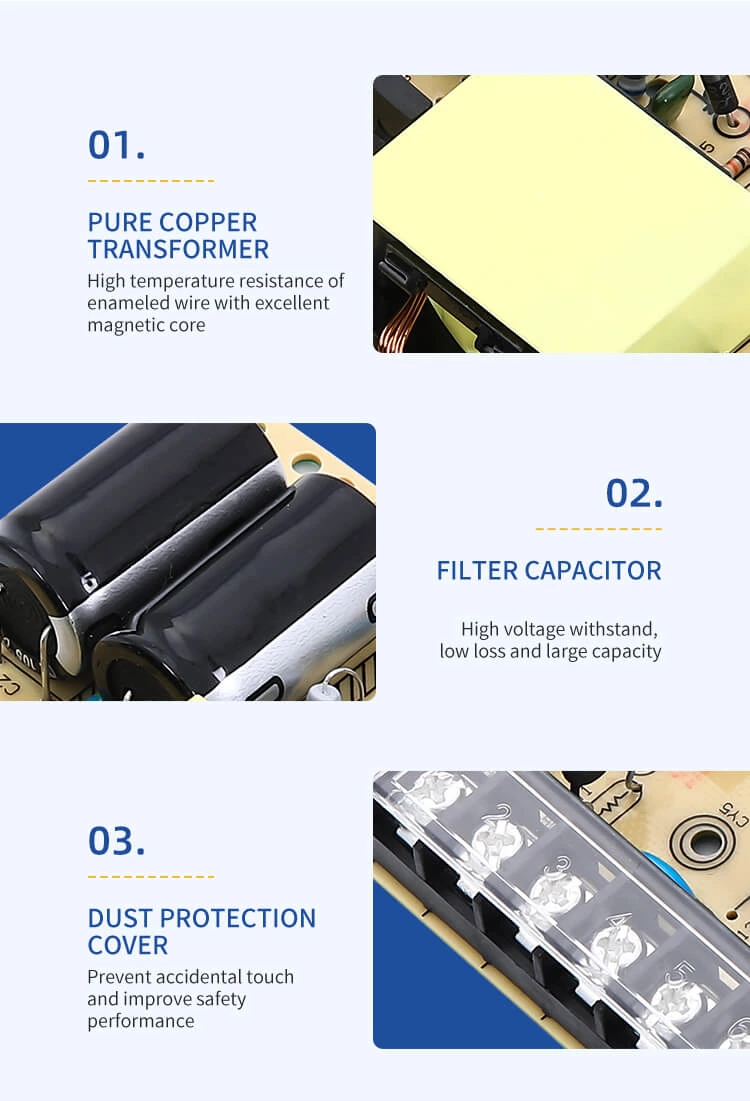

LRS Switch Power Supply

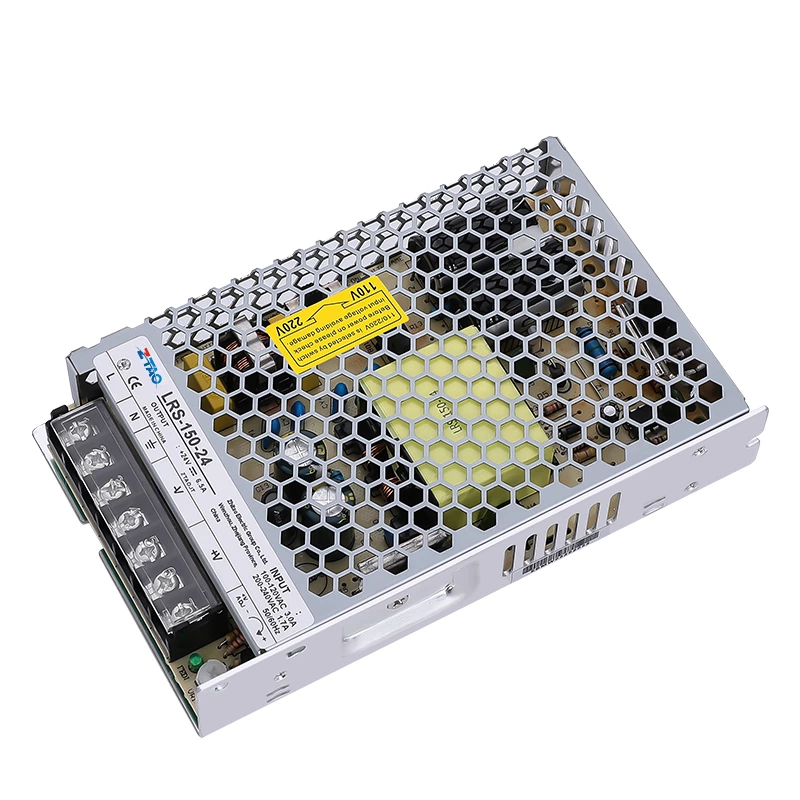

Slim Type 150W 24V 6.5A AC DC Switching Power Supply for Automation equipment

MODEL LRS-150-12 LRS-150-15 LRS-150-24 LRS-150-36 LRS-150-48 OUTPUT DC Voltage 12V 15V 24V 36V 48V Rated Current 12.5A 10A 6.5A 4.3A 3.3A Current range 0~12.5A

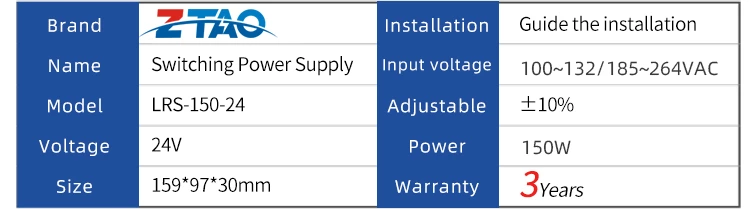

Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
LRS-150-24
Output Type:
Single
Input Voltage:
100~132VAC/185~264VAC 260~370VDC(switch on 220VAC)
Output Voltage:
12v/24v/36v/48v can be choose or customzied
Output Frequency:
50~60HZ
Output Current:
6.5A
Output Power
150W
Efficiency:
87%
Workig Temperature:
-10℃~+60℃
Materail:
Aluminum
Certification:
CE ROHS FCC ISO9001
Test:
100%Full Load Burn-in Test
Protection:
Shortcuit Overtemp Overload overvoltage
Warranty
3 Years

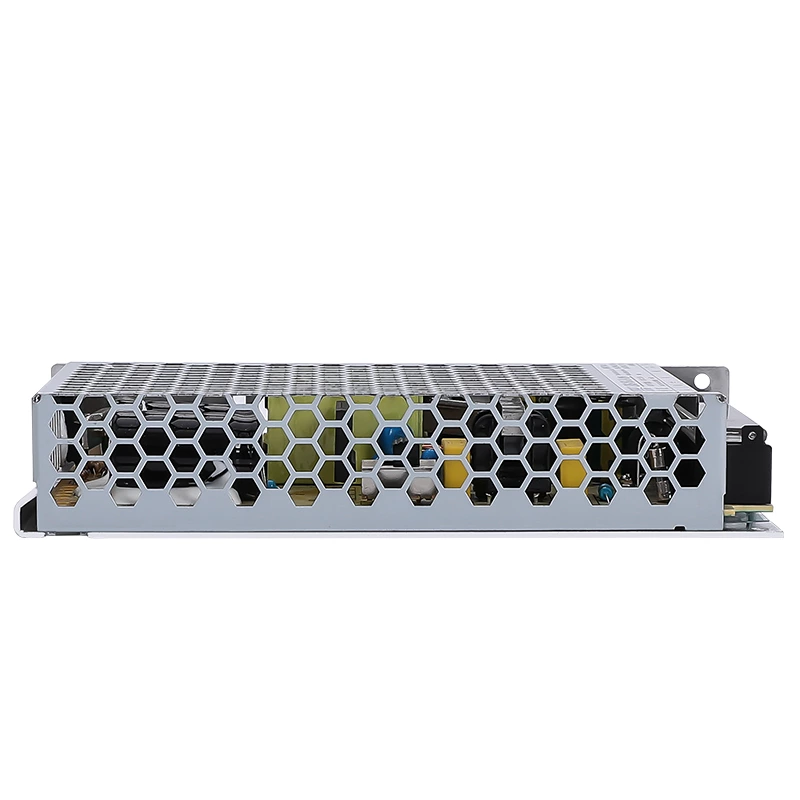

Size
159*97*30mm(L*W*H)

MODEL



LRS-150-12

LRS-150-15

LRS-150-24

LRS-150-36

LRS-150-48

OUTPUT

DC Voltage

12V

15V

24V

36V

48V

Rated Current

12.5A

10A

6.5A

4.3A

3.3A

Current range

0~12.5A

0~10A

0~6.5A

0~4.3A

0~3.3A

Rated power

150W

150W

156W

154.8W

158.4W

Ripple&noise(max.)

120mVp-p

120mVp-p

150mVp-p

200mVp-p

200mVp-p

Voltage ADJ. range

10.2~13.8V

13.5~18V

24~28V

32.4~39.6V

43.2~52.8V

Voltage tolerance

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

Line regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load regulation

±1.0%

±0.5%

±1.0%

±0.5%

±0.5%

Setup,Rise,Time

500ms,  30ms/230VAC   500ms, 30ms/115VAC at full load

Hold up time (Typ)

40ms/230VAC    35ms/115VAC at full load

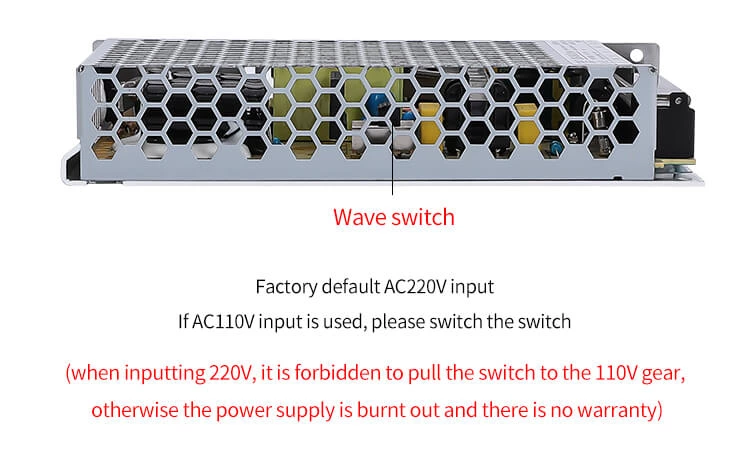

INPUT

Voltage range

100~132VAC/185~264VAC  260~370VDC(switch on220VAC)

Frequency range

50~60Hz

Efficiency



86%

86%

87%

88%

88%

AC current (Typ)

3A/115VAC    1.7A/230VAC

Inrush current (Typ)

Cold start:  60A/230VAC

Leakage current

<0.75mA/240VAC

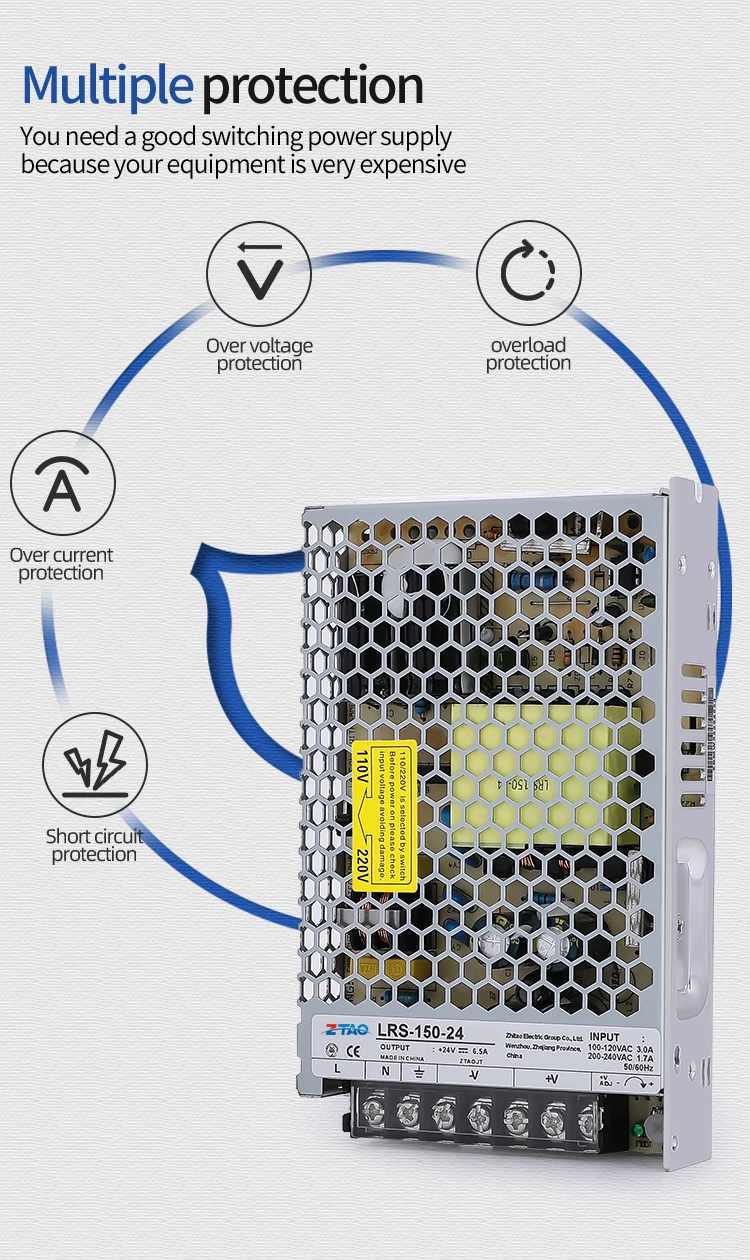

PROTECTION

Over load

110%~140% rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over voltage



13.8~16.2V

18.75~21.75V

28.8~33.6V

41.4~48.6V

55.2~64.8V

Protection mode, tum off output voltage, restart to recover

Environment

Working TEMP

-10℃~+60℃.

Working humidity

20~65% RH non-condensing

Storage TEMP humidity

-10℃~+60℃,10~95% RH  non-condensing

TEMP.coefficient

±0.03%℃ (0~50℃)

Vibration

10~500Hz,5G 10min./1cycle .  60min Each along X,Y,Z axes

SAFETY

Safety regulations

UL60950-1 ,TUV  EN60750-1 Certified

Withstand voltage

I/P-O/P:4KVAC  I/P-FG:2KVA  O/P-FG:1.25KVAC

Insolation resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

Electromagnetic compatible emission

Compliance to EN55032(CISPR32 )Class B, EN61000-3-2  EAC TP TC 020

EMC immunity requirements

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024 EN1000-6-1

Class A heavy and light industry standard

OTHERS

MTBF

≥601K hrs.MIL-HDBK-217F(25℃)

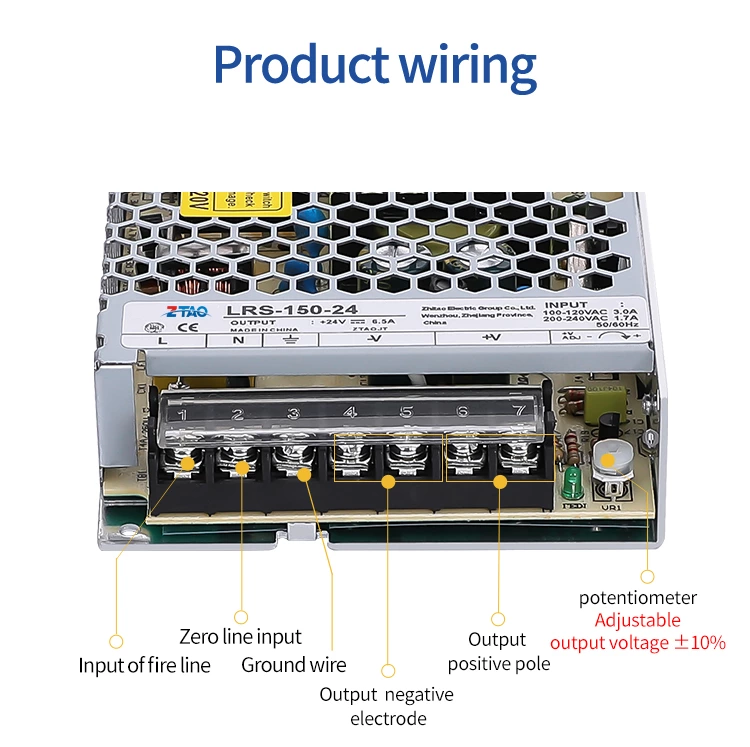

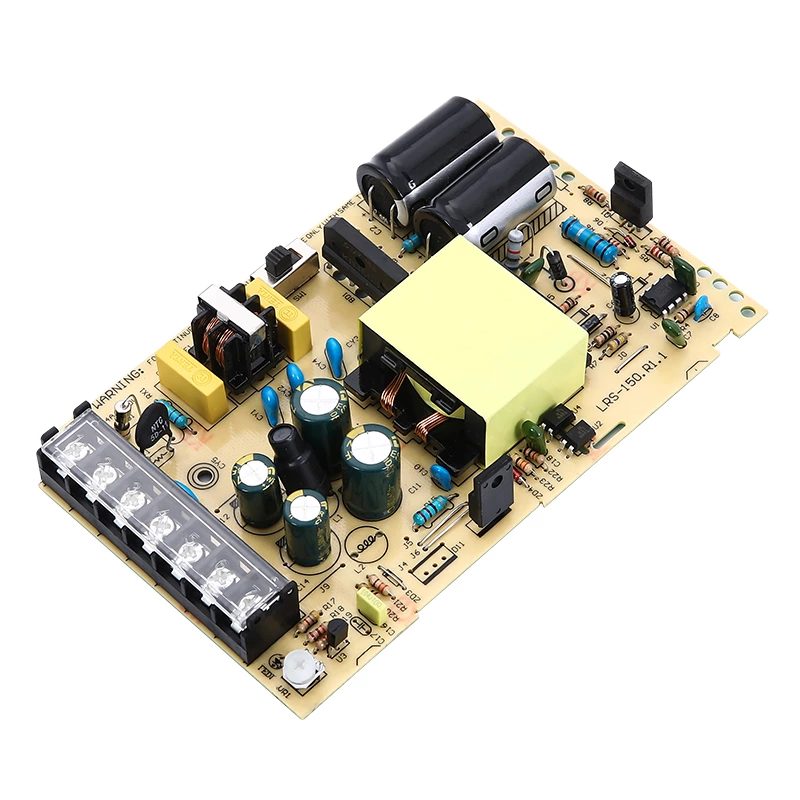

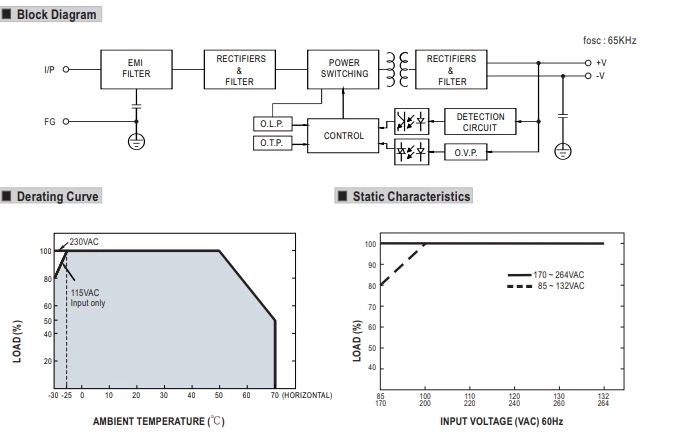

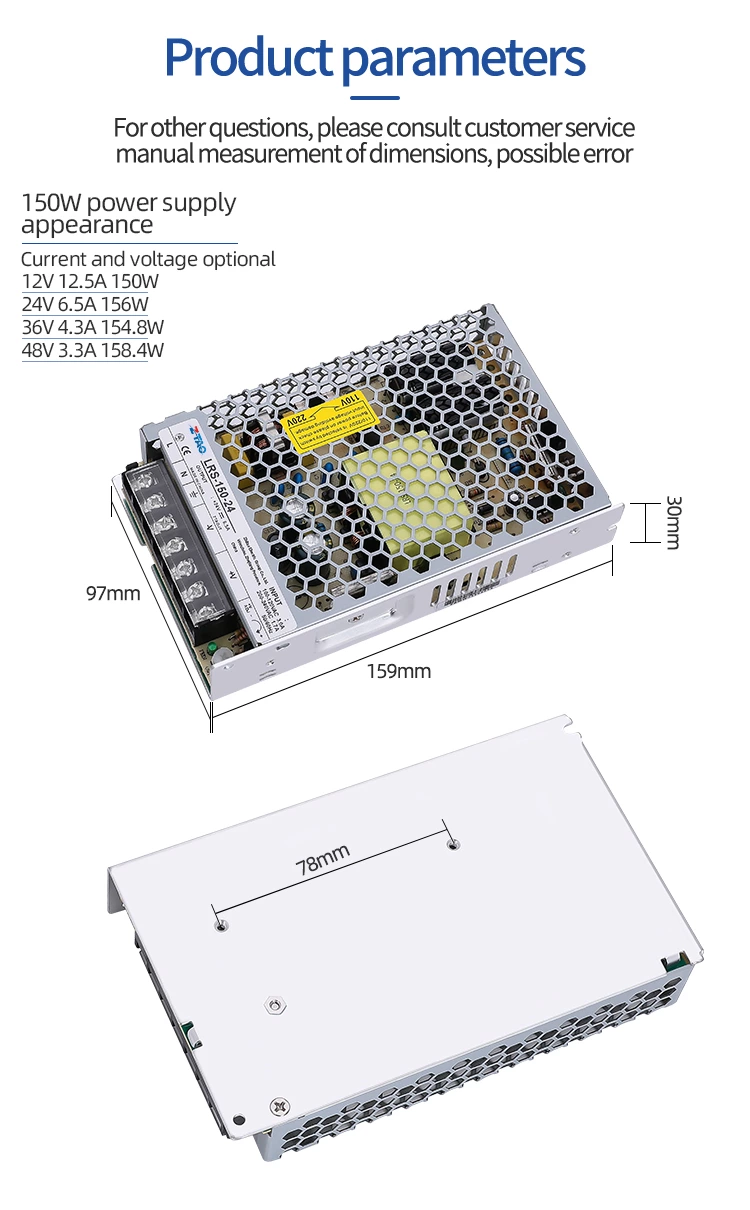

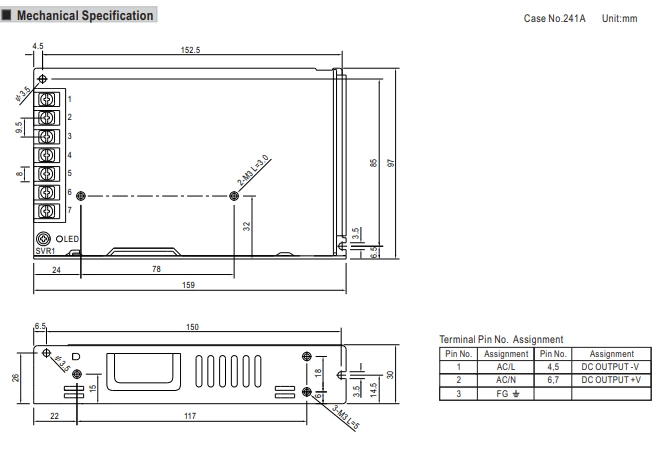

Dimension

159*97*30mm(L*W*H)

Packing

0.45Kg:30PCS/15Kg/0.75CUFT
