| MODEL | LRS-50-5 | LRS-50-12 | LRS-50-15 | LRS-50-24 | LRS-50-36 | LRS-50-48 | |
| OUTPUT | DC Voltage | 5V | 12V | 15V | 24V | 36V | 48V |
| Rated Current | 10A | 4.2A | 3.4A | 2.2A | 1.45A | 1.1A | |
| Current range | 0~10A | 0~4.2A | 0~3.4A | 0~2.2A | 0~1.45A | 0~1.1A | |
| Rated power | 50W | 50.4W | 51W | 52.8W | 52.2W | 52.8W | |
| Ripple&noise | 80mVp-P | 120mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | |
| Voltage ADJ. range | 4.5~5.5V | 10.2~13.8V | 13.5~18V | 24~28V | 32.4~39.6V | 43.2~52.8A | |
| Voltage tolerance | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Line regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load regulation | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±0.5% | ±0.5% | |
| Setup,Rise,Time | 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load | ||||||
| Hold up time | 30ms/230VAC 12ms/115VAC at full load | ||||||
| INPUT | Voltage range | 100~264VAC 140~373VDC | |||||
| Frequency range | 50~60Hz | ||||||
| Efficiency (Typ) | 80% | 85% | 85% | 87% | 88% | 88% | |
| AC current (Typ) | 0.7A/115VAC 0.42A/230VAC | ||||||
| Inrush current | Cold start: 45A/230VAC | ||||||
| Leakage current | <0.75mA/240VAC | ||||||
| PROTECTION | Over load | 115%~150% in rated output power | |||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||
| Over voltage | 5.75~6.9V | 13.8~16.2V | 18.75~21.75V | 28.8~33.6V | 41.4~48.6V | 55.2~64.8V | |
| Protection mode, tum off output voltage, restart to recover | |||||||
| Environment | Working TEMP | -10℃~+60℃. | |||||
| Working humidity | 20~65% RH non-condensing | ||||||
| Storage TEMP humidity | -10℃~+60℃，10~95% RH | ||||||
| TEMP.coefficient | ±0.03%℃ (0-50℃) | ||||||
| Vibration | 10~500Hz，5G 10min./1cycle . 60min Each along X,Y,Z axes. | ||||||
| SAFETY | Safety regulations | UL60950-1,TUV EN60750-1 In line with the certification | |||||
| Withstand voltage | I/P-O/P:4KVAC I/P-FG:2KVA O/P-FG:1.25KVAC | ||||||
| Insolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||||||
| Electromagnetic compatible emission | Compliance to EN55032(CISPR32 )Class B, EN61000-3-2,-3, EAC TP TC 020 | ||||||
| EMC immunity requirements | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024,EN1000-6-1 Class A heavy Industry standard, | ||||||
| OTHERS | MTBF | ≥760K hrs.MIL-HDBK-217F(25℃) | |||||

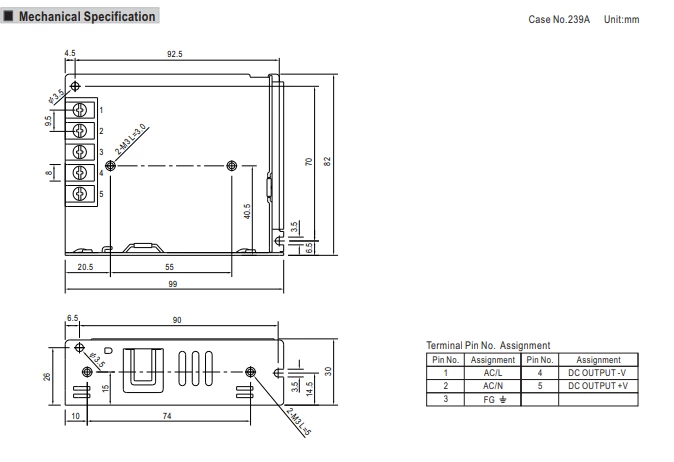

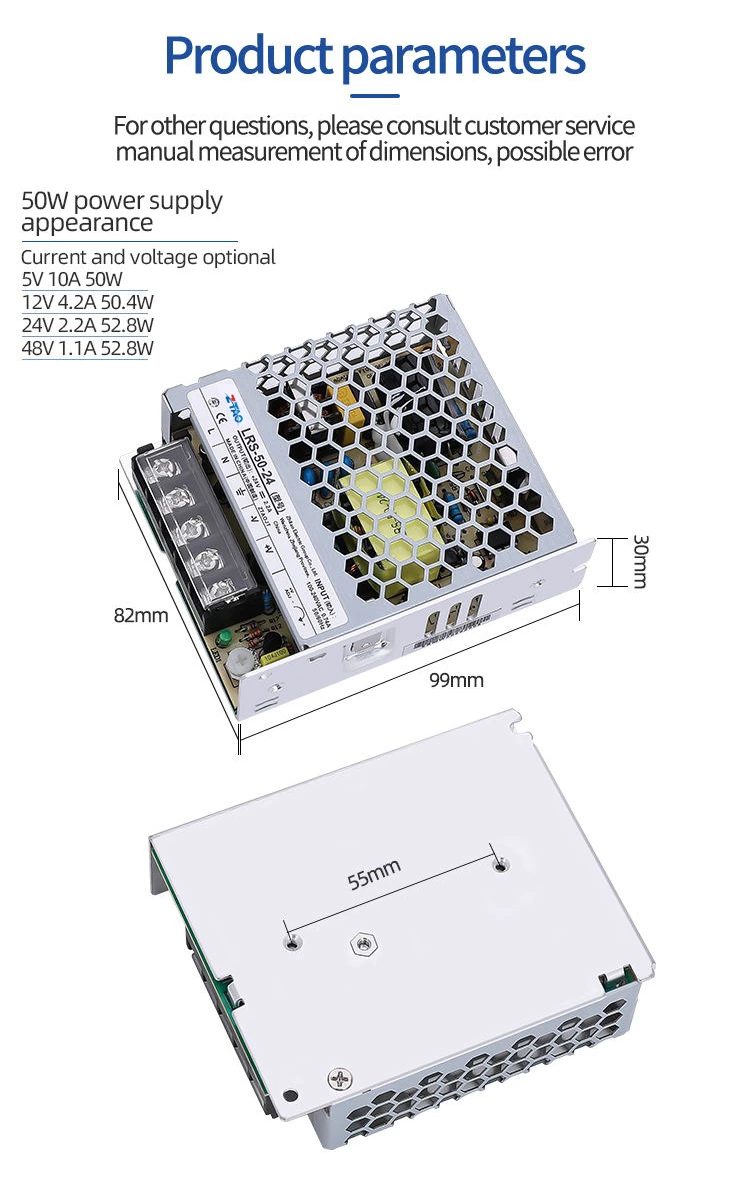

| Dimension | 99*82*30mm(L*W*H) | ||||||
| Packing | 0.2Kg:60PCS/13Kg/0.85CUFT | ||||||
