MODEL |
|
LRS-50-5 |
LRS-50-12 |
LRS-50-15 |
LRS-50-24 |
LRS-50-36 |
LRS-50-48 |
|
OUTPUT |
DC Voltage |
5V |
12V |
15V |
24V |
36V |
48V |
|
Rated Current |
10A |
4.2A |
3.4A |
2.2A |
1.45A |
1.1A |
|
|
Current range |
0~10A |
0~4.2A |
0~3.4A |
0~2.2A |
0~1.45A |
0~1.1A |
|
|
Rated power |
50W |
50.4W |
51W |
52.8W |
52.2W |
52.8W |
|
|
Ripple&noise |
80mVp-P |
120mVp-p |
120mVp-p |
150mVp-p |
200mVp-p |
200mVp-p |
|
|
Voltage ADJ. range |
4.5~5.5V |
10.2~13.8V |
13.5~18V |
24~28V |
32.4~39.6V |
43.2~52.8A |
|
|
Voltage tolerance |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Line regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Load regulation |
±1.0% |
±1.0% |
±0.5% |
±1.0% |
±0.5% |
±0.5% |
|
|
Setup,Rise,Time |
1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load |
||||||
|
Hold up time |
30ms/230VAC 12ms/115VAC at full load |
||||||
|
INPUT |
Voltage range |
100~264VAC 140~373VDC |
|||||
|
Frequency range |
50~60Hz |
||||||
|
Efficiency (Typ) |
80% |
85% |
85% |
87% |
88% |
88% |
|
| AC current (Typ) |
0.7A/115VAC 0.42A/230VAC |
||||||
|
Inrush current |
Cold start: 45A/230VAC |
||||||
|
Leakage current |
<0.75mA/240VAC |
||||||
|

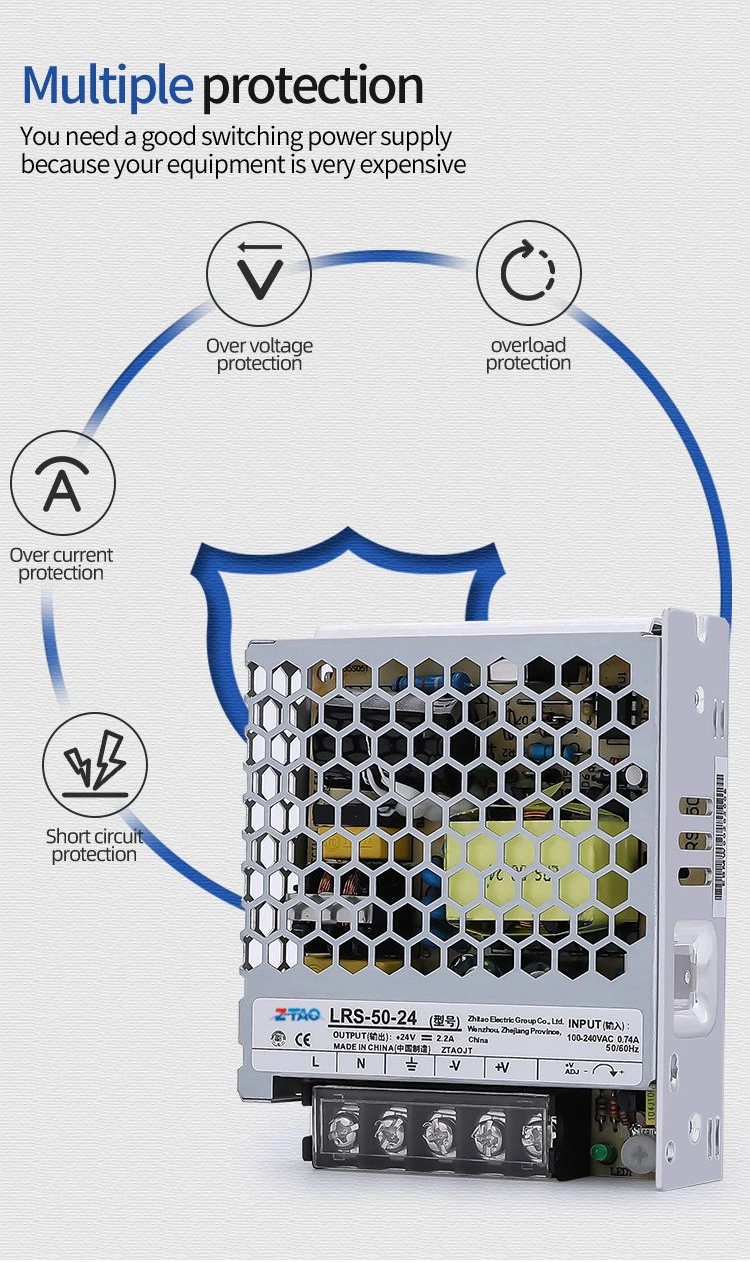

PROTECTION |
Over load |
115%~150% in rated output power |
|||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|||||||
|
Over voltage |
5.75~6.9V |
13.8~16.2V |
18.75~21.75V |
28.8~33.6V |
41.4~48.6V |
55.2~64.8V |
|
|
Protection mode, tum off output voltage, restart to recover |
|||||||
|
Environment |
Working TEMP |
-10℃~+60℃. |
|||||
|
Working humidity |
20~65% RH non-condensing |
||||||
|
Storage TEMP humidity |
-10℃~+60℃，10~95% RH |
||||||
|
TEMP.coefficient |
±0.03%℃ (0-50℃) |
||||||
|
Vibration |
10~500Hz，5G 10min./1cycle . 60min Each along X,Y,Z axes. |
||||||
|
SAFETY |
Safety regulations |
UL60950-1,TUV EN60750-1 In line with the certification |
|||||
|
Withstand voltage |
I/P-O/P:4KVAC I/P-FG:2KVA O/P-FG:1.25KVAC |
||||||
|
Insolation resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
||||||
|
Electromagnetic compatible emission |
Compliance to EN55032(CISPR32 )Class B, EN61000-3-2,-3, EAC TP TC 020 |
||||||
|
EMC immunity requirements |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024,EN1000-6-1 Class A heavy Industry standard, |
||||||
|
OTHERS |
MTBF |
≥760K hrs.MIL-HDBK-217F(25℃) |
|||||
|

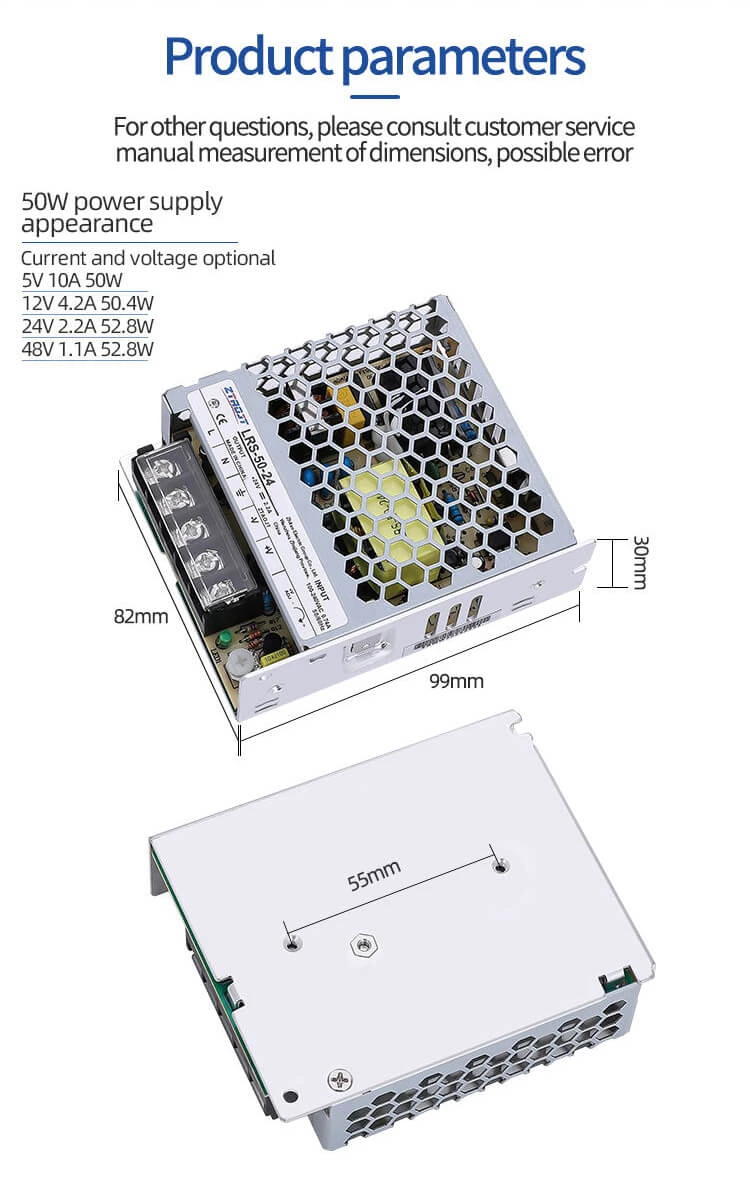

Dimension |
99*82*30mm(L*W*H) |
||||||
|
Packing |
0.2Kg:60PCS/13Kg/0.85CUFT |
||||||
