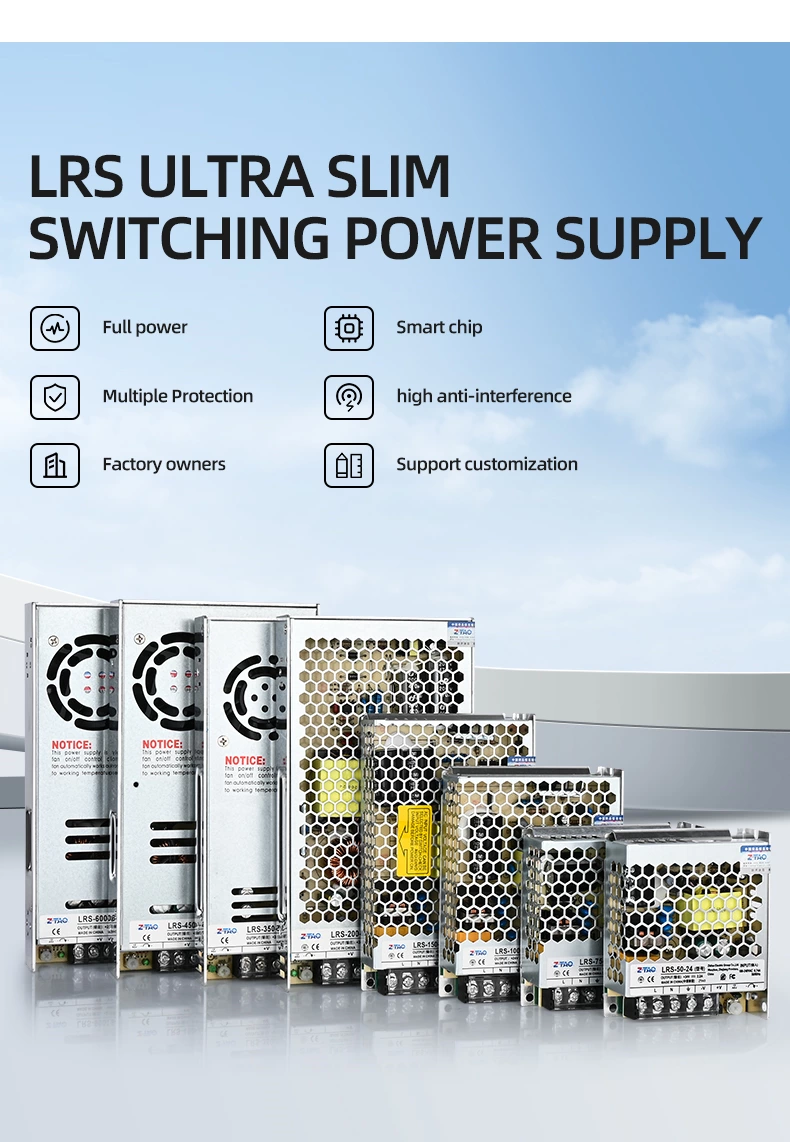

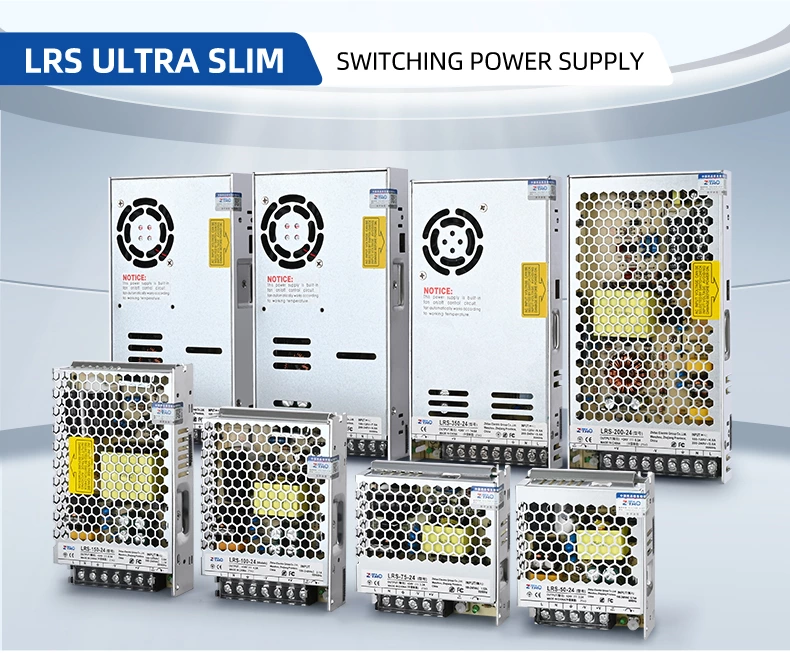

LRS Switch Power Supply

LRS-450W 12v 37.5A 24v 18.8A 48v 9.4A ultrathin switching power supply

Place of Origin;
Yueqing City, Wenzhou city ,China
Brand Name:
ZTAO
Model Number:
LRS-450W
Output Type:
Single output
Input Voltage:
5~132 VAC/185~264VAC selectable by switch
Output Voltage:
24v/12v//36/48v or customized
Output Frequency:
50/60Hz
Output Current:
18.8A/37.5A/12.5A/9.4A or customzied
Output Power
450W
Efficiency:
88% 89% 90%
Workig Temperature:
~10℃~+60℃
Materail:
aluminum
Certification:
CE FCC ROHS ISO9001
Test:
100% full load burn-in test

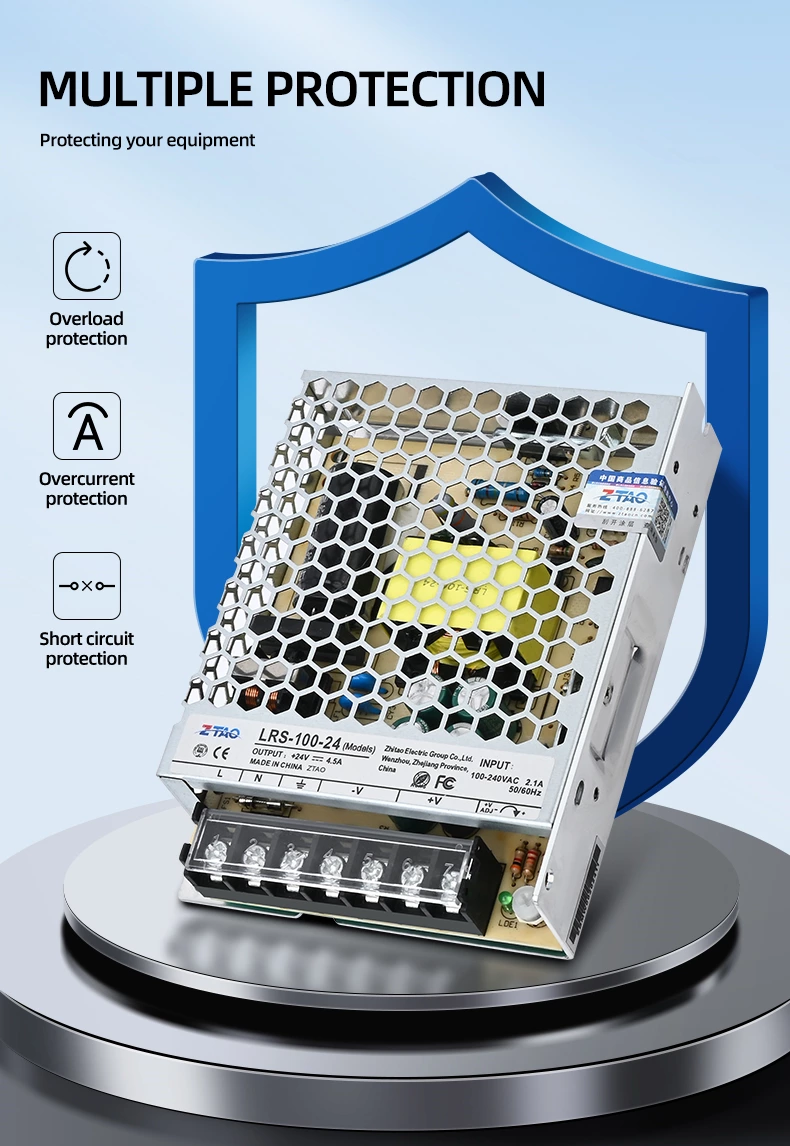

Protection:
Short Circuit Protection, Overcurrent Protection, Overvoltage protection, Over Temperature Protection, Overloading Protection, Over Power Protection
Warranty
3 years

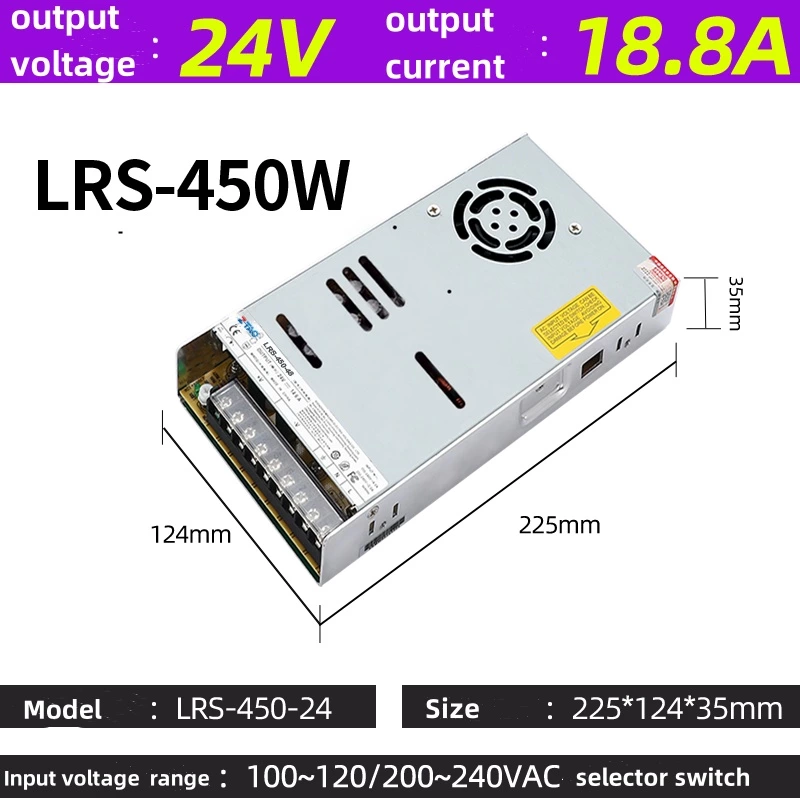

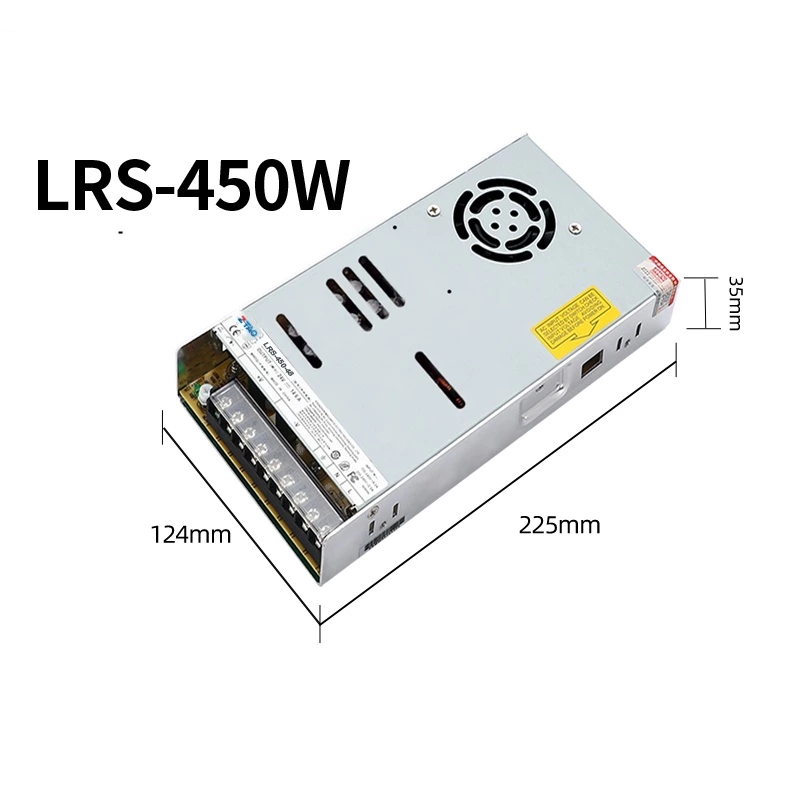

Size
225*124*35mm(L*W*H )
