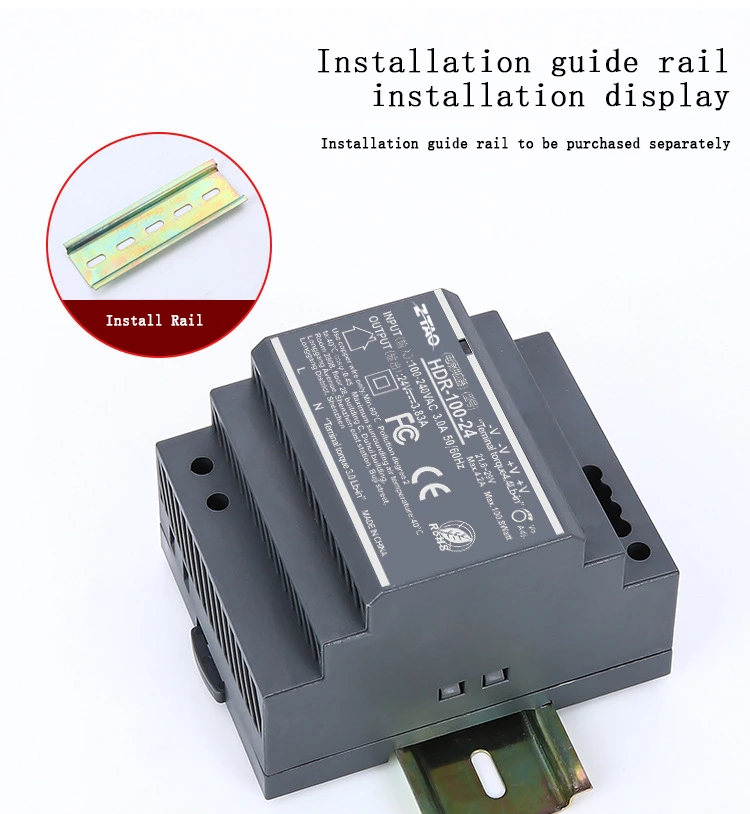

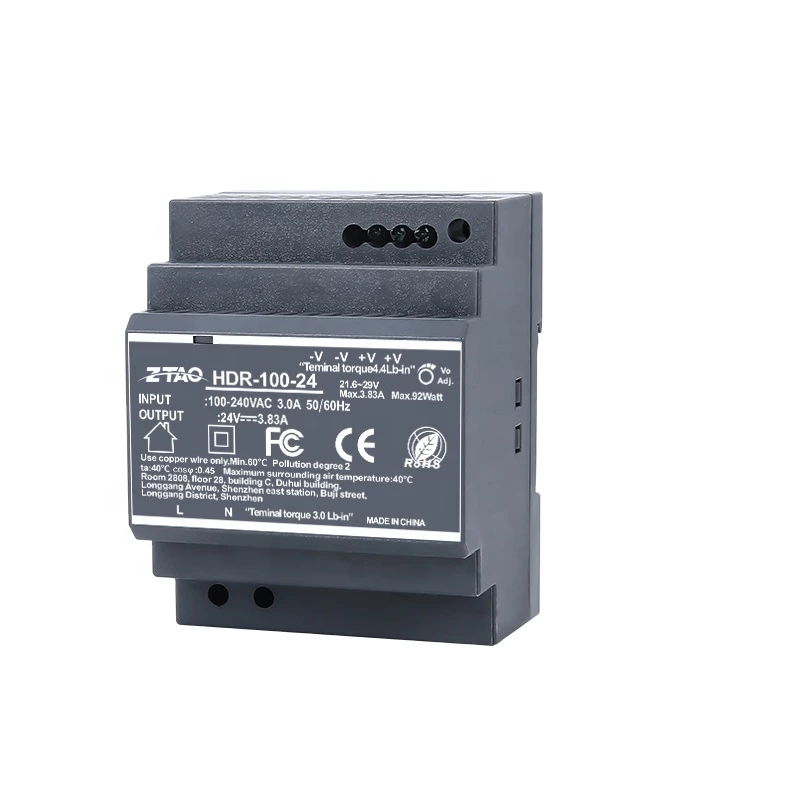

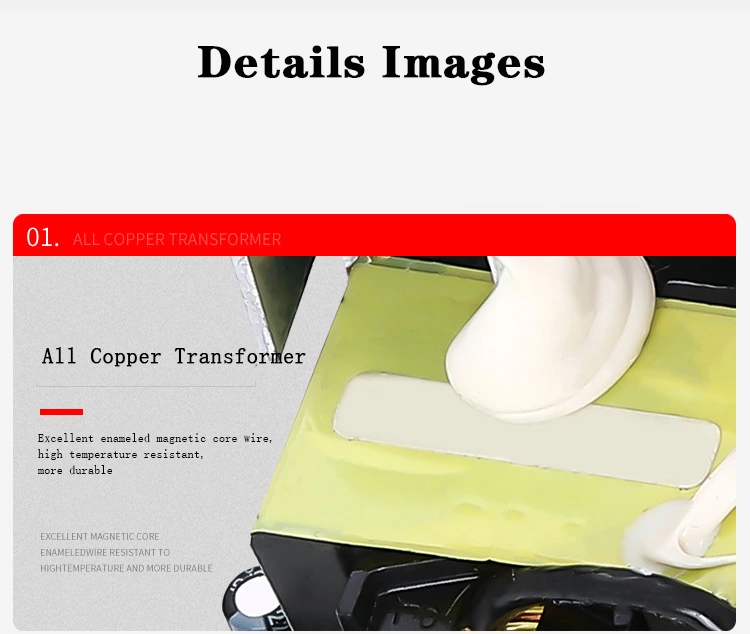

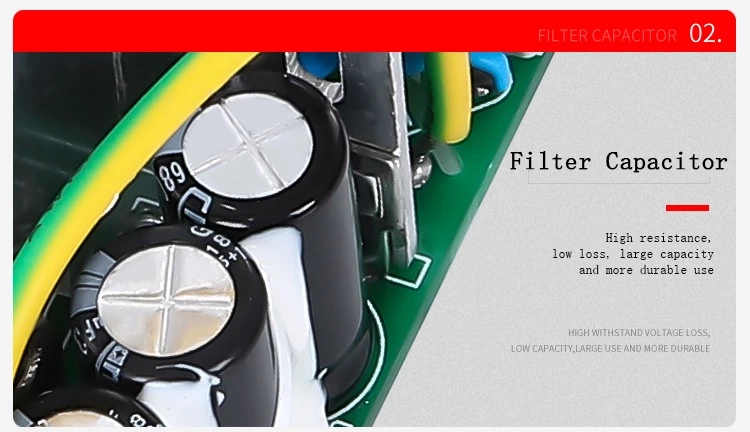

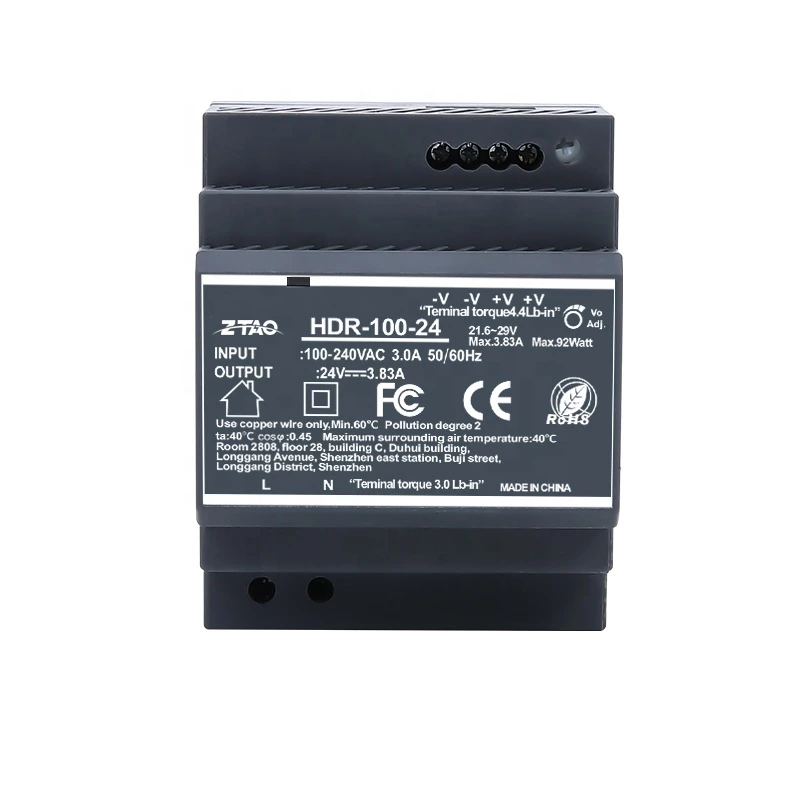

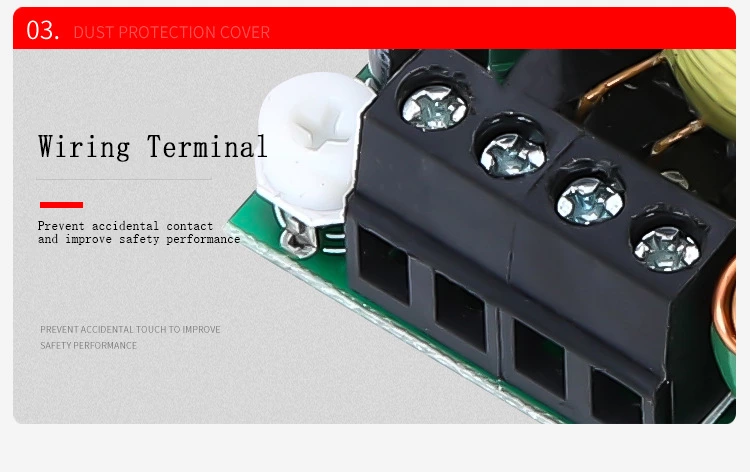

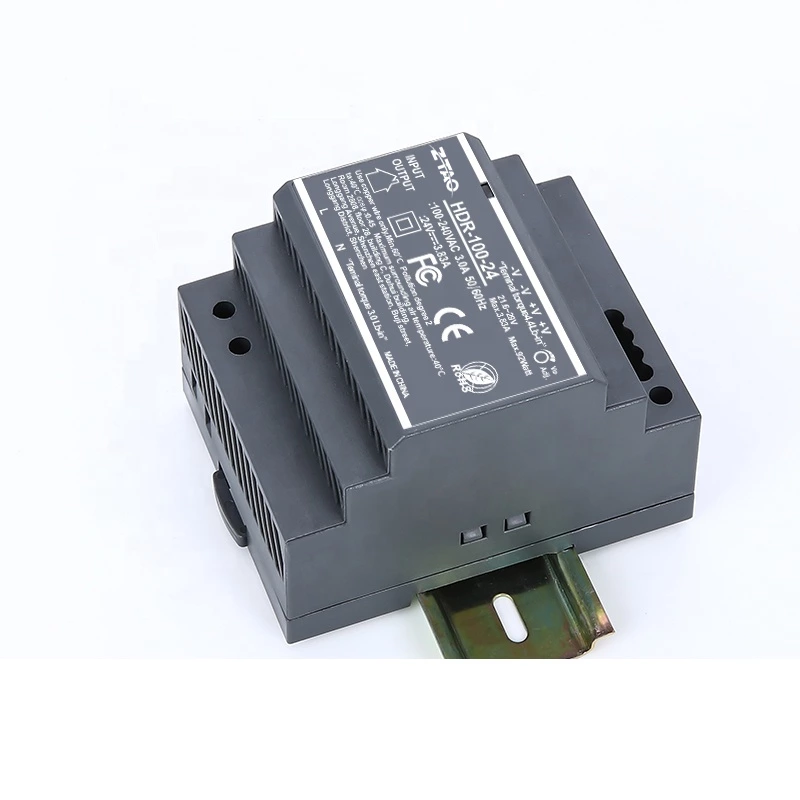

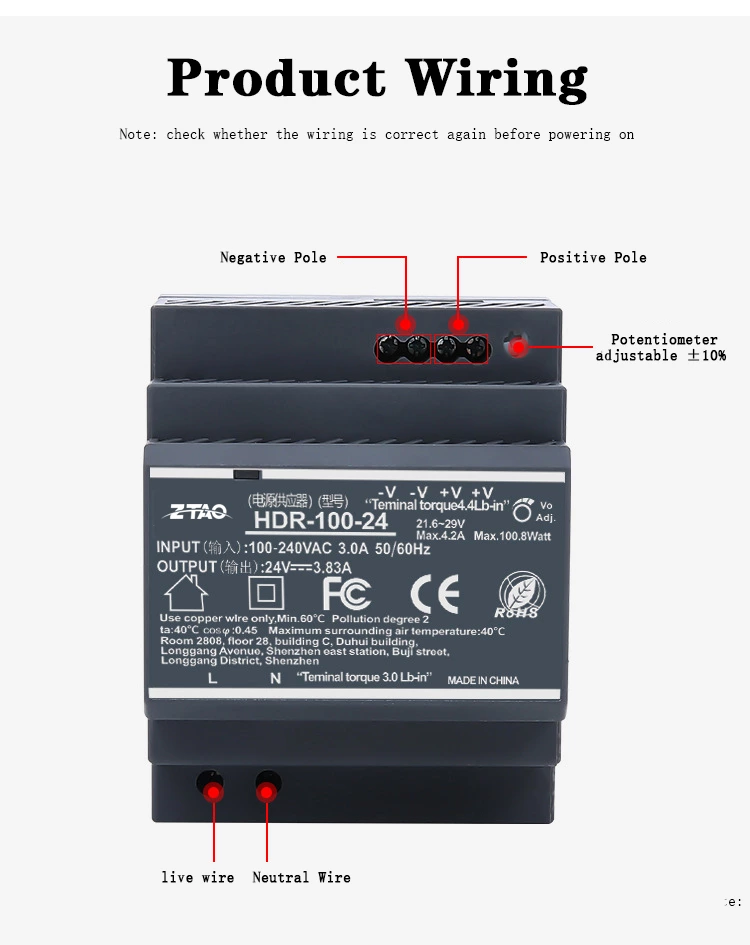

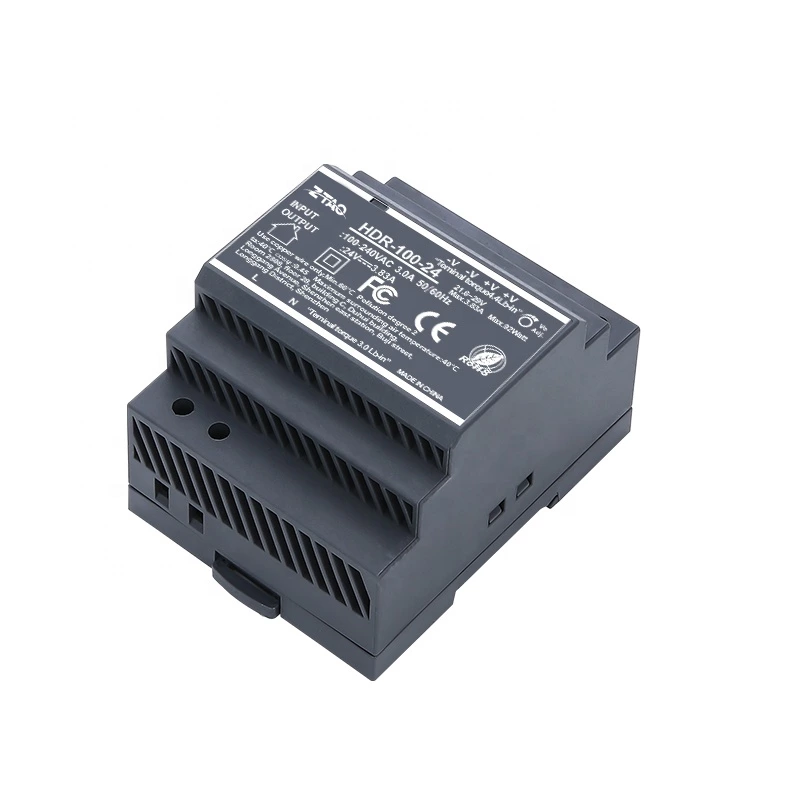

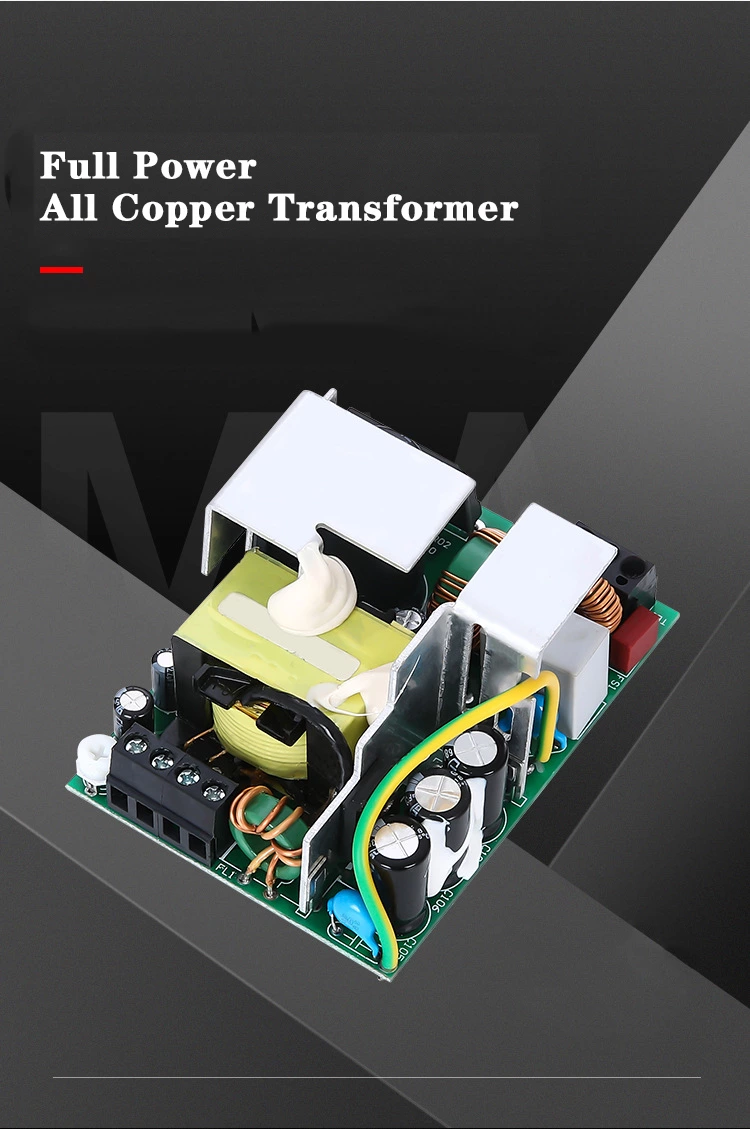

| MODEL | HDR-100-12 | HDR-100-15 | HDR-100-24 | HDR-100-48 | |
| OUTPUT | DC Voltage | 12v | 15V | 24v | 48v |
| Rated Current | 7.5A | 6.5A | 4.2A | 2.1A | |
| Current range | 0~7.5A | 0~6.5A | 0~4.2A | 0~2.1A | |
| Rated power | 90w | 97.5w | 100.8w | 100.8W | |
| Ripple&noise(max.) | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | |
| Voltage ADJ. range | 12~13.8V | 13.5~18V | 21.6~29V | 43.2~55.2V | |
| Voltage tolerance | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| Line regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Load regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Setup,Rise,Time | 500ms, 60ms/230VAC 500ms, 60ms/115VAC(full load) | ||||
| Hold up time | 30ms/230VAC 12ms/115VAC（full load) | ||||
| INPUT | Voltage range | 85~264VAC(277VACusable ) 120~370VDC(390VDCusable ) | |||
| Voltage range | 50~60Hz | ||||
| Efficiency | 88% | 89% | 90% | 90% | |
| AC current | 3A/115VAC 1.6A/230VAC | ||||
| Inrush current | Cold start: 35A/115VAC 70A/230VAC | ||||

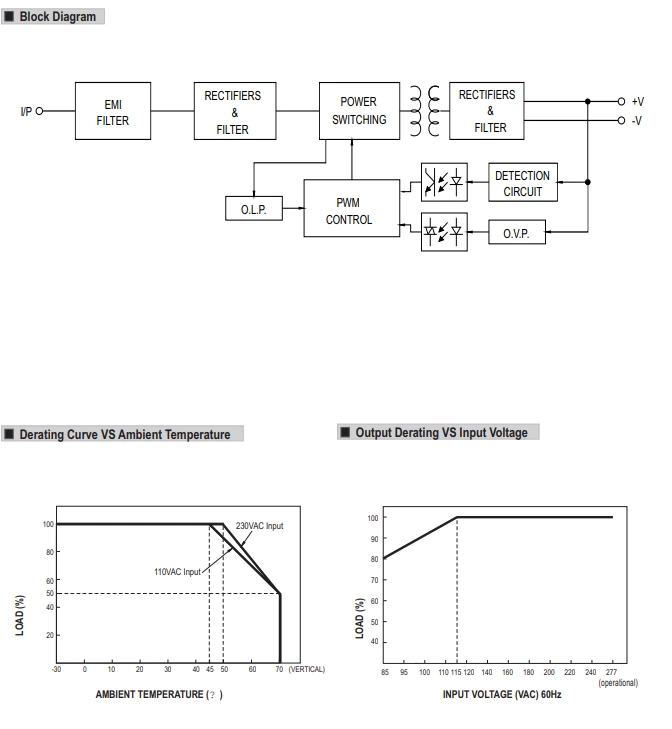

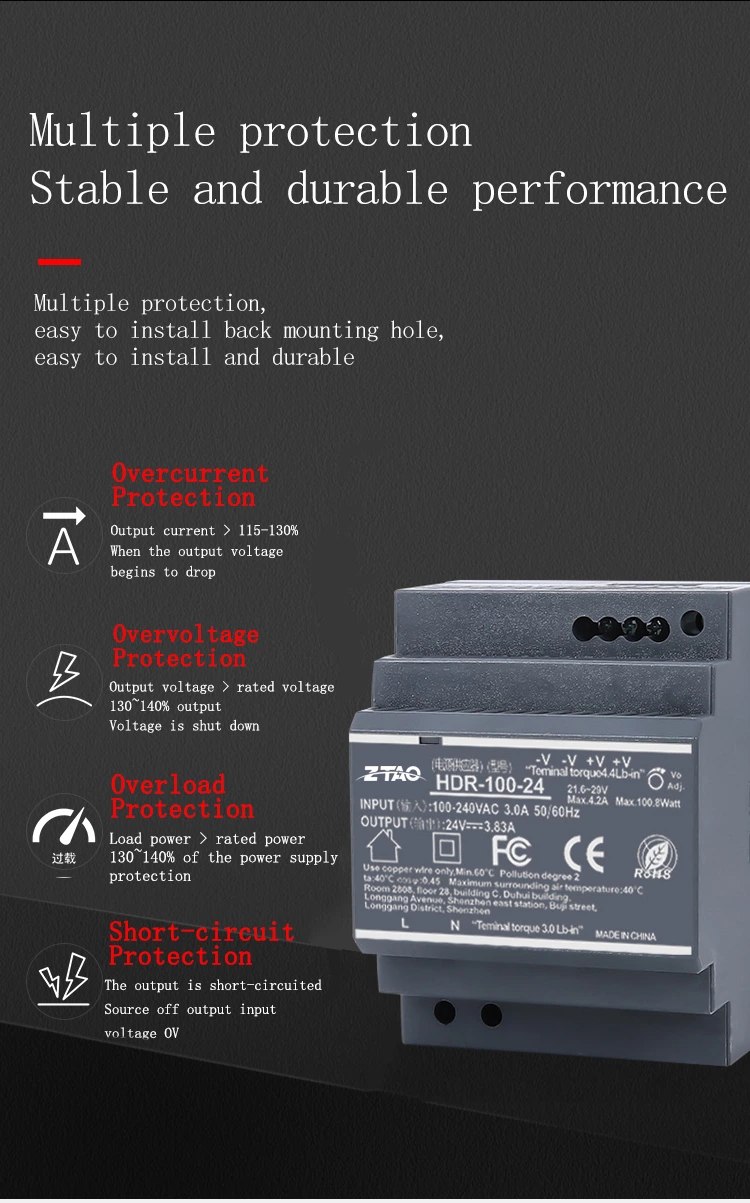

| PROTECTION | Over load | 105~150% rated output power | |||
| Protected mode: constant current mode, can be automatically restored after the load abnormal condition is removed | |||||
| Over voltage | 14.2~16.2V | 18.8~22.5V | 30~36V | 56.5~64.8V | |
| Protective mode; Close the output and restart to restore | |||||
| Environment | Working TEMP | -30~+70℃ | |||
| Working humidity | 20~90% RH,non-condensing | ||||
| Storage TEMP humidity | -40~+85℃,10-95%RH,non-condensing | ||||
| TEMP.coefficient | ±0.03%℃(0~50℃) | ||||
| Vibration | 10~500Hz，2G 10min./1cycle，60min.each along X,Y,Z axes Install conform to IEC60068-2-6 | ||||
| Operating altitude | 2000m | ||||
| Over voltage class | Ⅲ;According to EN61558 EN50178 EN60664-1, EN62477-1;The altitude can be as high as 2,000 meters | ||||
| SAFETY&EMC | Safety regulations | Ul60950-1,L508,EACTPTC O04,BSMI CNS14336-1, TuVEN61558-2-16,IEC60950-1 Certified | |||
| Withstand voltage | I/P-O/P4KVAC | ||||
| Insolation resistance | I/P-O/P:100M Ohms 500VDc / 25℃/70% RH | ||||
| Electromagnetic compatible emission | Parameter | Standard | Test Level /Note | ||
| Conducted | EN55032(CISPR32),CNS13438 | Class B | |||
| Radiated | EN55032(CISPR32),CNS13438 | Class B | |||
| Harmonic Current | EN61000-3-2 | Class A | |||
| Voltage Flicker | EN61000-3-3 | ......... | |||
|
EMC immunity requirements |
EN55024,EN55035,EN61000-6-2,EN61204-3 | ||||
| Parameter | Standard | Test Level /Note | |||
| ESD | EN61000-4-2 | Level3.8KV air,Level2,4KV contact, criteriaA | |||
| Radiated Susceptibility | EN61000-4-3 | Level3,criteriaA | |||
| EFT / Burest | EN61000-4-4 | Level3,criteriaA | |||
| Surge | EN61000-4-5 | Level4,2KVIL-N, criteria A | |||
| Conducted | EN61000-4-6 | level3,criteriaA | |||
| Magnetic Field | EN61000-4-8 | Level 4,criteriaA | |||
| Voltage Dips and interruptions | EN61000-4-11 |
>95%dip0.5periods,30%dip 25perods, >95% interruptions 250 periods |
|||
| OTHERS | MTBF | ≥856.5K hrs.MIL-HDBK-217F(25℃) | |||

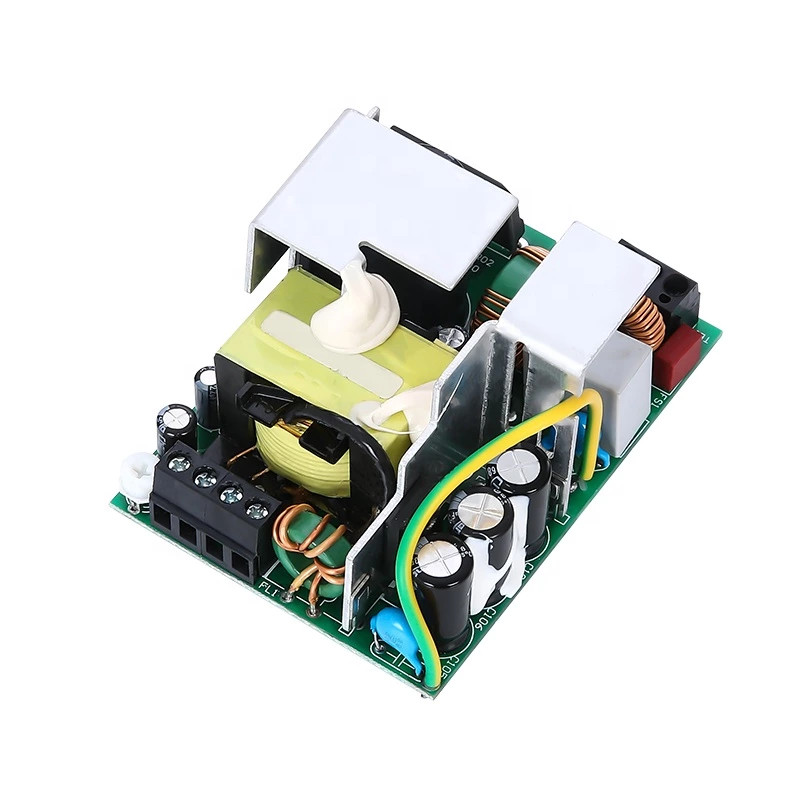

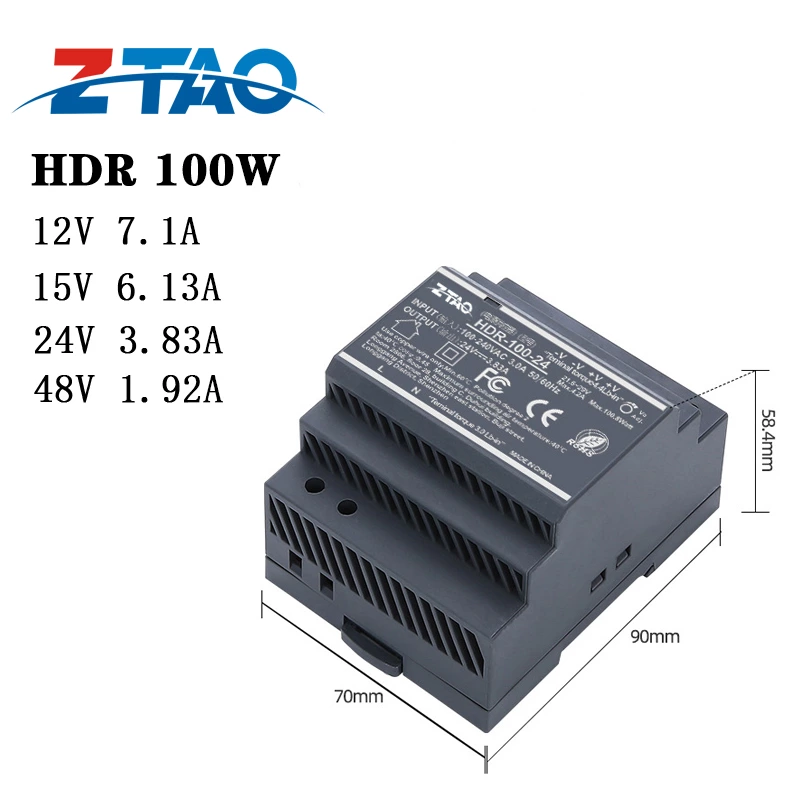

| Dimension | 70*90*54.5mm (W*H*D) | ||||
| Packing | 0.27Kg;48pcs/14Kg/0.6CUFT | ||||
