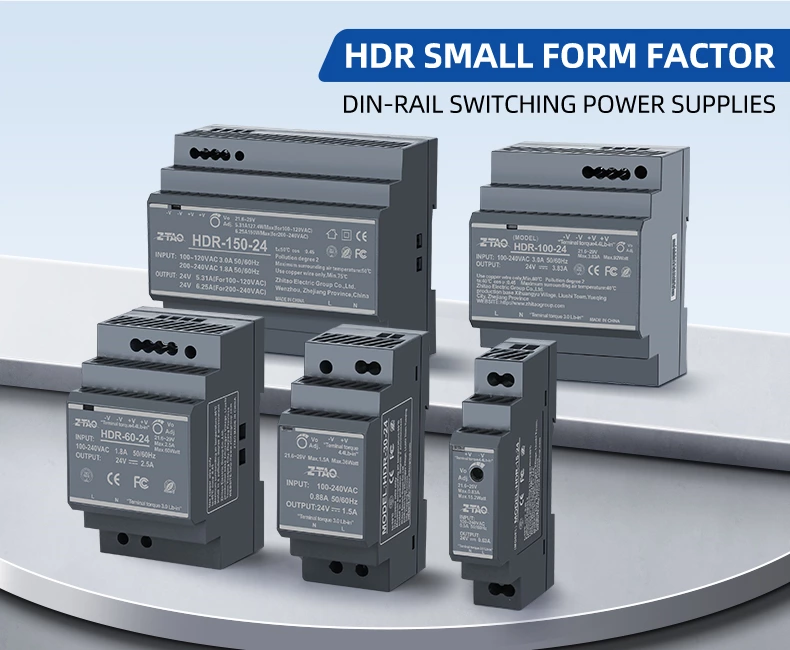

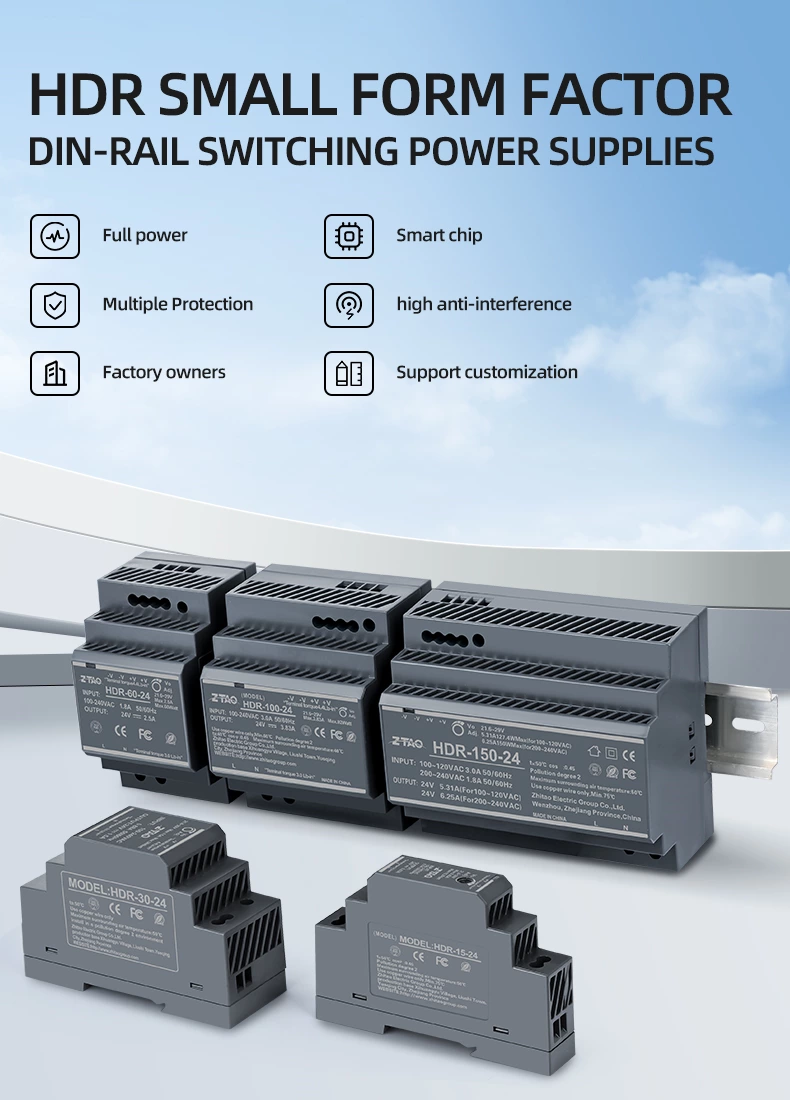

Din Rail Series Ultra-Thin HDR Series Smps Power Supplies HDR 15W 30W 60W 100W 150W 12V 24V Ac to Dc Switching Power Supply

Place of Origin;

Yueqing City, Wenzhou city ,China

Brand Name:

ZTAO

Model Number:

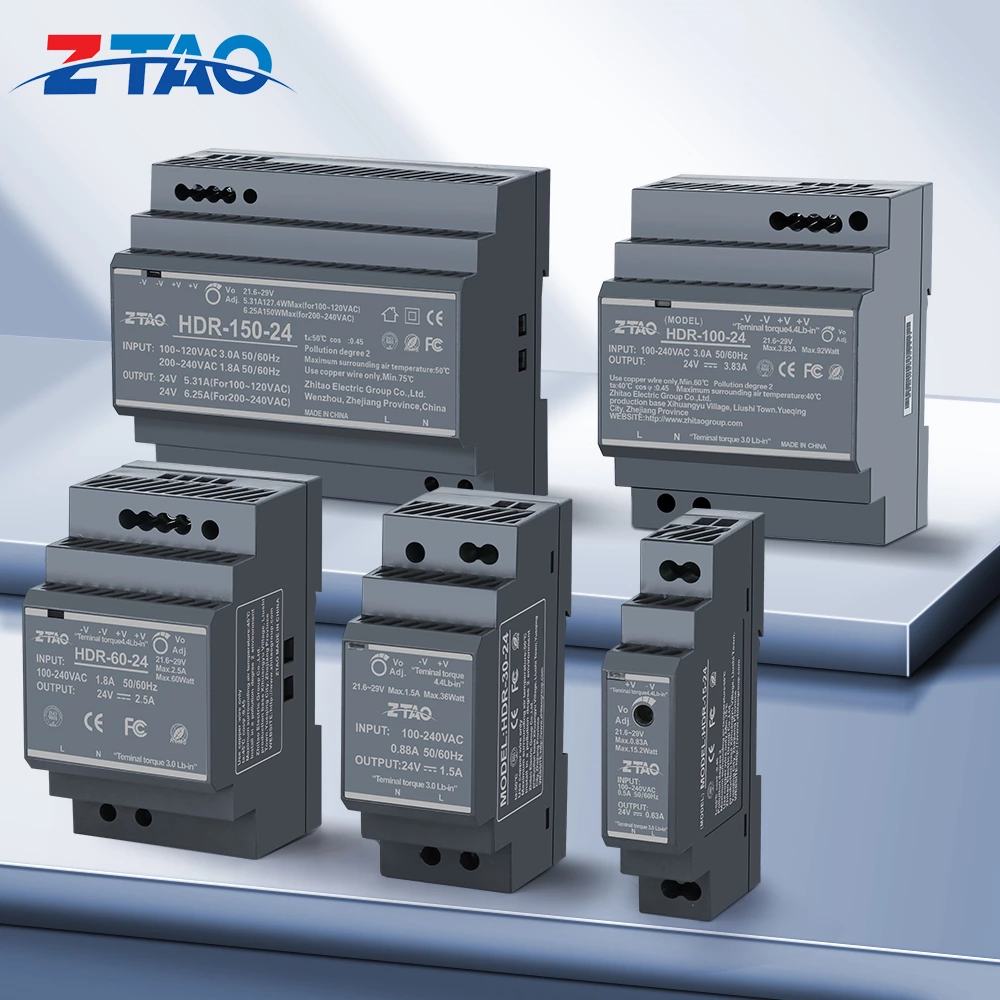

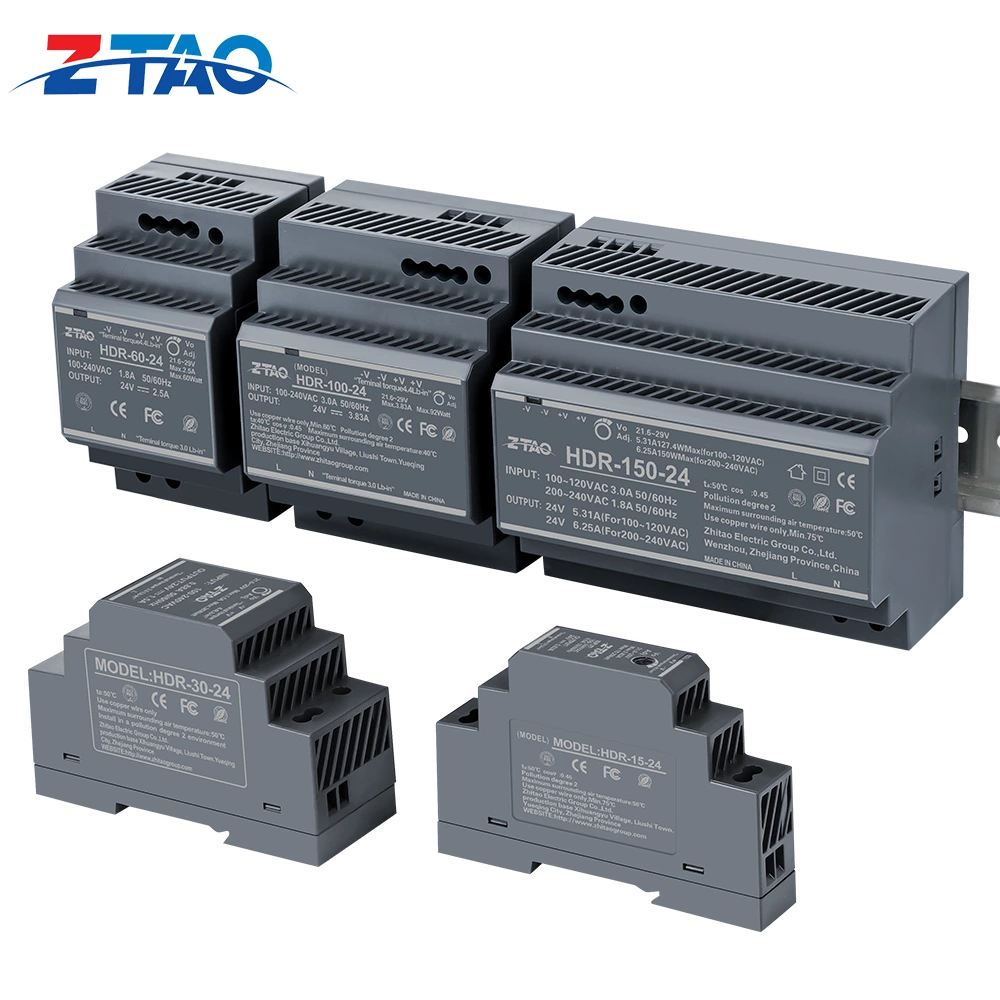

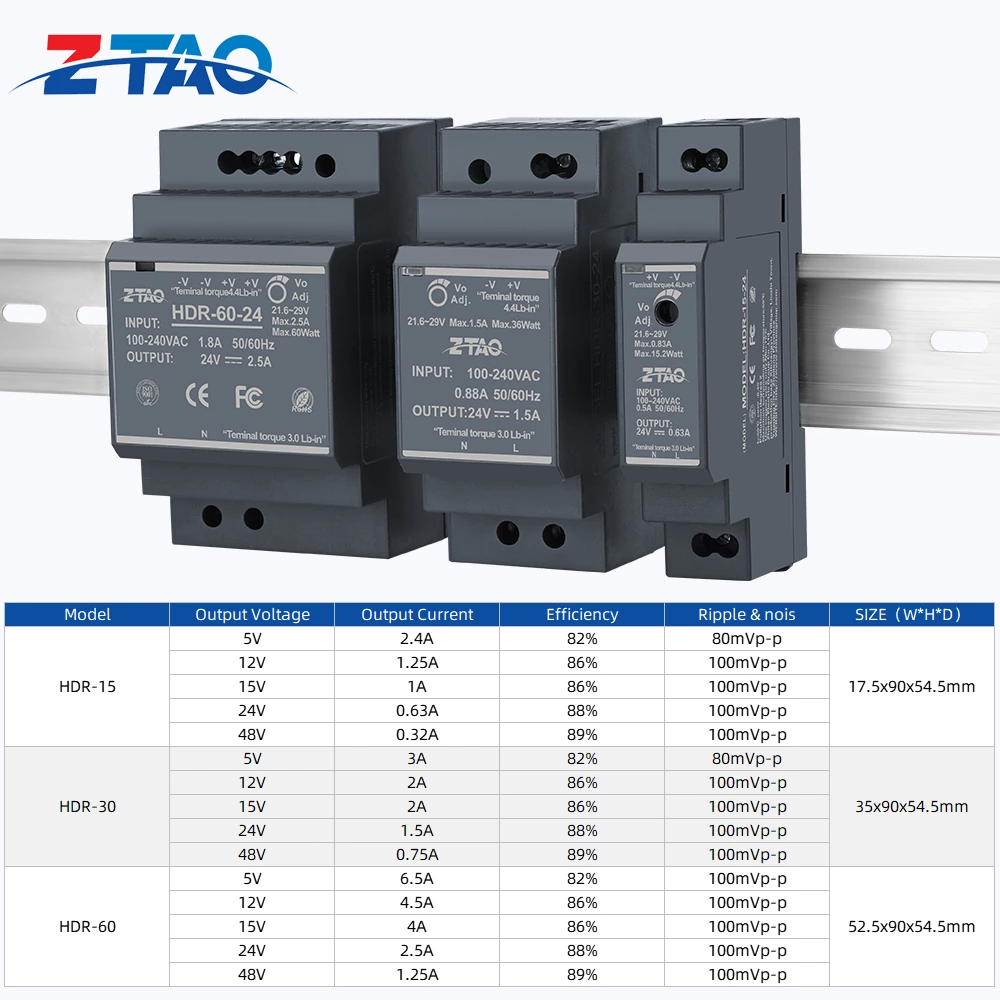

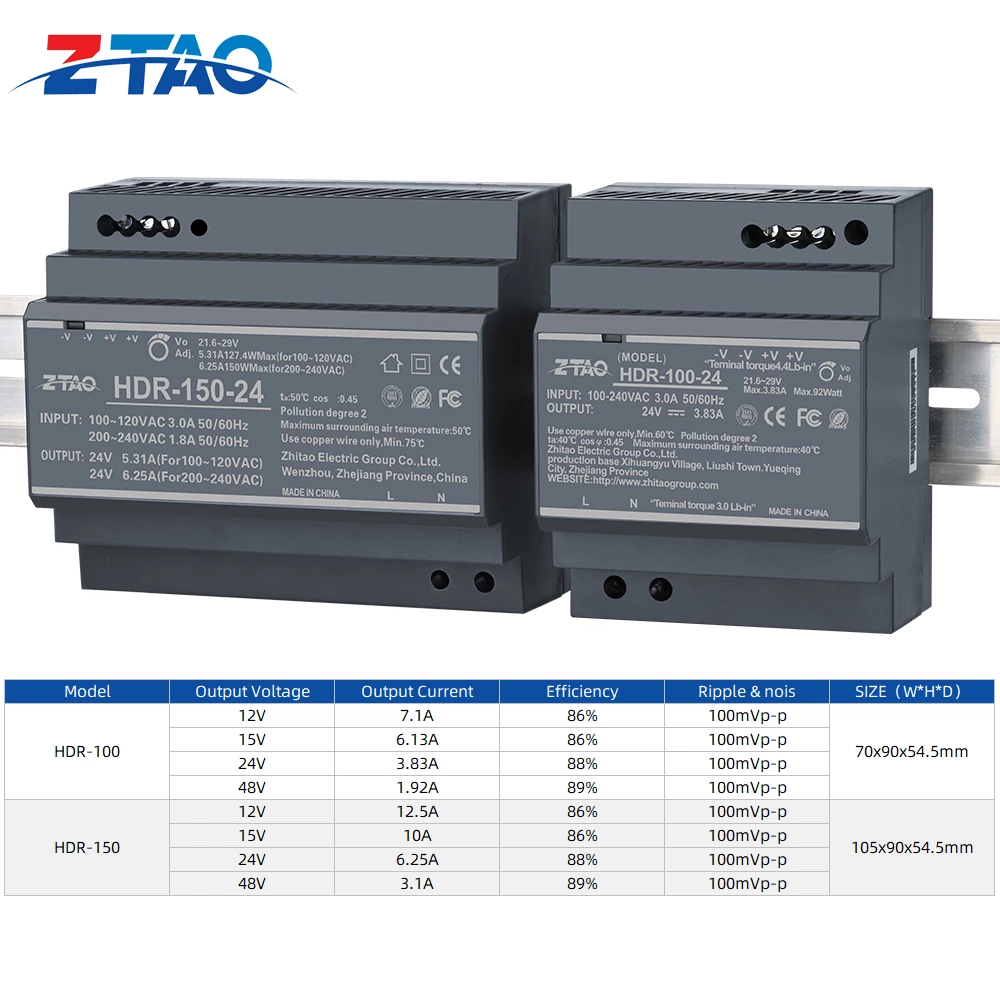

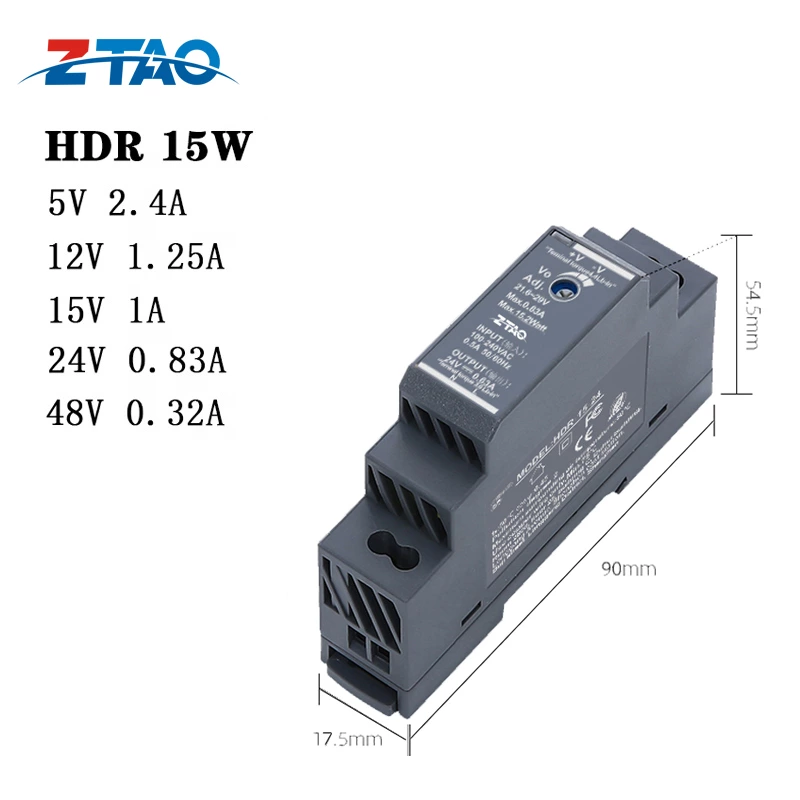

HDR-15-24, HDR-30-24, HDR-60-24, HDR-100-24, HDR-150-24

Input Voltage:

100~240VAC 140~340VDC

Output Voltage:

5V/12V /15V/24v/48V or customized

Output Frequency:

50/60Hz

Output Current:

0.63A, 1.5A, 2.5A, 3.83A or customized

Output Power

15W 30W 60W 100W 150W

Efficiency:

80%, 82%, 83%, 84%, 85%, 86%, 77%, 72%,88%

Workig Temperature:

~10℃~+60℃

Certification:

CE FCC ROHS ISO9001

Test:

100% full load burn-in test

Protection:

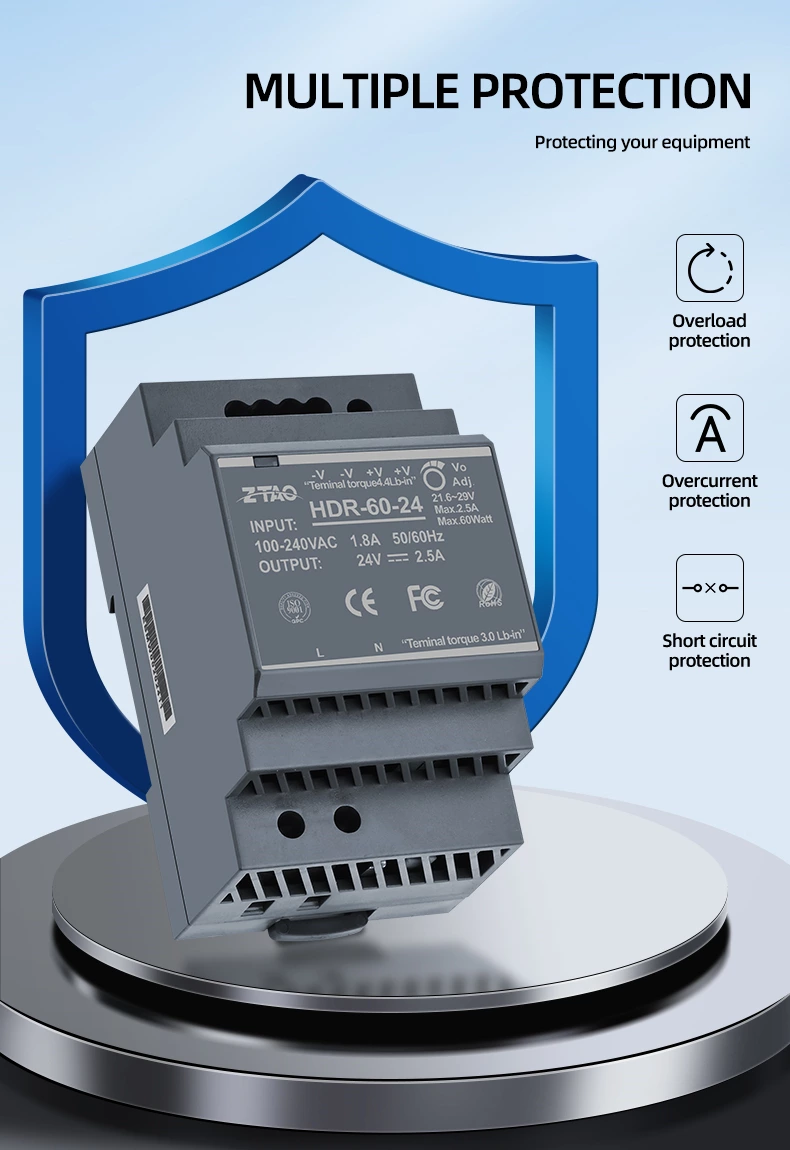

Short Circuit Protection, Overcurrent Protection, Overvoltage protection, Over Temperature Protection, Overloading Protection, Over Power Protection

Warranty

3 years
