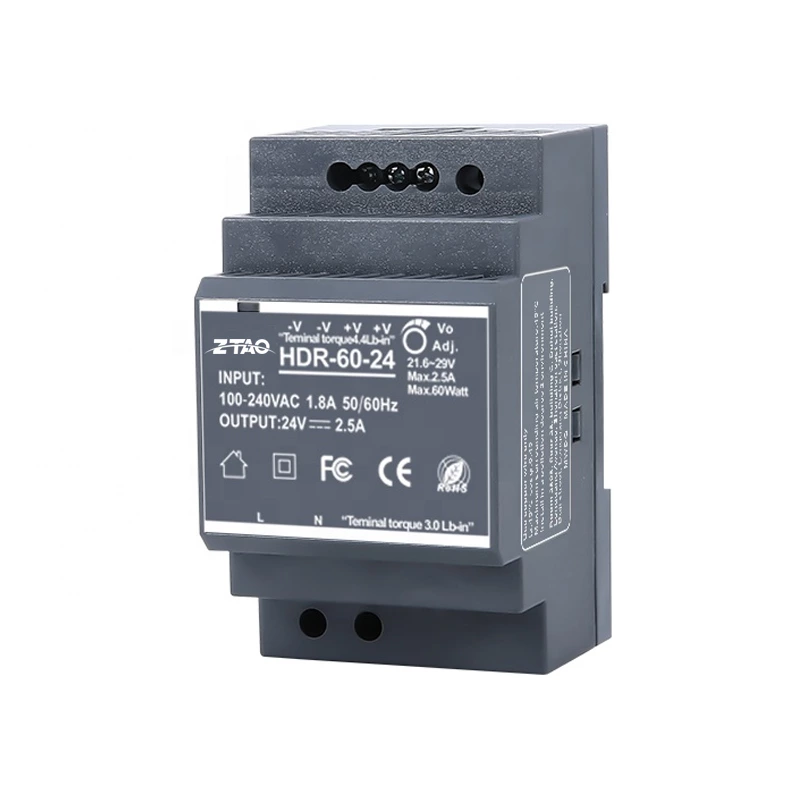

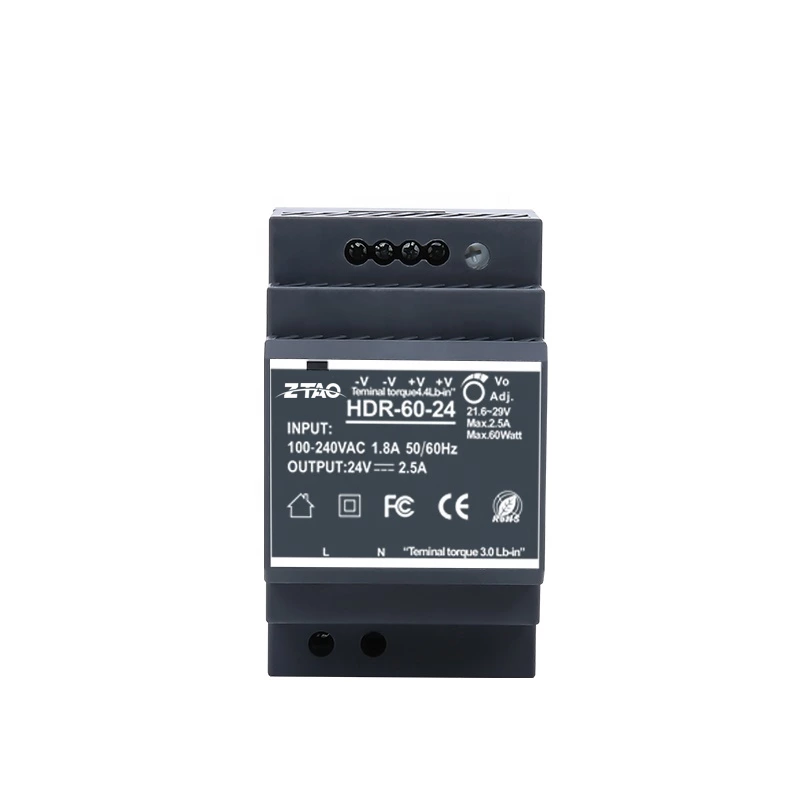

HDR Dinrail Switch Power Supply

Smps 12v 5a 24v 2.5a Hdr-60-24 60w Ac Dc Switching Power Supply for Led Driver

MODEL HDR-60-5 HDR-60-12 HDR-60-15 HDR-60-24 HDR-60-48 OUTPUT DC Voltage 5v 12v 15V 24v 48v Rated Current 6.5A 4.5A 4A 2.5A 1.25A Current range 0~6.5A 0~4.5A

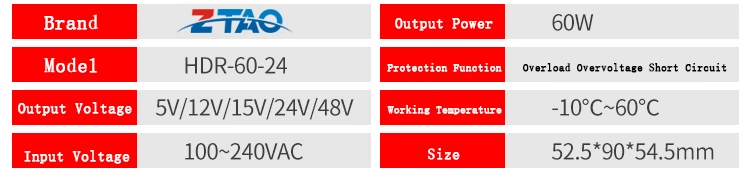

Place of Origin;
Zhejiang, China
Brand Name:
ZTAO
Model Number:
HDR-60-24
Output Type:
Single
Input Voltage:
100~264VAC,140~370VDC
Output Voltage:
24V/12V/48V can be choose
Output Frequency:
50~60Hz
Output Current:
0~2.5A
Output Power
60W
Efficiency:
90%
Workig Temperature:
-10~+60℃
Materail:
Aluminum
Certification:
CE FCC ROHS
Test:
100%Full Load Burn-in Test
Protection:
Short Circuit Overtemp Overload Overvolt
Warranty
3 Years
Size

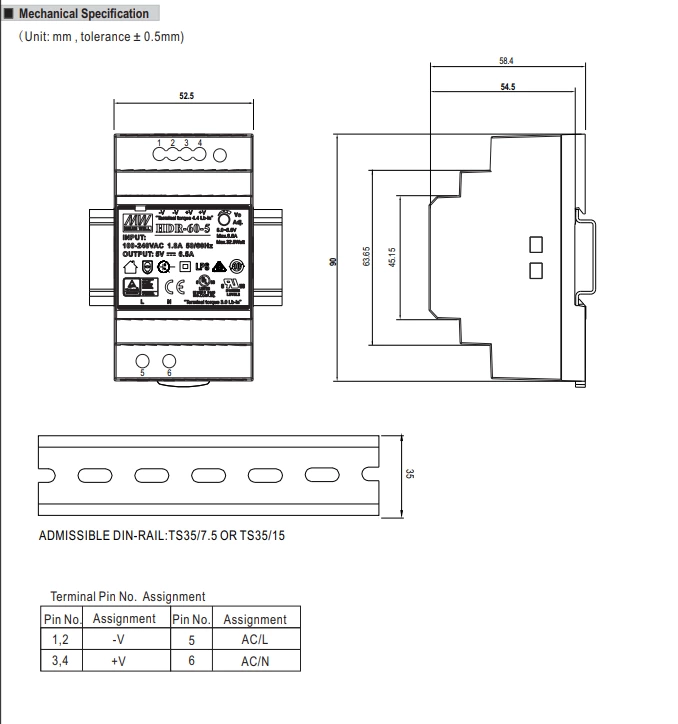

52.5*90*54.5mm(W*H*D)



Smps 12v 5a 24v 2.5a Hdr-60-24 60w Ac Dc Switching Power Supply for Led Driver

MODEL



HDR-60-5

HDR-60-12

HDR-60-15

HDR-60-24

HDR-60-48



OUTPUT

DC Voltage

5v

12v

15V

24v

48v

Rated Current

6.5A

4.5A

4A

2.5A

1.25A

Current range

0~6.5A

0~4.5A

0~4A

0~2.5A

0~1.25A

Rated power

32.5w

54w

60w

60w

60W

Ripple&noise

80mVp-p

120mVp-p

120mVp-p

150mVp-p

240mVp-p

Voltage ADJ. range

5.0~5.5V

10.8~13.8V

13.5~18V

21.6~29V

43.2~55.2V

Voltage tolerance

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

Line regulation

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

Load regulation

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

Setup,Rise,Time

500ms, 50ms/230VAC 500ms, 50ms/115VAC(full load)

Hold up time

30ms/230VAC 12ms/115VAC(full load)



INPUT

Voltage range

100~264VAC 140~370VDC

Voltage range

50~60Hz

Efficiency

85%

88%

89%

90%

91%

AC current

0.88A/115VAC 0.48A/230VAC

Inrush current

Cold start: 30A/115VAC 60A/230VAC
