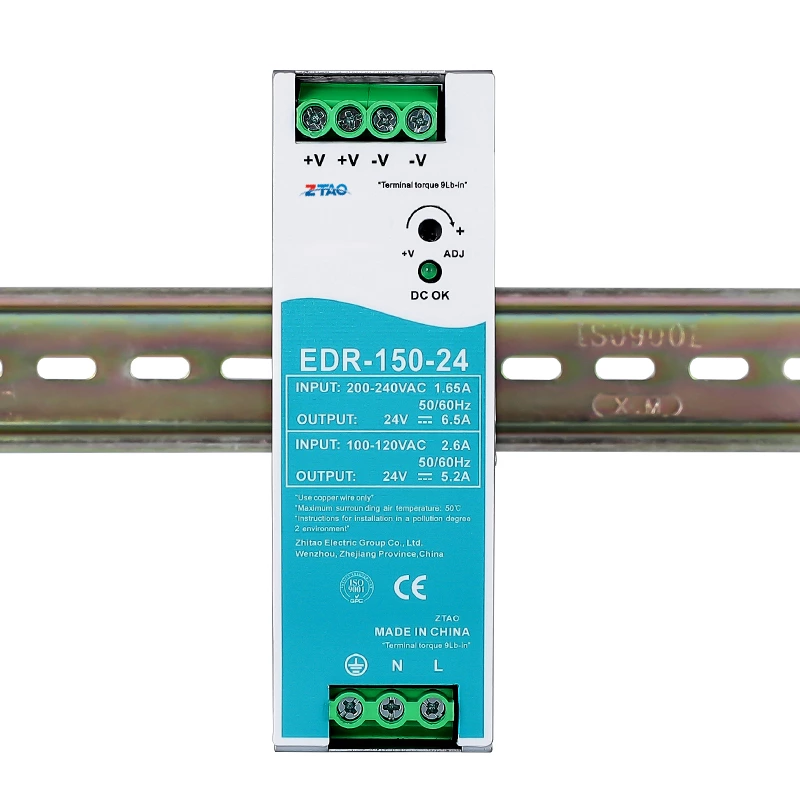

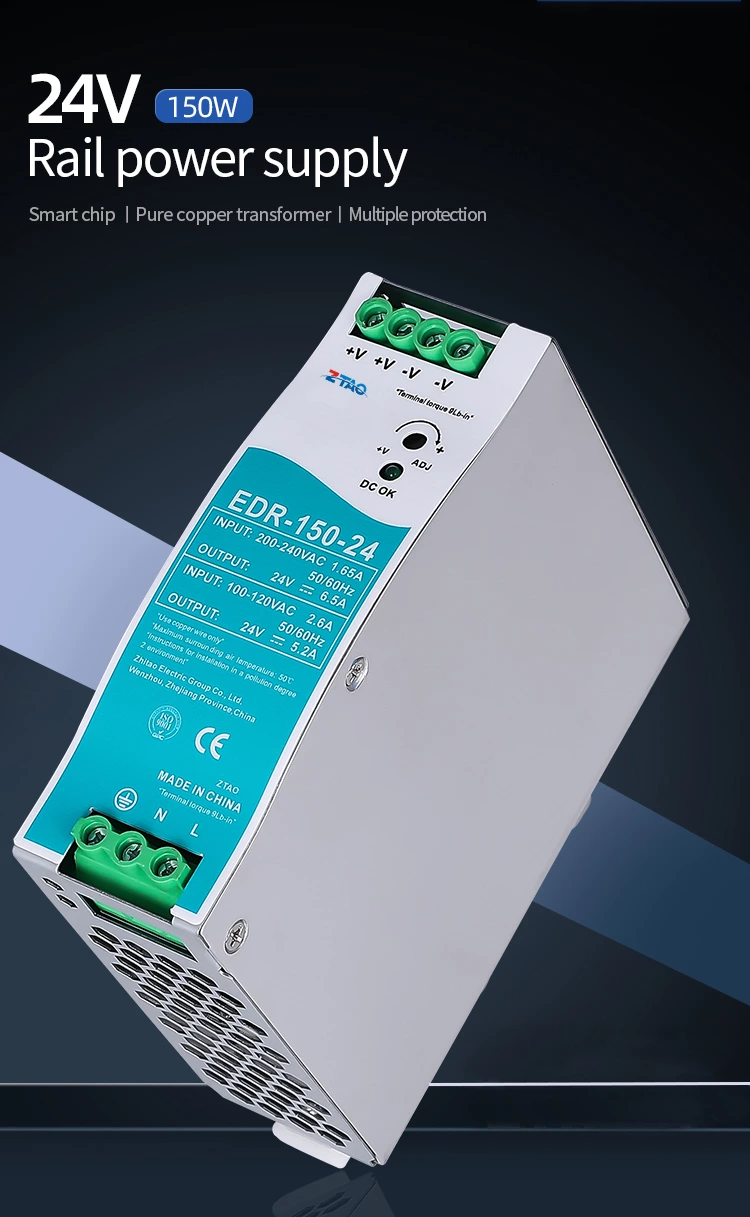

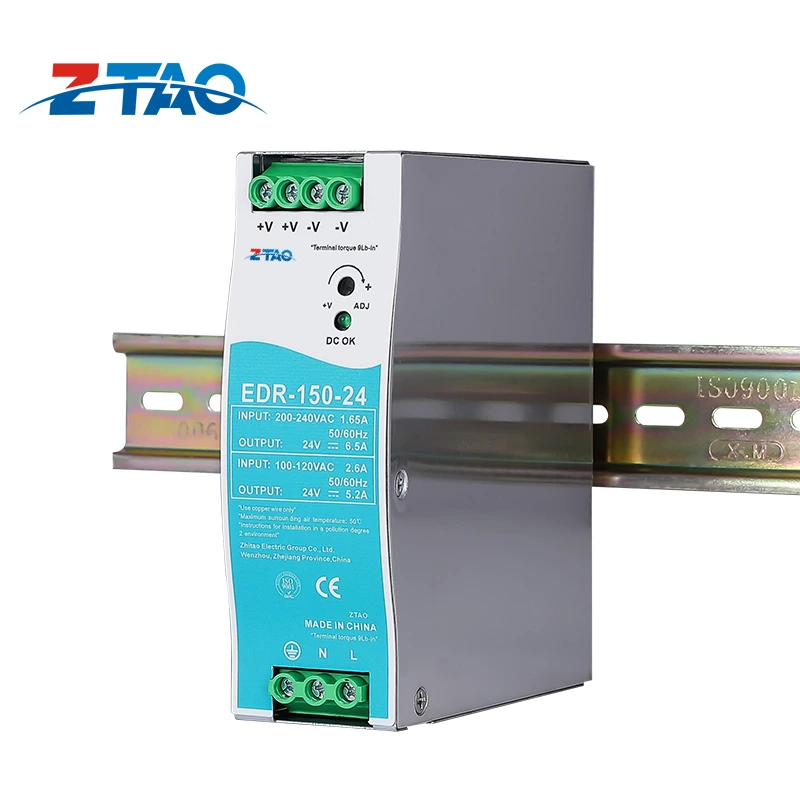

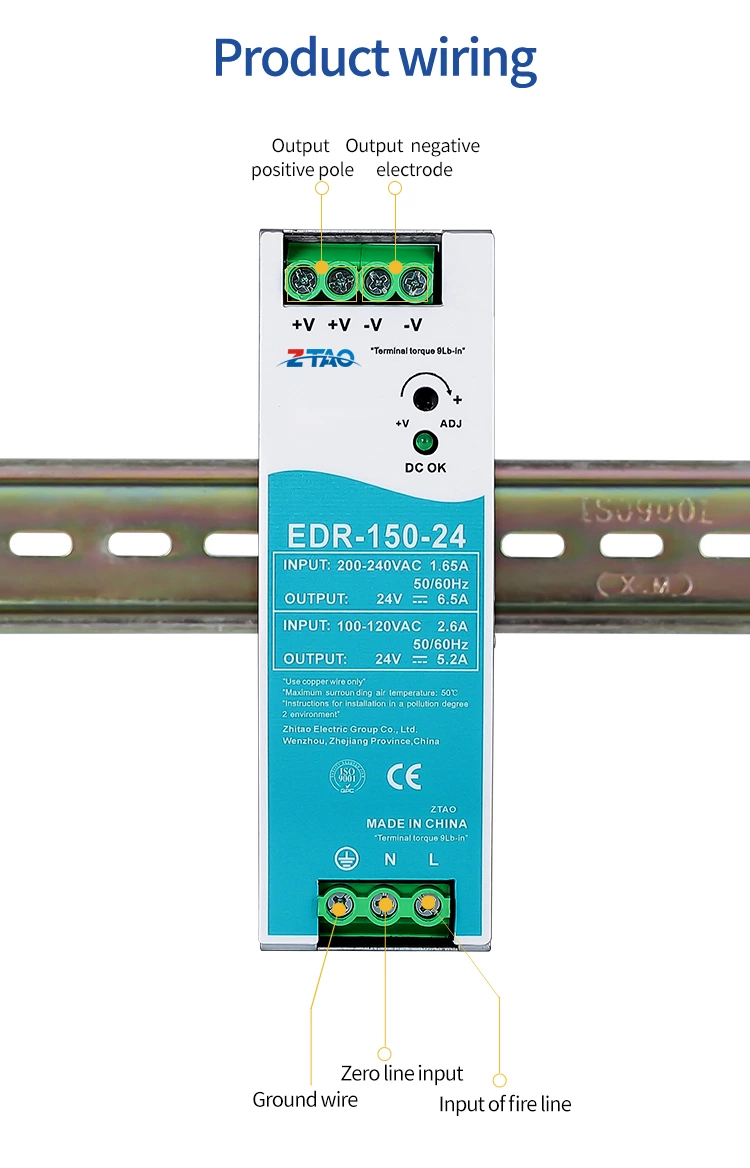

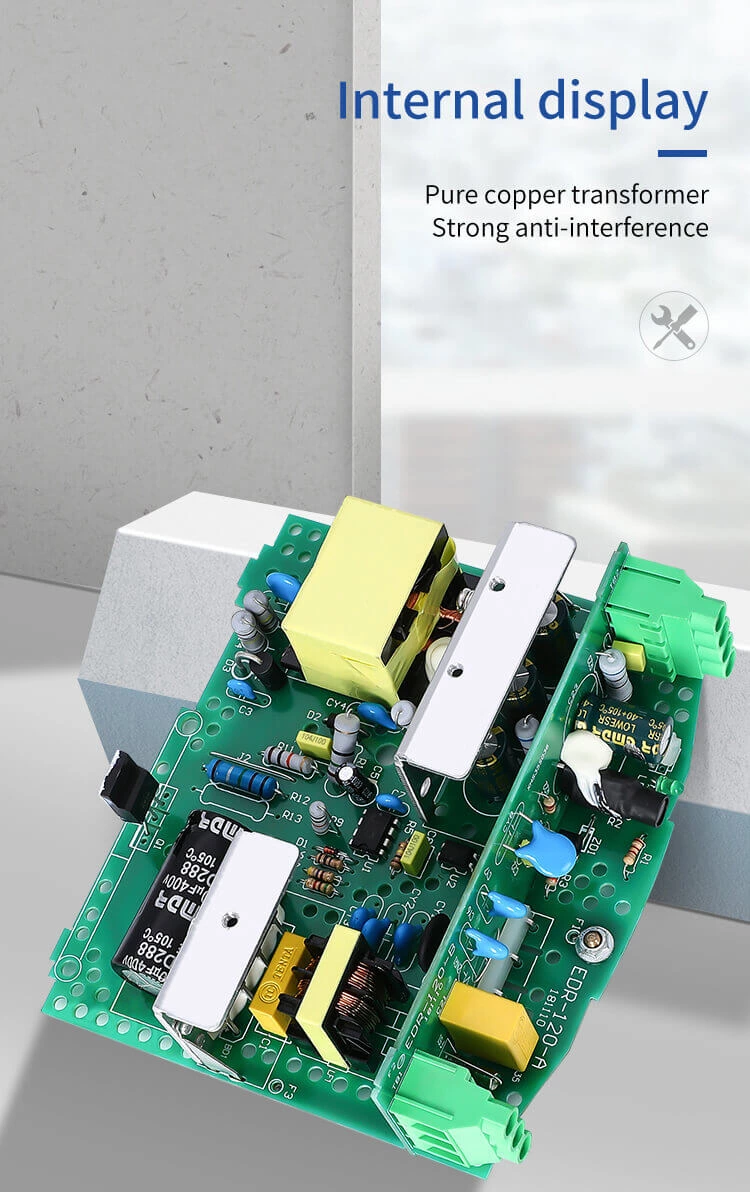

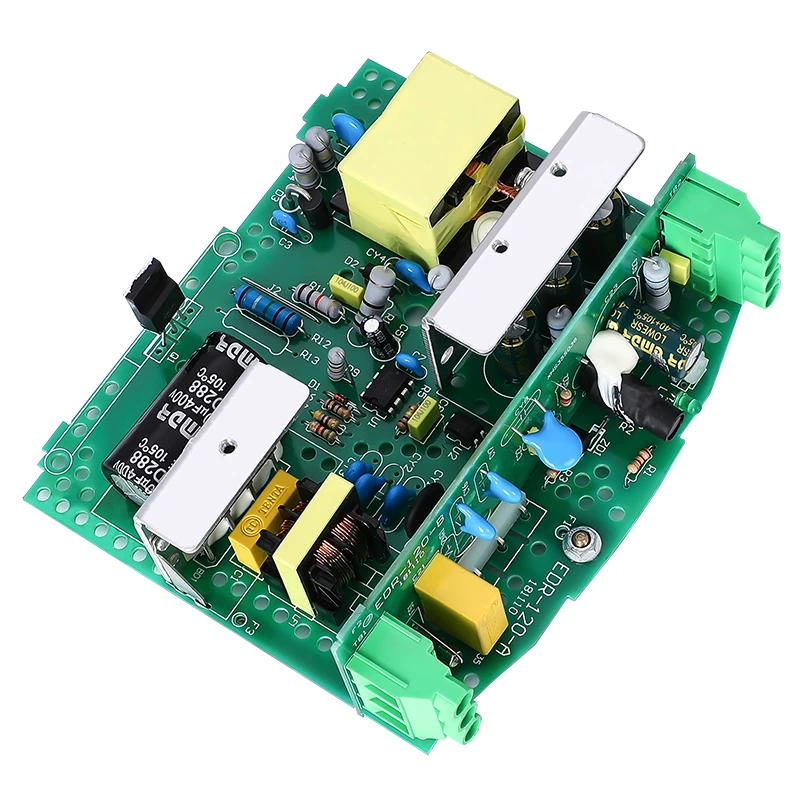

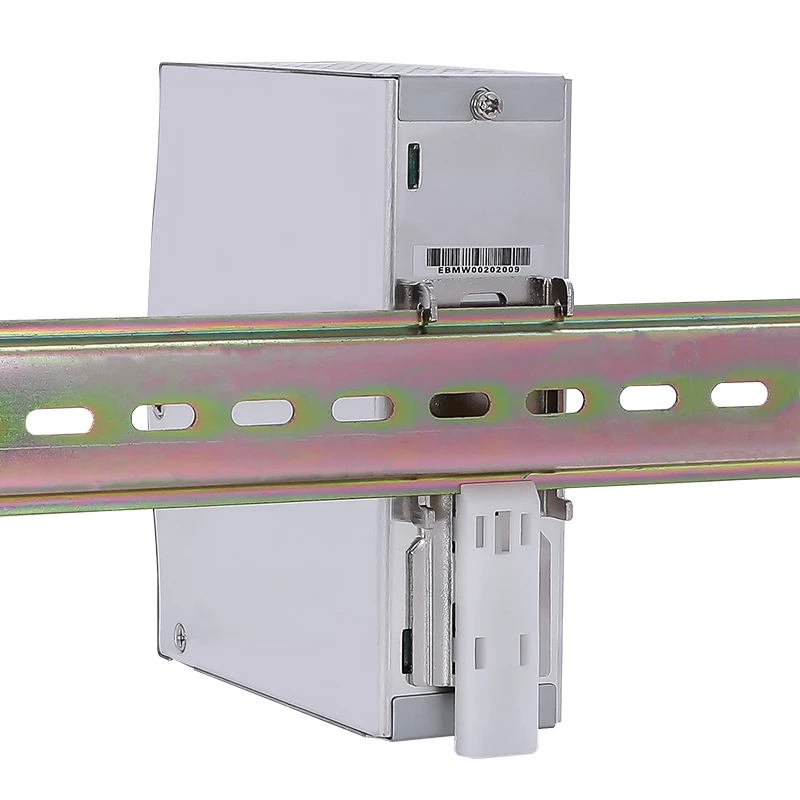

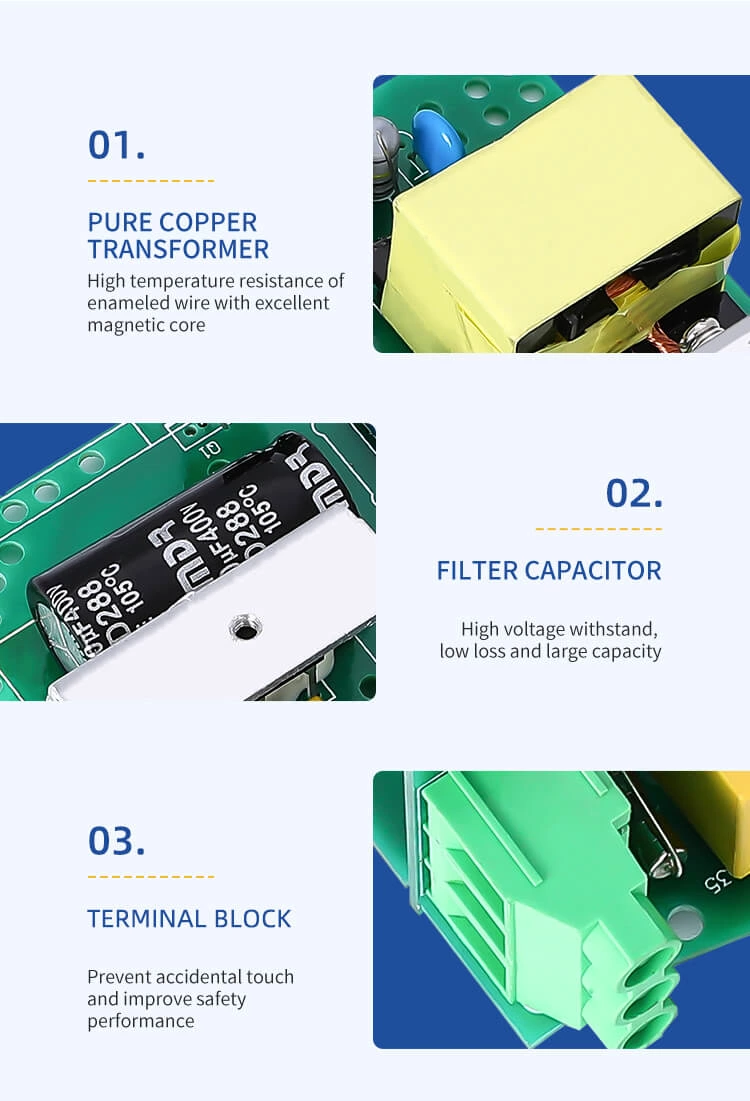

MODEL |
|
EDR-150-24 |
|
OUTPUT |
DC Voltage |
24V |
|
Rated Current |
6.5A/230VAC 5.2A/115VAC |
|
|
Current range |
0~6.5A/230VAC 0~5.2A/115VAC |
|
|
Rated power |
156W/230VAC 125W/115VAC |
|
|
Ripple&noise |
80mVp-p |
|
|
Voltage ADJ. |
24~28V |
|
|
Voltage tolerance |
±1.0% |
|
|
Line regulation |
±0.5% |
|
|
Load regulation |
±1.0% |
|
|
Setup,Rise,Time |
500ms,70ms/230VAC 500ms,70ms/115VAC(full load) |
|
|
Hold up time |
36ms/230VAC 32ms/115VAC(full load) |
|
|
INPUT |
Voltage range |
100～264VAC 140～370VDC |
|
Frequency range |
50~60Hz |
|
|
Efficiency |
86% |
|
|
AC current |
2.6A/115VAC 1.7A/230VAC |
|
|
Inrush current |
20A/115VAC 35A/230VAC |
|
|
Leakage current |
<3.0mA/240VAC |
|
|

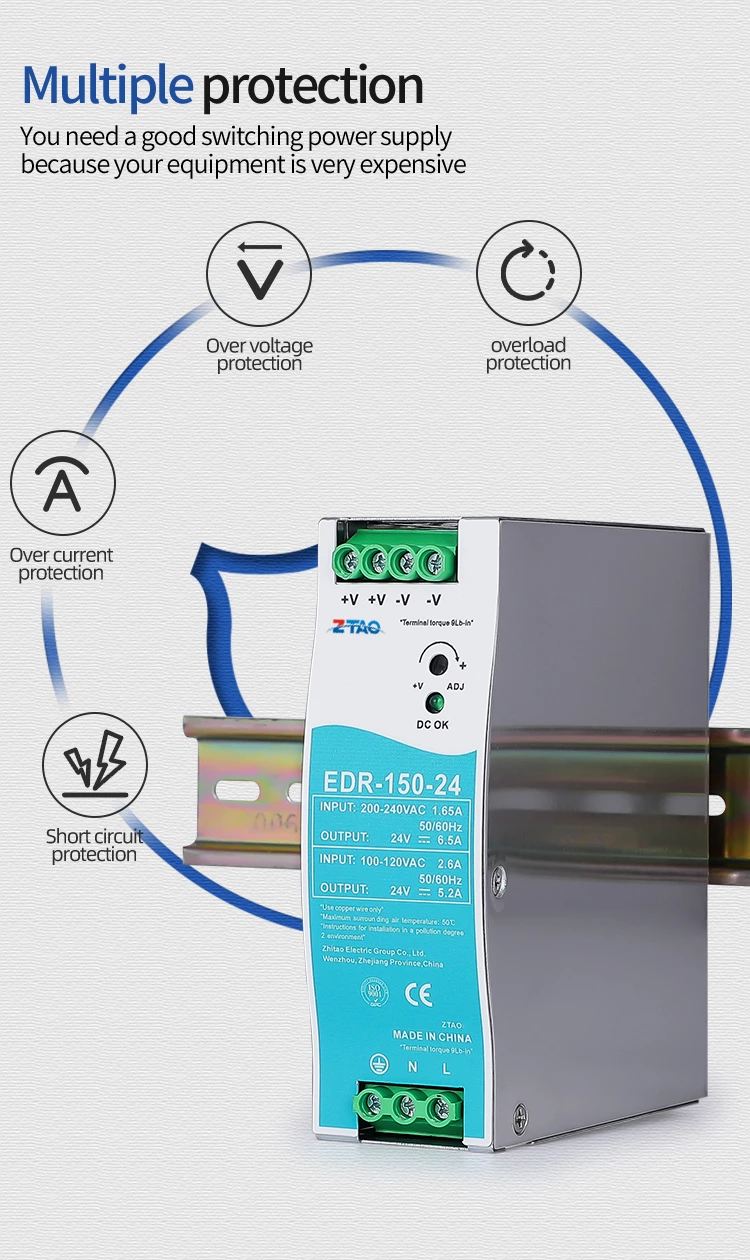

PROTECTION |
Over load |
105%~150% of rated output power |
|
Protection type : Hiccup mode,recovers automatically after fault condition is removed |
||
|
Over voltage |
29~33V |
|
|
Protected mode: turn off the output and restore the normal output after the power is restarted |
||
|
Protection mode: turn off the output voltage, it can be automatically restored when the temperature returns to normal |
||
|
Environment |
Working TEMP |
-10℃~+60℃ |
|
Working humidity |
20%~90% RH non-condensing |
|
|
Storage TEMP humidity |
-20℃~+75℃. 10%~95% RH |
|
|
TEMP.coefficient |
±0.03%℃(0-50℃) |
|
|
Vibration |
10~500Hz，2G 10min/1cycle，60min each along X,Y,Z axes， Install conform to IEC60068-2-6 |
|
|
SAFETY |
Safety regulations |
CE FCC ROHS CertifiedUL508, UL60950-1EAC TPTC 004In line with the certification |
|
Withstand voltage |
I/P-O/P:1.2KVAC I/P-FG:1.2KVA O/P-FG:0.5KVAC |
|
|
Insolation resistance |
l/P-O/P I/P-FG, 0/P-FG: 100M Ohms/500VDC/25℃/70% RH |
|
|
Electromagnetic compatible emission |
Compliance toEN55011 EN55032(CISPR32)CLASS B,EN61000-3-2,-3,EAC TP TC 020 |
|
|
EMC immunity requirements |
Compliance to EN61000-4-2,3.4.5.6.8,11. EN55024, EN1000-6-2(EN50082-2),Class A heavy industry standard EAC TP TC 020 |
|
|
OTHERS |
MTBF |
≥456.3K hrs.MIL-HDBK-217F(25℃) |
|

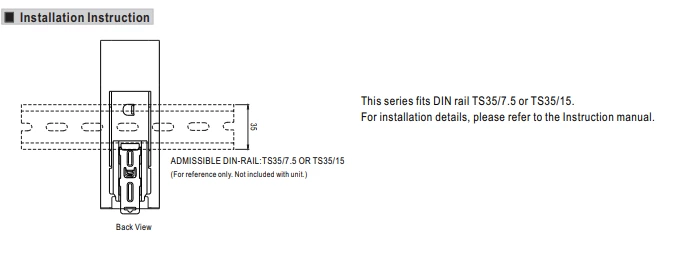

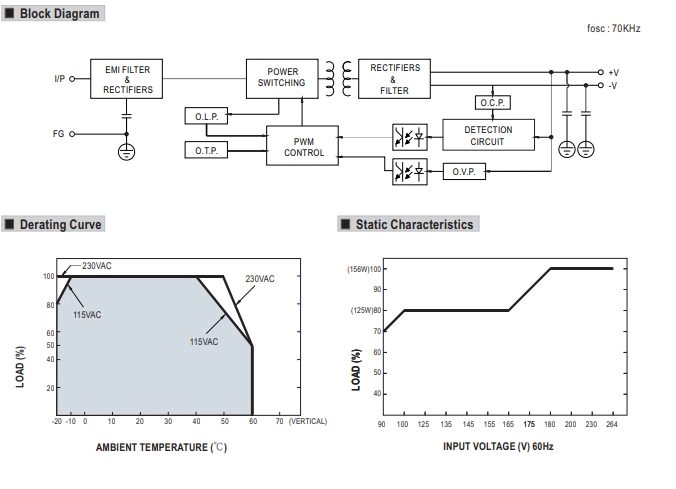

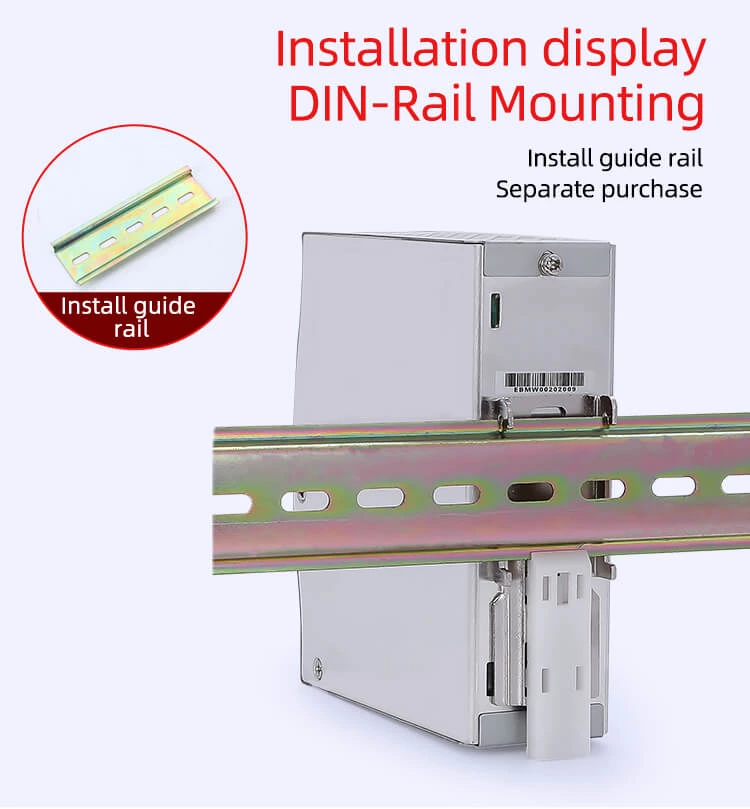

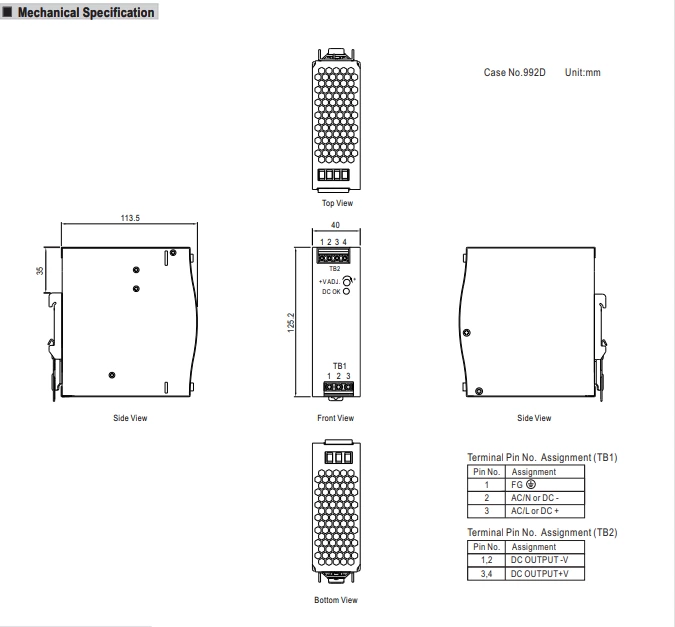

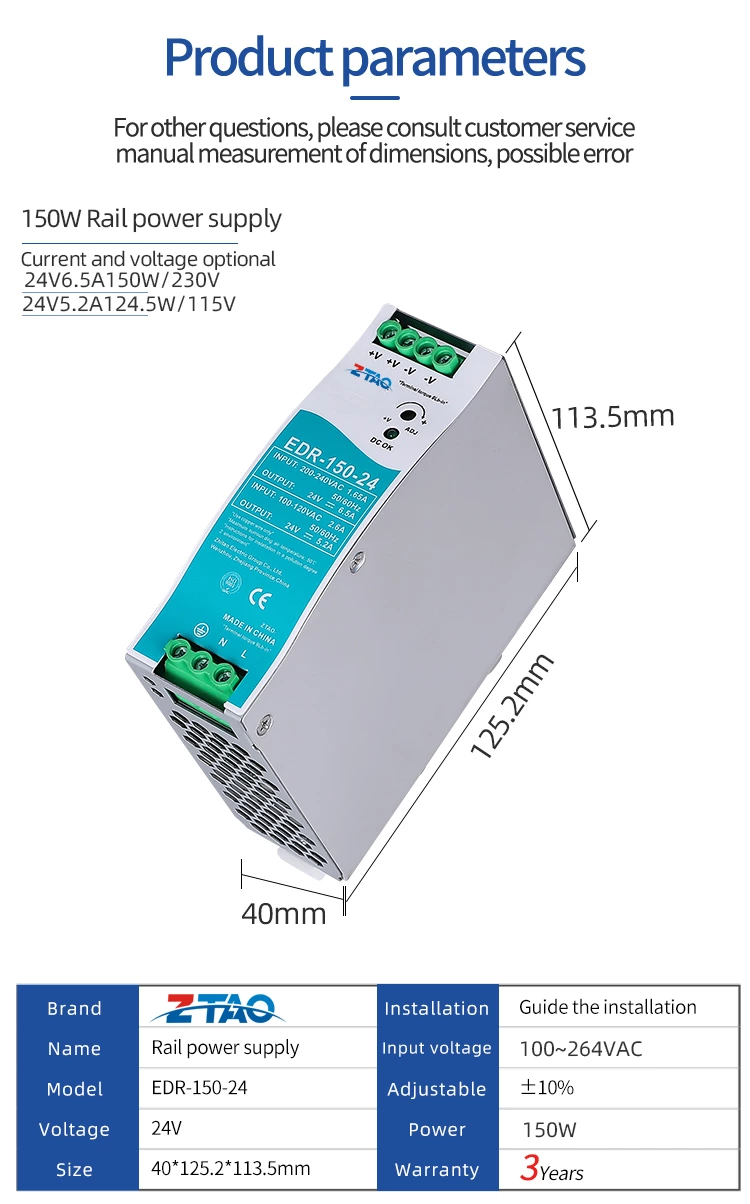

Dimension |
40*125.2*113.5mm(W*H*D) |
|
|
Packing |
0.6Kg:20PCS/13Kg 1.16CUFT |
