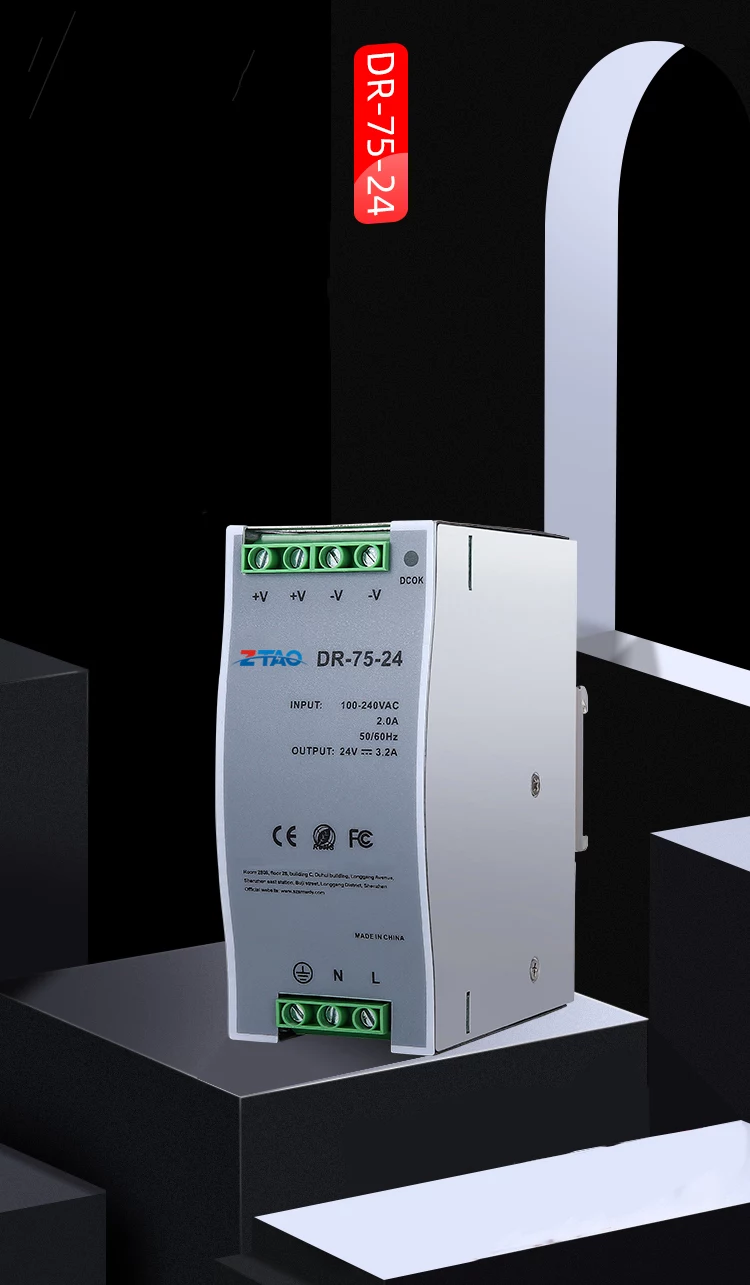

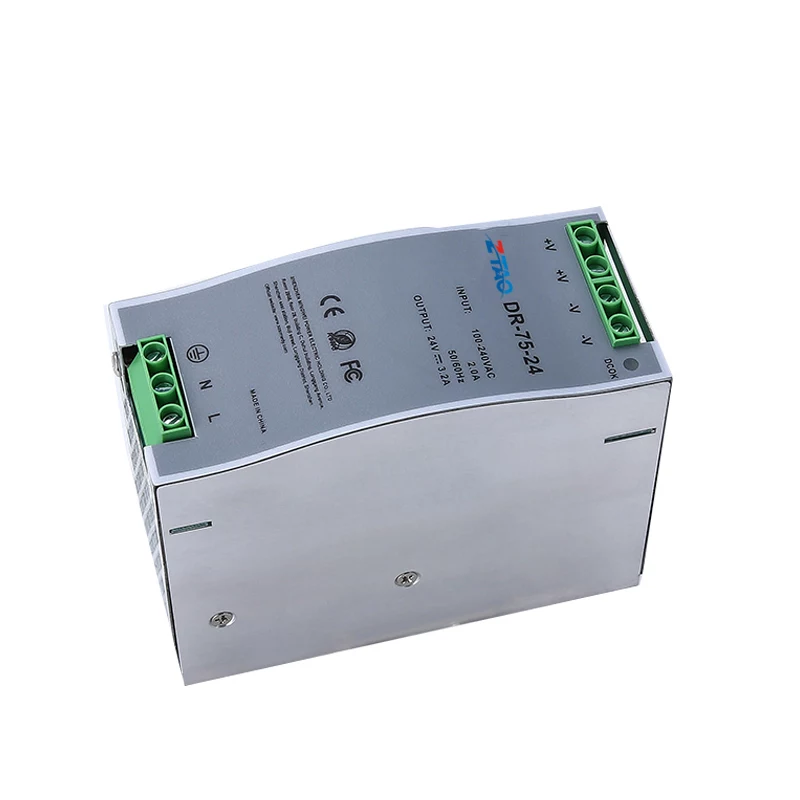

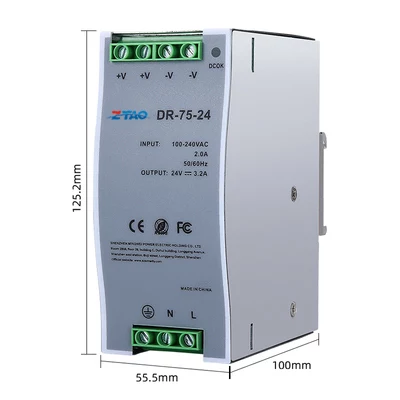

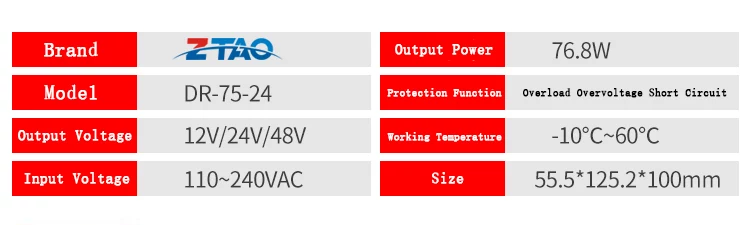

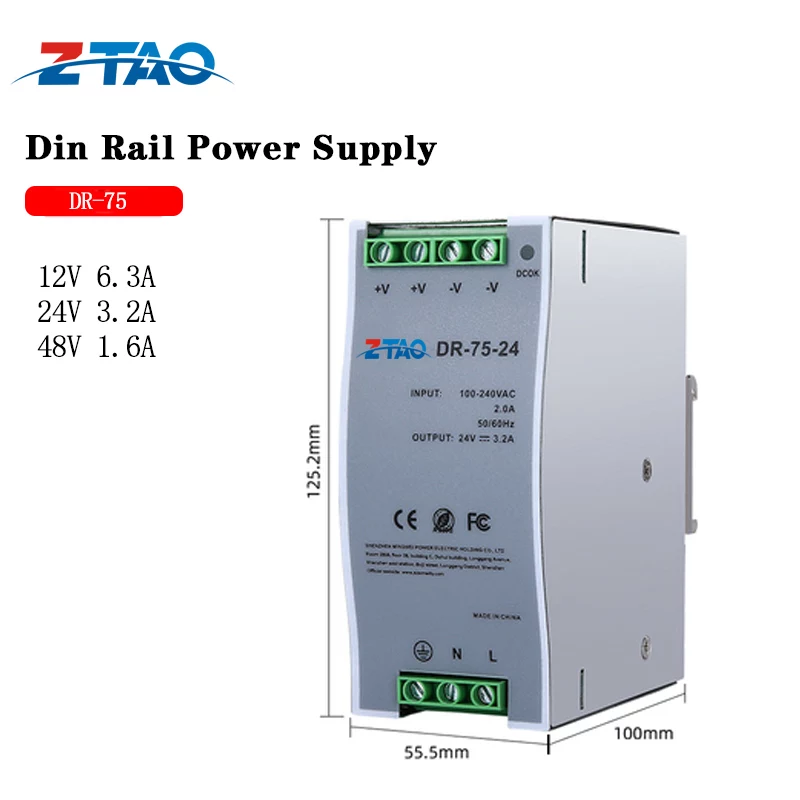

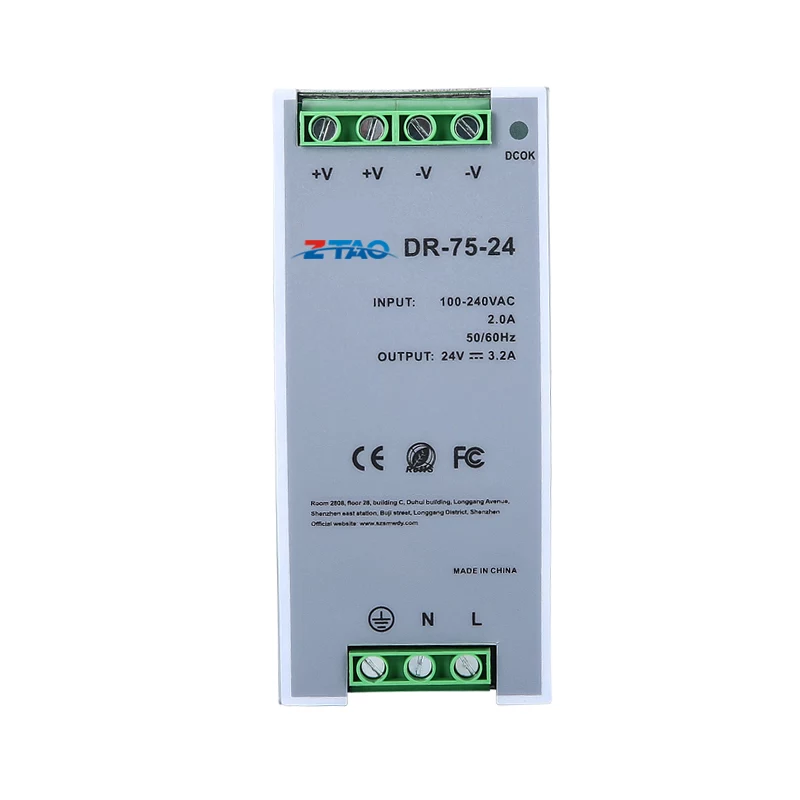

| Model | DR-75-12 | DR-75-24 | DR-75-48 |
| DC Voltage | 12v | 24v | 48v |
| Rated Current | 6.3A | 3.2A | 1.6A |
| Current range | 0~6.3A | 0~3.2A | 0~1.6A |
| Rated power | 75.6W | 76.8W | 76.8W |
| Ripple&noise | 100mVp-p | 150mVp-p | 240mVp-p |
| Voltage ADJ | 12~14V | 24~28V | 48~53V |
| Efficiency | 78% | 82% | 83% |

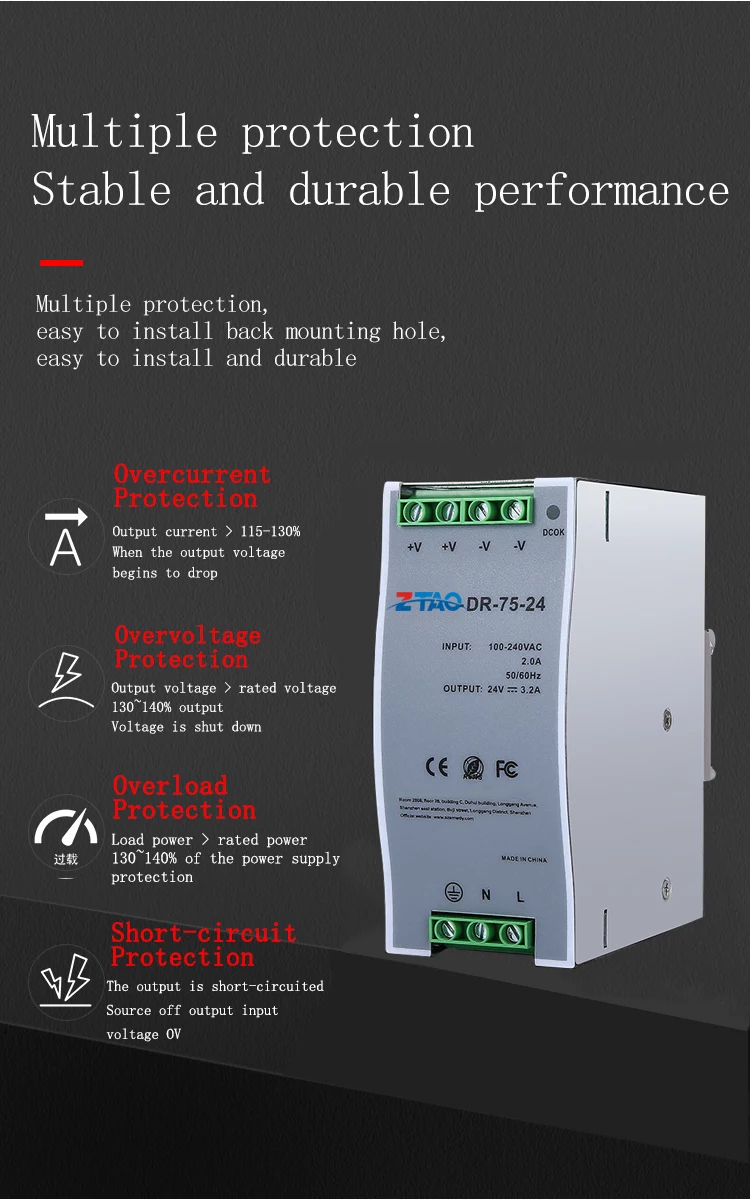

| Over load | 105~150% in rated output power | ||
| Protected mode: hiccup mode , can be automatically restored after the load abnormal condition is removed | |||
| Over voltage | 15~16.5V | 29~33V | 58~65V |
| Protective mode; Close the output and restart to restore | |||

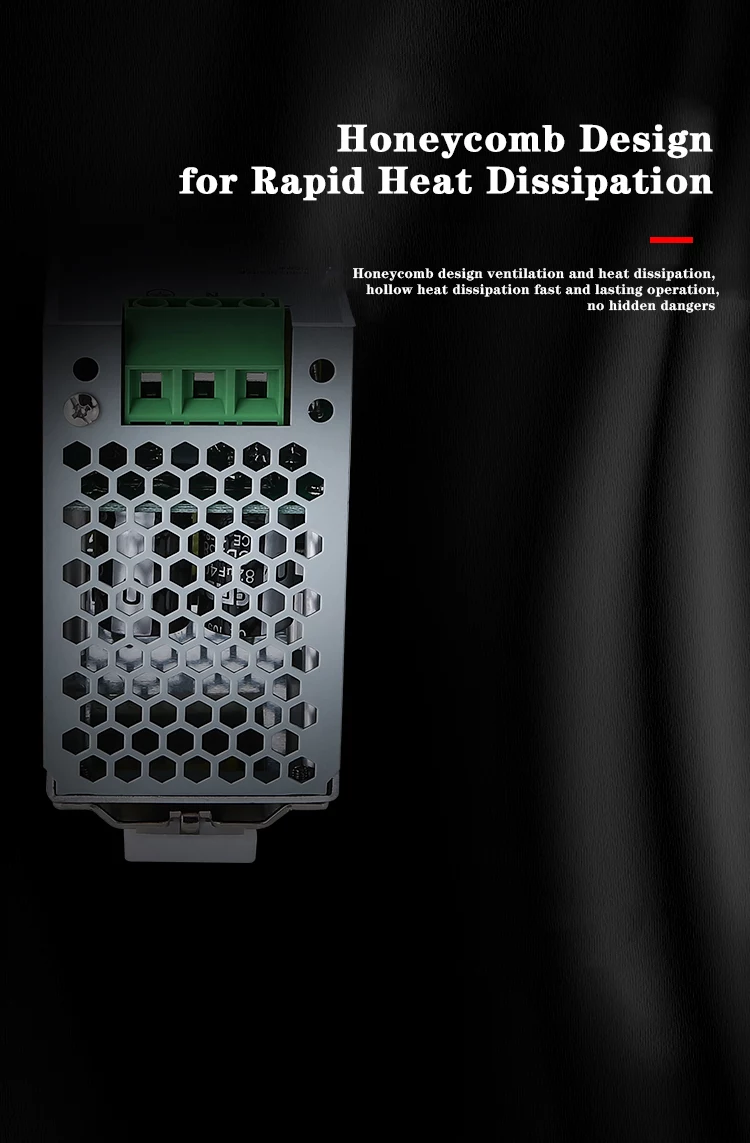

| OTP | Protection mode: turn off the output voltage, and automatically restore when the temperature returns to normal | ||
