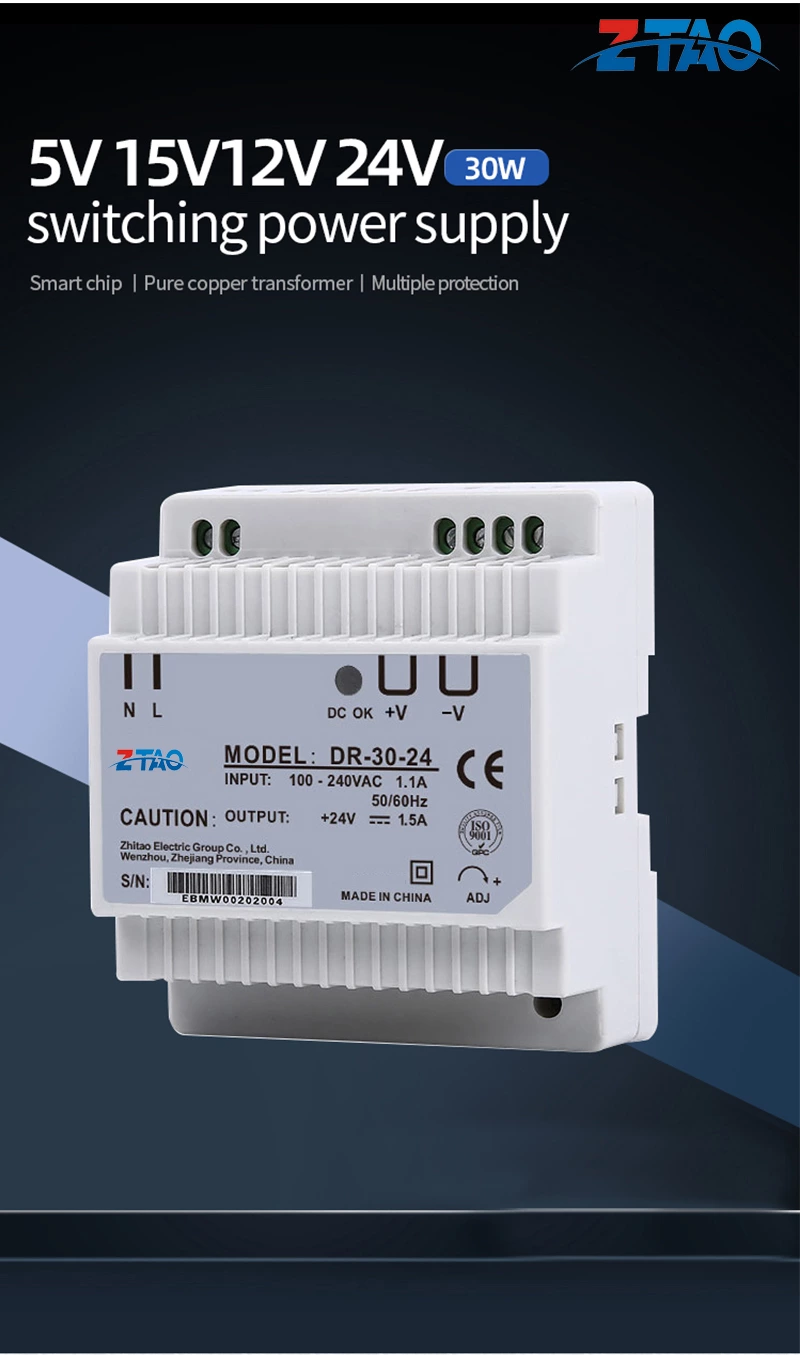

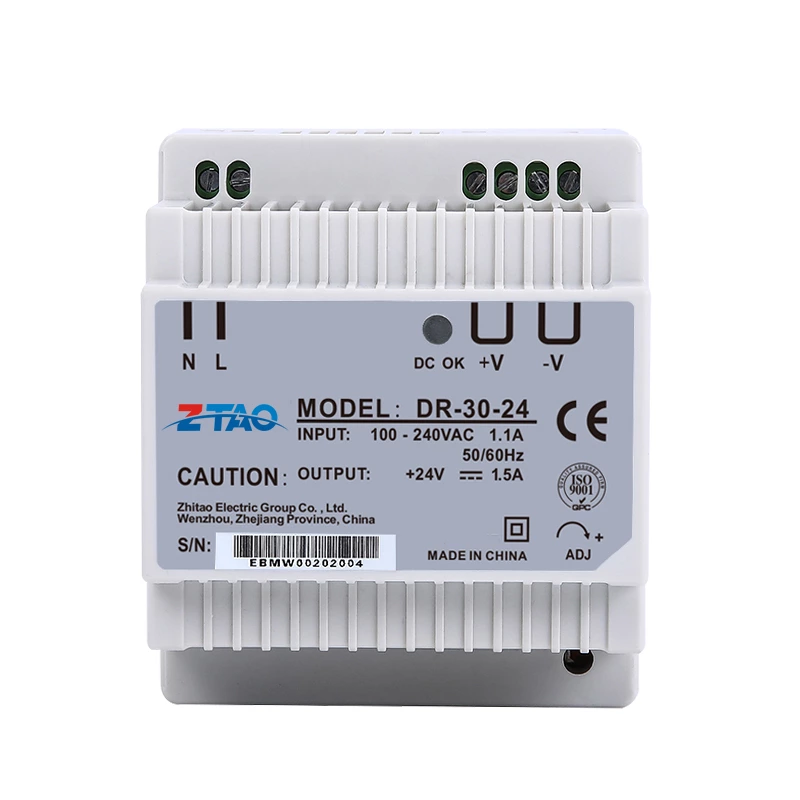

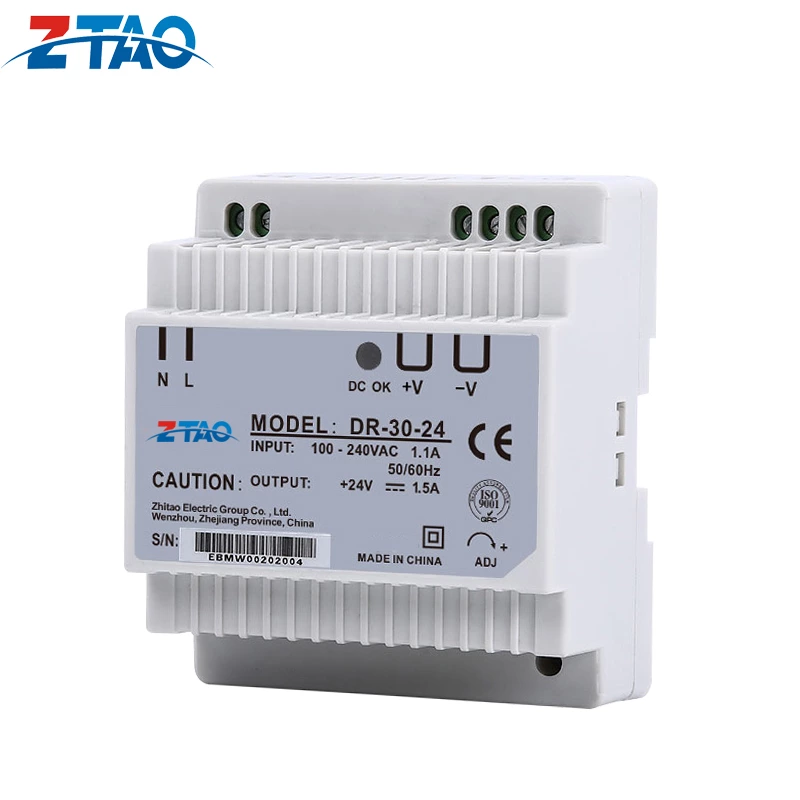

| MODEL | DR-30-5 | DR-30-12 | DR-30-15 | DR-30-24 | DR-30-48 | |
| OUTPUT | DC Voltage | 5V | 12V | 15V | 24V | 48V |
| Rated Current | 3A | 2A | 2A | 1.5A | 0.75A | |
| Current range | 0~3A | 0~2A | 0~2A | 0~1.5A | 0~0.75A | |
| Rated power | 15W | 24W | 30W | 36W | 36W | |
| Ripple&noise | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |
| Voltage ADJ | 4.7~6V | 12~14V | 13~17V | 23~28V | 48~53V | |
| Voltage tolerance n | ±2.0% | ±2.0% | ±2.0% | ±1.0% | ±1.0% | |
| Line regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Setup,Rise,Time | 100ms, 30ms/230VAC 100ms, 30ms/115VAC(full load) | |||||
| Hold up time | 100ms/230VAC 21ms/115VAC（full load) | |||||
| INPUT | Voltage range | 100~264VAC or 140~373VDC | ||||
| Voltage range | 50~60Hz | |||||
| Efficiency | 77% | 82% | 83% | 84% | 85% | |
| AC current | 1.2A/115VAC 0.8A/230VAC | |||||
| Inrush current | Cold start: 15A/115VAC 65A/230VAC | |||||
| Leakage current | <2mA/240VAC | |||||

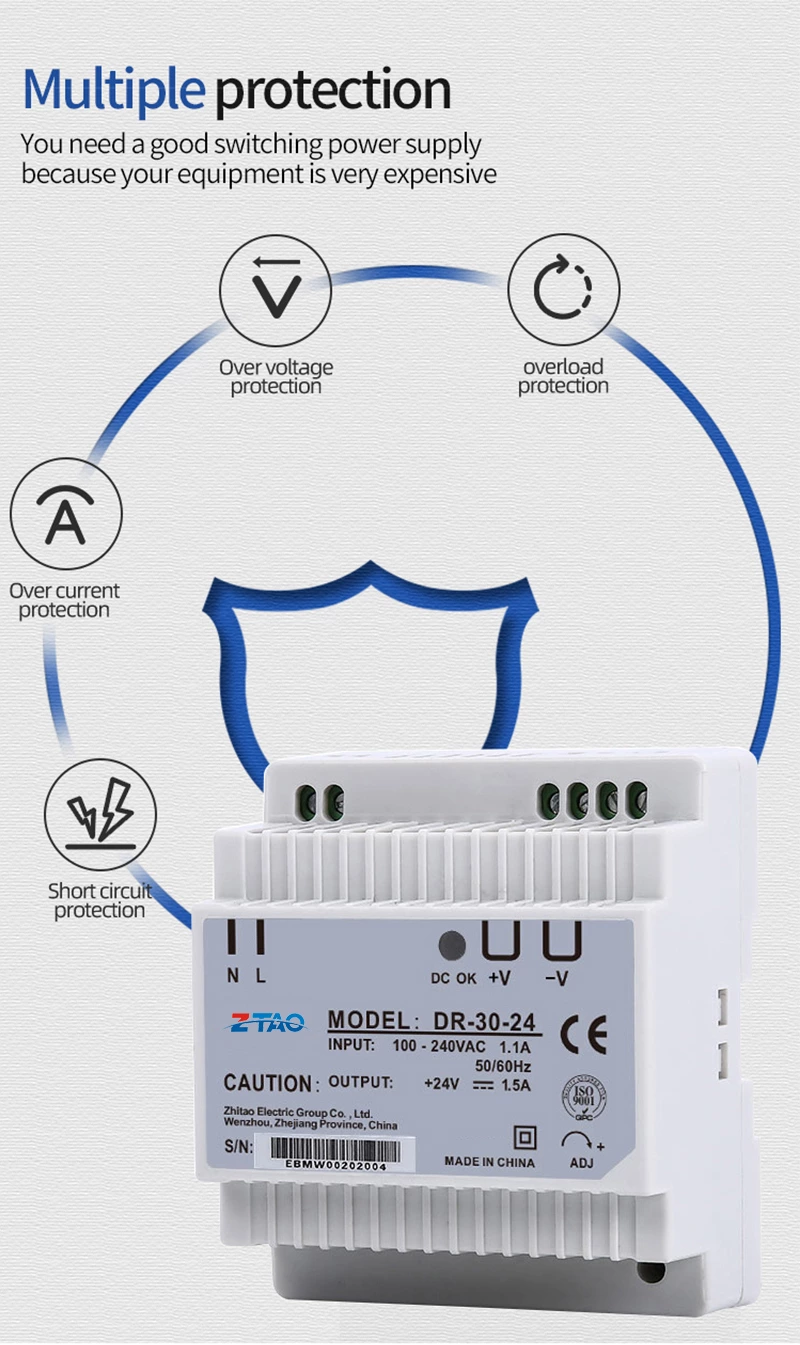

| PROTECTION | Over load | 105%~150% of the rated output | ||||
| Protected mode: hiccup mode , can be automatically restored after the load abnormal condition is removed | ||||||
| Over voltage | 5.75~6.9V | 15~16.5V | 17~20V | 29~33V | 58~65V | |
| Protective mode; Close the output and restart to restore | ||||||
| Environment | Working TEMP | -10~+60℃ | ||||
| Working humidity | 20~90% RH,non-condensing | |||||
| Storage TEMP humidity | -10~+75℃,10-95%RH, | |||||
| TEMP.coefficient | ±0.03%℃(0~50℃) | |||||
| Vibration | 10~500Hz，2G 10min./1cycle，60min each along X,Y,Z axes Install conform to IEC60068-2-6 | |||||
| SAFETY&EMC | Safety regulations | UL508 UL60950-1, TUV EN60950-1 EAC TPTC 004 In line with the certification | ||||
| Withstand voltage | I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.4KVAC | |||||
| Insulation impedance | I/P-O/P I/P-FG. O/P-FG: 100M Ohms/500VDC/25℃/70% RH | |||||
| Electromagnetic compatible emission | Conform to the EN55011.EN55032(CISPR32)CLASS B.EN61000-3-2.-3.EAC TP TC 020 | |||||
| EMC immunity requirements | Conform to the EN61000-4-2.3.4,5,6.8,11, EN55024, EN1000-6-2(EN50082-2). Class A heavy industry standard | |||||
| OTHERS | MTBF | ≥441K hrs.MIL-HDBK-217F(25℃) | ||||

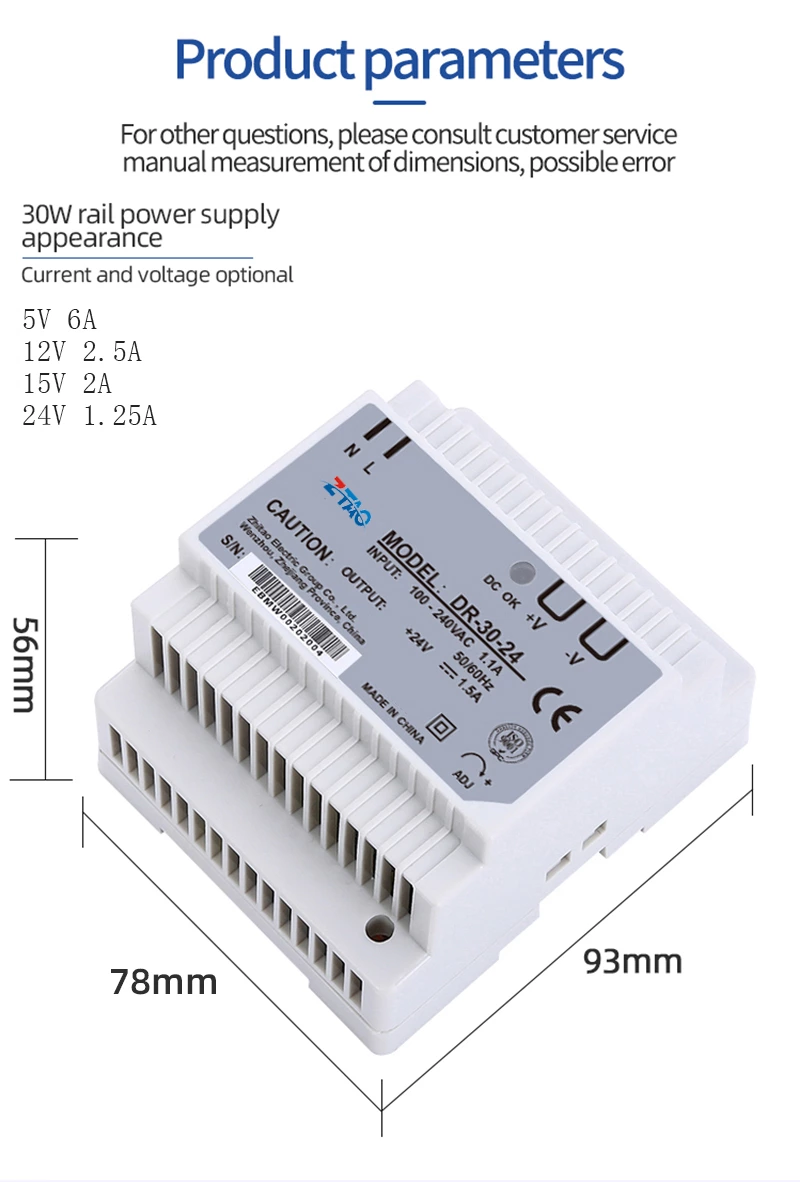

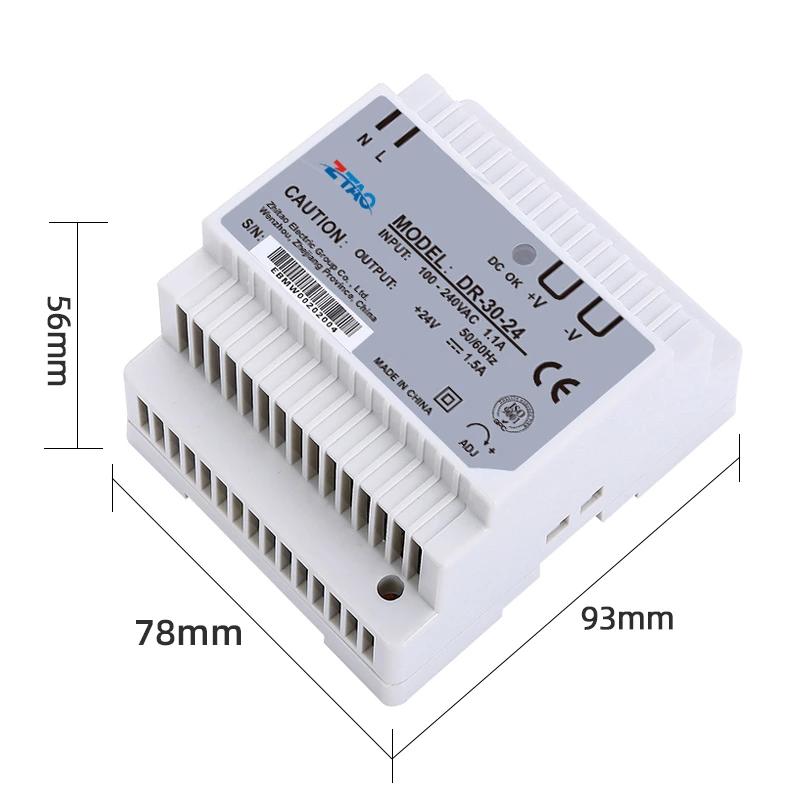

| Dimension | 78*93*56mm (W*H*D) | |||||
| Packing | 0.25Kg;50pcs/15Kg | |||||
