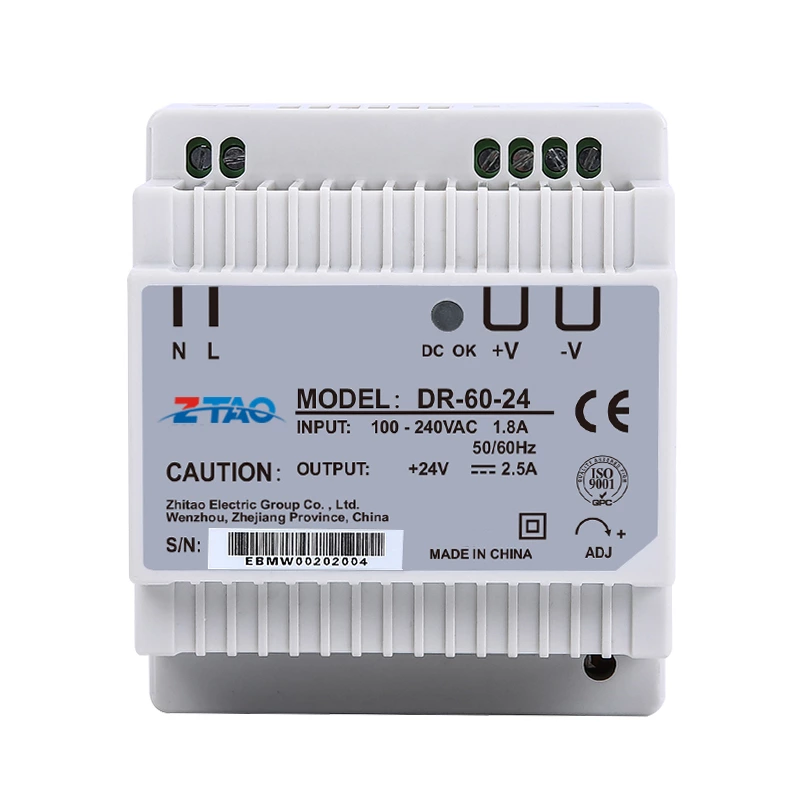

MODEL |
|
DR-60-5 |
DR-60-12 |
DR-60-15 |
DR-60-24 |
DR-60-48 |
|
OUTPUT |
DC Voltage |
5V |
12V |
15V |
24V |
48V |
|
Rated Current |
6.5A |
5.0A |
4.0A |
2.5A |
1.25A |
|
|
Current range |
0~6.5A |
0~5.0A |
0~4.0A |
0~2.5A |
0~1.25A |
|
|
Rated power |
32.5W |
60W |
60W |
60W |
60W |
|
|
Ripple&noise |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
150mVp-p |
|
|
Voltage ADJ |
4.7~6V |
12~14V |
13~17V |
23~28V |
48~53V |
|
|
Voltage tolerance |
±2.0% |
±2.0% |
±2.0% |
±1.0% |
±1.0% |
|
|
Line regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
Load regulation |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
Setup,Rise,Time |
100ms, 50ms/230VAC 200ms, 50ms/115VAC(full load) |
|||||
|
Hold up time |
100ms/230VAC 23ms/115VAC（full load) |
|||||
|
INPUT |
Voltage range |
100~264VAC or 140~373VDC |
||||
|
Voltage range |
50~60Hz |
|||||
|
Efficiency |
78% |
82% |
83% |
84% |
85% |
|
|
AC current |
1.2A/115VAC 0.8A/230VAC |
|||||
|
Inrush current |
Cold start: 18A/115VAC 36A/230VAC |
|||||
|
Leakage current |
<2mA/240VAC |
|||||
|

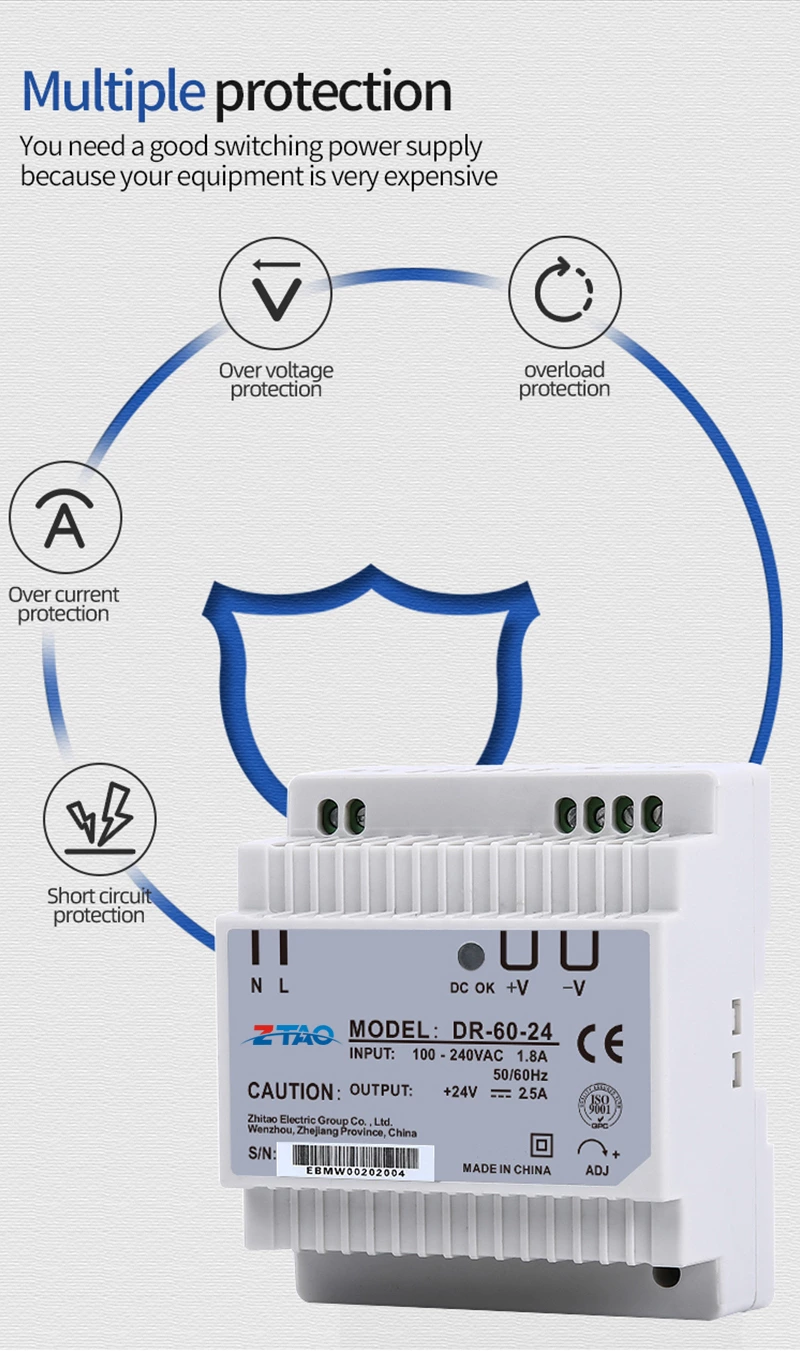

PROTECTION |
Over load |
105~150% rated output power |
||||
|
Protected mode: hiccup mode , can be automatically restored after the load abnormal condition is removed |
||||||
|
Over voltage |
5.75~6.9V |
15~16.5V |
17~20V |
29~33V |
58~65V |
|
|
Protective mode; Close the output and restart to restore |
||||||
|
Environment |
Working TEMP |
-10℃~+60℃ |
||||
|
Working humidity |
20~90% RH,non-condensing |
|||||
|
Storage TEMP humidity |
-10℃~+75℃,10-95%RH, |
|||||
|
TEMP.coefficient |
±0.03%℃(0~50℃) |
|||||
|
Vibration |
10~500Hz，2G 10min./1cycle，60min each along X,Y,Z axes Install conform to IEC60068-2-6 |
|||||
|
SAFETY&EMC |
Safety regulations |
UL508 Ul60950-1, TUV EN60950-1 EAC TP TC 004 In line with the certification |
||||
|
Withstand voltage |
I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.4KVAC |
|||||
|
Insulation impedance |
I/P-O/P I/P-FG. O/P-FG: 100M Ohms/500VDC/25℃/70% RH |
|||||
|
Electromagnetic compatible emission |
Conform to the EN55011 EN55032 (CISPR32)CLASS B.EN61000-3-2.3.EAC TP TC 020 |
|||||
|
Conform to the EN61000-4-2.3.4,5,6.8,11, EN55024, EN1000-6-2(EN50082-2). Class A heavy industry standard |
||||||
|
OTHERS |
MTBF |
≥441K hrs.MIL-HDBK-217F(25℃) |
||||
|

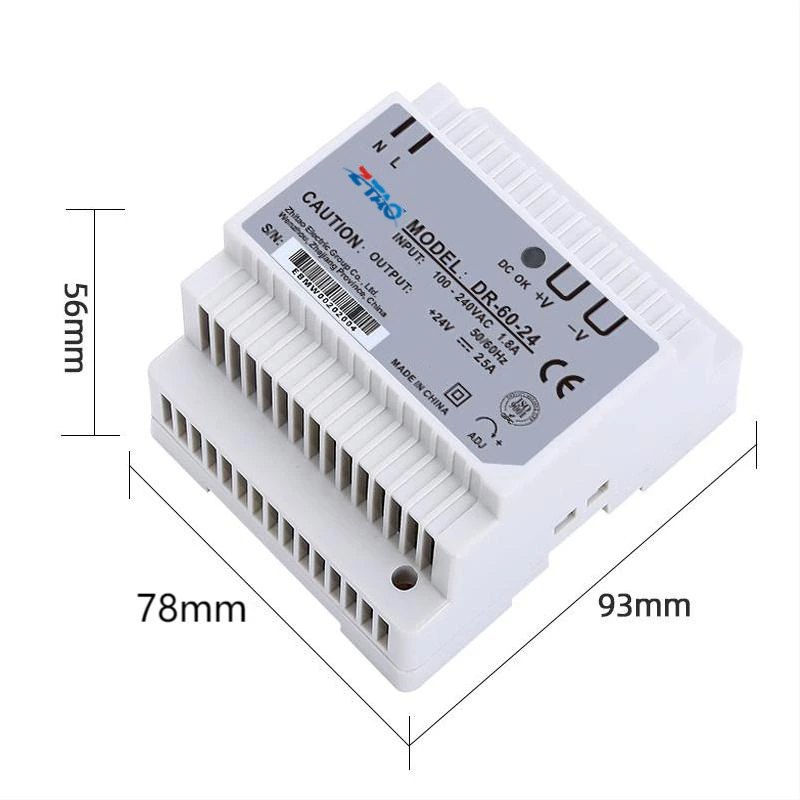

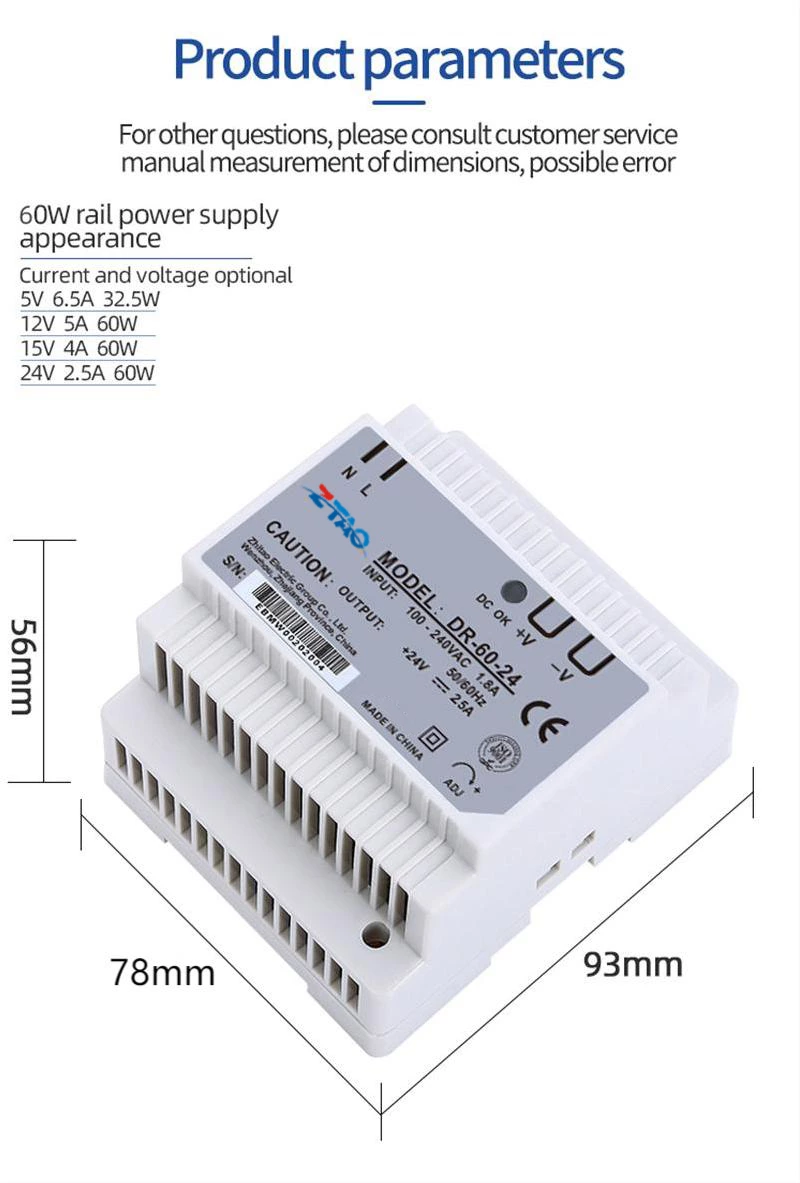

Dimension |
78*93*56mm (W*H*D) |
|||||
|
Packing |
0.25Kg;50pcs/15Kg |
|||||
